CUSCO Rear Camber Adjuster - Swift Sport ZC32S
24459
JPY
CUSCO
SKU: 287438

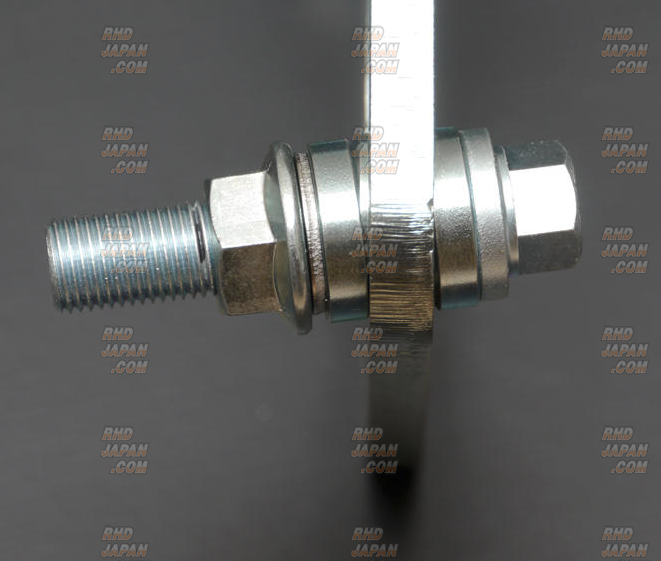

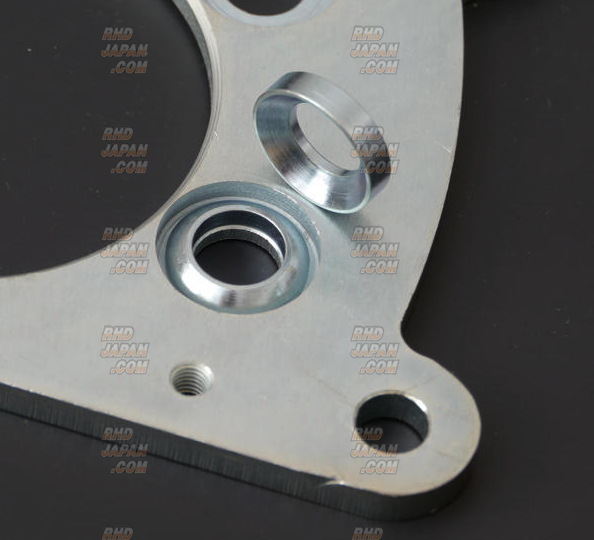

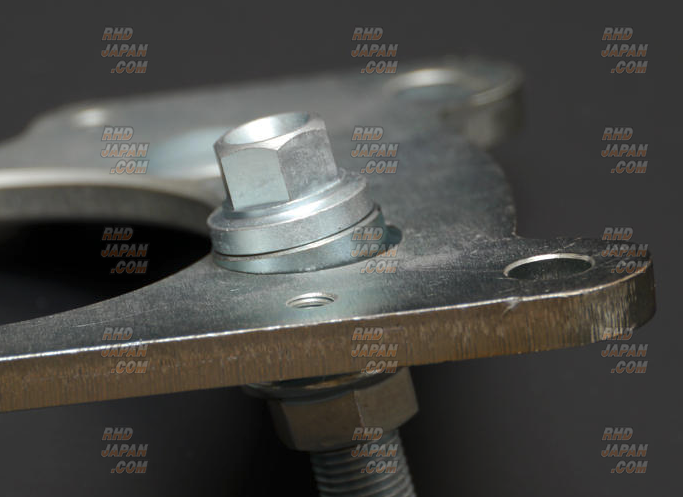

PN: 619 455 A (619-455-A)These items are designed as a direct bolt on application in between the rear wheel hub bearing unit and torsion bar. Ideal for realignment of rear end wheel camber and/or toe settings especially for lowered application. Compatible with a wide array of adjustability for fine refinement in dialing in these setting in relationship to ride height. Get this and all your JDM at RHDJapan!
Brand: CUSCO
Product: Rear Camber Adjuster - Swift Sport ZC32S
Part Num: 619 455 A (619-455-A)
SPECIFICATIONS:
Material: Tempered Steel
Included Adjustable Shims: 2.0mm Thick X 4pcs
Maximum adjustable camper with included shims (°): 1.9
JAN Code: 4996338024527
PRODUCT NOTES:
-Alignment required after installation
Optional Shims Sold Separately:

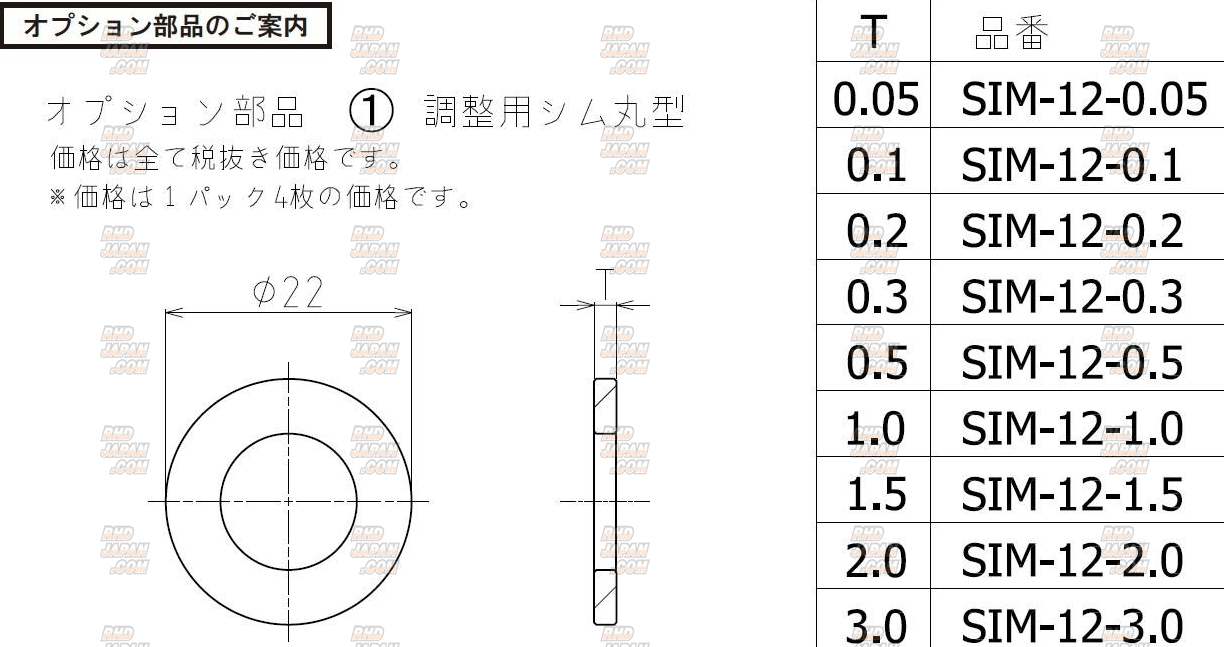

Round Type:
-Thickness (mm): 0.05 (Part Number: SIM-12-0.05)
-Thickness (mm): 0.1 (Part Number: SIM-12-0.1)
-Thickness (mm): 0.2 (Part Number: SIM-12-0.2)
-Thickness (mm): 0.3 (Part Number: SIM-12-0.3)
-Thickness (mm): 0.5 (Part Number: SIM-12-0.5)
-Thickness (mm): 1.0 (Part Number: SIM-12-1.0)
-Thickness (mm): 1.5 (Part Number: SIM-12-1.5)
-Thickness (mm): 2.0 (Part Number: SIM-12-2.0)
-Thickness (mm): 3.0 (Part Number: SIM-12-3.0)

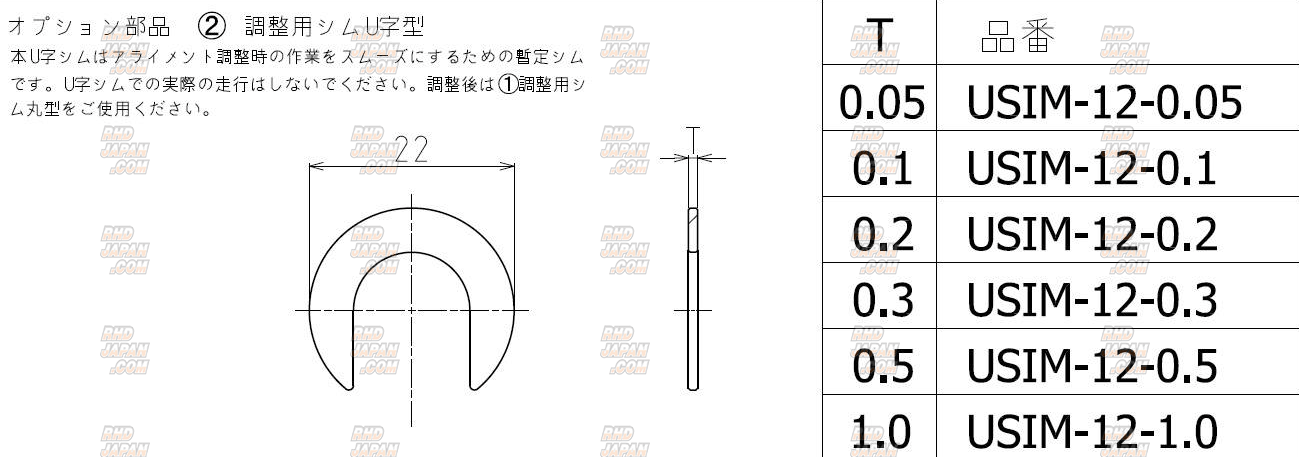

U-Shaped Type (for carrying out alignment adjustment, not to be used for road application):
-Thickness (mm): 0.05 (Part Number: USIM-12-0.05)
-Thickness (mm): 0.1 (Part Number: USIM-12-0.1)
-Thickness (mm): 0.2 (Part Number: USIM-12-0.2)
-Thickness (mm): 0.3 (Part Number: USIM-12-0.3)
-Thickness (mm): 0.5 (Part Number: USIM-12-0.5)
-Thickness (mm): 1.0 (Part Number: USIM-12-1.0)
COMPATIBILITY NOTES:
- All specs and grades.
Product: Rear Camber Adjuster - Swift Sport ZC32S
Part Num: 619 455 A (619-455-A)
SPECIFICATIONS:
Material: Tempered Steel
Included Adjustable Shims: 2.0mm Thick X 4pcs
Maximum adjustable camper with included shims (°): 1.9
JAN Code: 4996338024527
PRODUCT NOTES:
-Alignment required after installation
Optional Shims Sold Separately:
Round Type:
-Thickness (mm): 0.05 (Part Number: SIM-12-0.05)
-Thickness (mm): 0.1 (Part Number: SIM-12-0.1)
-Thickness (mm): 0.2 (Part Number: SIM-12-0.2)
-Thickness (mm): 0.3 (Part Number: SIM-12-0.3)
-Thickness (mm): 0.5 (Part Number: SIM-12-0.5)
-Thickness (mm): 1.0 (Part Number: SIM-12-1.0)
-Thickness (mm): 1.5 (Part Number: SIM-12-1.5)
-Thickness (mm): 2.0 (Part Number: SIM-12-2.0)
-Thickness (mm): 3.0 (Part Number: SIM-12-3.0)
U-Shaped Type (for carrying out alignment adjustment, not to be used for road application):
-Thickness (mm): 0.05 (Part Number: USIM-12-0.05)
-Thickness (mm): 0.1 (Part Number: USIM-12-0.1)
-Thickness (mm): 0.2 (Part Number: USIM-12-0.2)
-Thickness (mm): 0.3 (Part Number: USIM-12-0.3)
-Thickness (mm): 0.5 (Part Number: USIM-12-0.5)
-Thickness (mm): 1.0 (Part Number: USIM-12-1.0)
COMPATIBILITY NOTES:
- All specs and grades.
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Suzuki Swift Sport ZC32S M16A (12/2011-09/2017)
Suzuki Swift Sport ZC32S M16A (12/2011-09/2017)
