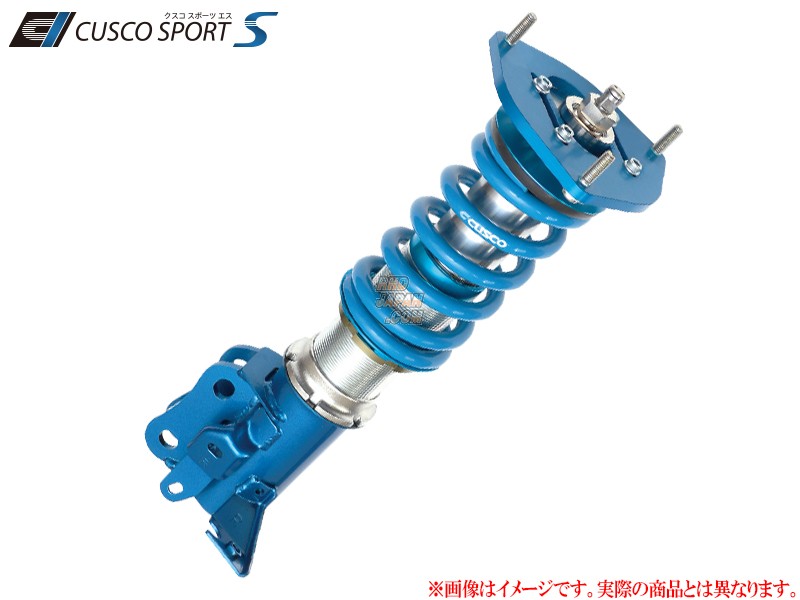

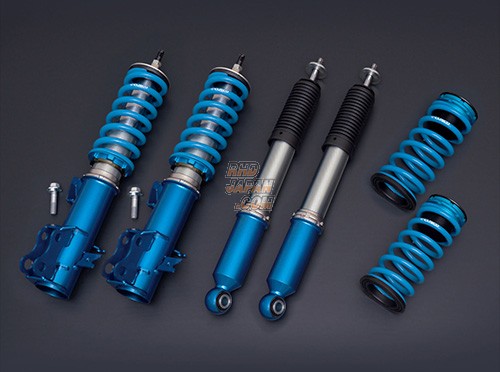

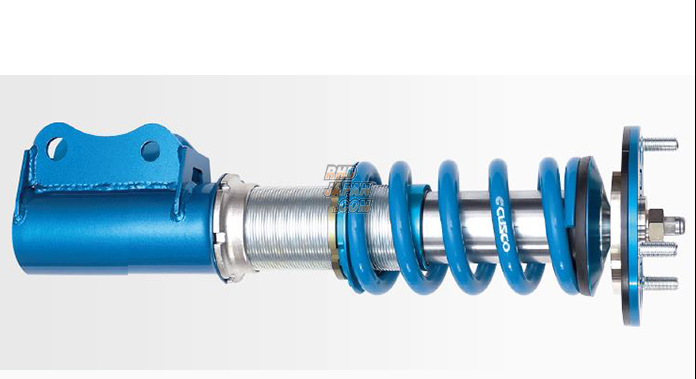

Designed for sport competition driving this suspension coilover kit is designed with full adjustable ride height feature which retains full shock stroke length and spring preload. The inverted shock is made from light weight aluminum and features a mono-tube 24-step shock absorber. The specific internal valving is designed both for those who mainly track their vehicles and at times, drive it on the street. The inverted damper prevents external elements from entering the shock casing and retains structural rigidity for added stress loads applied to the coilover. Comes with camber adjustable pillow-ball upper mount and/or rubber upper seat depending on its vehicle application.
Get this and all your JDM at RHDJapan!!
Get this and all your JDM at RHDJapan!!
Brand: CUSCO
Product: Sport S Coilover Suspension Kit - CR-Z ZF1 ZF2
Part Num: 309 64S CB
SPECIFICATIONS:
Maximum Adjustment Range (mm):
- Front: -55 to 0
- Rear: -55 to -25
Recommended Adjustment Range (mm):
- Front: -45 to 0
- Rear: -55 to -25
Spring rate (kgf/mm):
- Front: 6 (Option Rates: 7,8,9)
- Rear: 4 (Option Rates: 3.5,5,6 )

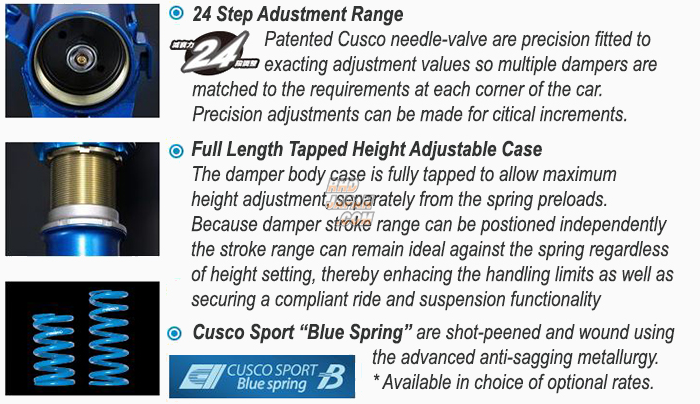

Damping force adjustment
- Front: 24 Stages
- Rear: 24 Stages
E-con:
- Front: -
- Rear: -

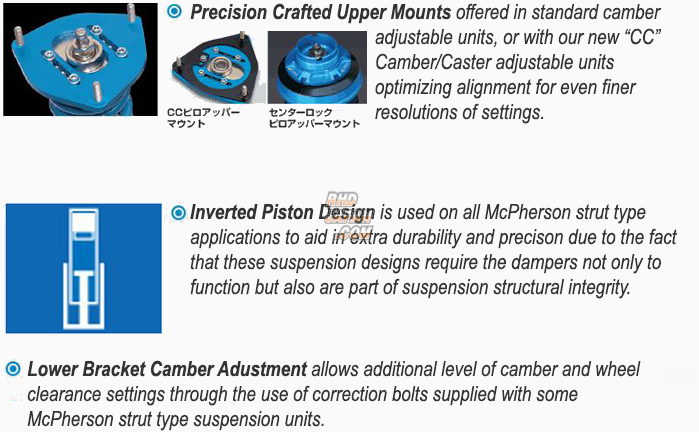

Upper Mount:
- Front: N/A
- Rear: N/A
Height adjustment system:
- Front: Coaxial Length Adjustment
- Rear: Coaxial Length Adjustment
Product: Sport S Coilover Suspension Kit - CR-Z ZF1 ZF2
Part Num: 309 64S CB
SPECIFICATIONS:
Maximum Adjustment Range (mm):
- Front: -55 to 0
- Rear: -55 to -25
Recommended Adjustment Range (mm):
- Front: -45 to 0
- Rear: -55 to -25
Spring rate (kgf/mm):
- Front: 6 (Option Rates: 7,8,9)
- Rear: 4 (Option Rates: 3.5,5,6 )
Damping force adjustment
- Front: 24 Stages
- Rear: 24 Stages
E-con:
- Front: -
- Rear: -
Upper Mount:
- Front: N/A
- Rear: N/A
Height adjustment system:
- Front: Coaxial Length Adjustment
- Rear: Coaxial Length Adjustment
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Honda CR-Z ZF1 LEA-MF6 (02/2010-09/2012)
Honda CR-Z ZF2 LEA-MF6 (09/2012-07/2015)
Honda CR-Z ZF2 LEA-MF6 (08/2015~)
Honda CR-Z ZF1 LEA-MF6 (02/2010-09/2012)
Honda CR-Z ZF2 LEA-MF6 (09/2012-07/2015)
Honda CR-Z ZF2 LEA-MF6 (08/2015~)
