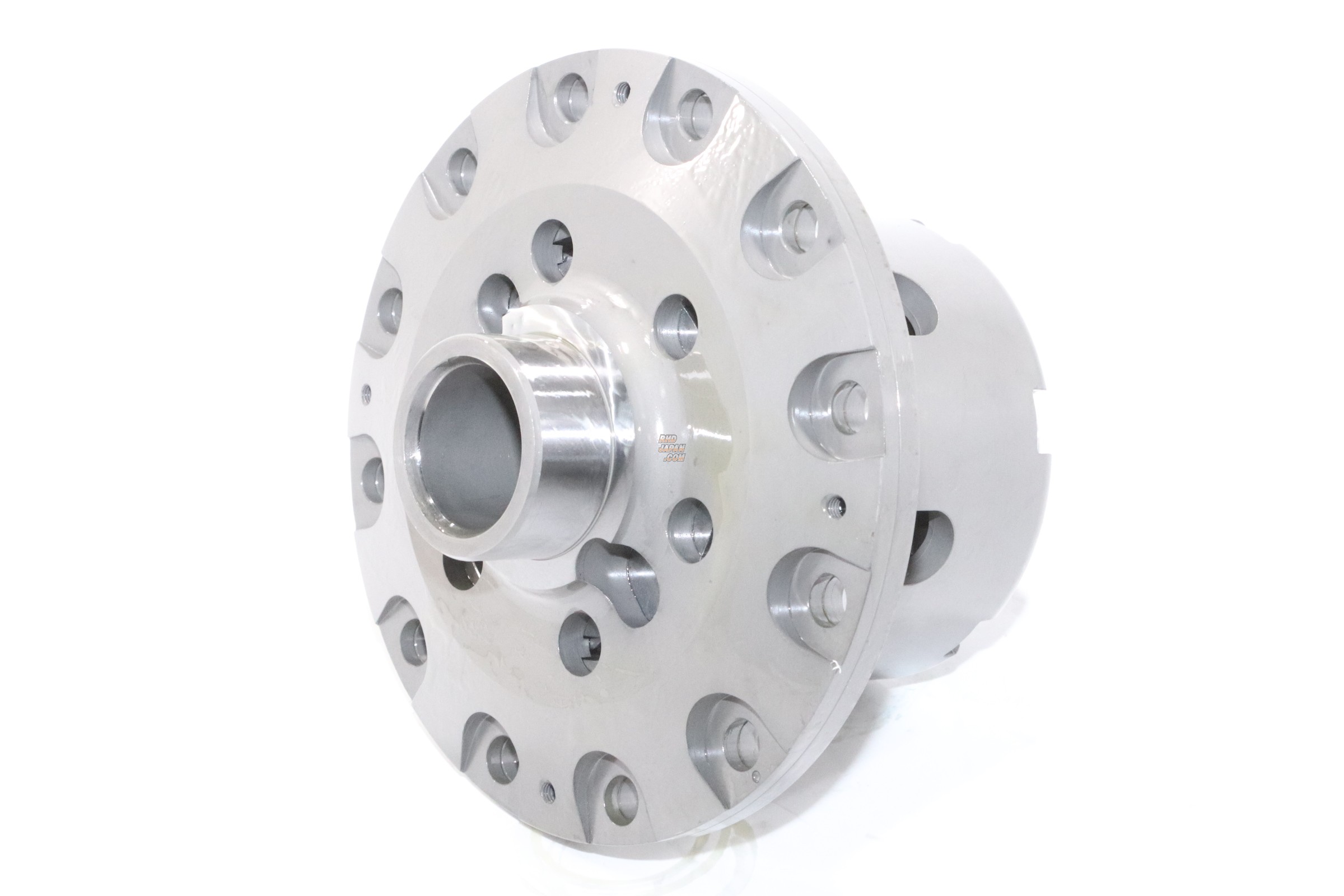

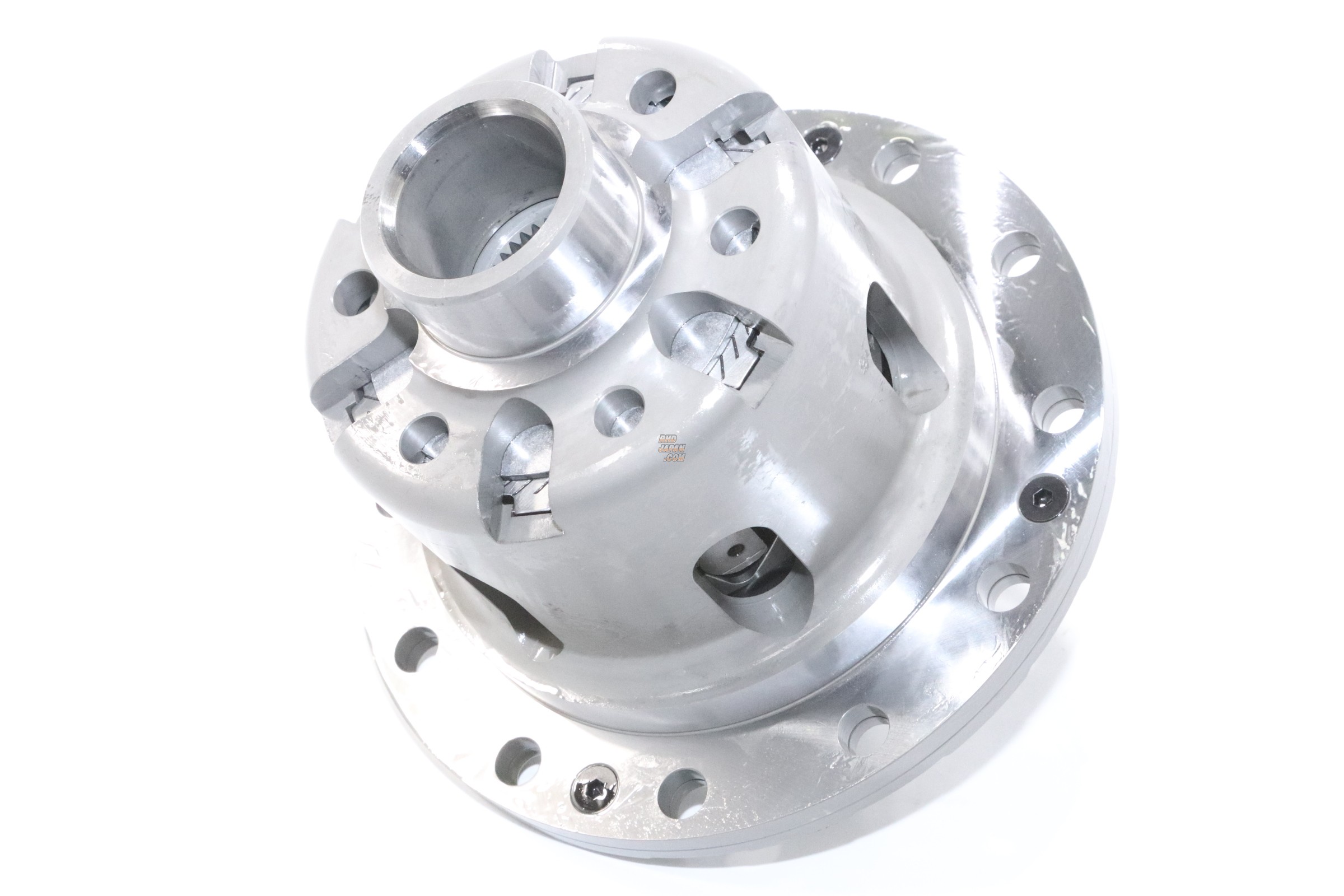

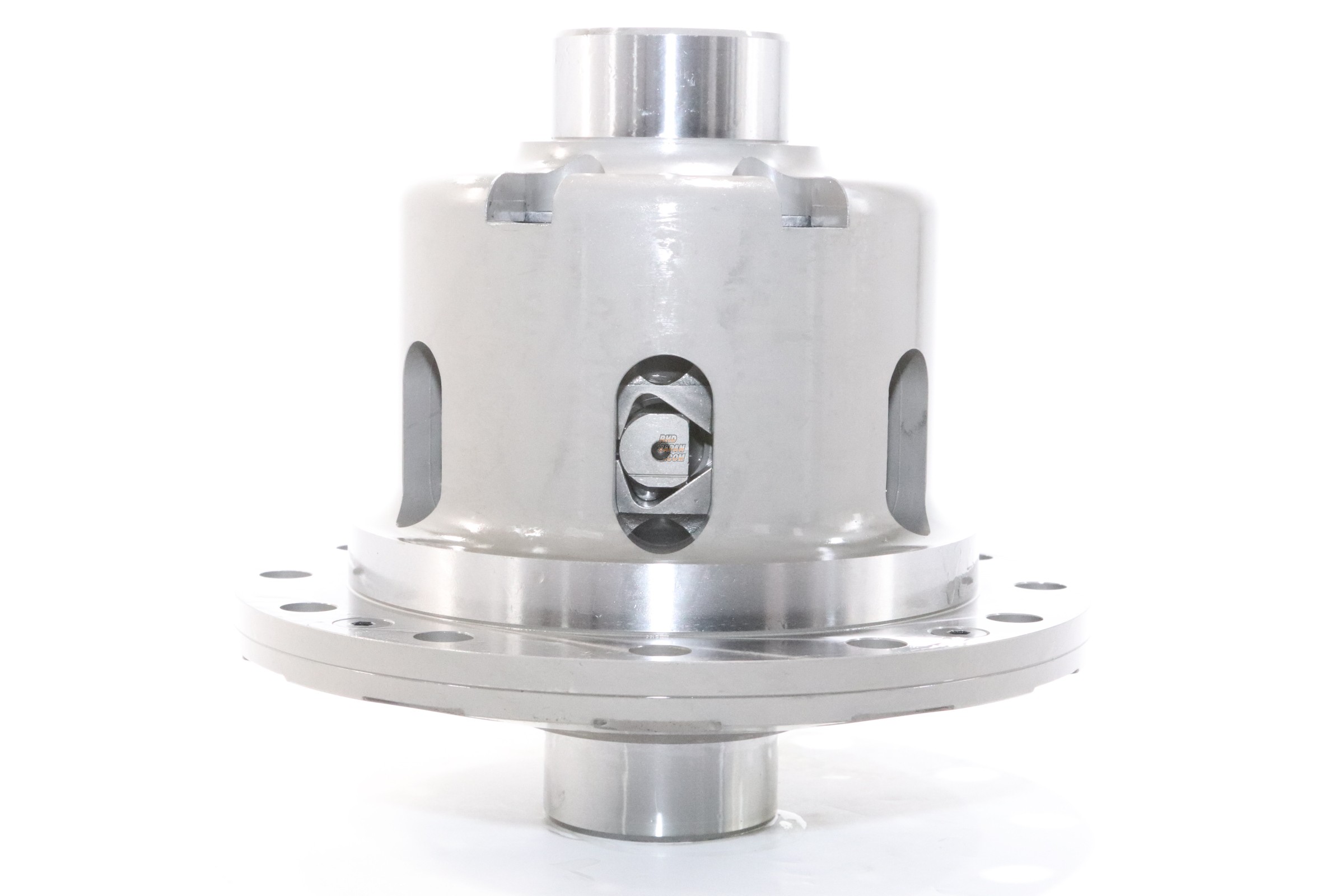

Cusco Type RS LSD Limited Slip Differential Rear 1.5&2 Way - LSD141L15
105339
JPY
CUSCO
SKU: 82736
PN: LSD 141 L15The RS LSD uses a spring technology which keeps differential noises to a minimum, improves durability due to the clutch plates enduring lower pressures, and better lap times from low power loss for any vehicle. With Cusco's long time development of LSD's, they have been able to produce top quality LSD's for a wide selection of different vehicles. Cusco's extensive LSD knowledge and experience has produced some of the most versatile, durable and effective LSD's on the market. In addition, some LSD's can be changed between the different Way configurations for the best results in different race applications.
Here is a description from Cusco explaining the differences between the differential types available for the aftermarket:
One way LSD - specially suited for front wheel drive cars and 4WD car front axles. Activates under acceleration, and acts as a true LSD when the throttle is off. A great chance for improved lap times. A CUSCO original design.
1.5 way LSD - Activates under acceleration while the understeer is less than on the 2 way LSD. Recommended for drivers having difficulty with 2 way LSD understeer and one way LSD braking.
Two way LSD - Recommended on the rear axle for rear drive cars. Activates on both acceleration and deceleration. Recommended for those who prefer hot driving action and big angle drift.
These differentials have the option to be interchangeable between 1& 2 way, 1.5 & 2 way Please select the switchable combination that you would like and the initial way setup.
Get this and all your JDM at RHDJapan!!
Here is a description from Cusco explaining the differences between the differential types available for the aftermarket:
One way LSD - specially suited for front wheel drive cars and 4WD car front axles. Activates under acceleration, and acts as a true LSD when the throttle is off. A great chance for improved lap times. A CUSCO original design.
1.5 way LSD - Activates under acceleration while the understeer is less than on the 2 way LSD. Recommended for drivers having difficulty with 2 way LSD understeer and one way LSD braking.
Two way LSD - Recommended on the rear axle for rear drive cars. Activates on both acceleration and deceleration. Recommended for those who prefer hot driving action and big angle drift.
These differentials have the option to be interchangeable between 1& 2 way, 1.5 & 2 way Please select the switchable combination that you would like and the initial way setup.
Get this and all your JDM at RHDJapan!!
Brand: Cusco
Product: Type RS LSD Limited Slip Differential Rear
Part Num.: LSD 141 L15 (1.5&2 Way)
SPECIFICATIONS:
Diff Type: Mechanical Type L.S.D without AYC
Initial Setting: 1.5 Way
COMPATIBILITY NOTES:
ONLY for CY4A 7/08-
ONLY for CT9Ws 9/05-12/06
ONLY for CT9As Evo.9 MR 8/06-1/07
SST use only (CY4A)
MT use only (CD9A,CE9A,CN9A,CP9A,CT9A,CZ4A,CT9W)
The car with the viscous LSD, the side flange must be changed.
Product: Type RS LSD Limited Slip Differential Rear
Part Num.: LSD 141 L15 (1.5&2 Way)
SPECIFICATIONS:
Diff Type: Mechanical Type L.S.D without AYC
Initial Setting: 1.5 Way
COMPATIBILITY NOTES:
ONLY for CY4A 7/08-
ONLY for CT9Ws 9/05-12/06
ONLY for CT9As Evo.9 MR 8/06-1/07
SST use only (CY4A)
MT use only (CD9A,CE9A,CN9A,CP9A,CT9A,CZ4A,CT9W)
The car with the viscous LSD, the side flange must be changed.
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Mitsubishi Galant Fortis CY4A 4B11 (08/2007-12/2009)
Mitsubishi Galant Fortis CY4A 4B11 (12/2009-04/2015)
Mitsubishi Lancer Evolution I CD9A 4G63 (09/1992-12/1993)
Mitsubishi Lancer Evolution II CE9A 4G63 (01/1994-12/1994)
Mitsubishi Lancer Evolution III CE9A 4G63 (01/1995-07/1996)
Mitsubishi Lancer Evolution IV CN9A 4G63 (08/1996-12/1997)
Mitsubishi Lancer Evolution IX CT9A 4G63 (03/2005-03/2007)
Mitsubishi Lancer Evolution V CP9A 4G63 (01/1998-12/1998)
Mitsubishi Lancer Evolution VI CP9A 4G63 (01/1999-11/1999)
Mitsubishi Lancer Evolution VII CT9A 4G63 (02/2001-12/2002)
Mitsubishi Lancer Evolution VIII CT9A 4G63 (01/2003-02/2005)
Mitsubishi Lancer Evolution Wagon CT9W 4G63 (09/2003-12/2006)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2007-09/2008)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2008-09/2009)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2009-09/2015)
Mitsubishi Galant Fortis CY4A 4B11 (08/2007-12/2009)
Mitsubishi Galant Fortis CY4A 4B11 (12/2009-04/2015)
Mitsubishi Lancer Evolution I CD9A 4G63 (09/1992-12/1993)
Mitsubishi Lancer Evolution II CE9A 4G63 (01/1994-12/1994)
Mitsubishi Lancer Evolution III CE9A 4G63 (01/1995-07/1996)
Mitsubishi Lancer Evolution IV CN9A 4G63 (08/1996-12/1997)
Mitsubishi Lancer Evolution IX CT9A 4G63 (03/2005-03/2007)
Mitsubishi Lancer Evolution V CP9A 4G63 (01/1998-12/1998)
Mitsubishi Lancer Evolution VI CP9A 4G63 (01/1999-11/1999)
Mitsubishi Lancer Evolution VII CT9A 4G63 (02/2001-12/2002)
Mitsubishi Lancer Evolution VIII CT9A 4G63 (01/2003-02/2005)
Mitsubishi Lancer Evolution Wagon CT9W 4G63 (09/2003-12/2006)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2007-09/2008)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2008-09/2009)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2009-09/2015)
