Fujitsubo A - R Type S Exhaust Muffler Burning Gradation Tip - BRZ ZC6 86 ZN6
137939
JPY
FUJITSUBO
SKU: 78247
PN: (BG Option) 560-23112This exhaust system has a great combination of features for those who are looking for the hardcore of exhaust systems. Removal of an inner silencer system and reductions in piping the straight through design provides maximum exhaust flow and therefore highest power output. Beautiful mirror finish with modern day titan gradation tail is TIG welded via the shokunin providing a looks and style to match the performance.Quality construction and next level design maintains a great solid sports sound without being raspy or overly loud. Get this and all your JDM at RHDJapan!!
Brand: Fujitsubo
Product: A - R Type S Exhaust Muffler Burning Gradation Tip - BRZ ZC6 86 ZN6
Part Number: (BG Option)560-23112
SPECIFICATIONS
Material: Stainless Steel (SUS304)
Tip Type: Round Slash
Tip Diameter (mm): 117
Pipe Diameter (mm): 60.5-50.8
Muffler Weight (kg):
- OEM: 18.6
- Fujitsubo: 15.3
Included Items
- A - R Exhaust Muffler (Burning Gradation Tip)
- Gasket Packing X2
- Ring Gasket X1
- M10X20 Flange Bolt & Nut Set X2
- M10X35 Bolt SW Nut Set X4
Intermediate acceleration (30km/h to 90km/h in M2 gear)
- OEM: - 2.8sec
- Fujitsubo: 2.7sec

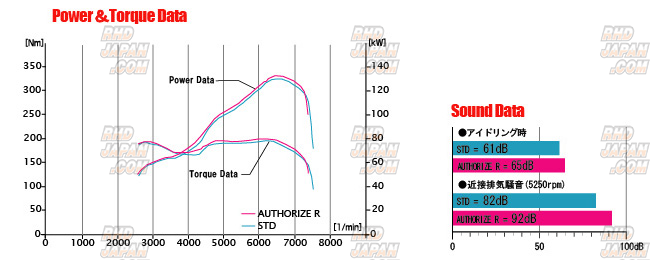

Maximum output
- OEM: 129.9kw(176.6ps)/6580rpm
- Fujitsubo: 132.4kw(180.1ps)/6520rpm
Maximum torque
- OEM: 195.3N/m(19.93kg/m)/6190rpm
- Fujitsubo: 198.4N/m(20.24kg/m)/6110rpm
Noise Levels (dB):
OEM:
- Idling Sound: 61
- Noise Near exhaust (5250rpm): 82
- 3000rpm: 73
- 4000rpm: 80
- Response 2000rpm~4000rpm: 87
Fujitsubo ZN6 AT:
- Idling Sound: 65
- Noise Near exhaust (5250rpm): 92
- 3000rpm: 81
- 4000rpm: 84
- Response 2000rpm~4000rpm: 98
Product: A - R Type S Exhaust Muffler Burning Gradation Tip - BRZ ZC6 86 ZN6
Part Number: (BG Option)560-23112
SPECIFICATIONS
Material: Stainless Steel (SUS304)
Tip Type: Round Slash
Tip Diameter (mm): 117
Pipe Diameter (mm): 60.5-50.8
Muffler Weight (kg):
- OEM: 18.6
- Fujitsubo: 15.3
Included Items
- A - R Exhaust Muffler (Burning Gradation Tip)
- Gasket Packing X2
- Ring Gasket X1
- M10X20 Flange Bolt & Nut Set X2
- M10X35 Bolt SW Nut Set X4
Intermediate acceleration (30km/h to 90km/h in M2 gear)
- OEM: - 2.8sec
- Fujitsubo: 2.7sec
Maximum output
- OEM: 129.9kw(176.6ps)/6580rpm
- Fujitsubo: 132.4kw(180.1ps)/6520rpm
Maximum torque
- OEM: 195.3N/m(19.93kg/m)/6190rpm
- Fujitsubo: 198.4N/m(20.24kg/m)/6110rpm
Noise Levels (dB):
OEM:
- Idling Sound: 61
- Noise Near exhaust (5250rpm): 82
- 3000rpm: 73
- 4000rpm: 80
- Response 2000rpm~4000rpm: 87
Fujitsubo ZN6 AT:
- Idling Sound: 65
- Noise Near exhaust (5250rpm): 92
- 3000rpm: 81
- 4000rpm: 84
- Response 2000rpm~4000rpm: 98
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Subaru BRZ ZC6 Applied A FA20 (04/2012-09/2013)
Subaru BRZ ZC6 Applied B FA20 (09/2013-06/2014)
Subaru BRZ ZC6 Applied C FA20 (07/2014-01/2015)
Subaru BRZ ZC6 Applied D FA20 (02/2015-05/2016)
Subaru BRZ ZC6 Applied E FA20 (06/2016-09/2017)
Subaru BRZ ZC6 Applied F FA20 (10/2017-03/2021)
Toyota 86 ZN6 FA20 (04/2012-08/2016)
Toyota 86 ZN6 FA20 (08/2016-03/2019)
Subaru BRZ ZC6 Applied A FA20 (04/2012-09/2013)
Subaru BRZ ZC6 Applied B FA20 (09/2013-06/2014)
Subaru BRZ ZC6 Applied C FA20 (07/2014-01/2015)
Subaru BRZ ZC6 Applied D FA20 (02/2015-05/2016)
Subaru BRZ ZC6 Applied E FA20 (06/2016-09/2017)
Subaru BRZ ZC6 Applied F FA20 (10/2017-03/2021)
Toyota 86 ZN6 FA20 (04/2012-08/2016)
Toyota 86 ZN6 FA20 (08/2016-03/2019)
