This exhaust system was developed for total balance as top priority. Maintaining silent exhaust note this setup is designed to provide a great cost effective upgrade providing extra style and extra tune up pep to the daily driver machine. The design of this Fujitsubo exhaust will give you great exhaust flow and an increase in power with focus in the low to mid rpm zones. Get this and all your JDM at RHDJapan!!
Brand: Fujitsubo
Product: A - S Exhaust Muffler - ANH20W Aero
Part Number: 360-28122
SPECIFICATIONS
Composition Material: Stainless Steel (SUS304)
Tip Type: Round Oval Slash
Tip Diameter (mm): 110x90
Pipe Diameter (mm): 60.5
Muffler Weight (kg):
- OEM: 4.9
- Fujitsubo: 5.2
Included Items
- A - S Exhaust Muffler
- Hardware
Intermediate acceleration (30km/h to 100km/h in M3 gear)
- OEM: 3.5sec
- Fujitsubo: 3.3sec

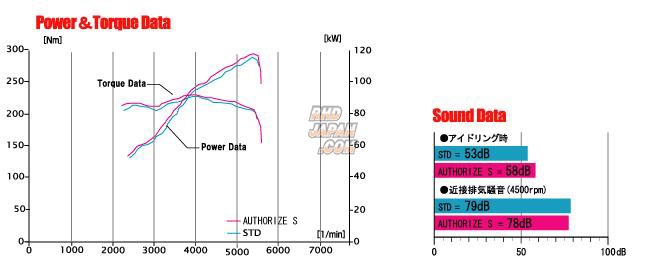

Maximum output
- OEM: 115kw(156.4ps)/5380rpm
- Fujitsubo: 116.8kw(158.8ps)/5380rpm
Maximum torque
- OEM: 227.4N/m (23.2kg/m)/3970rpm
- Fujitsubo: 230.3N/m (23.5kg/m)/3960rpm
Noise Levels (dB):
OEM:
- Idling Sound: 53
- Noise Near exhaust (4500rpm): 79
- 3000rpm: 73
- 5000rpm: 80
- Response 4000rpm~6000rpm: 90
Fujitsubo:
- Idling Sound: 58
- Noise Near exhaust (4500rpm): 78
- 3000rpm: 75
- 5000rpm: 81
- Response 4000rpm~6000rpm: 89
COMPATIBILITY NOTES:
- Only compatible with vehicles manufactured before 1/15.
- Only compatible with S and Z grade (Aero Rear Bumper) vehicles.
Product: A - S Exhaust Muffler - ANH20W Aero
Part Number: 360-28122
SPECIFICATIONS
Composition Material: Stainless Steel (SUS304)
Tip Type: Round Oval Slash
Tip Diameter (mm): 110x90
Pipe Diameter (mm): 60.5
Muffler Weight (kg):
- OEM: 4.9
- Fujitsubo: 5.2
Included Items
- A - S Exhaust Muffler
- Hardware
Intermediate acceleration (30km/h to 100km/h in M3 gear)
- OEM: 3.5sec
- Fujitsubo: 3.3sec
Maximum output
- OEM: 115kw(156.4ps)/5380rpm
- Fujitsubo: 116.8kw(158.8ps)/5380rpm
Maximum torque
- OEM: 227.4N/m (23.2kg/m)/3970rpm
- Fujitsubo: 230.3N/m (23.5kg/m)/3960rpm
Noise Levels (dB):
OEM:
- Idling Sound: 53
- Noise Near exhaust (4500rpm): 79
- 3000rpm: 73
- 5000rpm: 80
- Response 4000rpm~6000rpm: 90
Fujitsubo:
- Idling Sound: 58
- Noise Near exhaust (4500rpm): 78
- 3000rpm: 75
- 5000rpm: 81
- Response 4000rpm~6000rpm: 89
COMPATIBILITY NOTES:
- Only compatible with vehicles manufactured before 1/15.
- Only compatible with S and Z grade (Aero Rear Bumper) vehicles.
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Toyota Alphard ANH20W 2AZ-FE (05/2008-12/2014)
Toyota Vellfire ANH20W 2AZ-FE (05/2008-12/2014)
Toyota Alphard ANH20W 2AZ-FE (05/2008-12/2014)
Toyota Vellfire ANH20W 2AZ-FE (05/2008-12/2014)
