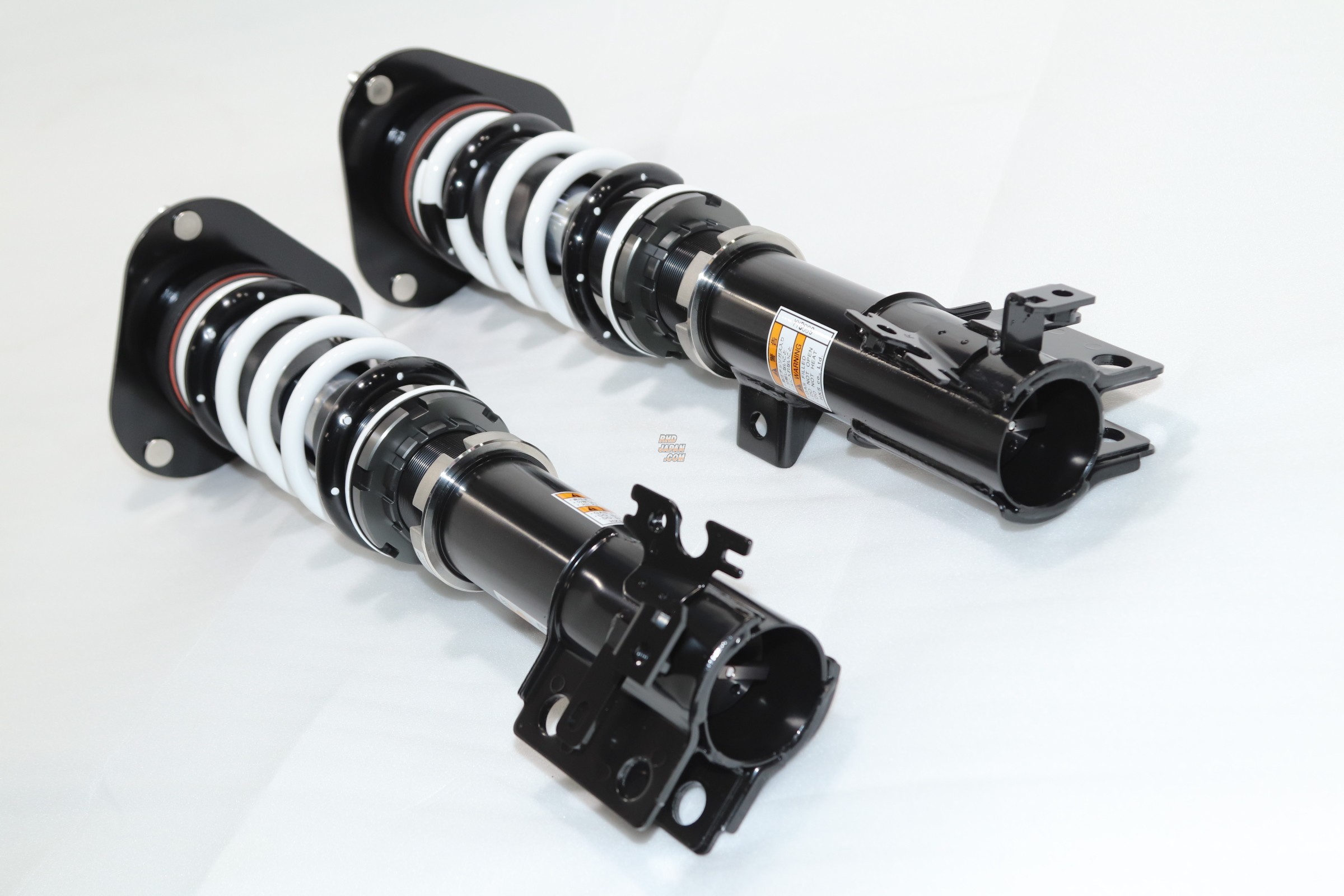

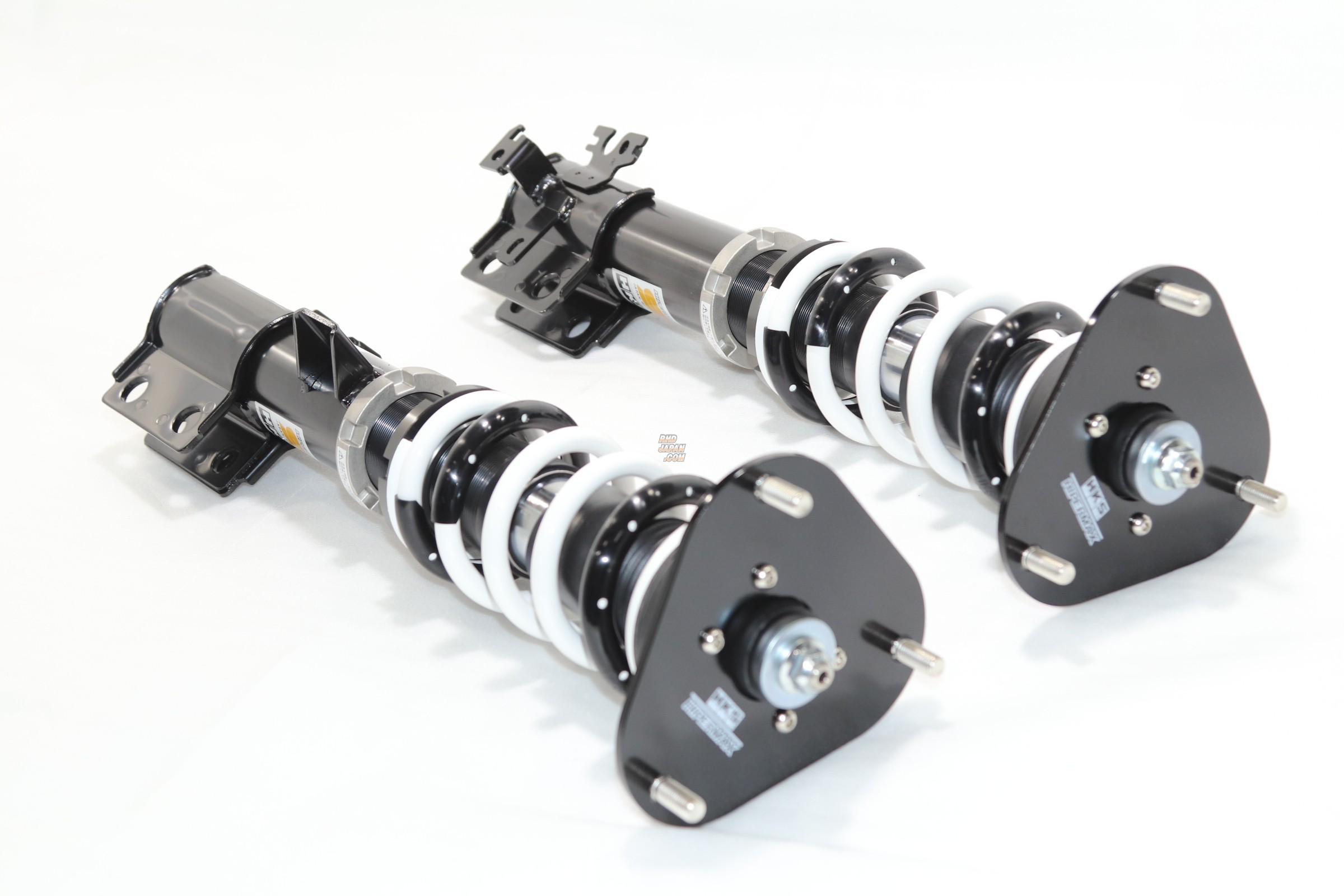

HKS Coilover Suspension Full Kit Hipermax S - ZWE211H ZWE211W NRE210H
211539
JPY
HKS
SKU: 270222

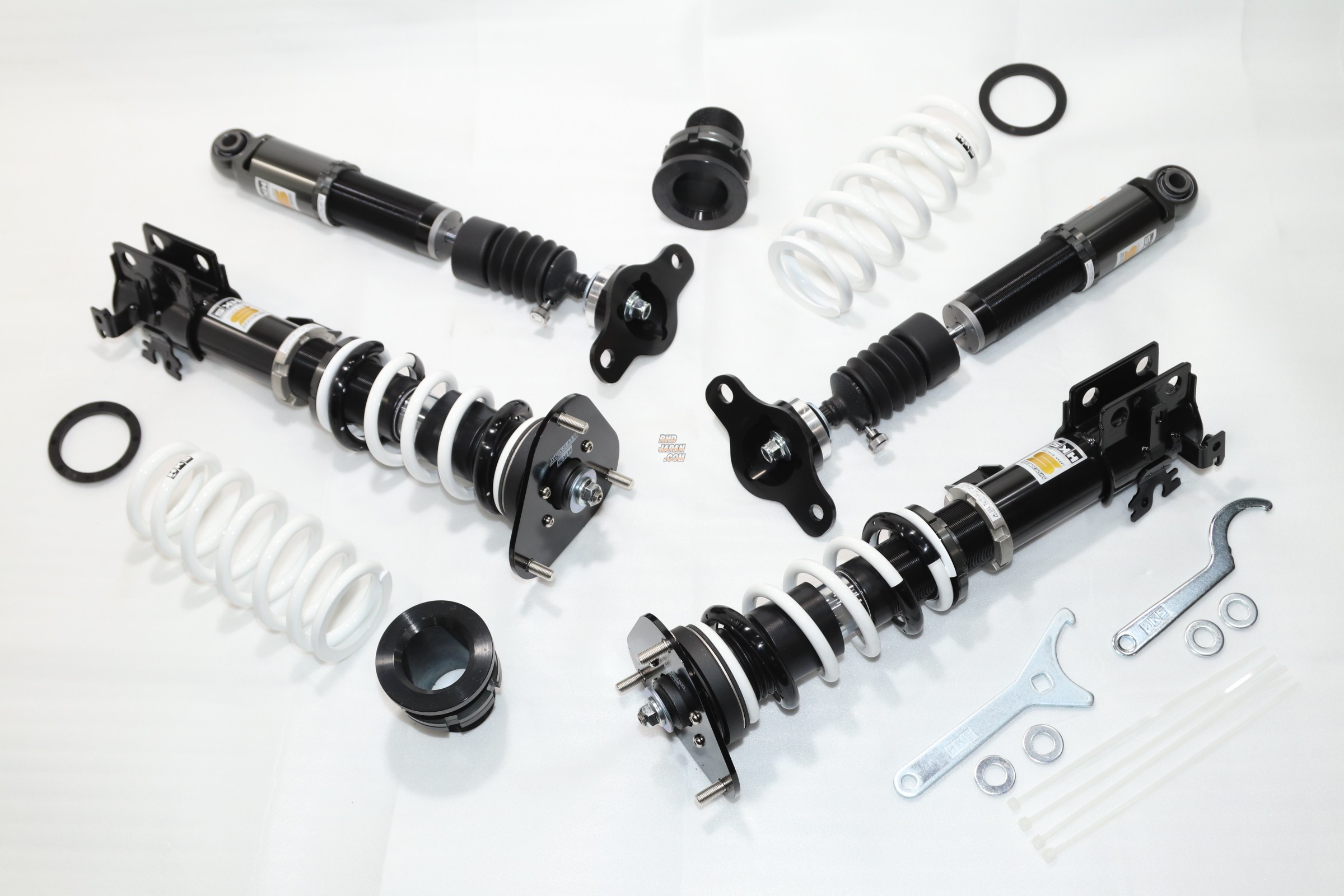

PN: 80300-AT016This set of suspension is designed to replace the factory suspension related shock absorber / dampers and springs.
Building upon the 3 decades of suspension development and 9 years since the last version of Hipermax IV GT release this series has unified the many different street based Hipermax merits and further improved this new flagship series for the ultimate combination of driving performance and comfort performance, Driving Comfort. With exception of the circuit specific HIpermax IV SP series all other series will be replaced with this all-mighty spec. Specifically developed to provide the ultimate in harmony between performance handling and control with supreme ride comfort yet capable of high level performance on circuit as well. With massive adjustability in ride height and damper settings these items are an excellent choice for the daily driver to look and perform best under any kind of circumstance. Get this and all your JDM at RHDJapan!!
Building upon the 3 decades of suspension development and 9 years since the last version of Hipermax IV GT release this series has unified the many different street based Hipermax merits and further improved this new flagship series for the ultimate combination of driving performance and comfort performance, Driving Comfort. With exception of the circuit specific HIpermax IV SP series all other series will be replaced with this all-mighty spec. Specifically developed to provide the ultimate in harmony between performance handling and control with supreme ride comfort yet capable of high level performance on circuit as well. With massive adjustability in ride height and damper settings these items are an excellent choice for the daily driver to look and perform best under any kind of circumstance. Get this and all your JDM at RHDJapan!!
Brand: HKS
Product: Coilover Suspension Full Kit Hipermax S - ZWE211H ZWE211W NRE210H
Part Num: 80300-AT016
SPECIFICATIONS:
ZWE211H
Series: Hipermax S
Spring Rate N/mm (kgf/mm):
- Front: 49 ( 5 )
- Rear: 59 ( 6 )
Free Height (mm):
- Front: 200 (Barrel)
- Rear: 220 (Barrel)
Recommended Range to change Spring Rate N/mm (kgf/mm):
- Front: N/A
- Rear: N/A

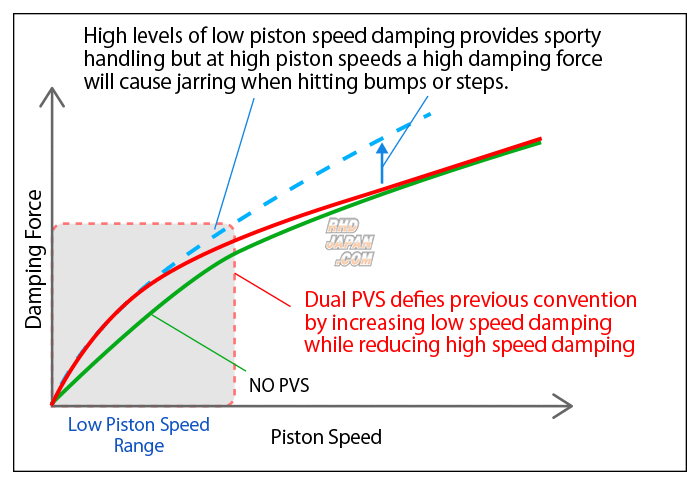

Damper Force (Rebound/Damping):
- Front: 471/343
- Rear: 363/412
- Note: Damping force is at piston speed 0.1m/sec.
Default position of Dial:
- Front: 15
- Rear: 15

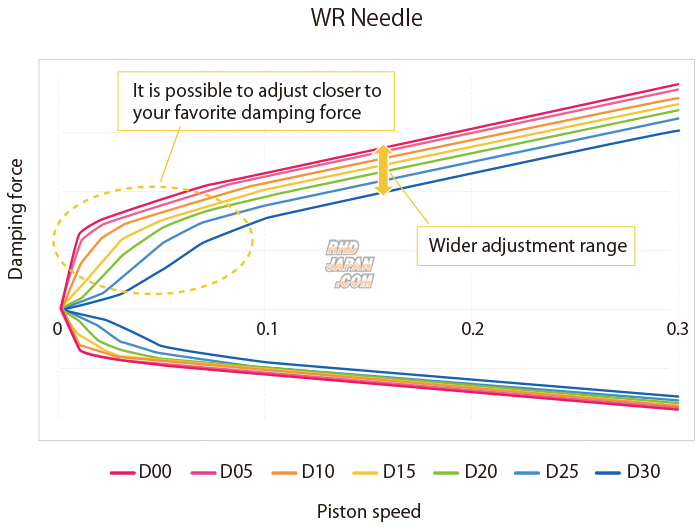

Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps

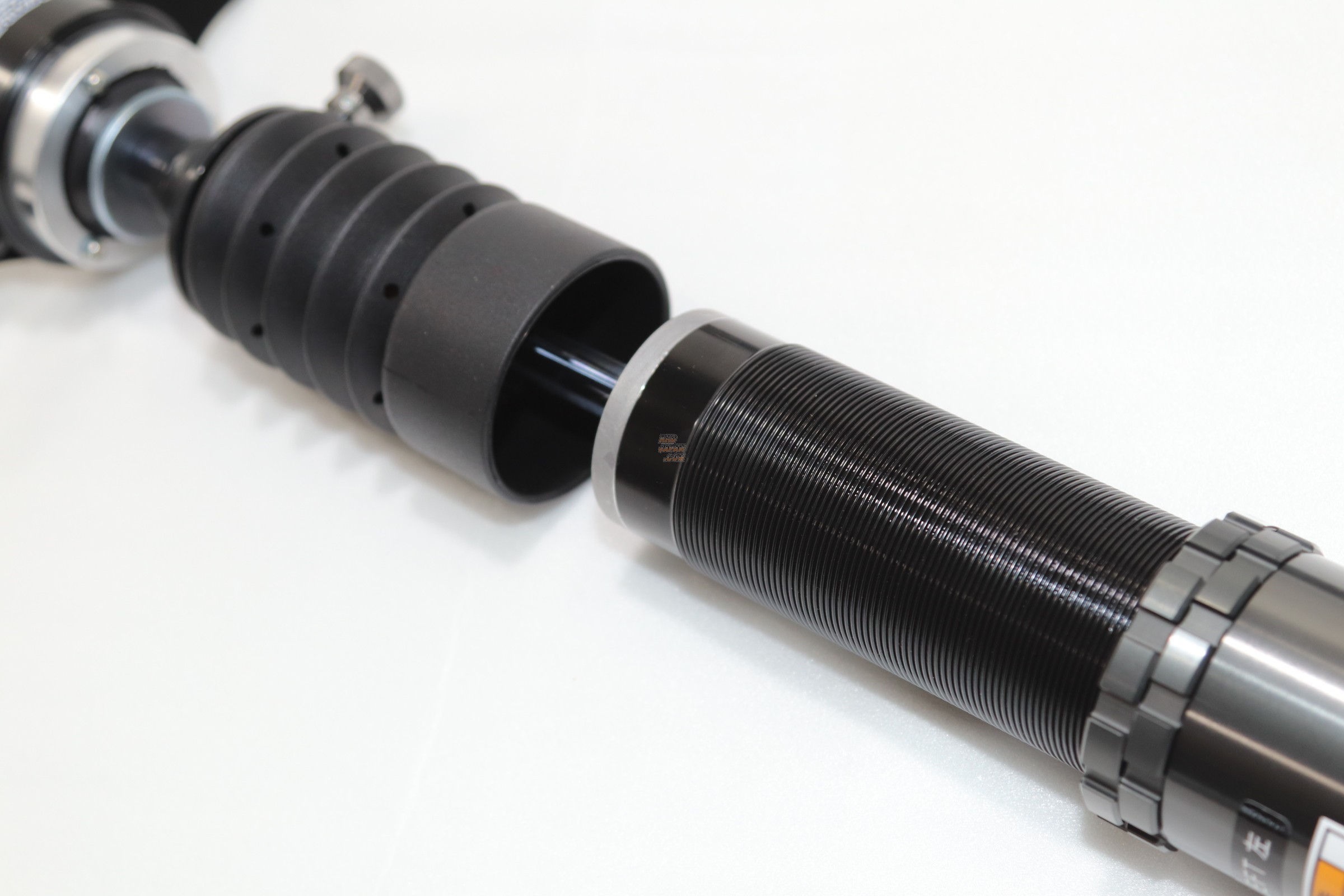

Height Adjustable Lower Bracket:
- Front: Yes
- Rear: Yes

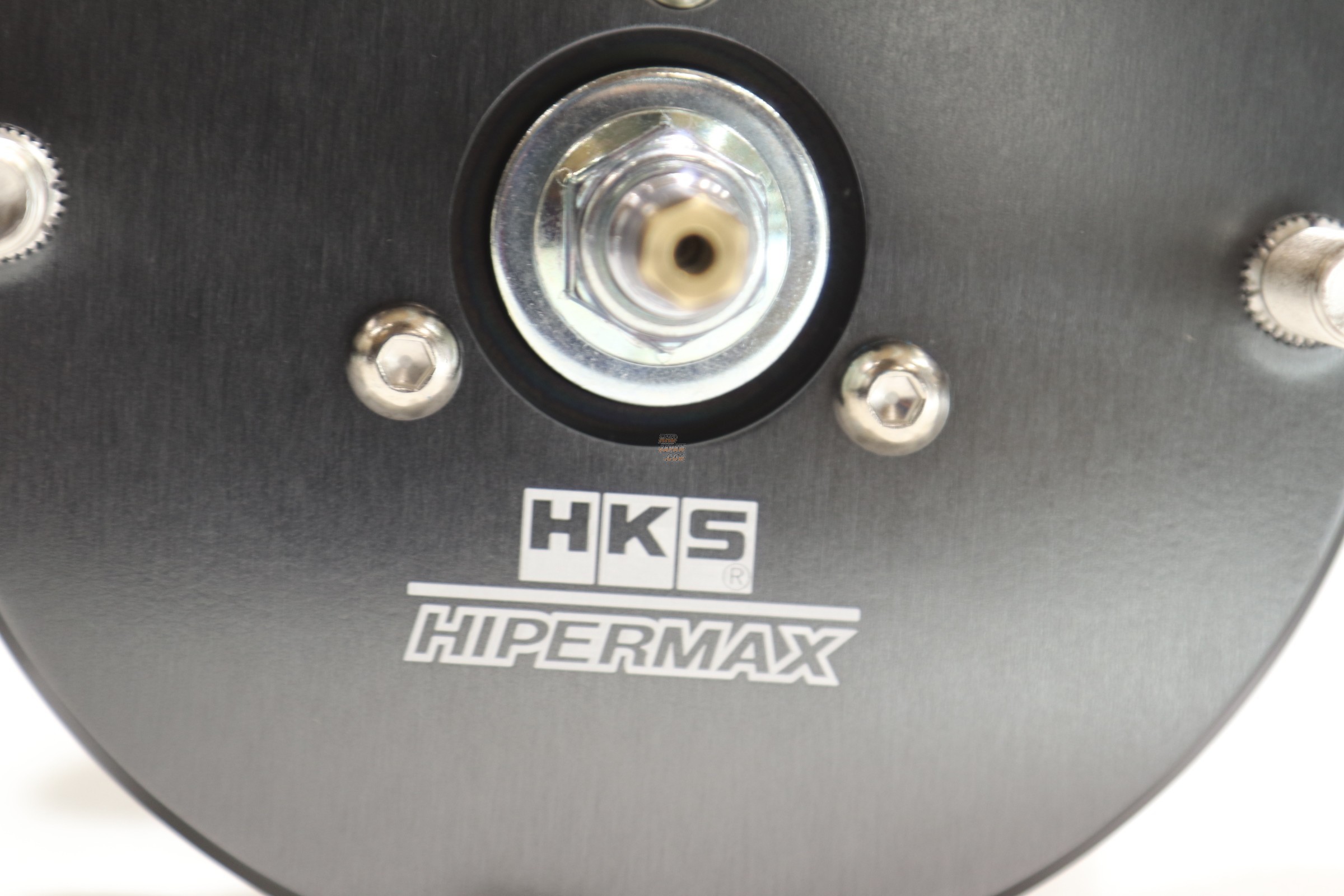

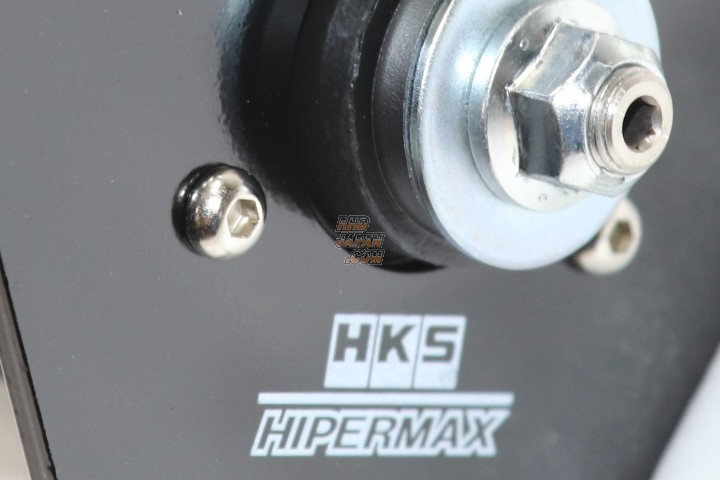

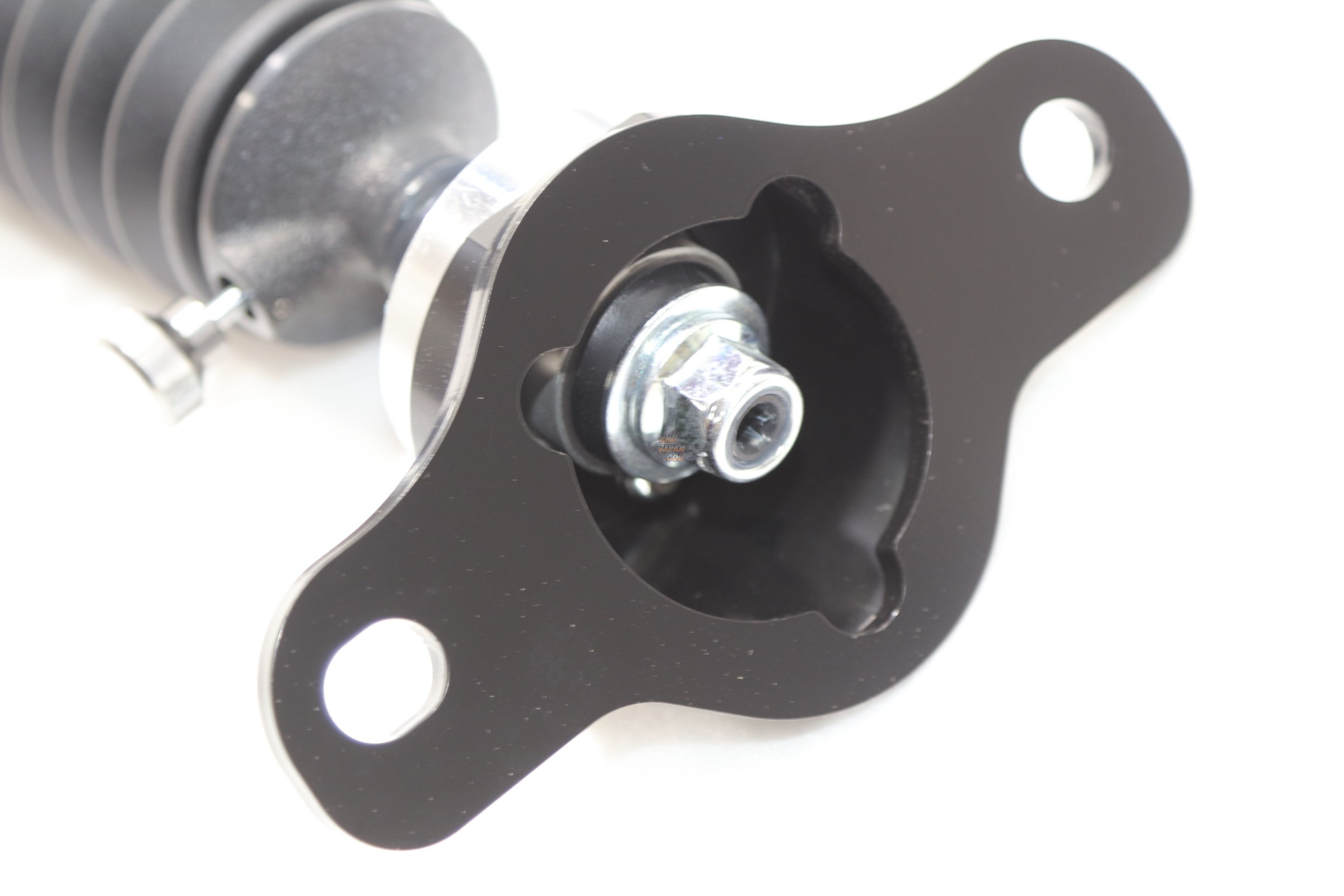

Upper Mount:
- Front: Rubber Bush
- Rear: Rubber Bush
Damper Layout:
- Front: Inverted
- Rear: Normal
Damper/Spring Layout:
- Front: Coilover

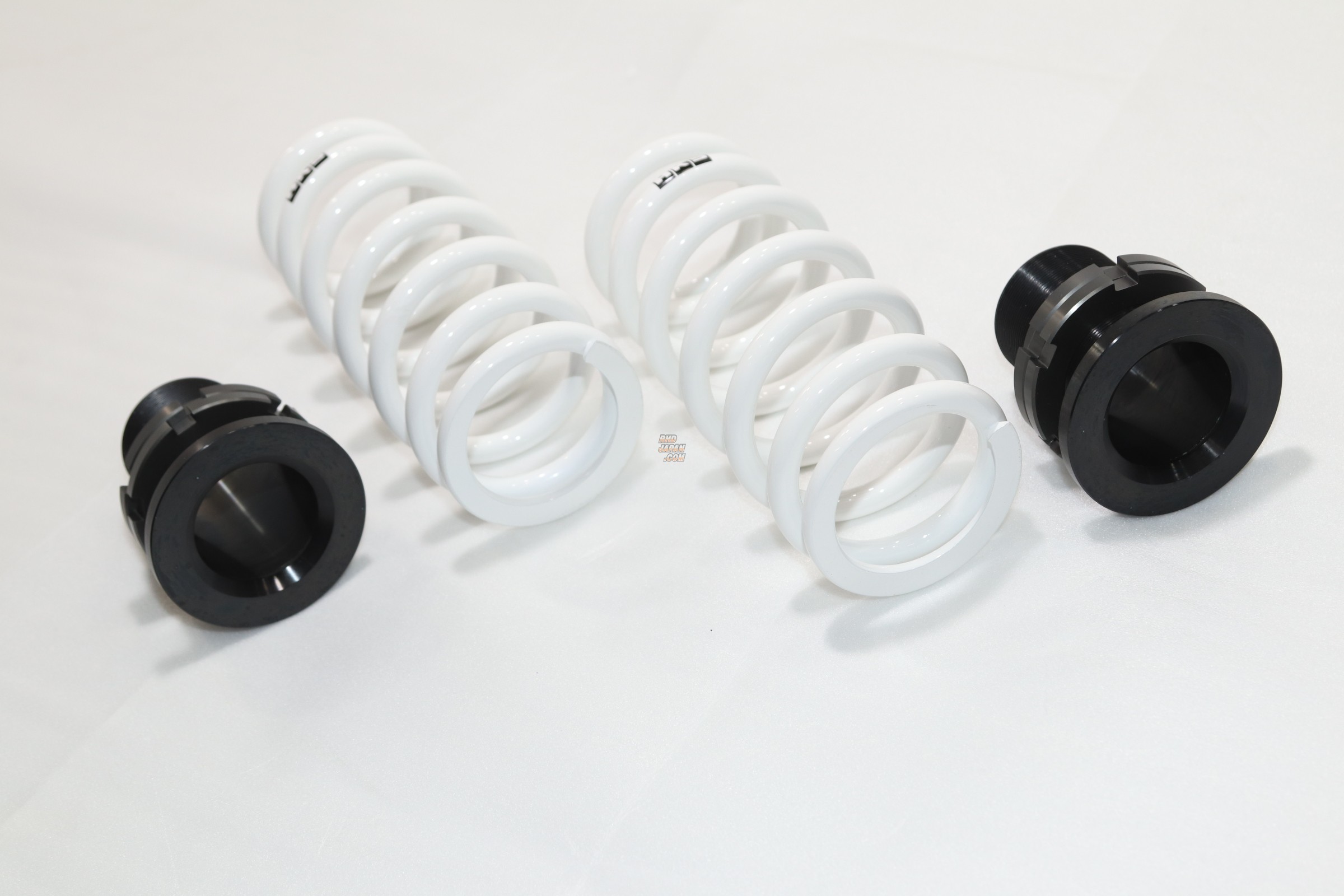

- Rear: Separate
Damping force adjustable with Wire:
- Front: N/A
- Rear: N/A
Helper Spring (Spring Rate N/mm):
- Front: N/A
- Rear: N/A
Ride Height Specification -
-Maximum Adjustable Range High - Low (mm):
-- Front: ~ -61
-- Rear: ~ -54
-Drivable Range High - Low (mm):
-- Front: ~ -61
-- Rear: ~ -54
PRODUCT NOTES:
- Due to lowering the vehicle height, the irradiation range of a millimeter wave radar and monocular camera may become narrow, and TSS (ToyotaSupraSafety) malfunction may occur with dislodge of the alignment center.
Product: Coilover Suspension Full Kit Hipermax S - ZWE211H ZWE211W NRE210H
Part Num: 80300-AT016
SPECIFICATIONS:
ZWE211H
Series: Hipermax S
Spring Rate N/mm (kgf/mm):
- Front: 49 ( 5 )
- Rear: 59 ( 6 )
Free Height (mm):
- Front: 200 (Barrel)
- Rear: 220 (Barrel)
Recommended Range to change Spring Rate N/mm (kgf/mm):
- Front: N/A
- Rear: N/A
Damper Force (Rebound/Damping):
- Front: 471/343
- Rear: 363/412
- Note: Damping force is at piston speed 0.1m/sec.
Default position of Dial:
- Front: 15
- Rear: 15
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps
Height Adjustable Lower Bracket:
- Front: Yes
- Rear: Yes
Upper Mount:
- Front: Rubber Bush
- Rear: Rubber Bush
Damper Layout:
- Front: Inverted
- Rear: Normal
Damper/Spring Layout:
- Front: Coilover
- Rear: Separate
Damping force adjustable with Wire:
- Front: N/A
- Rear: N/A
Helper Spring (Spring Rate N/mm):
- Front: N/A
- Rear: N/A
Ride Height Specification -
-Maximum Adjustable Range High - Low (mm):
-- Front: ~ -61
-- Rear: ~ -54
-Drivable Range High - Low (mm):
-- Front: ~ -61
-- Rear: ~ -54
PRODUCT NOTES:
- Due to lowering the vehicle height, the irradiation range of a millimeter wave radar and monocular camera may become narrow, and TSS (ToyotaSupraSafety) malfunction may occur with dislodge of the alignment center.
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Toyota Corolla Sport NRE210H 8NR-FTS (06/2018-05/2020)
Toyota Corolla Sport NRE210H 8NR-FTS (06/2020-09/2022)
Toyota Corolla Sport ZWE211H 2ZR-FXE (06/2018-05/2020)
Toyota Corolla Touring ZWE211W 2ZR-FXE (10/2019-05/2020)
Toyota Corolla Sport NRE210H 8NR-FTS (06/2018-05/2020)
Toyota Corolla Sport NRE210H 8NR-FTS (06/2020-09/2022)
Toyota Corolla Sport ZWE211H 2ZR-FXE (06/2018-05/2020)
Toyota Corolla Touring ZWE211W 2ZR-FXE (10/2019-05/2020)
