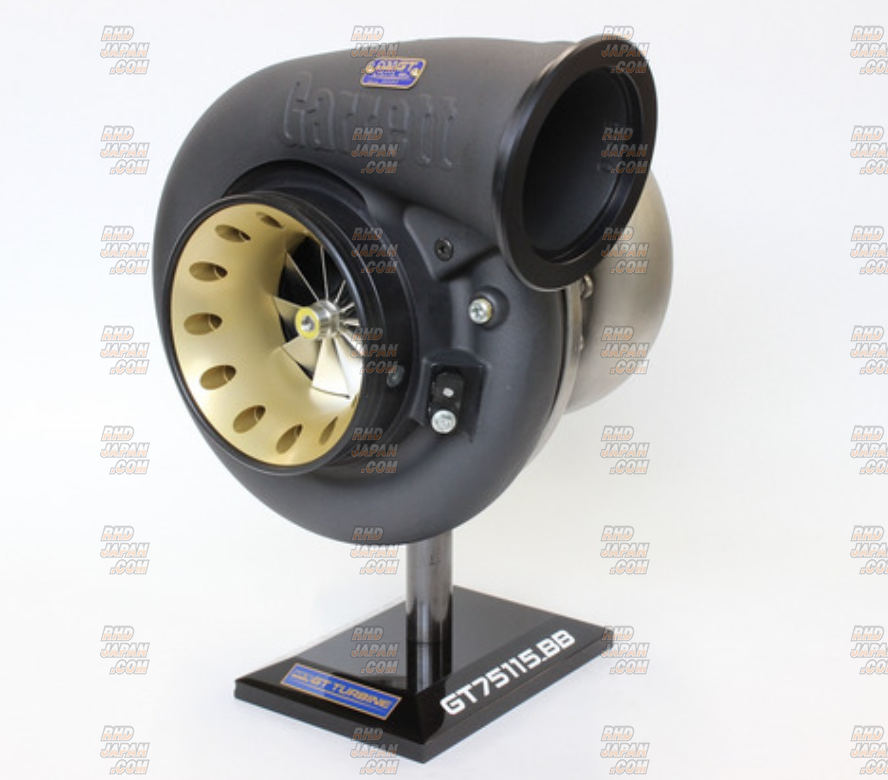

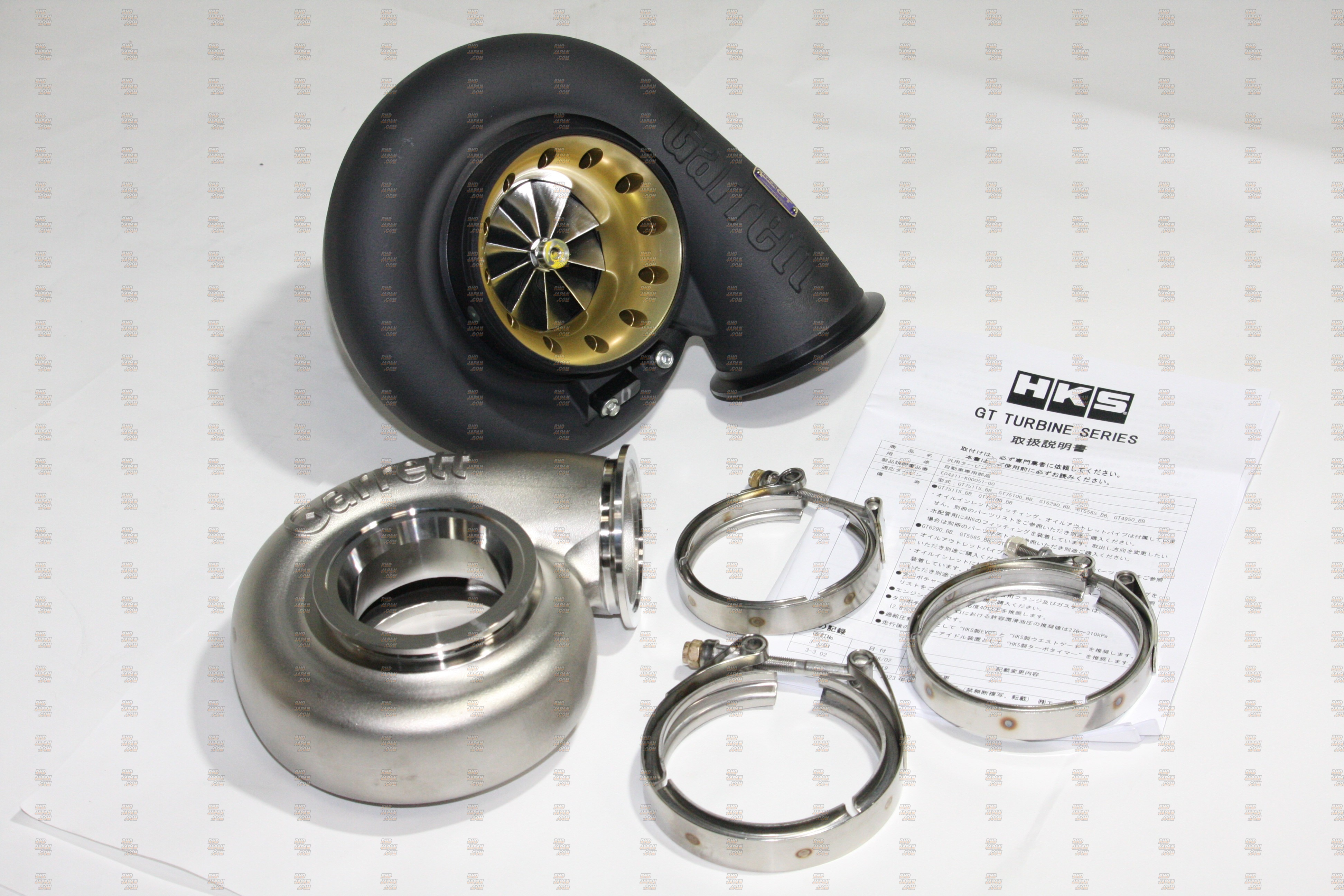

HKS GT Turbine Series Turbocharger GT75115 BB V Band - A/R 1.15
536979
JPY
HKS
SKU: 292038

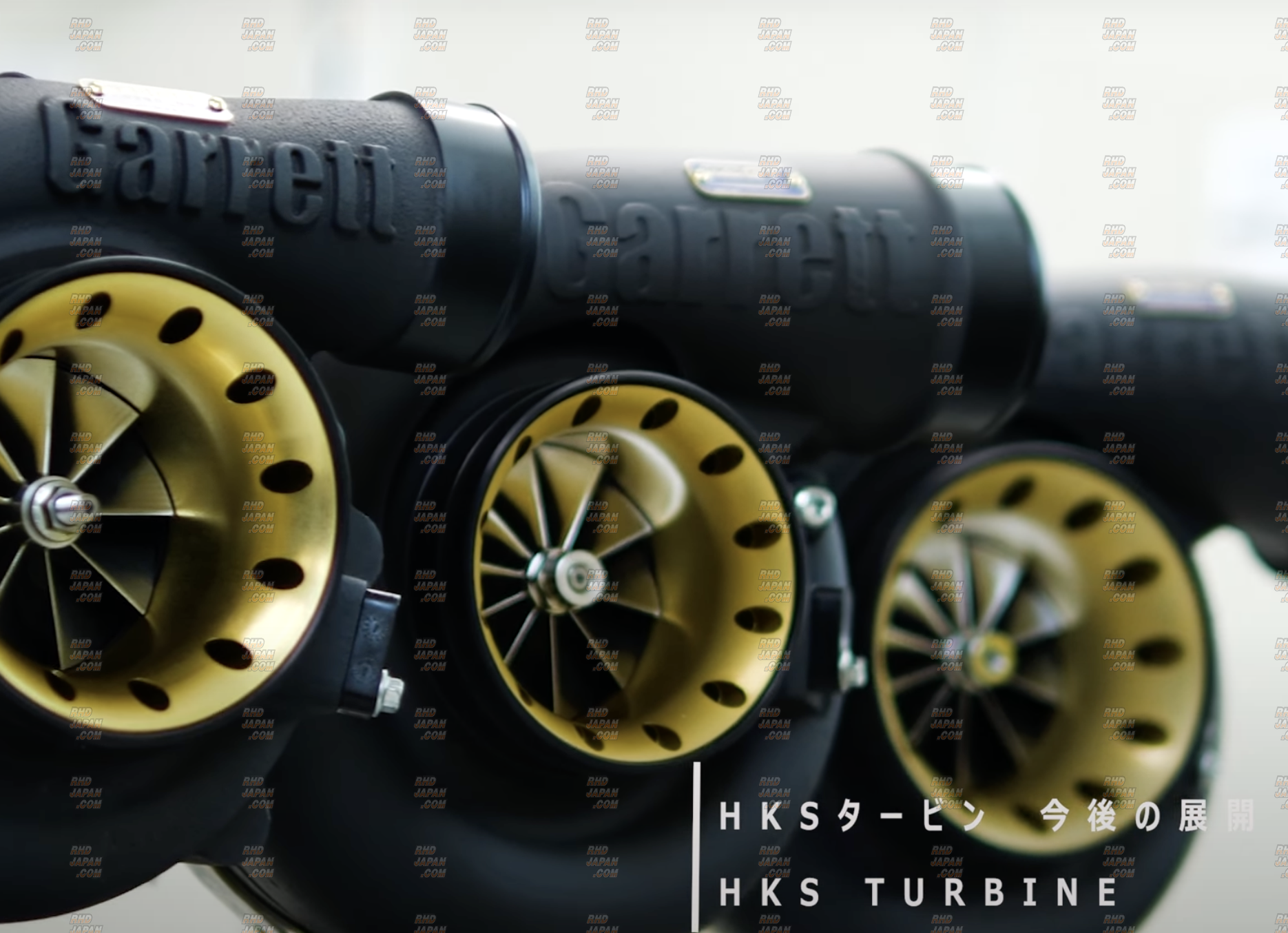

PN: 14001-AK050This is part of the newest lineup of GT Turbine series developed in a wide variety targeting tuning vehicles from 500 to 1000+ hp. Developed in collaboration with Garrett and the many HKS Tuning Pro Shops to provide improved performance with high airflow and efficiency even at high boost with new compressor wheel taking performance of this Ball Bearing turbocharger series to the next level. Can be used as an upgrade and replacement on original T51R, TO4Z and earlier V-Band Type GT turbine kits. Each series is available in two different A/R sizes for extra choice in tuning preferences.Get this and all your JDM at RHDJapan!!
Brand: HKS
Product: GT Turbine Series Turbocharger GT75115 BB V Band - A/R 1.15
Part Num: 14001-AK050
SPECIFICATIONS:
Series: GT (GT75115 BB)
Turbine Type: Ball Bearing Type
Target Power Range (ps): 1150
Compressor Housing Finish: Highly Corrosion Resistant Anodized Aluminum Coating Matt Black
Ported Shroud Finish: Alumite Champagne Gold
Ported Shroud Shape: Bell Mouth
Compressor Wheel:
- Intake Diameter (mm): 79
- Outlet Diameter (mm): 98
- Trim: 65
Turbine Wheel:
- Outlet Diameter (mm): 75
- Outer Diameter (mm): 82
- Trim: 84
Compressor Housing (mm):
- Intake Diameter (mm): 127
- Outer Diameter (mm): 90.9 (Pipe Welding scroll, Outer Diameter 107.0)
- A/R: 0.85
Exhaust Housing (mm):
- Turbo Flange Type (IN): V Band
- Turbo Flange Type (Out): V Band
- Material: Stainless Steel
- A/R: 1.15
PRODUCT NOTES:
For over 1000ps High Boost, Compressor outlet to be welded to V Band
Developed for ideal performance on the following: RB26 (2.8L), 2JZ (3.4L)
Optional Support Parts sold separately:
https://www.hks-power.co.jp/product_search/product/663
Product: GT Turbine Series Turbocharger GT75115 BB V Band - A/R 1.15
Part Num: 14001-AK050
SPECIFICATIONS:
Series: GT (GT75115 BB)
Turbine Type: Ball Bearing Type
Target Power Range (ps): 1150
Compressor Housing Finish: Highly Corrosion Resistant Anodized Aluminum Coating Matt Black
Ported Shroud Finish: Alumite Champagne Gold
Ported Shroud Shape: Bell Mouth
Compressor Wheel:
- Intake Diameter (mm): 79
- Outlet Diameter (mm): 98
- Trim: 65
Turbine Wheel:
- Outlet Diameter (mm): 75
- Outer Diameter (mm): 82
- Trim: 84
Compressor Housing (mm):
- Intake Diameter (mm): 127
- Outer Diameter (mm): 90.9 (Pipe Welding scroll, Outer Diameter 107.0)
- A/R: 0.85
Exhaust Housing (mm):
- Turbo Flange Type (IN): V Band
- Turbo Flange Type (Out): V Band
- Material: Stainless Steel
- A/R: 1.15
PRODUCT NOTES:
For over 1000ps High Boost, Compressor outlet to be welded to V Band
Developed for ideal performance on the following: RB26 (2.8L), 2JZ (3.4L)
Optional Support Parts sold separately:
https://www.hks-power.co.jp/product_search/product/663
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
