These are the basic version of the S-Style series allowing for great cost performance handling. Targeted for the casual enthusiast looking for ride height adjustability with comfortable handling characteristics. Cost performance is achieved through the removal of the damper adjustment function found on the S-Style L version.
Get this and all your JDM at RHDJapan!!
Get this and all your JDM at RHDJapan!!
Brand: HKS

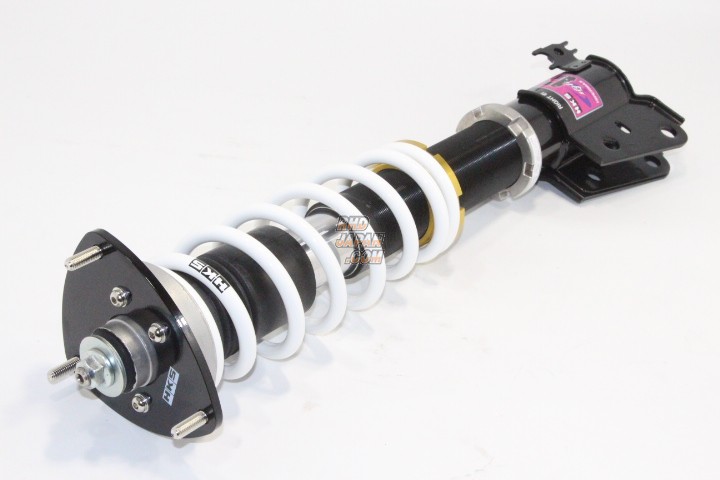

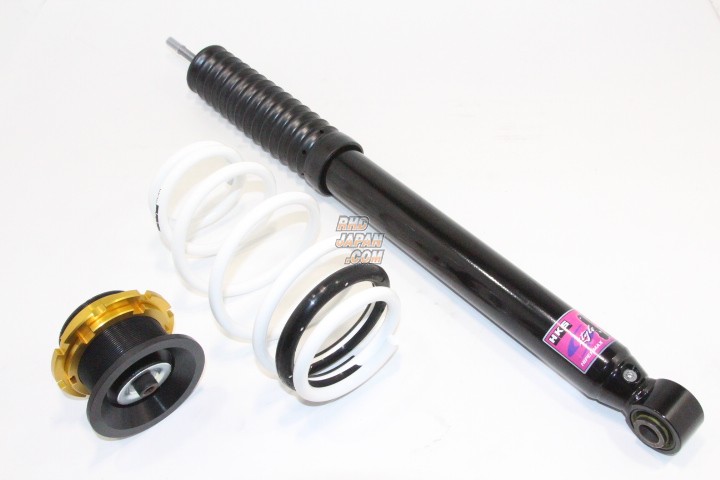

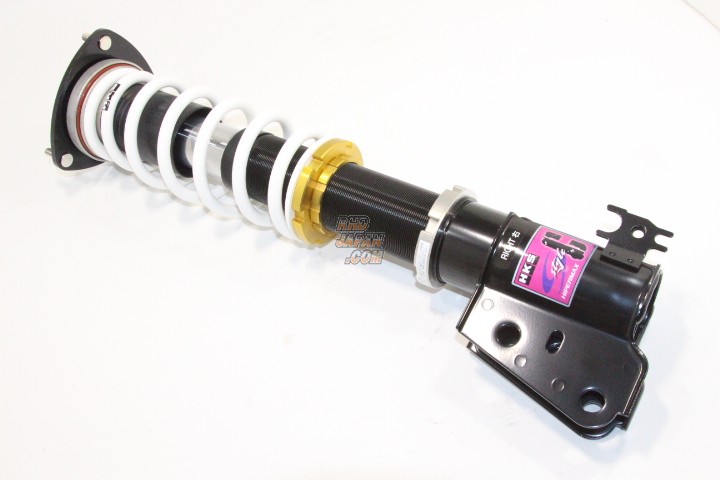

Product: Hipermax Coilover Suspension S-Style C - ZVW40W ZVW41W
Part Num: 80110-AT110
SPECIFICATIONS:
Series: S-Style C
Upper Mount:
- Front: Rubber
- Rear: OEM
Spring Rate Change at factory:
- Front: Possible
- Rear: N/A
Maximum Adjustability (mm):
- Front: 681 ～ 629
- Rear: 678 ～ 639
Maximum Adjustability (Drivable) (mm):
- Front: 681 ～ 629
- Rear: 678 ～ 639
Spring Rate N/mm (kgf/mm):
- Front: 39 ( 4 )
- Rear: 34 ( 3.5 )
Free Height (mm):
- Front: 250
- Rear: N/A
Damper Force (Rebound/Damping):
- Front: 353 / 186
- Rear: 284 / 98
Remaining Damper Stroke (Rebound/Damping) (mm):
- Front: 52 / 65
- Rear: 99 / 91
PRODUCT NOTES:
Rear:Separate type. Height data is based on ZVW41W.
Product: Hipermax Coilover Suspension S-Style C - ZVW40W ZVW41W
Part Num: 80110-AT110
SPECIFICATIONS:
Series: S-Style C
Upper Mount:
- Front: Rubber
- Rear: OEM
Spring Rate Change at factory:
- Front: Possible
- Rear: N/A
Maximum Adjustability (mm):
- Front: 681 ～ 629
- Rear: 678 ～ 639
Maximum Adjustability (Drivable) (mm):
- Front: 681 ～ 629
- Rear: 678 ～ 639
Spring Rate N/mm (kgf/mm):
- Front: 39 ( 4 )
- Rear: 34 ( 3.5 )
Free Height (mm):
- Front: 250
- Rear: N/A
Damper Force (Rebound/Damping):
- Front: 353 / 186
- Rear: 284 / 98
Remaining Damper Stroke (Rebound/Damping) (mm):
- Front: 52 / 65
- Rear: 99 / 91
PRODUCT NOTES:
Rear:Separate type. Height data is based on ZVW41W.
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Toyota Prius α ZVW41W 2ZR-FXE (05/2011-10/2014)
Toyota Prius α ZVW41W 2ZR-FXE (05/2011-10/2014)
