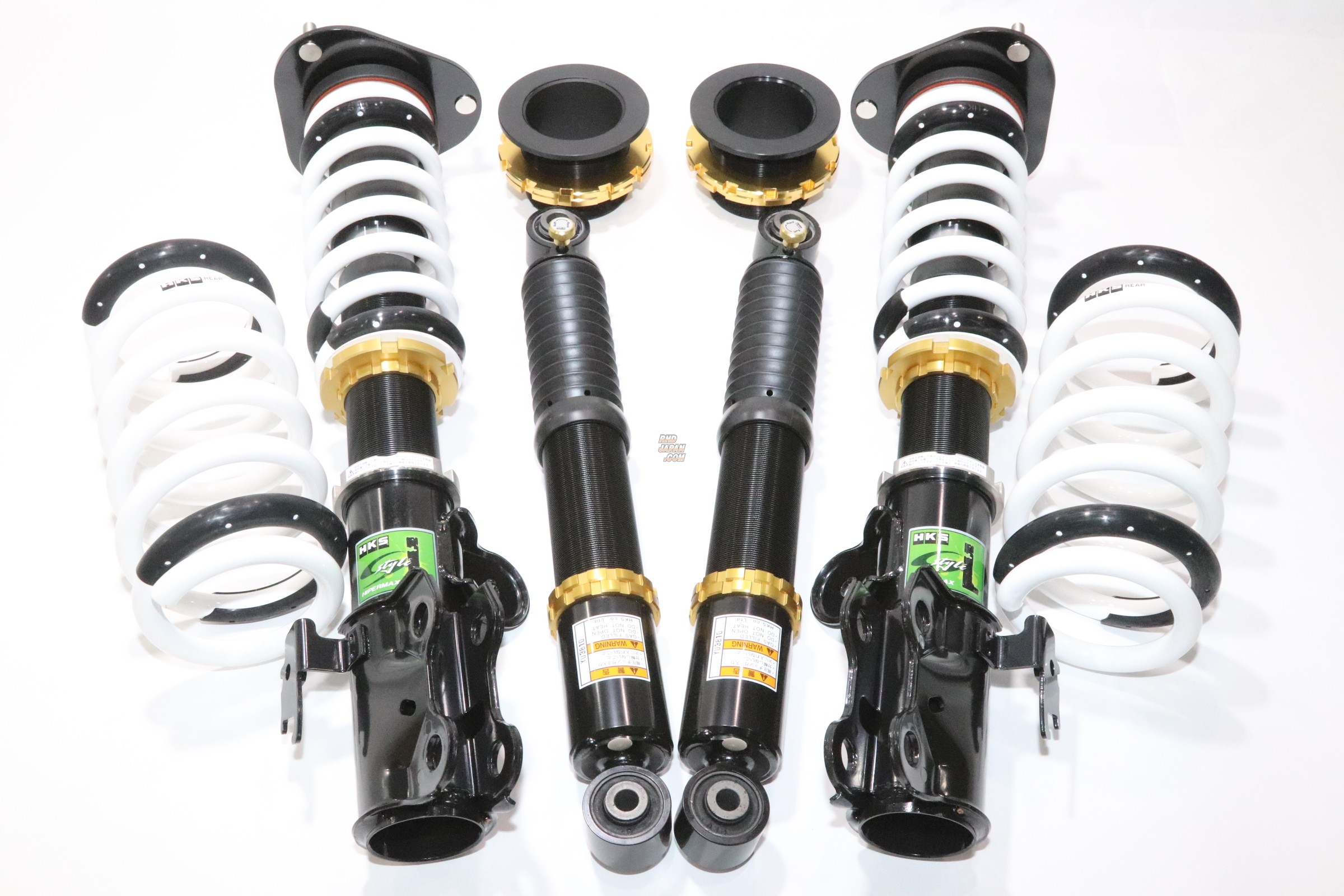

HKS Hipermax Coilover Suspension S-Style L - ZVW40W ZVW41W
141159
JPY
HKS
SKU: 113499
PN: 80130-AT107These are the best all around version of the S-Style series allowing for the a wide range of ride height adjustability and sporty yet comfortable handling. The signature Hipermax M Shaft allows for longer springs with lower spring rates for more luxury oriented ride comfort in comparison to the S-Style X series while still maintaining the wide variety damper settings as significant performance advantage over the basic introduction series S-Style C.
Get this and all your JDM at RHDJapan!!
Get this and all your JDM at RHDJapan!!
Brand: HKS
Product: Hipermax Coilover Suspension S-Style L - ZVW40W ZVW41W
Part Num: 80130-AT107
SPECIFICATIONS:
Series: S-Style L
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps
Upper Mount:
- Front: Rubber
- Rear: OEM
Maximum Adjustability (mm):
- Front: 681 ~ 629
- Rear: 678 ~ 639
Maximum Adjustability (Drivable) (mm):
- Front: 681 ~ 629
- Rear: 678 ~ 639
Spring Rate N/mm (kgf/mm):
- Front: 39 ( 4 )
- Rear: 34 ( 3.5 )
Free Height (mm):
- Front: 250
- Rear: N/A
Damper Force (Rebound/Damping):
- Front: 382 / 177
- Rear: 324 / 98
Default position of Dial:
- Front: 15
- Rear: 15
Remaining Damper Stroke (Rebound/Damping) (mm):
- Front: 48 / 65
- Rear: 74 / 91
Product: Hipermax Coilover Suspension S-Style L - ZVW40W ZVW41W
Part Num: 80130-AT107
SPECIFICATIONS:
Series: S-Style L
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps
Upper Mount:
- Front: Rubber
- Rear: OEM
Maximum Adjustability (mm):
- Front: 681 ~ 629
- Rear: 678 ~ 639
Maximum Adjustability (Drivable) (mm):
- Front: 681 ~ 629
- Rear: 678 ~ 639
Spring Rate N/mm (kgf/mm):
- Front: 39 ( 4 )
- Rear: 34 ( 3.5 )
Free Height (mm):
- Front: 250
- Rear: N/A
Damper Force (Rebound/Damping):
- Front: 382 / 177
- Rear: 324 / 98
Default position of Dial:
- Front: 15
- Rear: 15
Remaining Damper Stroke (Rebound/Damping) (mm):
- Front: 48 / 65
- Rear: 74 / 91
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Toyota Prius α ZVW40W 2ZR-FXE (05/2011-10/2014)
Toyota Prius α ZVW41W 2ZR-FXE (05/2011-10/2014)
Toyota Prius α ZVW40W 2ZR-FXE (05/2011-10/2014)
Toyota Prius α ZVW41W 2ZR-FXE (05/2011-10/2014)
