These items are designed to replace the factory head gaskets providing more sports orientated compression ratio while also being of superior materials and construction to reliably seal and hold the engine compression. In addition, the stainless for the material of the gasket makes it possible to cool down the cylinder effectively by transferring heat to the cylinder head equally with the high thermal conductivity of stainless. Available in a variety of different thickness and types to best match tuning application. Whether normally aspirated, turbocharged or supercharged HKS has the perfect selection available. Get this and all your JDM at RHDJapan!!
Brand: HKS

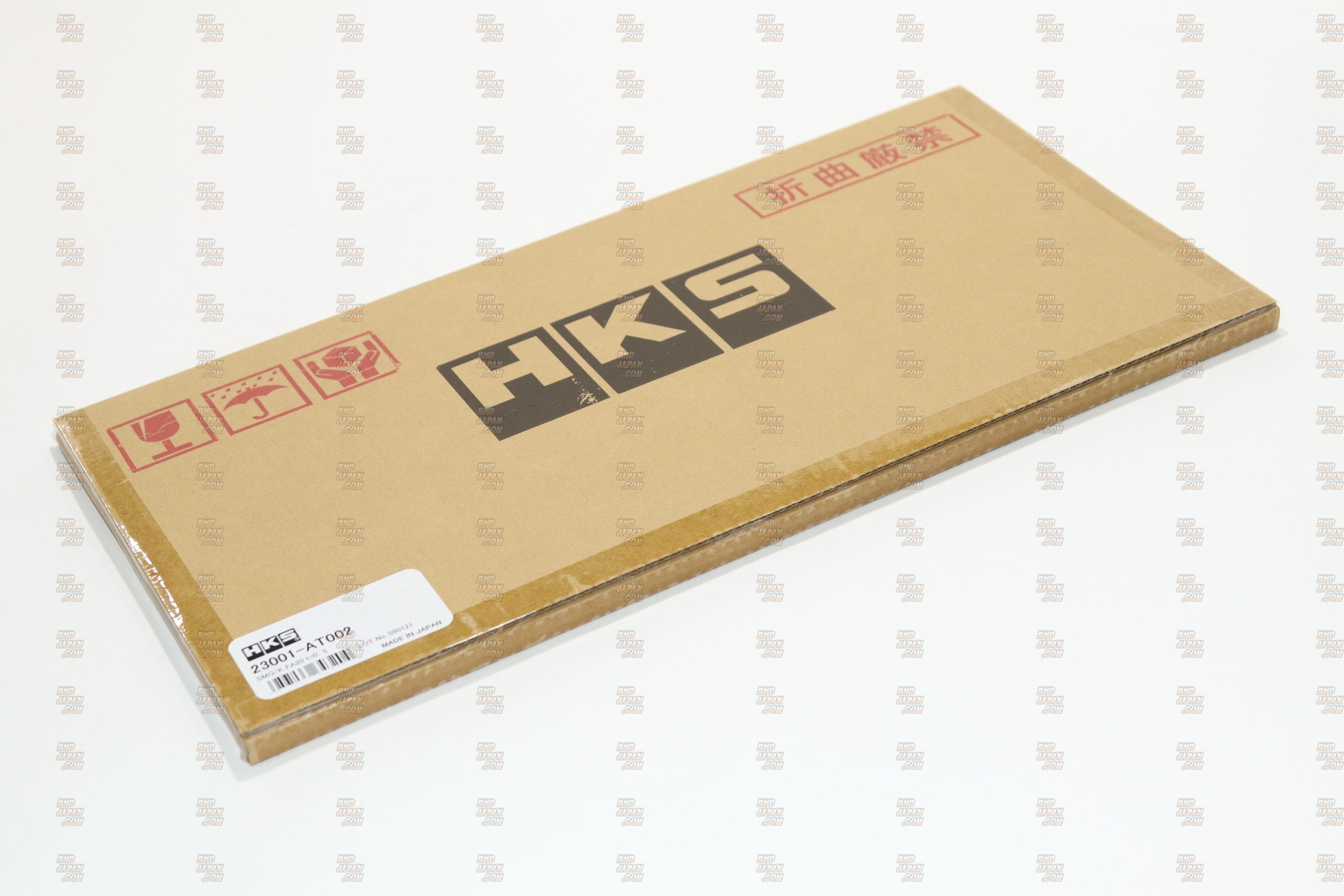

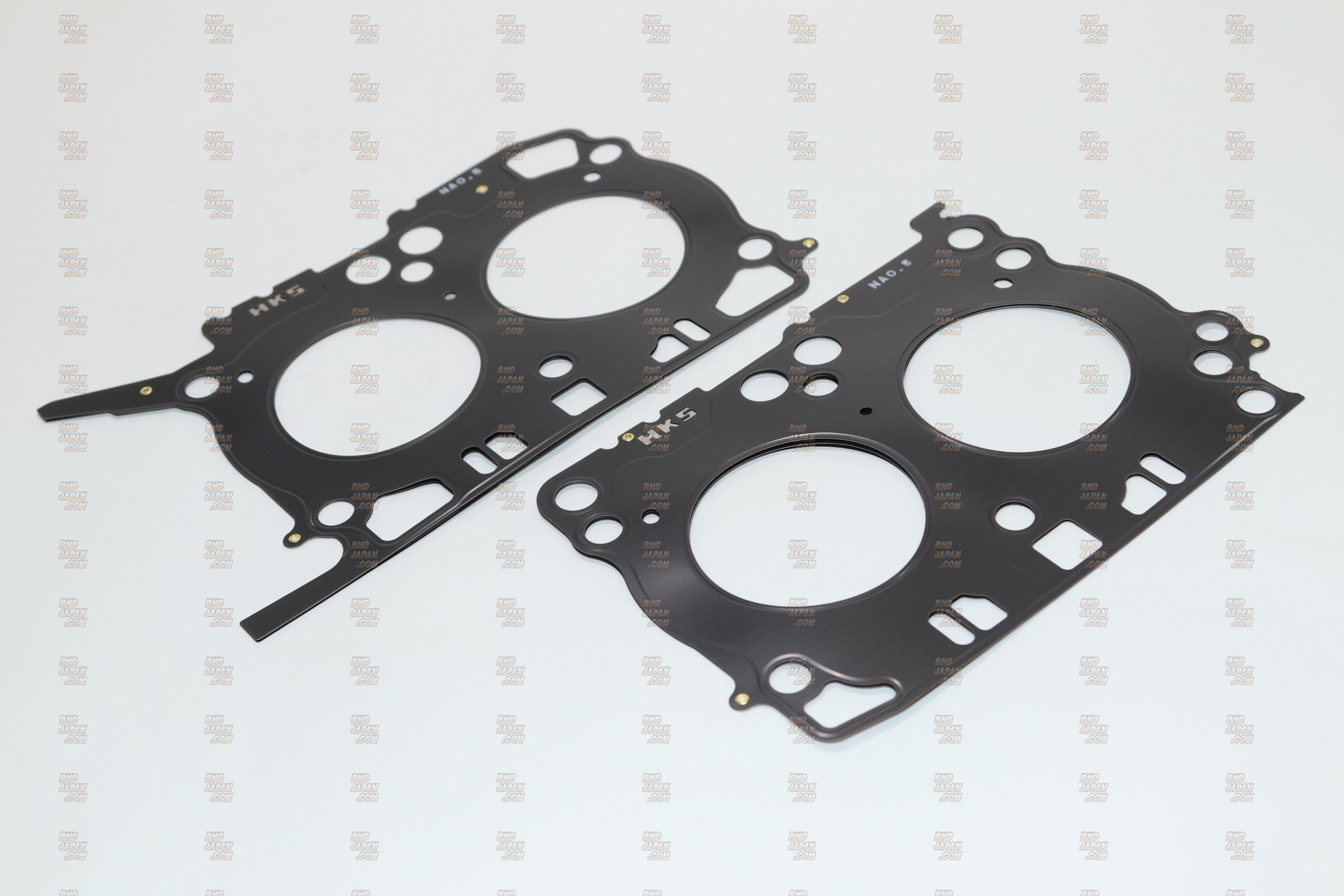

Product: Metal Head Gasket 0.5mm - BRZ ZC6 86 ZN6
Part Num.: 23001-AT002
SPECIFICATIONS:
Bore (mm): 89.5
Thickness (mm): 0.5
Gasket Type: Stopper
Material: Stainless Steel
Compression Rate:
-Standard Pistons: 12.6
-Capacity Up Kit High Compression (21004-AT002): 12.4
-Capacity Up Kit Low Compression (21004-AT003): 11.1
Product: Metal Head Gasket 0.5mm - BRZ ZC6 86 ZN6
Part Num.: 23001-AT002
SPECIFICATIONS:
Bore (mm): 89.5
Thickness (mm): 0.5
Gasket Type: Stopper
Material: Stainless Steel
Compression Rate:
-Standard Pistons: 12.6
-Capacity Up Kit High Compression (21004-AT002): 12.4
-Capacity Up Kit Low Compression (21004-AT003): 11.1
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Subaru BRZ ZC6 Applied A FA20 (04/2012-09/2013)
Subaru BRZ ZC6 Applied B FA20 (09/2013-06/2014)
Subaru BRZ ZC6 Applied C FA20 (07/2014-01/2015)
Subaru BRZ ZC6 Applied D FA20 (02/2015-05/2016)
Subaru BRZ ZC6 Applied E FA20 (06/2016-09/2017)
Subaru BRZ ZC6 Applied F FA20 (10/2017-03/2021)
Toyota 86 ZN6 FA20 (04/2012-08/2016)
Toyota 86 ZN6 FA20 (08/2016-03/2019)
Toyota 86 ZN6 FA20 (04/2019-10/2021)
Subaru BRZ ZC6 Applied A FA20 (04/2012-09/2013)
Subaru BRZ ZC6 Applied B FA20 (09/2013-06/2014)
Subaru BRZ ZC6 Applied C FA20 (07/2014-01/2015)
Subaru BRZ ZC6 Applied D FA20 (02/2015-05/2016)
Subaru BRZ ZC6 Applied E FA20 (06/2016-09/2017)
Subaru BRZ ZC6 Applied F FA20 (10/2017-03/2021)
Toyota 86 ZN6 FA20 (04/2012-08/2016)
Toyota 86 ZN6 FA20 (08/2016-03/2019)
Toyota 86 ZN6 FA20 (04/2019-10/2021)
