JAOS Suspension Kit Battlez Lift Up Set AJ Compete - Jimny Sierra JB74W
188669
JPY
JAOS
SKU: 285673

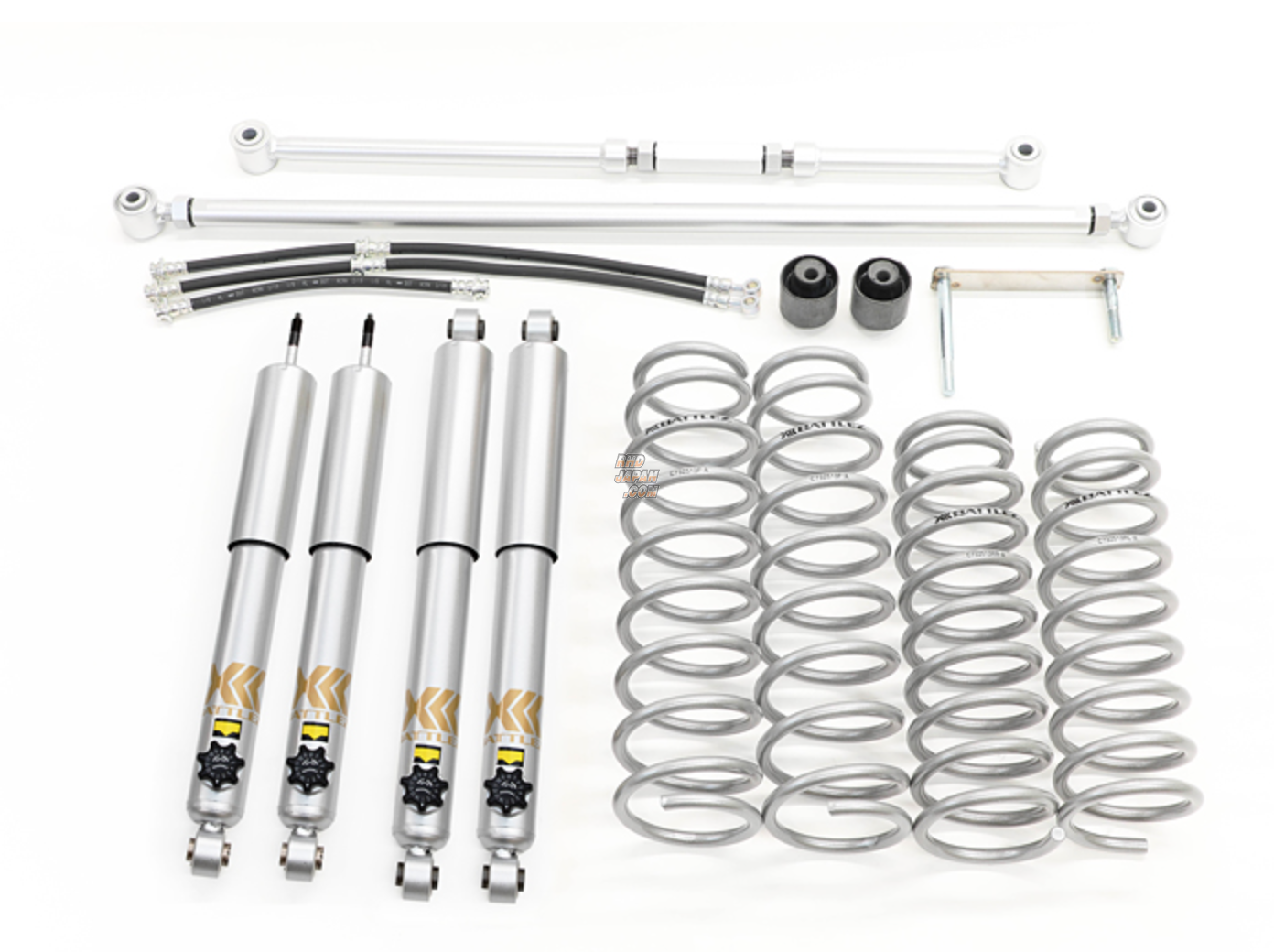

PN: A734518CZThis kit includes all parts required to properly lift-up the vehicle by 35 to 40mm while also improving handling performance, comfort and adjustability for all driving applications. The ride height increase will provide enough clearance for larger and/or wider wheel and tire combinations. The AJ version comes with 14-way adjustable dampers and also includes front and rear adjustable lateral rods setting the vehicle up for extreme off-road potential. Included are all parts to readjust steering geometry and wheel caster in addition to covering for the increased distance required for clearance. Get this and all your JDM at RHDJapan!!
Brand: JAOS
Product: Battlez Suspension Kit Lift Up Set AJ Compete - JB74W
Part Number: A734518CZ
SPECIFICATIONS:
Spring Series: Battlez Coil Ti-W
Spring Color: Silver
Spring Rate (N/mm):
-Front: 19.8
-Rear: 20.5
Ride Height(mm):
-Front: +35~40
-Rear: +35~40
Shock Absorber Series: Battlez Damper VF
Shock Absorber Adjustability: 14-Steps
Shock Absorber Color: Silver
Stroke (mm):
-Front: +21
-Rear: +31
Damper Body (mm):
-Front: 45
-Rear: 45
Damper Piston Size (mm):
-Front: 25
-Rear: 25

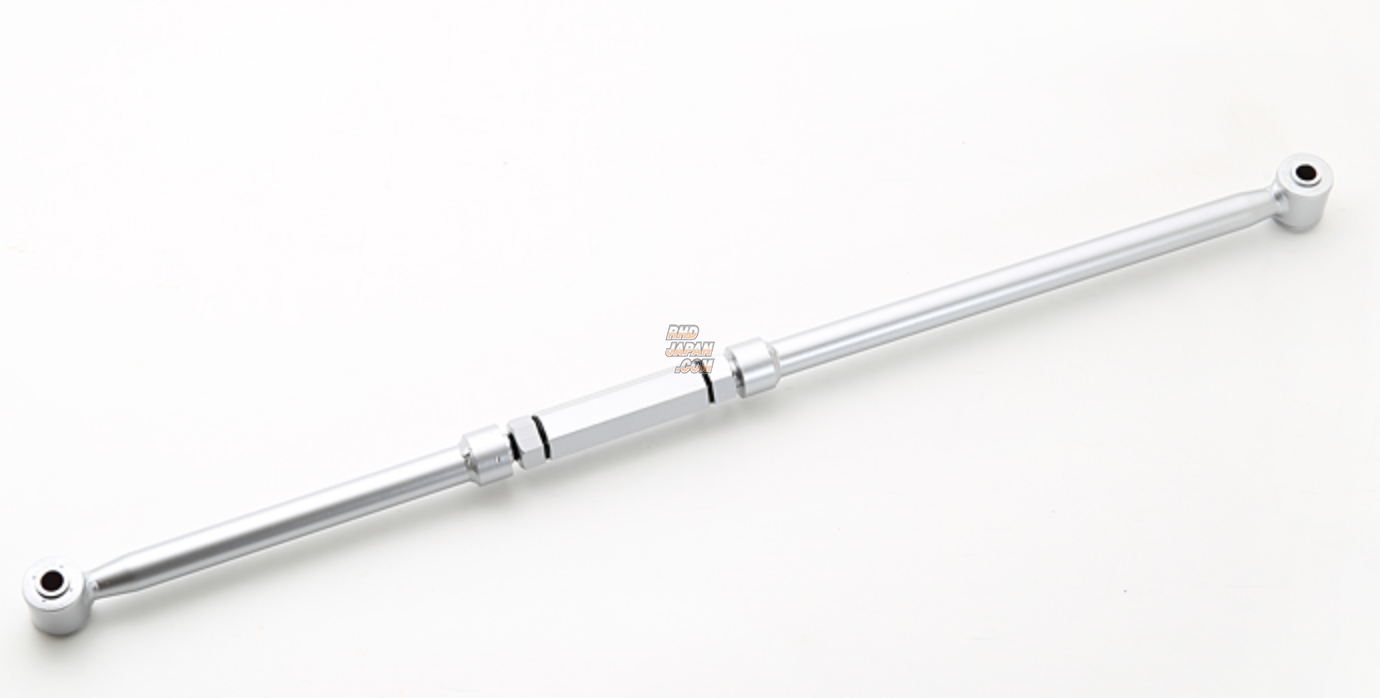

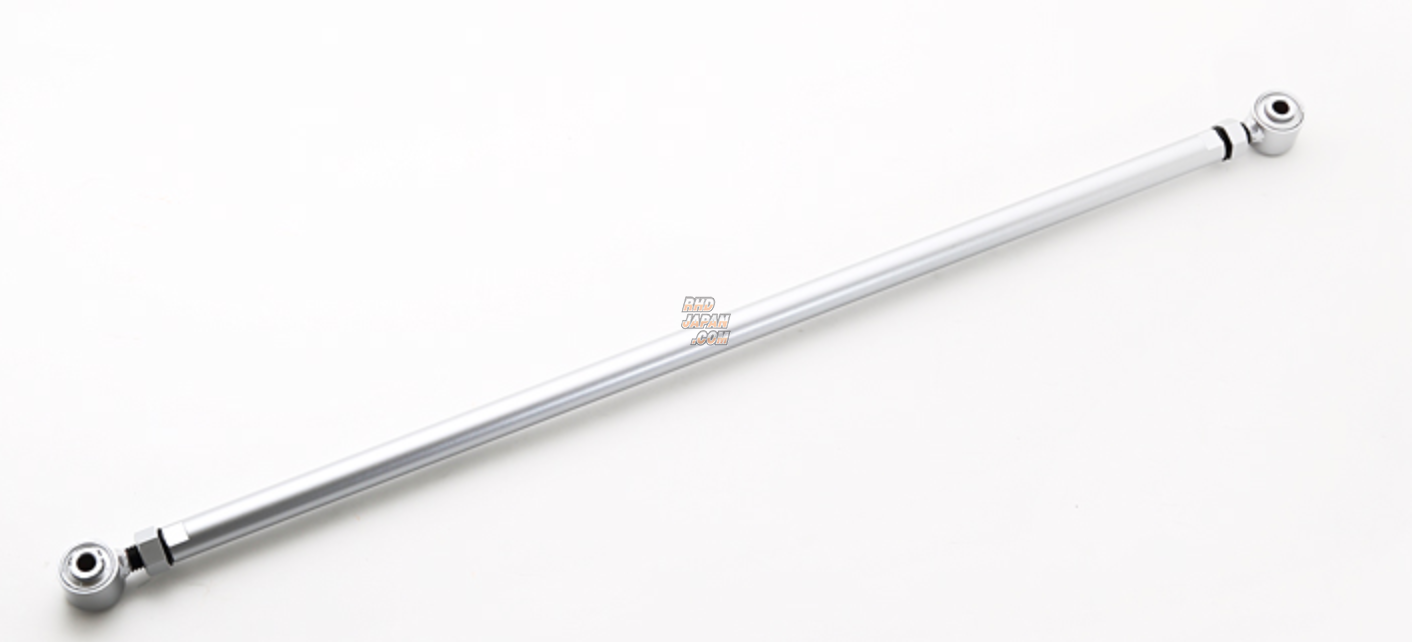

Lateral Rod:
Material: Steel (STKM13A)
-Front:
Adjustable Length (mm): +75
Strength (N): 97500
-Rear:
Adjustable Length (mm): +75
Strength (N): 97500
JAN Code: 4948350303876
PRODUCT NOTES:
Included:

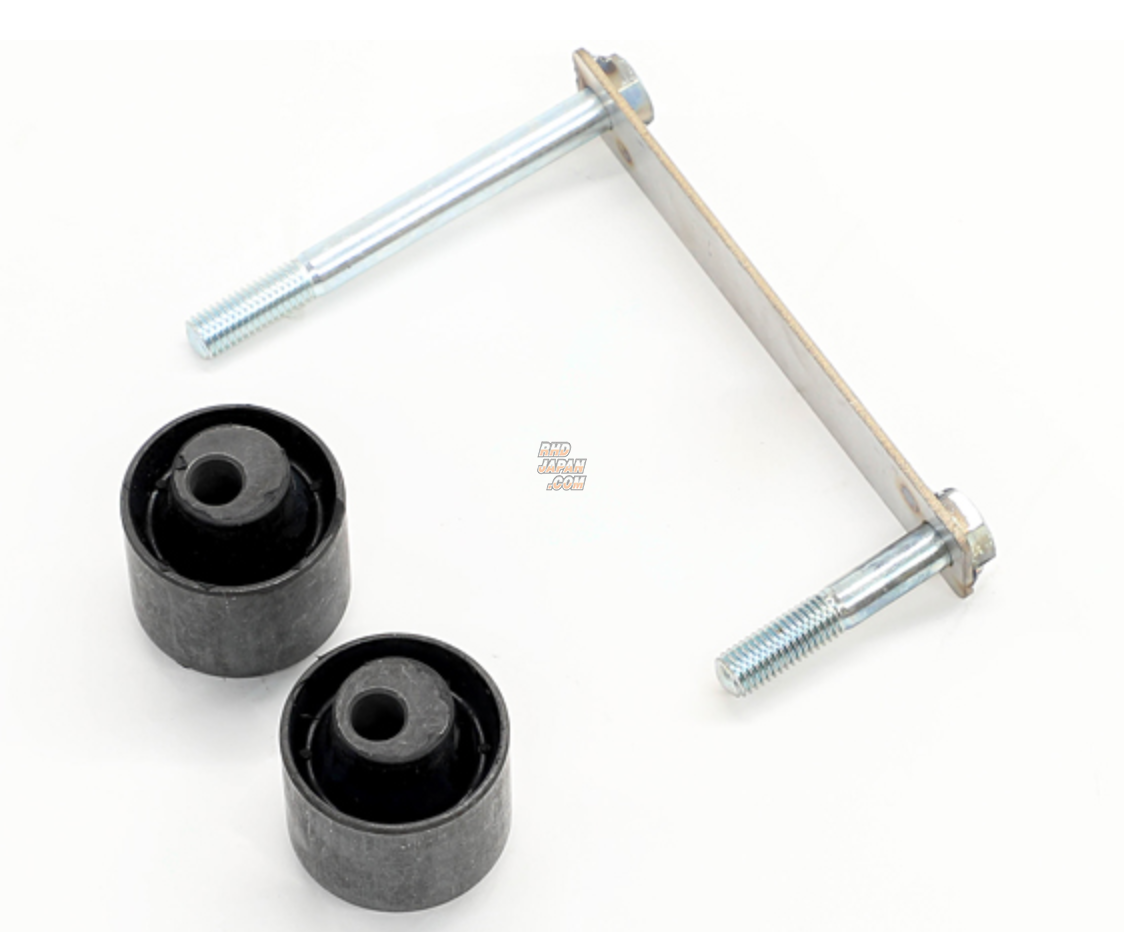

Caster Assist Bushing Set

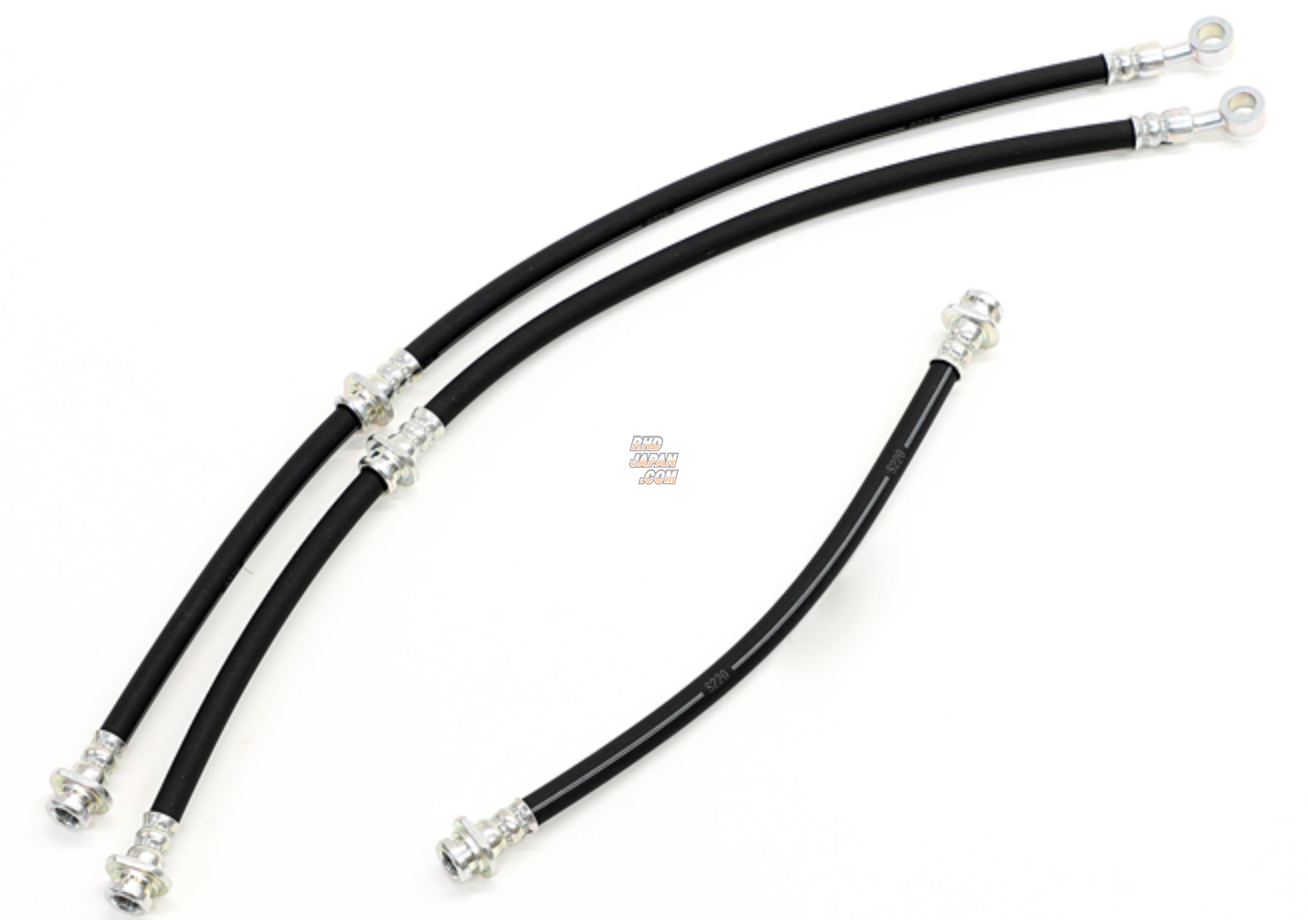

Long Brake Hose Set
LED Headlamp levalizer long bracket sold separately B778513
Product: Battlez Suspension Kit Lift Up Set AJ Compete - JB74W
Part Number: A734518CZ
SPECIFICATIONS:
Spring Series: Battlez Coil Ti-W
Spring Color: Silver
Spring Rate (N/mm):
-Front: 19.8
-Rear: 20.5
Ride Height(mm):
-Front: +35~40
-Rear: +35~40
Shock Absorber Series: Battlez Damper VF
Shock Absorber Adjustability: 14-Steps
Shock Absorber Color: Silver
Stroke (mm):
-Front: +21
-Rear: +31
Damper Body (mm):
-Front: 45
-Rear: 45
Damper Piston Size (mm):
-Front: 25
-Rear: 25
Lateral Rod:
Material: Steel (STKM13A)
-Front:
Adjustable Length (mm): +75
Strength (N): 97500
-Rear:
Adjustable Length (mm): +75
Strength (N): 97500
JAN Code: 4948350303876
PRODUCT NOTES:
Included:
Caster Assist Bushing Set
Long Brake Hose Set
LED Headlamp levalizer long bracket sold separately B778513
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.

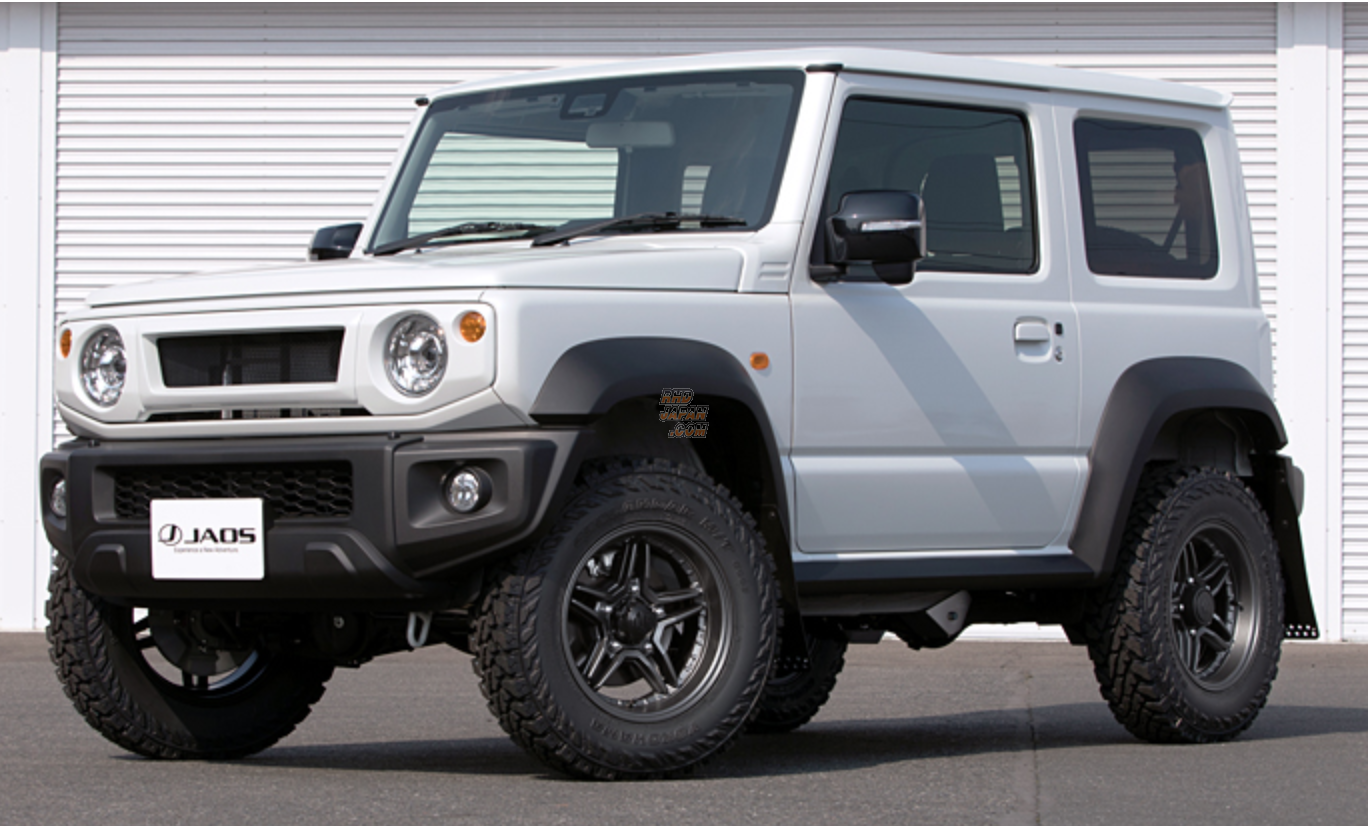

Suzuki Jimny Sierra JB74W K15B (07/2018~)
Suzuki Jimny Sierra JB74W K15B (07/2018~)
