This kit is composed of a long stroke crankshaft and JUN Super Forged aluminum pistons. The JUN Stroker kit provides more power and torque capabilities of your Stroker Assemblies - Includes JUN Full Crankshaft, JUN Super Pistons and JUN Super Connecting rods. The lightweight, high strength, and rate of balance of those parts are improving. The high response is offered. You can use broadly in various fields as circuit running, drag race etc.
Get this and all your JDM at RHDJapan!!
Get this and all your JDM at RHDJapan!!
Brand: Jun Auto
Product: Custom Kit Ex Series 2.3L - 4B11
Part Num: 1029M-M002
SPECIFICATIONS:

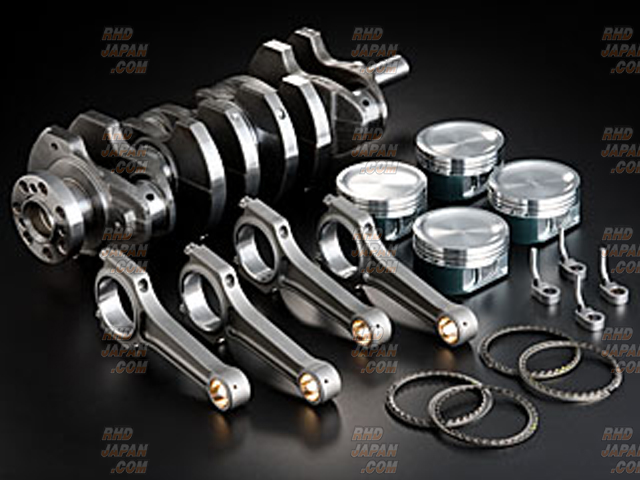

Kit Includes:
- 4x Forged Piston W-Series (Part Num: 1001W-M011)
- 4x I-Beam Connecting Rod (Part Num: 1002M-M004)
- 1x Forged Crank Shaft (Part Num: 1003M-M003)
- 4x Piston Pin
- 8x Snap Ring
- 4x Piston Ring Set
- 4x Oil jet
SPECIFICATIONS:
General:
Bore: 87.0mm
Stroke: 97.0mm
Engine Disp.: 2307cc
Compression Ratio: 8.8:1
Pistons:
Type: W-Series
Maker: Wossner GmbH
Bore: 87.0mm
Weight: 309g
Compression Height: 28.5mm
Piston Crown:
- Form: Convex
- Volume: 15.05cc
Valve Seat Recession: 0.0cc
Piston Pin Weight: 101g
Diam.: 22mm
Connecting Rod:
Type: I-Beam
Small end diam.: 22mm
Crankshaft:
Stroke: 97.0mm
PRODUCT NOTES:
- The Compression Ratio reference value when using 0.8mm head gasket.
Product: Custom Kit Ex Series 2.3L - 4B11
Part Num: 1029M-M002
SPECIFICATIONS:
Kit Includes:
- 4x Forged Piston W-Series (Part Num: 1001W-M011)
- 4x I-Beam Connecting Rod (Part Num: 1002M-M004)
- 1x Forged Crank Shaft (Part Num: 1003M-M003)
- 4x Piston Pin
- 8x Snap Ring
- 4x Piston Ring Set
- 4x Oil jet
SPECIFICATIONS:
General:
Bore: 87.0mm
Stroke: 97.0mm
Engine Disp.: 2307cc
Compression Ratio: 8.8:1
Pistons:
Type: W-Series
Maker: Wossner GmbH
Bore: 87.0mm
Weight: 309g
Compression Height: 28.5mm
Piston Crown:
- Form: Convex
- Volume: 15.05cc
Valve Seat Recession: 0.0cc
Piston Pin Weight: 101g
Diam.: 22mm
Connecting Rod:
Type: I-Beam
Small end diam.: 22mm
Crankshaft:
Stroke: 97.0mm
PRODUCT NOTES:
- The Compression Ratio reference value when using 0.8mm head gasket.
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Mitsubishi Galant Fortis CY4A 4B11 (08/2007-12/2009)
Mitsubishi Galant Fortis CY4A 4B11 (12/2009-04/2015)
Mitsubishi Galant Fortis SportBack CX4A 4B11 (12/2008-12/2009)
Mitsubishi Galant Fortis SportBack CX4A 4B11 (12/2009~)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2007-09/2008)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2008-09/2009)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2009-09/2015)
Mitsubishi Galant Fortis CY4A 4B11 (08/2007-12/2009)
Mitsubishi Galant Fortis CY4A 4B11 (12/2009-04/2015)
Mitsubishi Galant Fortis SportBack CX4A 4B11 (12/2008-12/2009)
Mitsubishi Galant Fortis SportBack CX4A 4B11 (12/2009~)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2007-09/2008)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2008-09/2009)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2009-09/2015)
