This is designed to optimize torque and horsepower over the widest possible power band. Each Camshaft application is offered in multiple profiles, each with their own lift & duration characteristics to suit various levels of tuning.
Get this and all your JDM at RHDJapan!!
Get this and all your JDM at RHDJapan!!
Brand: JUN Auto
Product: High Lift Camshaft - CD# CL# BB# CF2 CH9
Part Num: 1033M-H006
SPECIFICATIONS:

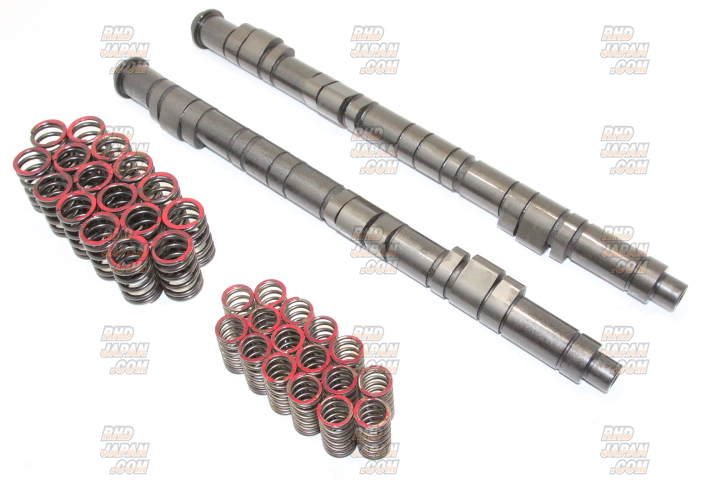

Included:

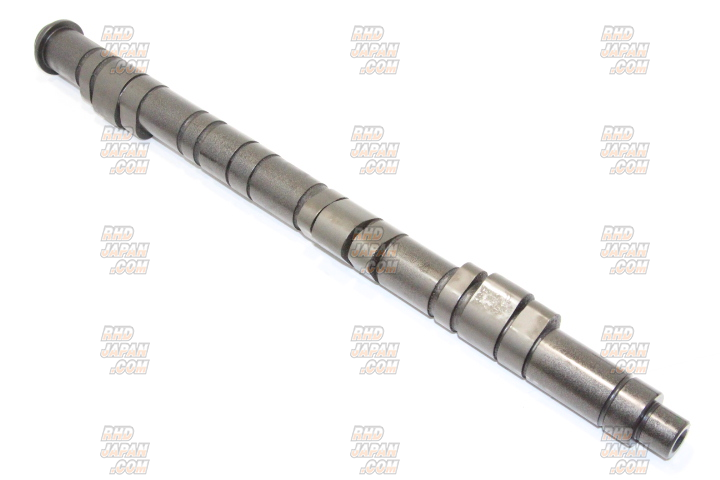

Part Num: 1004M-H011 (Intake)

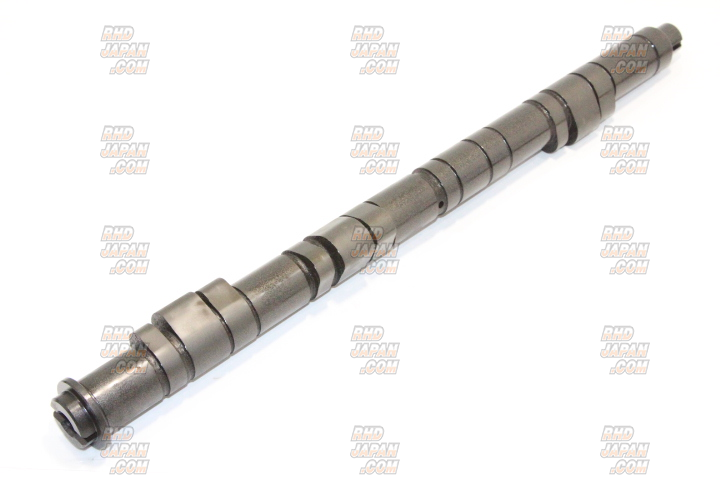

Part Num: 1004M-H111 (Exhaust)

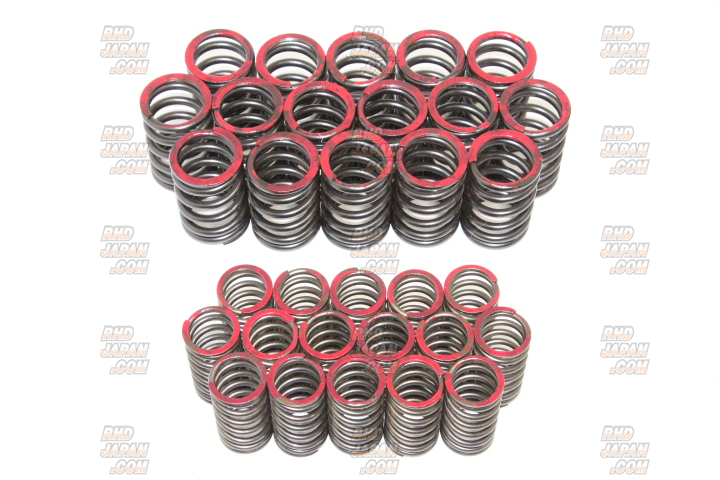

Part Num: 1009M-H002 (Valve Springs)
- Intake -
Primary:
- Duration: 62(248)
- Lift (mm): 9.2
Mid:
- Duration: 74(296)
- Lift (mm): 12.2
Secondary:
- Duration: 60(240)
- Lift (mm): 7.7
- Exhaust -
Primary:
- Duration: 61(244)
- Lift (mm): 7.7
Mid:
- Duration: 74(296)
- Lift (mm): 11.9
Secondary:
- Duration: 60(240)
- Lift (mm): 9.0
Valve Clearance (cool conditions):
- Intake: 0.17
- Exhaust: 0.19
PRODUCT NOTES:
- The amount of lift shows the cam lift.
- Reinforced Valve Springs are inlcuded.
- Retainers are sold separately
FEATURES:
Discerning in Perfect Development Environment:
The cam profile which influences the performance of a Camshaft is the most important element in a Camshaft design. At JUN, the software only for cam profile designs is used, and the automatic design by the computer is performed. In order to test the cam shaft designed on the desk, the engine bench system of JUN which has combustion pressure measurement equipment is used. This system can analyze the state in a combustion room for every crankshaft angles. Various profiles can be tested.
The Profile Optimized According to the Type of Car:
Even if it says a Camshaft in a word, the profile form is various by the type of a car. Profile form is decided in consideration of the difference of valve motion method etc. (direct type, a locker arm type, strength of moving part, valve size, port and combustion room form). If depending on types of a car, a profile may be restricted by the wall in a head, lifter hole size, locker arm form, etc. At JUN, when developing a high Camshaft, the detailed data for each type of a car is taken, development is furthered simultaneously with a valve spring and retainer, and the optimal profile is determined.
The Main Point in a Development and a Design:
You have to raise 'filling efficiency', in order to obtain a high output. Being required of a cam is lengthening time which the valve's is opening. It is necessary to increase the amount of cam lifts in order to lengthen time which the valve is opening. The negative acceleration will become large if the amount of lifts is increased simply. The 'jumping phenomenon' in which a valve separates from a cam, and the 'bounce phenomenon' which is bounded when a valve contacts a valve sheet ring occur because when negative acceleration becomes large, the acceleration of a valve will exceed the acceleration of a cam. These phenomena not only spoil the performance of engine original but cause breakage of engine. The high Camshaft must realize the conflicting element with which 'extension of time which is opening the valve', and 'reduction of negative acceleration'.
JUN high Camshaft took positive acceleration large, and the action time of negative acceleration is keep a long time by shortening positive action time. By doing so, when a valve moves from opening operation to closing operation, a valve can move as smooth operation and can prevent jumping. Since positive acceleration becomes large at the side of close, the valve just before closing is added the strong brakes by the cam. The bounce phenomenon is prevented. The time near the maximum lift can be kept for a long time by opening a valve in a short time. Therefore, the good valve motion of efficiency is possible. The simulation and an experiment of the valve motion system are conducted based on such design theories, and a profile is determined. Here is the true performance for which a high lift Camshaft is asked.
Product: High Lift Camshaft - CD# CL# BB# CF2 CH9
Part Num: 1033M-H006
SPECIFICATIONS:
Included:
Part Num: 1004M-H011 (Intake)
Part Num: 1004M-H111 (Exhaust)
Part Num: 1009M-H002 (Valve Springs)
- Intake -
Primary:
- Duration: 62(248)
- Lift (mm): 9.2
Mid:
- Duration: 74(296)
- Lift (mm): 12.2
Secondary:
- Duration: 60(240)
- Lift (mm): 7.7
- Exhaust -
Primary:
- Duration: 61(244)
- Lift (mm): 7.7
Mid:
- Duration: 74(296)
- Lift (mm): 11.9
Secondary:
- Duration: 60(240)
- Lift (mm): 9.0
Valve Clearance (cool conditions):
- Intake: 0.17
- Exhaust: 0.19
PRODUCT NOTES:
- The amount of lift shows the cam lift.
- Reinforced Valve Springs are inlcuded.
- Retainers are sold separately
FEATURES:
Discerning in Perfect Development Environment:
The cam profile which influences the performance of a Camshaft is the most important element in a Camshaft design. At JUN, the software only for cam profile designs is used, and the automatic design by the computer is performed. In order to test the cam shaft designed on the desk, the engine bench system of JUN which has combustion pressure measurement equipment is used. This system can analyze the state in a combustion room for every crankshaft angles. Various profiles can be tested.
The Profile Optimized According to the Type of Car:
Even if it says a Camshaft in a word, the profile form is various by the type of a car. Profile form is decided in consideration of the difference of valve motion method etc. (direct type, a locker arm type, strength of moving part, valve size, port and combustion room form). If depending on types of a car, a profile may be restricted by the wall in a head, lifter hole size, locker arm form, etc. At JUN, when developing a high Camshaft, the detailed data for each type of a car is taken, development is furthered simultaneously with a valve spring and retainer, and the optimal profile is determined.
The Main Point in a Development and a Design:
You have to raise 'filling efficiency', in order to obtain a high output. Being required of a cam is lengthening time which the valve's is opening. It is necessary to increase the amount of cam lifts in order to lengthen time which the valve is opening. The negative acceleration will become large if the amount of lifts is increased simply. The 'jumping phenomenon' in which a valve separates from a cam, and the 'bounce phenomenon' which is bounded when a valve contacts a valve sheet ring occur because when negative acceleration becomes large, the acceleration of a valve will exceed the acceleration of a cam. These phenomena not only spoil the performance of engine original but cause breakage of engine. The high Camshaft must realize the conflicting element with which 'extension of time which is opening the valve', and 'reduction of negative acceleration'.
JUN high Camshaft took positive acceleration large, and the action time of negative acceleration is keep a long time by shortening positive action time. By doing so, when a valve moves from opening operation to closing operation, a valve can move as smooth operation and can prevent jumping. Since positive acceleration becomes large at the side of close, the valve just before closing is added the strong brakes by the cam. The bounce phenomenon is prevented. The time near the maximum lift can be kept for a long time by opening a valve in a short time. Therefore, the good valve motion of efficiency is possible. The simulation and an experiment of the valve motion system are conducted based on such design theories, and a profile is determined. Here is the true performance for which a high lift Camshaft is asked.
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Honda Accord CD6 H22A (09/1993-06/1996)
Honda Accord CD6 H22A (07/1996-08/1997)
Honda Accord CL3 H22A (06/2000-10/2002)
Honda Accord Coupe CD8 H22A (02/1994-08/1997)
Honda Accord Euro R CL1 H22A (06/2000-10/2002)
Honda Accord Wagon CF2 H22A (09/1996-08/1997)
Honda Accord Wagon CH9 H22A (01/1999-05/2000)
Honda Accord Wagon CH9 H22A (06/2000-10/2002)
Honda Accord Wagon CL2 H22A (06/2000-10/2002)
Honda Prelude BB1 H22A (09/1991-12/1992)
Honda Prelude BB1 H22A (01/1993-11/1996)
Honda Prelude BB4 H22A (09/1991-12/1992)
Honda Prelude BB4 H22A (01/1993-11/1996)
Honda Prelude BB6 H22A (11/1996-08/2000)
Honda Prelude BB8 H22A (11/1996-08/2000)
Honda Torneo Euro R CL1 H22A (06/2000-04/2001)
Honda Torneo Euro R CL1 H22A (05/2001-10/2002)
Honda Accord CD6 H22A (09/1993-06/1996)
Honda Accord CD6 H22A (07/1996-08/1997)
Honda Accord CL3 H22A (06/2000-10/2002)
Honda Accord Coupe CD8 H22A (02/1994-08/1997)
Honda Accord Euro R CL1 H22A (06/2000-10/2002)
Honda Accord Wagon CF2 H22A (09/1996-08/1997)
Honda Accord Wagon CH9 H22A (01/1999-05/2000)
Honda Accord Wagon CH9 H22A (06/2000-10/2002)
Honda Accord Wagon CL2 H22A (06/2000-10/2002)
Honda Prelude BB1 H22A (09/1991-12/1992)
Honda Prelude BB1 H22A (01/1993-11/1996)
Honda Prelude BB4 H22A (09/1991-12/1992)
Honda Prelude BB4 H22A (01/1993-11/1996)
Honda Prelude BB6 H22A (11/1996-08/2000)
Honda Prelude BB8 H22A (11/1996-08/2000)
Honda Torneo Euro R CL1 H22A (06/2000-04/2001)
Honda Torneo Euro R CL1 H22A (05/2001-10/2002)
