Kaaz LSD Limited Slip Differential 1.5-Way Super Q - Hiace GDH201K GDH211K GDH221K LH107G LH107W LH110G LH140G RZH100G RZH110G RZH112V TRH200 TRH221 TRH223 TRH226 TRH228B TRH228K TRH228V TRH200K TRH200V TRH211K TRH216K KZH106G KZH106W TRH214W
114559
JPY
KAAZ
SKU: 309416

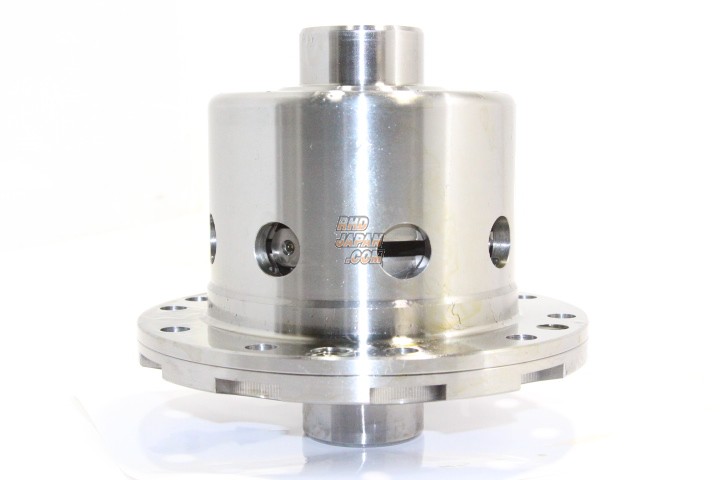

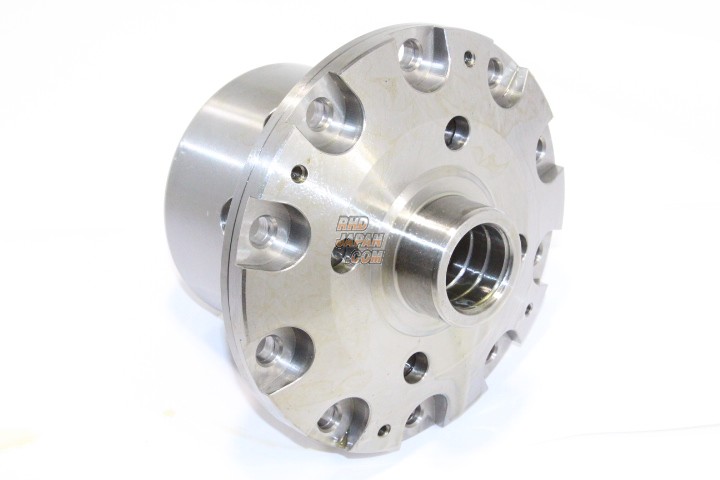

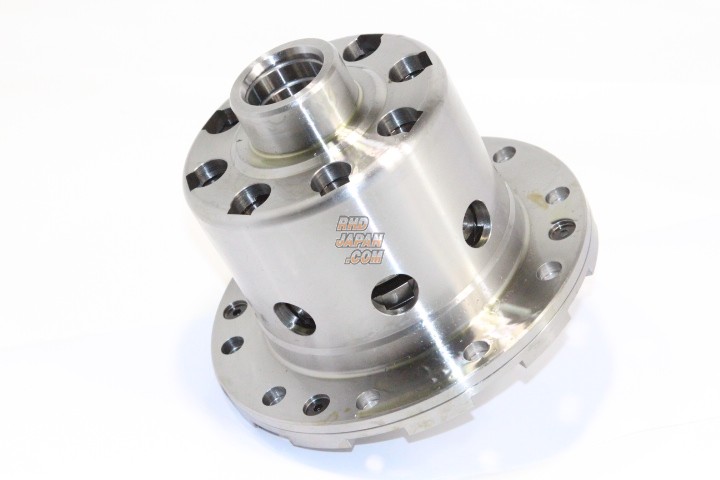

PN: SBT3050SQThis item is designed to replace the factory differential unit providing enhanced sports orientated characteristics for performance and race applications. With extensive experience in developing and manufacturing heavy-duty machinery KAAZ has applied this know-how to motorsports providing a superior functioning and extremely durable product. Some applications available in 1.5 or 2 way for extra choice in driving style. SuperQ (WPC Treatment) variant is also available as an option for reduced chatter and smoother engagement, improved heat dissipation with longer wear life and no break-in process. RHDJapan offers these items with and without oil for better option in shipping services and costs. Get this and all your JDM at RHDJapan!!
Brand: Kaaz
Product: LSD Limited Slip Differential 1.5-Way Super Q - Hiace GDH201K GDH211K GDH221K LH107G LH107W LH110G LH140G RZH100G RZH110G RZH112V TRH200 TRH221 TRH223 TRH226 TRH228B TRH228K TRH228V TRH200K TRH200V TRH211K TRH216K KZH106G
KZH106W TRH214W
Part Number: SBT3050SQ
SPECIFICATIONS:
Type: Super Q
Position: Rear
Plate Size: L
Plate Quantity: 8
Cone Spring Quantity: 2
Cam Angle (°): 60 x 40
Initial Torque (K): 4 - 6
Setup: 1.5-way
Type: Open
COMPATIBILITY NOTES:
- LH107G LH107W: For vehicles 4 AT.
- KZH106G KZH106W: For vehicles AT, 07/99 ~ 08/04.
- KZH16G: For vehicles 4 AT, 08/93 ~ 07/99.
- KZH106G KZH106W KZH16G: For vehicles without OEM LSD.
- TRH200V TRH200K TRH214W TRH221K TRH224W GDH201K GDH211 GDH221K TRH200 TRH211K TRH216K TRH223 TRH226 TRH228B TRH228V TRH228K TRH221: For vehicles Type 6, 05/20~. Necessary to replace Side bearing (90366-50007×2)
- LH107G LH107W KZH106G KZH106W KZH16G: Necessary to replace Side bearing (90368-50024×2)
Product: LSD Limited Slip Differential 1.5-Way Super Q - Hiace GDH201K GDH211K GDH221K LH107G LH107W LH110G LH140G RZH100G RZH110G RZH112V TRH200 TRH221 TRH223 TRH226 TRH228B TRH228K TRH228V TRH200K TRH200V TRH211K TRH216K KZH106G
KZH106W TRH214W
Part Number: SBT3050SQ
SPECIFICATIONS:
Type: Super Q
Position: Rear
Plate Size: L
Plate Quantity: 8
Cone Spring Quantity: 2
Cam Angle (°): 60 x 40
Initial Torque (K): 4 - 6
Setup: 1.5-way
Type: Open
COMPATIBILITY NOTES:
- LH107G LH107W: For vehicles 4 AT.
- KZH106G KZH106W: For vehicles AT, 07/99 ~ 08/04.
- KZH16G: For vehicles 4 AT, 08/93 ~ 07/99.
- KZH106G KZH106W KZH16G: For vehicles without OEM LSD.
- TRH200V TRH200K TRH214W TRH221K TRH224W GDH201K GDH211 GDH221K TRH200 TRH211K TRH216K TRH223 TRH226 TRH228B TRH228V TRH228K TRH221: For vehicles Type 6, 05/20~. Necessary to replace Side bearing (90366-50007×2)
- LH107G LH107W KZH106G KZH106W KZH16G: Necessary to replace Side bearing (90368-50024×2)
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Toyota Hiace GDH201K 1GD-FTV (12/2017~)
Toyota Hiace GDH211K 1GD-FTV (12/2017~)
Toyota Hiace GDH221K 1GD-FTV (12/2017~)
Toyota Hiace LH107G 3L (08/1989-08/1993)
Toyota Hiace LH107W 3L (08/1989-08/1993)
Toyota Hiace LH110G 2L (08/1989-08/1993)
Toyota Hiace LH140G 2L (08/1989-08/1993)
Toyota Hiace RZH100G 1RZ-E (08/1989-08/1993)
Toyota Hiace RZH100G 1RZ-E (08/1993-08/2002)
Toyota Hiace RZH110G 1RZ-E (08/1989-08/1993)
Toyota Hiace RZH110G 1RZ-E (08/1993-08/2002)
Toyota Hiace RZH112V 1RZ-E (08/1989-08/1996)
Toyota Hiace RZH112V 1RZ-E (08/1996-08/2003)
Toyota Hiace TRH200 1TR-FE (08/2004~)
Toyota Hiace TRH221 2TR-FE (08/2004~)
Toyota Hiace TRH223 2TR-FE (08/2004~)
Toyota Hiace TRH226 2TR-FE (08/2004~)
Toyota Hiace TRH228B 2TR-FE (08/2004~)
Toyota Hiace TRH228K 2TR-FE (08/2004~)
Toyota Hiace TRH228V 2TR-FE (08/2004~)
Toyota Hiace Van TRH200K 1TR-FE (12/2014~)
Toyota Hiace Van TRH200V 1TR-FE (12/2014~)
Toyota Hiace Van TRH211K 2TR-FE (08/2005~)
Toyota Hiace Van TRH216K 2TR-FE (08/2004~)
Toyota Hiace Wagon KZH106G 1KZ-TE (08/1993-08/2004)
Toyota Hiace Wagon KZH106W 1KZ-TE (05/1992-08/2004)
Toyota Hiace Wagon TRH214W 2TR-FE (11/2005~)
Toyota Hiace GDH201K 1GD-FTV (12/2017~)
Toyota Hiace GDH211K 1GD-FTV (12/2017~)
Toyota Hiace GDH221K 1GD-FTV (12/2017~)
Toyota Hiace LH107G 3L (08/1989-08/1993)
Toyota Hiace LH107W 3L (08/1989-08/1993)
Toyota Hiace LH110G 2L (08/1989-08/1993)
Toyota Hiace LH140G 2L (08/1989-08/1993)
Toyota Hiace RZH100G 1RZ-E (08/1989-08/1993)
Toyota Hiace RZH100G 1RZ-E (08/1993-08/2002)
Toyota Hiace RZH110G 1RZ-E (08/1989-08/1993)
Toyota Hiace RZH110G 1RZ-E (08/1993-08/2002)
Toyota Hiace RZH112V 1RZ-E (08/1989-08/1996)
Toyota Hiace RZH112V 1RZ-E (08/1996-08/2003)
Toyota Hiace TRH200 1TR-FE (08/2004~)
Toyota Hiace TRH221 2TR-FE (08/2004~)
Toyota Hiace TRH223 2TR-FE (08/2004~)
Toyota Hiace TRH226 2TR-FE (08/2004~)
Toyota Hiace TRH228B 2TR-FE (08/2004~)
Toyota Hiace TRH228K 2TR-FE (08/2004~)
Toyota Hiace TRH228V 2TR-FE (08/2004~)
Toyota Hiace Van TRH200K 1TR-FE (12/2014~)
Toyota Hiace Van TRH200V 1TR-FE (12/2014~)
Toyota Hiace Van TRH211K 2TR-FE (08/2005~)
Toyota Hiace Van TRH216K 2TR-FE (08/2004~)
Toyota Hiace Wagon KZH106G 1KZ-TE (08/1993-08/2004)
Toyota Hiace Wagon KZH106W 1KZ-TE (05/1992-08/2004)
Toyota Hiace Wagon TRH214W 2TR-FE (11/2005~)
