Nismo Super Coppermix Single Plate Clutch Standard Spec - S14 PS13 RPS13
99199
JPY
NISMO
SKU: 29260
PN: 3000S-RS520-G1This is the standard spec type of Super Coppermix which can handle 380ps. The great thing about the Nismo clutches are that they are very high performance products, but keep their everyday driving comfort. The Nismo Super Coppermix Single Clutch uses a 240mm size damperless disc and aluminum cover combination to improve the overall cooling performance of the set up as well as the transmission. A lightweight flywheel is equipped which is made of special chromoly to achieve the ideal weight for maximum torque. The clutch cover is made from a special aluminum with a high heat-radiating ability. Get this and all your JDM at RHDJapan!!
Brand: Nismo
Product: Super Coppermix Single Plate Clutch Standard Spec - S14 PS13 RPS13
Part Num: 3000S-RS520-G1
SPECIFICATIONS:

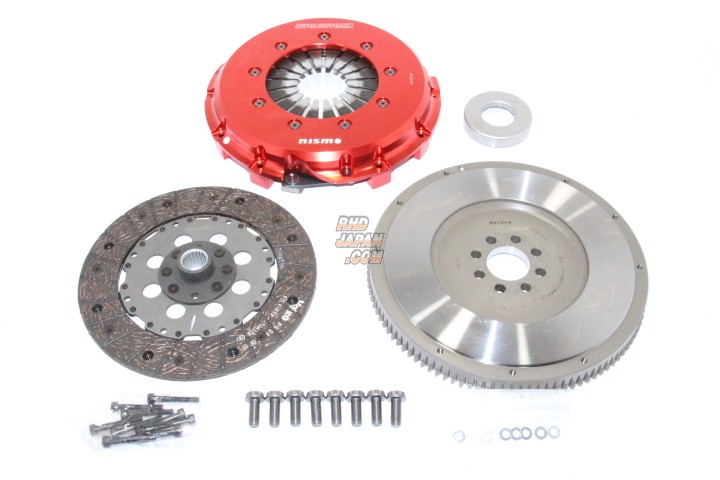

Kit Contents:
- Flywheel bolts
- Release bearing (OEM)
- Sticker

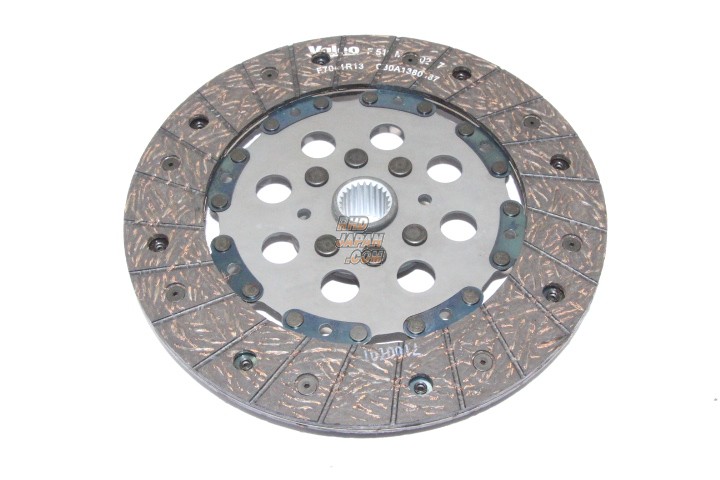

- One COPPERMIX clutch disc
- Aluminum clutch cover

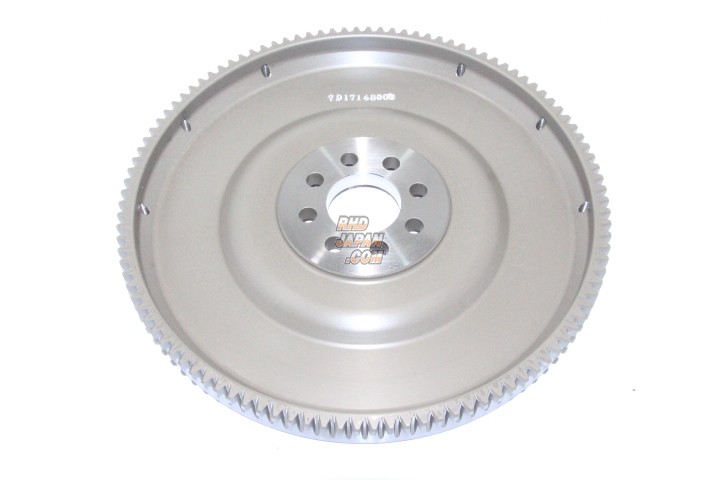

- Lightweight flywheel
- Aluminum center plate
Damper: No
Disc Outer Diameter: 240mm
Allowable torque Nm (kgfm):
- Kinetic friction: 422 (43)
- Static friction: 637 (65)
Allowable output kW (ps): 279 (380)

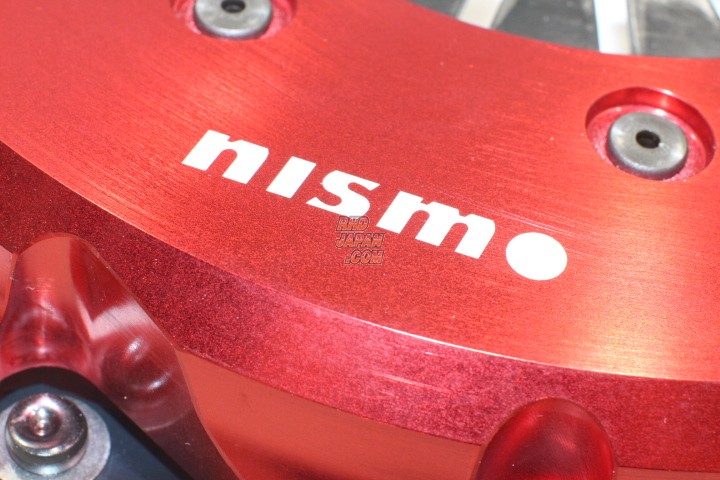

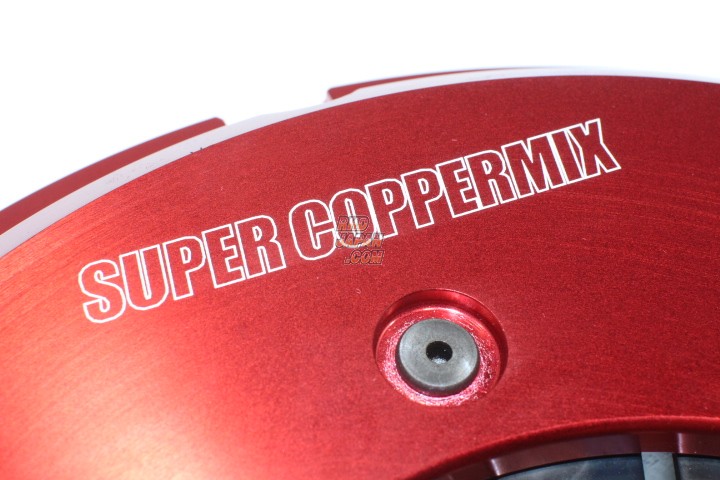

Clutch cover:
- Pressure N (kgf): 7846 (800)
- Type: Push
PRODUCT NOTES:
- Because of the design and manufacturing processes made to create the improved clutch response provided by the sports clutch disc and lightweight flywheel and increased output, it is possible that the transmission or bearings may transmit a rumbling noise, compared to genuine Nissan parts. Transmission or gear noise is particularly likely to occur at idling or when accelerating or decelerating from the area around 2000rpm; however, this has no effect on quality or performance.
- The rattling sound which is characteristic of six-speed manual transmissions, Getrag-equipped vehicles and S15 6-speed manual transmission vehicles, has been proven in actual vehicle testing to be reduced through the use of the G-max.
- Do not use with a big operating cylinder, which may result in a misshift due to insufficient stroke volume.
- Heavy pedal operations will result, due to high pressure settings. Not recommended for general-purpose use.
- To improve the operation of this clutch, please refrain from excessive half-clutch operation (although the clutch does have good half-clutch characteristics).
Product: Super Coppermix Single Plate Clutch Standard Spec - S14 PS13 RPS13
Part Num: 3000S-RS520-G1
SPECIFICATIONS:
Kit Contents:
- Flywheel bolts
- Release bearing (OEM)
- Sticker
- One COPPERMIX clutch disc
- Aluminum clutch cover
- Lightweight flywheel
- Aluminum center plate
Damper: No
Disc Outer Diameter: 240mm
Allowable torque Nm (kgfm):
- Kinetic friction: 422 (43)
- Static friction: 637 (65)
Allowable output kW (ps): 279 (380)
Clutch cover:
- Pressure N (kgf): 7846 (800)
- Type: Push
PRODUCT NOTES:
- Because of the design and manufacturing processes made to create the improved clutch response provided by the sports clutch disc and lightweight flywheel and increased output, it is possible that the transmission or bearings may transmit a rumbling noise, compared to genuine Nissan parts. Transmission or gear noise is particularly likely to occur at idling or when accelerating or decelerating from the area around 2000rpm; however, this has no effect on quality or performance.
- The rattling sound which is characteristic of six-speed manual transmissions, Getrag-equipped vehicles and S15 6-speed manual transmission vehicles, has been proven in actual vehicle testing to be reduced through the use of the G-max.
- Do not use with a big operating cylinder, which may result in a misshift due to insufficient stroke volume.
- Heavy pedal operations will result, due to high pressure settings. Not recommended for general-purpose use.
- To improve the operation of this clutch, please refrain from excessive half-clutch operation (although the clutch does have good half-clutch characteristics).
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Nissan 180SX RPS13 SR20DET (01/1991-12/1993)
Nissan 180SX RPS13 SR20DET (01/1994-07/1996)
Nissan 180SX RPS13 SR20DET (08/1996-12/1998)
Nissan Silvia PS13 SR20DET (01/1991-10/1993)
Nissan Silvia S14 SR20DET (10/1993-06/1996)
Nissan Silvia S14 SR20DET (06/1996-12/1998)
Nissan 180SX RPS13 SR20DET (01/1991-12/1993)
Nissan 180SX RPS13 SR20DET (01/1994-07/1996)
Nissan 180SX RPS13 SR20DET (08/1996-12/1998)
Nissan Silvia PS13 SR20DET (01/1991-10/1993)
Nissan Silvia S14 SR20DET (10/1993-06/1996)
Nissan Silvia S14 SR20DET (06/1996-12/1998)
