Project Mu Forged Street Caliper Brake Kit 4Pistons x 2Pads FS4M Front 2Pc Rotor D1 Spec F Pads - Mark II Verossa JZX110
346059
JPY
PROJECT MU
SKU: 256498
PN: FS4M-T131GP_D1SpecFThis big brake kit has been developed to provide superior braking performance and feel with innovative design. This series has been developed with a highly efficient yet compact combination of brake caliper and rotor size. Designed to be compact enough to be compatible with factory or relatively conservative street wheel combinations. Despite the smaller diameter of the brake rotors they are thicker than most larger alternatives providing significant cooling properties. Combined with superior design and construction calipers and pads this kit performance far surpasses the potential of the factory braking system. A variety of different compounds can be matched to best fit your driving application and style. Also available with both 2pc or 1pc construction brake rotors for extra choice in cost performance and driving application and preferences. Get this and all your JDM at RHDJapan!!
Brand: Project Mu
Product: Forged Street Caliper Brake Kit 4Pistons x 2Pads FS4M Front 2Pc Rotor D1 Spec F Pads - Mark II Verossa JZX110
Part Number: FS4M-T131GP_D1 Spec F Pads
SPECIFICATIONS:
Series: Forged Street Caliper Brake Kit 4Pistons x 2Pads
Made in Japan
Included:

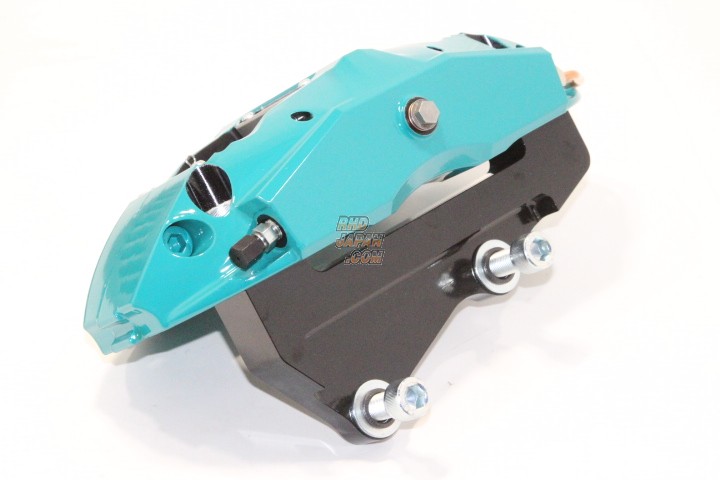

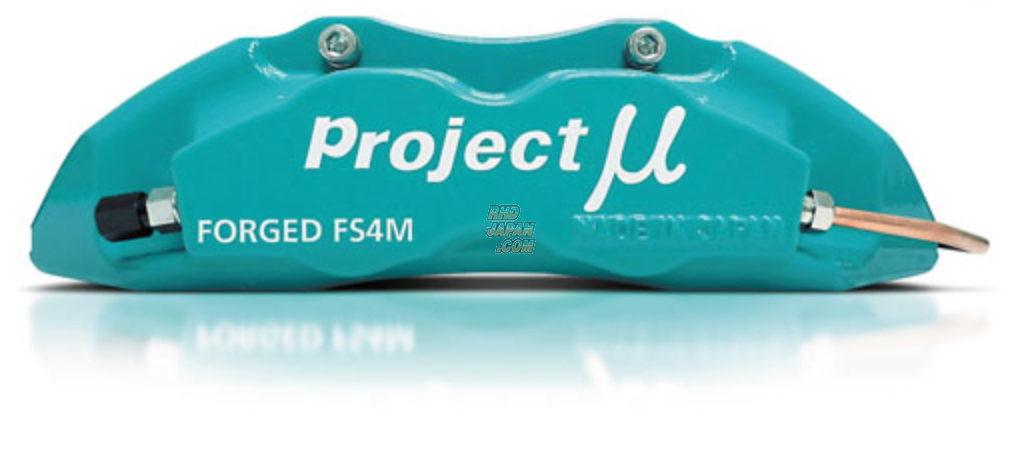

- Brake Calipers (Forged FS4M)
- Brake Pads (D1 Spec F Series)

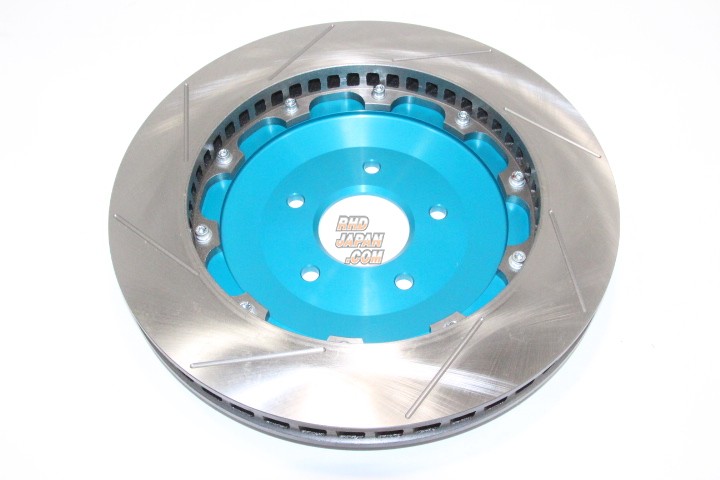

- 2-Piece Rotors (Straight 8-Slit)
- Teflon Steel Mesh Brake Lines
- Caliper Adapter Brackets
- Spring and Bolts
Application: Front Side
Caliper Material: Forged Aluminum alloy
Surface Finishing: Hard alumite with Powder Coat
Piston diameter (mm): 38
Piston Count: 4
Number of pads: 2 per caliper
Rotor Dimensions (mm):
- Diameter: 323
- Thickness: 32
Caliper Dimensions (mm):
- Length: 275
- Width: 144.5 (excluding brake line protrusion)
- Height: 71.6
PRODUCT NOTES:
As of 2023 Brake Kits are now available in a variety of different caliper color options and brake lines are also available in the three different color versions! Please use contact form for custom requests.
-2pc type rotors have a thicker bell housing and will therefore offset the wheels an additional 1.0mm outward
-Please reference the schematic for any clearance concerns prior to ordering
Product: Forged Street Caliper Brake Kit 4Pistons x 2Pads FS4M Front 2Pc Rotor D1 Spec F Pads - Mark II Verossa JZX110
Part Number: FS4M-T131GP_D1 Spec F Pads
SPECIFICATIONS:
Series: Forged Street Caliper Brake Kit 4Pistons x 2Pads
Made in Japan
Included:
- Brake Calipers (Forged FS4M)
- Brake Pads (D1 Spec F Series)
- 2-Piece Rotors (Straight 8-Slit)
- Teflon Steel Mesh Brake Lines
- Caliper Adapter Brackets
- Spring and Bolts
Application: Front Side
Caliper Material: Forged Aluminum alloy
Surface Finishing: Hard alumite with Powder Coat
Piston diameter (mm): 38
Piston Count: 4
Number of pads: 2 per caliper
Rotor Dimensions (mm):
- Diameter: 323
- Thickness: 32
Caliper Dimensions (mm):
- Length: 275
- Width: 144.5 (excluding brake line protrusion)
- Height: 71.6
PRODUCT NOTES:
As of 2023 Brake Kits are now available in a variety of different caliper color options and brake lines are also available in the three different color versions! Please use contact form for custom requests.
-2pc type rotors have a thicker bell housing and will therefore offset the wheels an additional 1.0mm outward
-Please reference the schematic for any clearance concerns prior to ordering
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Toyota Mark II Blit JZX110W 1JZ-FSE (01/2002-11/2003)
Toyota Mark II Blit JZX110W 1JZ-FSE (12/2003-06/2007)
Toyota Mark II Blit JZX110W 1JZ-GTE (01/2002-11/2003)
Toyota Mark II Blit JZX110W 1JZ-GTE (12/2003-06/2007)
Toyota Mark II JZX110 1JZ-FSE (10/2000-09/2002)
Toyota Mark II JZX110 1JZ-FSE (10/2002-10/2004)
Toyota Mark II JZX110 1JZ-GTE (10/2000-09/2002)
Toyota Mark II JZX110 1JZ-GTE (10/2002-10/2004)
Toyota Verossa JZX110 1JZ-FSE (07/2001-11/2004)
Toyota Verossa JZX110 1JZ-GTE (07/2001-11/2004)
Toyota Mark II Blit JZX110W 1JZ-FSE (01/2002-11/2003)
Toyota Mark II Blit JZX110W 1JZ-FSE (12/2003-06/2007)
Toyota Mark II Blit JZX110W 1JZ-GTE (01/2002-11/2003)
Toyota Mark II Blit JZX110W 1JZ-GTE (12/2003-06/2007)
Toyota Mark II JZX110 1JZ-FSE (10/2000-09/2002)
Toyota Mark II JZX110 1JZ-FSE (10/2002-10/2004)
Toyota Mark II JZX110 1JZ-GTE (10/2000-09/2002)
Toyota Mark II JZX110 1JZ-GTE (10/2002-10/2004)
Toyota Verossa JZX110 1JZ-FSE (07/2001-11/2004)
Toyota Verossa JZX110 1JZ-GTE (07/2001-11/2004)
