RS-R Adjustable Lateral Rod - MC1#S MC2#S HN11S HN22S EC22S HA22S HP21S
17059
JPY
RS-R
SKU: 150497

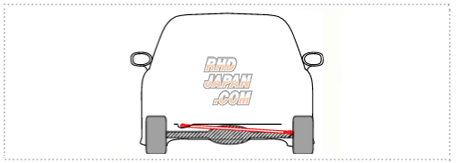

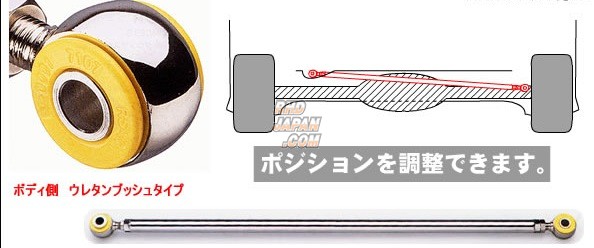

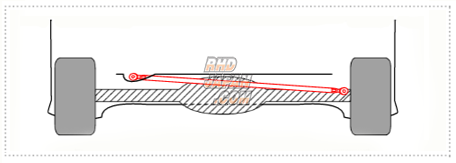

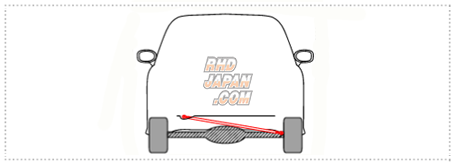

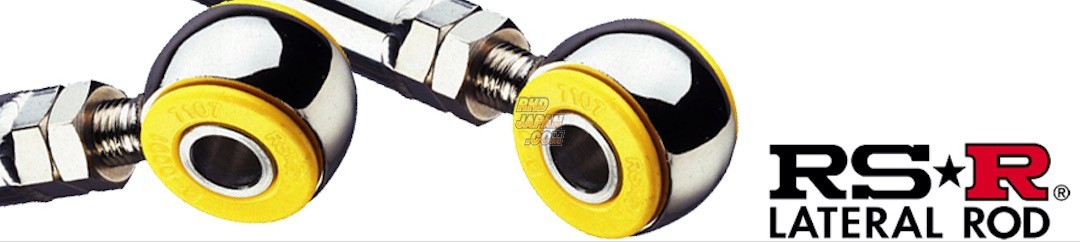

PN: LTS0002BThis item is designed a direct replacement for the factory lateral rod. Manufactured with improved design and materials to enhance feedback and operation lateral rod functionality. In addition, this item is equipped with turnbuckle allowing for fine tune on adjustability in length. When the vehicle ride height is altered the standard lateral rod both wheels shift to one side of the vehicle making for an uneven wheelbase, this item will allow for readjustment for any desired ride height. Some vehicles have options for pillow ball bushings for more race orientated applications. Get this and all your JDM at RHDJapan!!
Brand: RS-R
Product: Adjustable Lateral Rod - MC1#S MC2#S HN11S HN22S EC22S HA22S HP21S
Part Num: LTS0002B
SPECIFICATIONS:
Material:
- Shaft: Stainless Steel (SUS304)
- Rod End Bushing: Polyurethane
Rod Diameter (mm): 27.2
Adjustable Range (mm): 988 ~ 962
Standard Length (mm): 985
PRODUCT NOTES:
- Bushing color: Red
COMPATIBILITY NOTES:
- MC22S: Only for 12/00~08/02 vehicles
Product: Adjustable Lateral Rod - MC1#S MC2#S HN11S HN22S EC22S HA22S HP21S
Part Num: LTS0002B
SPECIFICATIONS:
Material:
- Shaft: Stainless Steel (SUS304)
- Rod End Bushing: Polyurethane
Rod Diameter (mm): 27.2
Adjustable Range (mm): 988 ~ 962
Standard Length (mm): 985
PRODUCT NOTES:
- Bushing color: Red
COMPATIBILITY NOTES:
- MC22S: Only for 12/00~08/02 vehicles
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Suzuki Alto HA22S K6A (10/1998-11/1999)
Suzuki Alto Works HA22S K6A (10/1998-09/1999)
Suzuki Alto Works HA22S K6A (10/1999-05/2000)
Suzuki Kei HN11S F6A (10/1998-10/2009)
Suzuki Kei HN22S K6A (04/2001-10/2009)
Suzuki Twin EC22S K6A (01/2003-08/2005)
Suzuki Wagon R MC11S F6A (10/1998-09/1999)
Suzuki Wagon R MC11S F6A (10/1999-11/2000)
Suzuki Wagon R MC12S F6A (12/2000-10/2001)
Suzuki Wagon R MC12S F6A (11/2001-08/2002)
Suzuki Wagon R MC21S K6A (10/1998-09/1999)
Suzuki Wagon R MC21S K6A (10/1999-11/2000)
Suzuki Wagon R MC22S K6A (12/2000-10/2001)
Suzuki Wagon R MC22S K6A (11/2001-08/2002)
Suzuki Alto HA22S K6A (10/1998-11/1999)
Suzuki Alto Works HA22S K6A (10/1998-09/1999)
Suzuki Alto Works HA22S K6A (10/1999-05/2000)
Suzuki Kei HN11S F6A (10/1998-10/2009)
Suzuki Kei HN22S K6A (04/2001-10/2009)
Suzuki Twin EC22S K6A (01/2003-08/2005)
Suzuki Wagon R MC11S F6A (10/1998-09/1999)
Suzuki Wagon R MC11S F6A (10/1999-11/2000)
Suzuki Wagon R MC12S F6A (12/2000-10/2001)
Suzuki Wagon R MC12S F6A (11/2001-08/2002)
Suzuki Wagon R MC21S K6A (10/1998-09/1999)
Suzuki Wagon R MC21S K6A (10/1999-11/2000)
Suzuki Wagon R MC22S K6A (12/2000-10/2001)
Suzuki Wagon R MC22S K6A (11/2001-08/2002)
