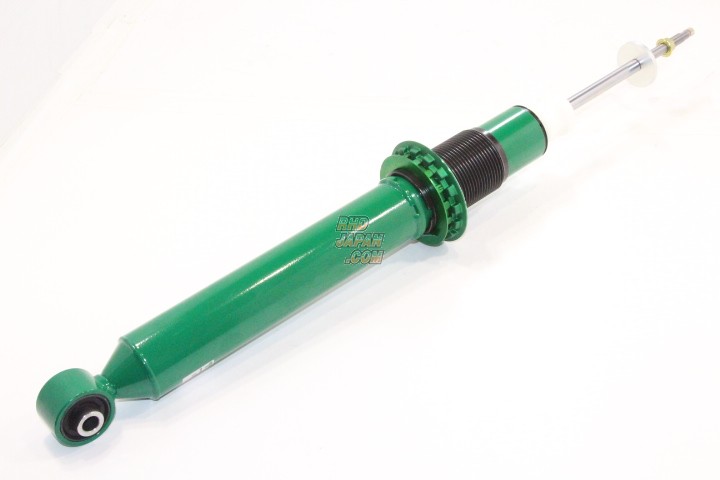

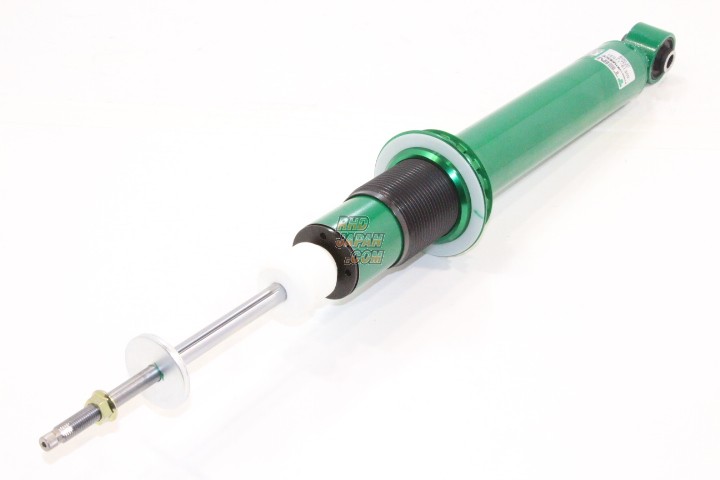

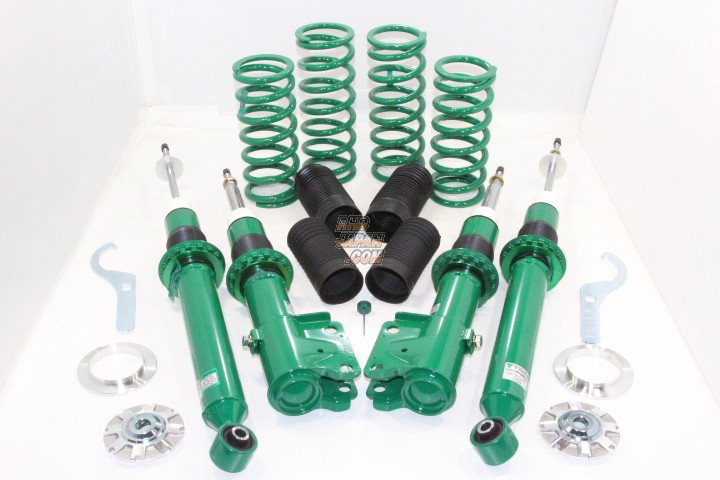

TEIN Coilover Suspension Kit Street Advance Z - Impreza GH3 GH7 GH8
95939
JPY
TEIN
SKU: 118405
PN: GSS76-91SS2This series has been developed in succession of the long running Street Advance lineup providing the ultimate full function coilover setup with great cost performance. A great option for those who want to increase their car's performance potential while maintaining overall ride comfort in addition to more control on ride height. Multiple damper adjustment ability sets this setup apart from the Street Basis Z series and can also be used in conjunction with the EDFC setup. Quality materials, design, construction and finish to keep the kit looking and performing in top condition. Get this and all your JDM at RHDJapan!
Brand: TEIN
Product: Coilover Suspension Kit Street Advance Z - Impreza GH3 GH7 GH8
Part Num: GSS76-91SS2
SPECIFICATIONS:
Series: Street Advance Z
Damper Adjustability: 16-way
Upper Mounts: STD

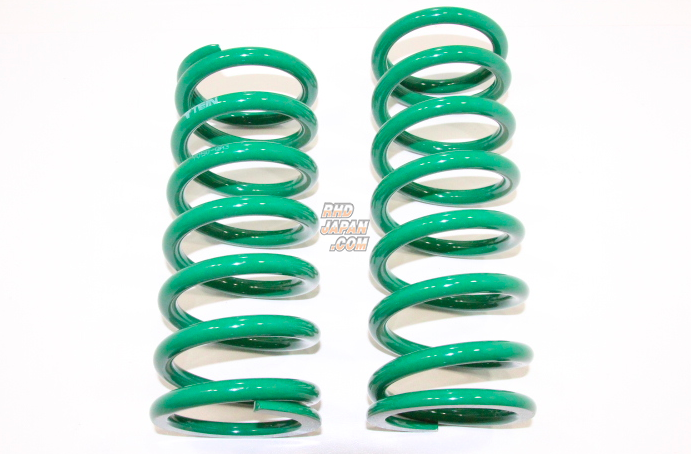

Springs Specifications:
Spring Rate (K):
- Front: 5.0
- Rear: 4.0
Spring Length (mm):
- Front: 250
- Rear: 250
Stock Ride Height Difference (mm):
- Front: -25
- Rear: -30
Max Adjustability (mm):
- Front: -60 ~ -5
- Rear: -66 ~ +0
Recommended Adjustability (mm):
- Front: -35 ~ -15
- Rear: -40 ~ -20
FEATURES:
- Steel Construction
- Twin Tube internal construction
- Larger piston diameter for strut type front and rear (22mm)
- 16-way Damping adjustment with over 200% increase in damping force change.*
- Ride Height adjustable via spring seat
- Powder coated damper body
- Non-welded ZT coated Adjustment Tube
- Full-Length Dust Boots
- 1-piece Aluminum Spring Seat with Delrin Thrust Washer
- Available for Overhaul
- 1-year Manufacturers Defect Warranty
- over comparable Super Street damper, based on damping dyno graph data. Increase in damping force over comparable Super Street damper may vary for specific vehicle applications.
PRODUCT NOTES:
- Can be used in conjunction with the EDFC
COMPATIBILITY NOTES:
- Impreza GH3 GH7 GH8: Only vehicles 6/07 ~ 12/11
Product: Coilover Suspension Kit Street Advance Z - Impreza GH3 GH7 GH8
Part Num: GSS76-91SS2
SPECIFICATIONS:
Series: Street Advance Z
Damper Adjustability: 16-way
Upper Mounts: STD
Springs Specifications:
Spring Rate (K):
- Front: 5.0
- Rear: 4.0
Spring Length (mm):
- Front: 250
- Rear: 250
Stock Ride Height Difference (mm):
- Front: -25
- Rear: -30
Max Adjustability (mm):
- Front: -60 ~ -5
- Rear: -66 ~ +0
Recommended Adjustability (mm):
- Front: -35 ~ -15
- Rear: -40 ~ -20
FEATURES:
- Steel Construction
- Twin Tube internal construction
- Larger piston diameter for strut type front and rear (22mm)
- 16-way Damping adjustment with over 200% increase in damping force change.*
- Ride Height adjustable via spring seat
- Powder coated damper body
- Non-welded ZT coated Adjustment Tube
- Full-Length Dust Boots
- 1-piece Aluminum Spring Seat with Delrin Thrust Washer
- Available for Overhaul
- 1-year Manufacturers Defect Warranty
- over comparable Super Street damper, based on damping dyno graph data. Increase in damping force over comparable Super Street damper may vary for specific vehicle applications.
PRODUCT NOTES:
- Can be used in conjunction with the EDFC
COMPATIBILITY NOTES:
- Impreza GH3 GH7 GH8: Only vehicles 6/07 ~ 12/11
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Subaru Impreza GH3 Applied A EL15 (06/2007-09/2008)
Subaru Impreza GH3 Applied B EL15 (02/2009-08/2009)
Subaru Impreza GH3 Applied C EL15 (09/2009-06/2010)
Subaru Impreza GH3 Applied D EL15 (07/2010-11/2011)
Subaru Impreza GH7 Applied A EJ20 (06/2007-09/2008)
Subaru Impreza GH7 Applied B EJ20 (02/2009-08/2009)
Subaru Impreza GH7 Applied C EJ20 (09/2009-06/2010)
Subaru Impreza GH7 Applied D EJ20 (07/2010-11/2011)
Subaru Impreza GH8 Applied A EJ20T (06/2007-09/2008)
Subaru Impreza GH8 Applied B EJ20T (10/2008-08/2009)
Subaru Impreza GH8 Applied C EJ20T (09/2009-06/2010)
Subaru Impreza GH8 Applied D EJ20T (07/2010-11/2011)
Subaru Impreza GH3 Applied A EL15 (06/2007-09/2008)
Subaru Impreza GH3 Applied B EL15 (02/2009-08/2009)
Subaru Impreza GH3 Applied C EL15 (09/2009-06/2010)
Subaru Impreza GH3 Applied D EL15 (07/2010-11/2011)
Subaru Impreza GH7 Applied A EJ20 (06/2007-09/2008)
Subaru Impreza GH7 Applied B EJ20 (02/2009-08/2009)
Subaru Impreza GH7 Applied C EJ20 (09/2009-06/2010)
Subaru Impreza GH7 Applied D EJ20 (07/2010-11/2011)
Subaru Impreza GH8 Applied A EJ20T (06/2007-09/2008)
Subaru Impreza GH8 Applied B EJ20T (10/2008-08/2009)
Subaru Impreza GH8 Applied C EJ20T (09/2009-06/2010)
Subaru Impreza GH8 Applied D EJ20T (07/2010-11/2011)
