TEIN Flex Z Coilover Suspension - GRS180 GRS182 GRS184 GRS200 GRS204 GRS210 AWS210 GWS204 GRS191 UZS190 GWS191
114029
JPY
TEIN
SKU: 80650
PN: VSC76-C1SS3Made in Japan twin tube system with full length ride height and damping force adjustment. The Flex Z is compatible with EDFC and upper mounts which are included in most kits. The shocks are sealed to allow for easy replacement without the need for a full overhaul. Serial and Lot number are required for replacement O/H parts, kit must also be registered to a vehicle in Japan. If kit is not registered to a vehicle in Japan replacement parts cannot be supplied.
Get this and all your JDM at RHDJapan!!
Get this and all your JDM at RHDJapan!!
Brand: TEIN
Product: TEIN Flex Z Coilover Suspension - GRS180 GRS182 GRS184 GRS200 GRS204 GRS210 AWS210 GWS204 GRS191 UZS190 GWS191
Part Num: VSC76-C1SS3
SPECIFICATIONS:
Series: Flex Z
Springs Specifications:
Spring Rate:
- Front: 10.0K (200mm)
- Rear: 8.0K (250mm)
Stock Height Difference (mm):
- Front: -30
- Rear: -25
Max Adjustability (mm):
- Front: -118 ~ +27
- Rear: -114 ~ +34
Recommended Adjustability (mm):
- Front: -40 ~ -20
- Rear: -30 ~ -15
Upper Mounts:
- Front: Rubber
- Rear: Rubber
PRODUCT NOTES:
- Some vehicles may need to cut the rear inner fender to allow for installation.
FEATURES:
- Full-Length Ride Height Adjustment Feature with Little or No Change in Ride Quality
- Twin-Tube Structure for Low Resiliency & Securing Sufficient Stroke
- Damping Force Adjustment System, 16-level Linear Damping Force Adjustment System
- Complete Kit with Upper Mount Included (Except Some Models)

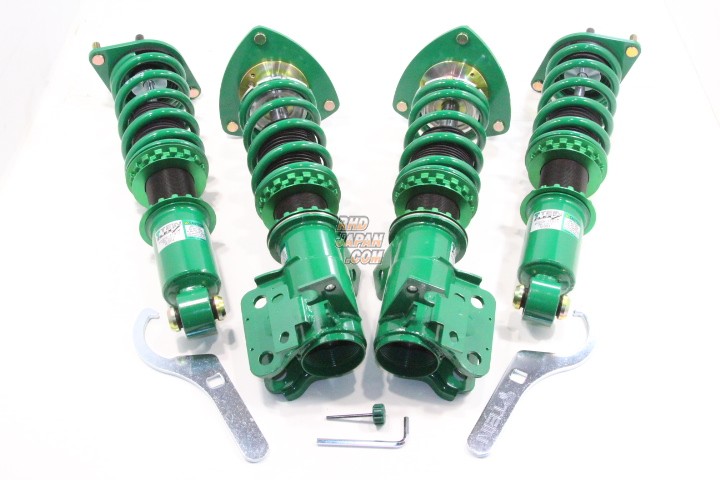

- 1-Full-Car-Kit complete Suspension Kit of 4 Shock Absorbers & 4 Springs
Product: TEIN Flex Z Coilover Suspension - GRS180 GRS182 GRS184 GRS200 GRS204 GRS210 AWS210 GWS204 GRS191 UZS190 GWS191
Part Num: VSC76-C1SS3
SPECIFICATIONS:
Series: Flex Z
Springs Specifications:
Spring Rate:
- Front: 10.0K (200mm)
- Rear: 8.0K (250mm)
Stock Height Difference (mm):
- Front: -30
- Rear: -25
Max Adjustability (mm):
- Front: -118 ~ +27
- Rear: -114 ~ +34
Recommended Adjustability (mm):
- Front: -40 ~ -20
- Rear: -30 ~ -15
Upper Mounts:
- Front: Rubber
- Rear: Rubber
PRODUCT NOTES:
- Some vehicles may need to cut the rear inner fender to allow for installation.
FEATURES:
- Full-Length Ride Height Adjustment Feature with Little or No Change in Ride Quality
- Twin-Tube Structure for Low Resiliency & Securing Sufficient Stroke
- Damping Force Adjustment System, 16-level Linear Damping Force Adjustment System
- Complete Kit with Upper Mount Included (Except Some Models)
- 1-Full-Car-Kit complete Suspension Kit of 4 Shock Absorbers & 4 Springs
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Lexus GS350 GRS191 2GR-FSE (08/2005-09/2006)
Lexus GS350 GRS191 2GR-FSE (10/2006-09/2007)
Lexus GS350 GRS191 2GR-FSE (10/2007-09/2008)
Lexus GS350 GRS191 2GR-FSE (10/2008-09/2009)
Lexus GS350 GRS191 2GR-FSE (10/2009-01/2012)
Lexus GS430 UZS190 3UZ-FE (08/2005-09/2006)
Lexus GS430 UZS190 3UZ-FE (10/2006-09/2007)
Lexus GS450h GWS191 2GR-FSE (03/2006-09/2006)
Lexus GS450h GWS191 2GR-FSE (10/2006-09/2007)
Lexus GS450h GWS191 2GR-FSE (10/2007-09/2008)
Lexus GS450h GWS191 2GR-FSE (10/2008-09/2009)
Lexus GS450h GWS191 2GR-FSE (10/2009-02/2012)
Toyota Crown GRS180 4GR-FSE (12/2003-09/2005)
Toyota Crown GRS180 4GR-FSE (10/2005-01/2008)
Toyota Crown GRS182 3GR-FSE (12/2003-09/2005)
Toyota Crown GRS182 3GR-FSE (10/2005-01/2008)
Toyota Crown GRS184 2GR-FSE (12/2003-09/2005)
Toyota Crown GRS184 2GR-FSE (10/2005-01/2008)
Toyota Crown GRS200 4GR-FSE (02/2008-01/2010)
Toyota Crown GRS200 4GR-FSE (02/2010-12/2012)
Toyota Crown GRS204 2GR-FSE (02/2008-12/2012)
Lexus GS350 GRS191 2GR-FSE (08/2005-09/2006)
Lexus GS350 GRS191 2GR-FSE (10/2006-09/2007)
Lexus GS350 GRS191 2GR-FSE (10/2007-09/2008)
Lexus GS350 GRS191 2GR-FSE (10/2008-09/2009)
Lexus GS350 GRS191 2GR-FSE (10/2009-01/2012)
Lexus GS430 UZS190 3UZ-FE (08/2005-09/2006)
Lexus GS430 UZS190 3UZ-FE (10/2006-09/2007)
Lexus GS450h GWS191 2GR-FSE (03/2006-09/2006)
Lexus GS450h GWS191 2GR-FSE (10/2006-09/2007)
Lexus GS450h GWS191 2GR-FSE (10/2007-09/2008)
Lexus GS450h GWS191 2GR-FSE (10/2008-09/2009)
Lexus GS450h GWS191 2GR-FSE (10/2009-02/2012)
Toyota Crown GRS180 4GR-FSE (12/2003-09/2005)
Toyota Crown GRS180 4GR-FSE (10/2005-01/2008)
Toyota Crown GRS182 3GR-FSE (12/2003-09/2005)
Toyota Crown GRS182 3GR-FSE (10/2005-01/2008)
Toyota Crown GRS184 2GR-FSE (12/2003-09/2005)
Toyota Crown GRS184 2GR-FSE (10/2005-01/2008)
Toyota Crown GRS200 4GR-FSE (02/2008-01/2010)
Toyota Crown GRS200 4GR-FSE (02/2010-12/2012)
Toyota Crown GRS204 2GR-FSE (02/2008-12/2012)
