Made in Japan twin tube system with full length ride height and damping force adjustment. The Flex Z is compatible with EDFC and upper mounts which are included in most kits. The shocks are sealed to allow for easy replacement without the need for a full overhaul. Serial and Lot number are required for replacement O/H parts, kit must also be registered to a vehicle in Japan. If kit is not registered to a vehicle in Japan replacement parts cannot be supplied.
Get this and all your JDM at RHDJapan!!
Get this and all your JDM at RHDJapan!!
Brand: TEIN

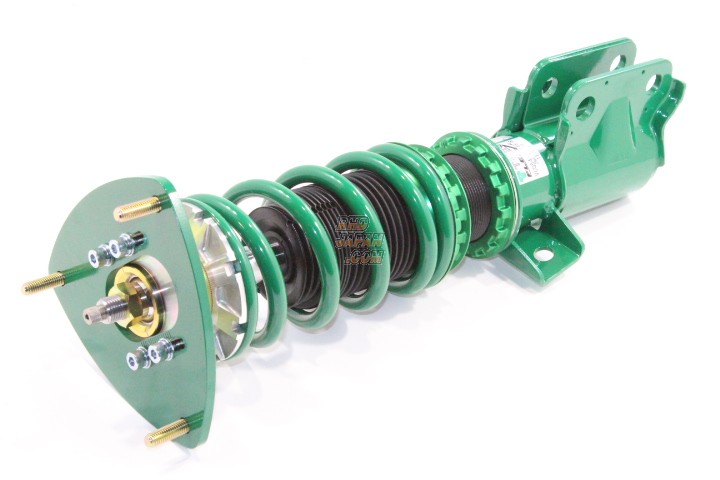

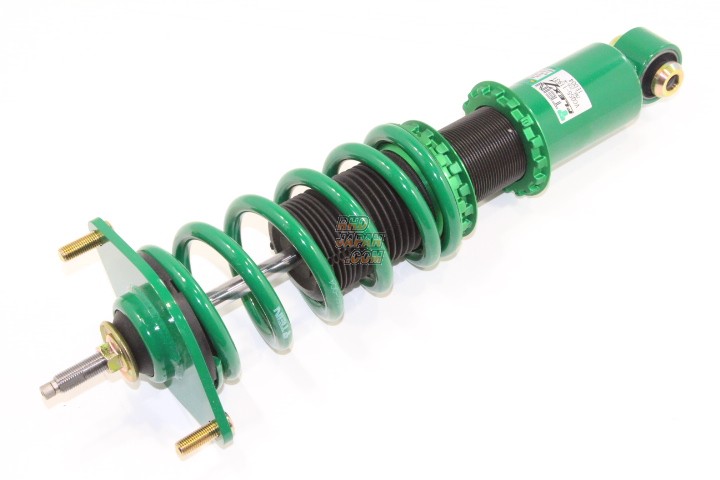

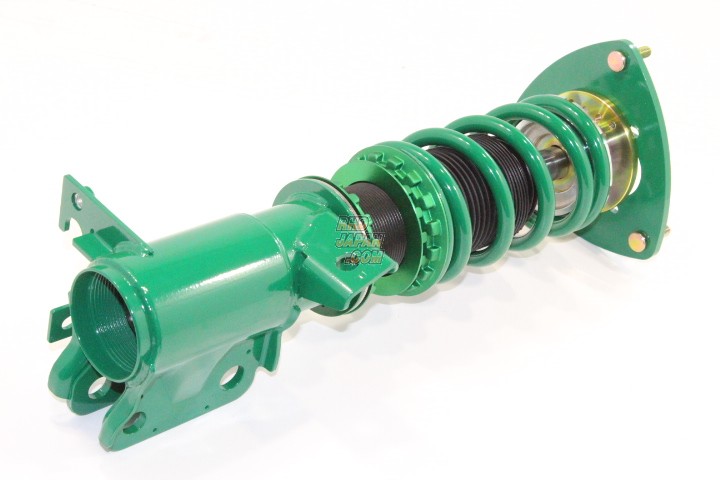

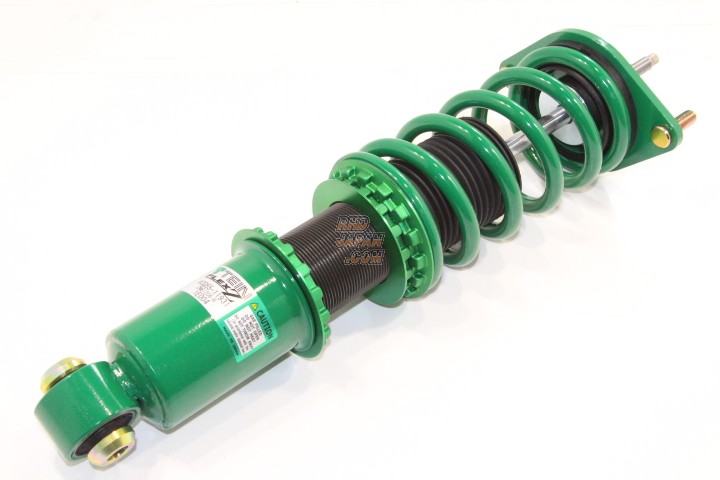

Product: TEIN Flex Z Coilover Suspension - S2000 AP1 AP2
Part Num: VSH64-C1SS3
SPECIFICATIONS:
Series: Flex Z
Springs Specifications:
Spring Rate:
- Front: 10.0K (175mm)
- Rear: 10,0K (175mm)
Stock Height Difference (mm):
- Front: -25
- Rear: -35
Max Adjustability (mm):
- Front: -117 ~ +4
- Rear: -106 ~ -3
Recommended Adjustability (mm):
- Front: -35 ~ -15
- Rear: -45 ~ -25

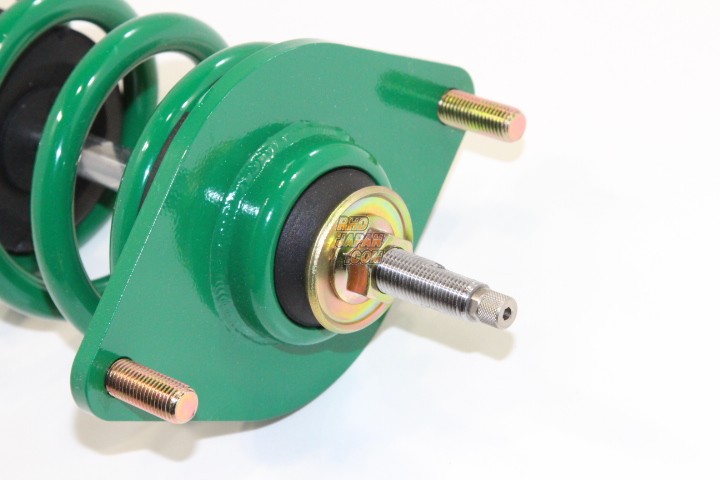

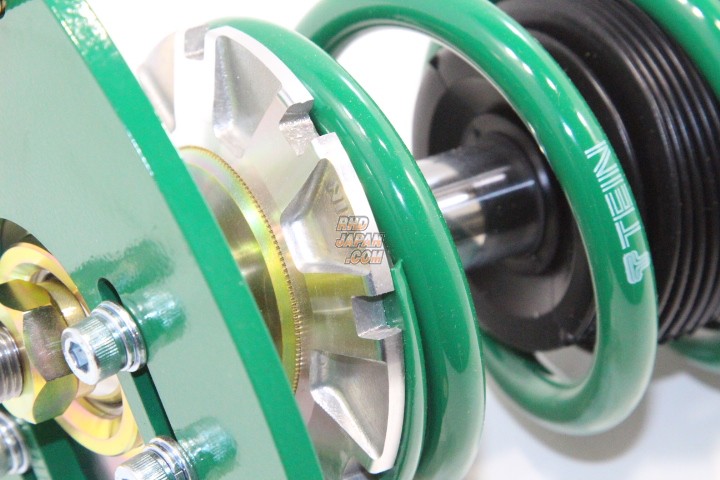

Upper Mounts:
- Front: Rubber
- Rear: Rubber
FEATURES:
- Full-Length Ride Height Adjustment Feature with Little or No Change in Ride Quality
- Twin-Tube Structure for Low Resiliency & Securing Sufficient Stroke
- Damping Force Adjustment System, 16-level Linear Damping Force Adjustment System
- Complete Kit with Upper Mount Included (Except Some Models)

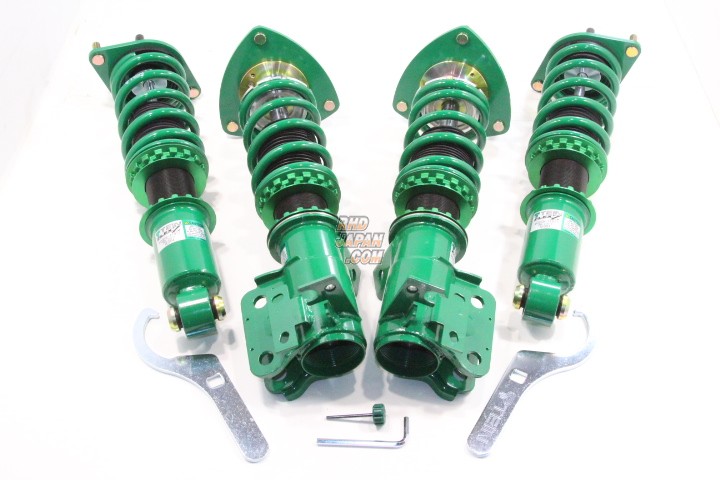

- 1-Full-Car-Kit complete Suspension Kit of 4 Shock Absorbers & 4 Springs
Product: TEIN Flex Z Coilover Suspension - S2000 AP1 AP2
Part Num: VSH64-C1SS3
SPECIFICATIONS:
Series: Flex Z
Springs Specifications:
Spring Rate:
- Front: 10.0K (175mm)
- Rear: 10,0K (175mm)
Stock Height Difference (mm):
- Front: -25
- Rear: -35
Max Adjustability (mm):
- Front: -117 ~ +4
- Rear: -106 ~ -3
Recommended Adjustability (mm):
- Front: -35 ~ -15
- Rear: -45 ~ -25
Upper Mounts:
- Front: Rubber
- Rear: Rubber
FEATURES:
- Full-Length Ride Height Adjustment Feature with Little or No Change in Ride Quality
- Twin-Tube Structure for Low Resiliency & Securing Sufficient Stroke
- Damping Force Adjustment System, 16-level Linear Damping Force Adjustment System
- Complete Kit with Upper Mount Included (Except Some Models)
- 1-Full-Car-Kit complete Suspension Kit of 4 Shock Absorbers & 4 Springs
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Honda S2000 AP1 F20C (04/1999-09/2003)
Honda S2000 AP1 F20C (09/2003-11/2005)
Honda S2000 AP2 F22C (11/2005-06/2009)
Honda S2000 AP1 F20C (04/1999-09/2003)
Honda S2000 AP1 F20C (09/2003-11/2005)
Honda S2000 AP2 F22C (11/2005-06/2009)
