Toda Racing High Compression Forged Piston Kit 81.50 - B16A B16B B18C
97319
JPY
TODA RACING
SKU: 95478
PN: 13030-B16-000This kit will increase the displacement and compression to allow for more power to be made. All the piston kits include piston rings, piston pins, and circle clips. Get this and all your JDM at RHDJapan!!
Brand: Toda Racing
Product: High Compression Forged Piston Kit 81.50 - B16A B16B B18C
Part Num: 13030-B16-000
SPECIFICATIONS:
81.50:
Bore: 81.50mm
Displacement:
- B16A/B: 1615cc
- B18C: 1820cc
Crown Volume (*1):
- B16A: 8.9cc/8.9cc
- B16B: 8.9cc/6.6cc
- B18C: 8.9cc/6.6cc
Projection Height (*2):
- B16A: 0.0mm
- B16B: -0.45mm
- B18C: -0.45mm
Reference C/R (*3):
- B16A: 11.7:1
- B16B: 11.1:1
- B18C: 12.4:1

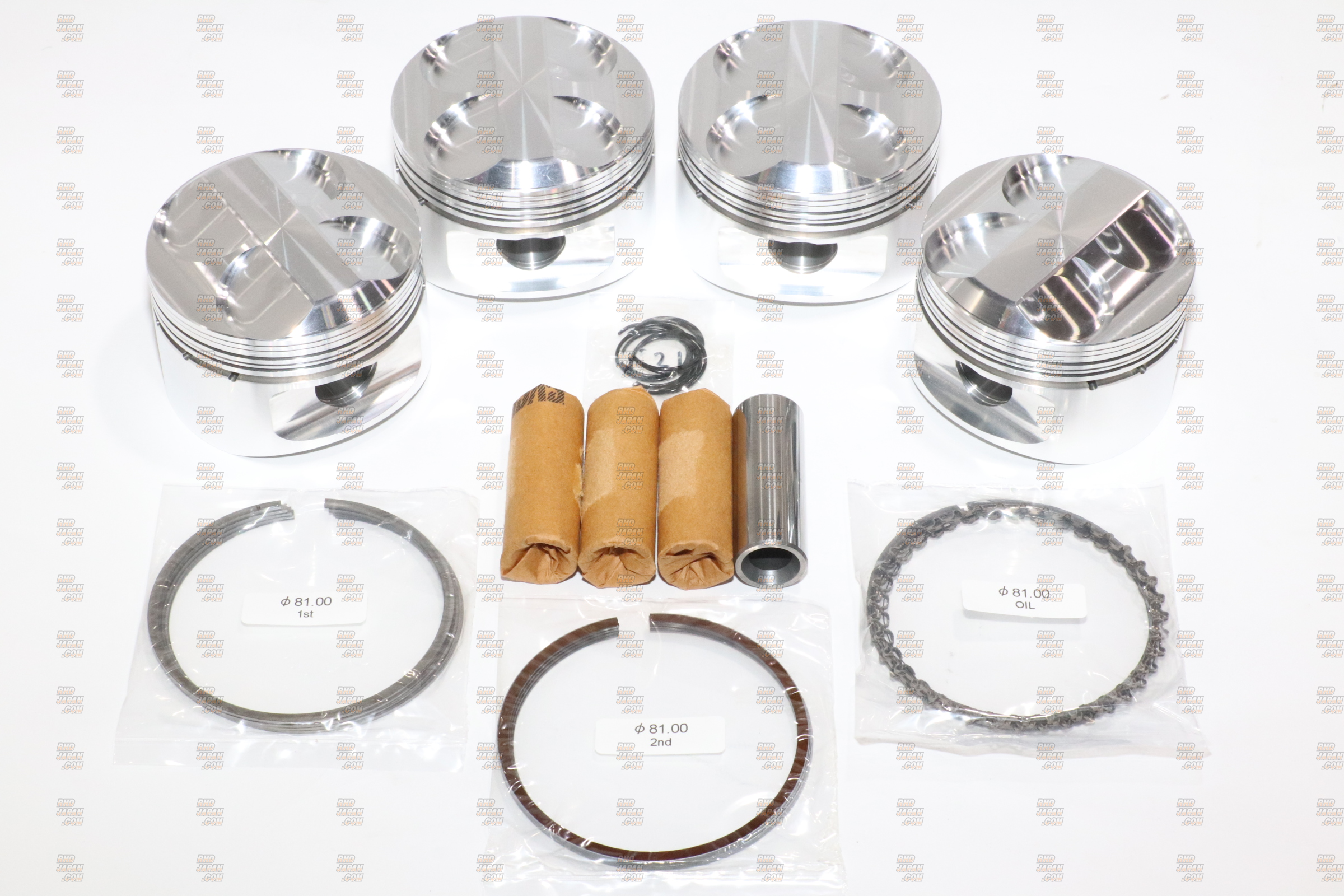

Kit contents:
- 4x Forged Pistons
- Rings
- Pins
- Clips
PRODUCT NOTES:
- *1: Crown volume is measured from the piston shoulder/from the deck of the block.
- *2: Piston shoulder height is measured from the deck of the block.
- *3: The compression ratio given above are only to be taken as a guide, measurements are required.
Product: High Compression Forged Piston Kit 81.50 - B16A B16B B18C
Part Num: 13030-B16-000
SPECIFICATIONS:
81.50:
Bore: 81.50mm
Displacement:
- B16A/B: 1615cc
- B18C: 1820cc
Crown Volume (*1):
- B16A: 8.9cc/8.9cc
- B16B: 8.9cc/6.6cc
- B18C: 8.9cc/6.6cc
Projection Height (*2):
- B16A: 0.0mm
- B16B: -0.45mm
- B18C: -0.45mm
Reference C/R (*3):
- B16A: 11.7:1
- B16B: 11.1:1
- B18C: 12.4:1
Kit contents:
- 4x Forged Pistons
- Rings
- Pins
- Clips
PRODUCT NOTES:
- *1: Crown volume is measured from the piston shoulder/from the deck of the block.
- *2: Piston shoulder height is measured from the deck of the block.
- *3: The compression ratio given above are only to be taken as a guide, measurements are required.
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Honda Civic EF9 B16A (09/1989-07/1991)
Honda Civic EG6 B16A (07/1991-08/1995)
Honda Civic EG9 B16A (07/1991-08/1995)
Honda Civic EK4 B16A (09/1995-09/1998)
Honda Civic EK4 B16A (09/1998-08/2000)
Honda Civic Ferio EG9 B16A (09/1991-09/1993)
Honda Civic Ferio EG9 B16A (09/1993-09/1995)
Honda Civic Ferio EK4 B16A (09/1995-08/2000)
Honda Civic Type-R EK9 B16B (08/1997-09/1998)
Honda Civic Type-R EK9 B16B (09/1998-08/2000)
Honda CR-X EF8 B16A (09/1989-02/1992)
Honda CR-X delSol EG2 B16A (03/1992-10/1995)
Honda CR-X delSol EG2 B16A (10/1995-12/1998)
Honda Integra DA6 B16A (04/1989-10/1992)
Honda Integra DA8 B16A (04/1989-10/1992)
Honda Integra DB8 B18C (07/1993-09/1995)
Honda Integra DB8 B18C (09/1995-07/2001)
Honda Integra DC2 B18C (05/1993-09/1995)
Honda Integra DC2 B18C (09/1995-07/2001)
Honda Civic EF9 B16A (09/1989-07/1991)
Honda Civic EG6 B16A (07/1991-08/1995)
Honda Civic EG9 B16A (07/1991-08/1995)
Honda Civic EK4 B16A (09/1995-09/1998)
Honda Civic EK4 B16A (09/1998-08/2000)
Honda Civic Ferio EG9 B16A (09/1991-09/1993)
Honda Civic Ferio EG9 B16A (09/1993-09/1995)
Honda Civic Ferio EK4 B16A (09/1995-08/2000)
Honda Civic Type-R EK9 B16B (08/1997-09/1998)
Honda Civic Type-R EK9 B16B (09/1998-08/2000)
Honda CR-X EF8 B16A (09/1989-02/1992)
Honda CR-X delSol EG2 B16A (03/1992-10/1995)
Honda CR-X delSol EG2 B16A (10/1995-12/1998)
Honda Integra DA6 B16A (04/1989-10/1992)
Honda Integra DA8 B16A (04/1989-10/1992)
Honda Integra DB8 B18C (07/1993-09/1995)
Honda Integra DB8 B18C (09/1995-07/2001)
Honda Integra DC2 B18C (05/1993-09/1995)
Honda Integra DC2 B18C (09/1995-07/2001)
