Tomei Arms Turbine Kit T380B EJ/TS Twin Scroll - GDB GRB GVB VAB
268488
JPY
TOMEI
SKU: 114289

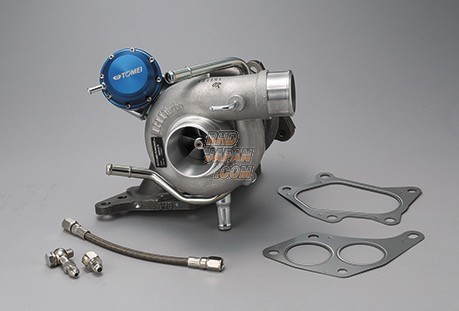

PN: 173101This is a direct replacement for the standard twin-scroll turbocharger developed in conjunction with Clover Turbo from the IHI Group. This bolt-on application uses the factory layout for no-hassle installation. Ball bearing cartridge provides great response and enjoyable torque from low rpm and significant power increase from mid to high rpm.
This is the largest bolt-on turbo possible that the engineers can fit into the limited space of the EJ engine. Despite the size, the internals of the turbocharger speaks otherwise; extracting the most power at the finest efficiency from its design. The end result is a turbo that maintains the best characteristics of the EJ engine with the added benefit of an extended power band to the high RPM region. The crucial step in tuning the EJ is the turbocharger upgrade where the increase in overall performance can be acquired.
Get this and all your JDM at RHDJapan!!
This is the largest bolt-on turbo possible that the engineers can fit into the limited space of the EJ engine. Despite the size, the internals of the turbocharger speaks otherwise; extracting the most power at the finest efficiency from its design. The end result is a turbo that maintains the best characteristics of the EJ engine with the added benefit of an extended power band to the high RPM region. The crucial step in tuning the EJ is the turbocharger upgrade where the increase in overall performance can be acquired.
Get this and all your JDM at RHDJapan!!
Brand: Tomei
Product: Arms Turbine Kit T380B EJ/TS Twin Scroll - GDB GRB GVB VAB
Part Num.: 173101
SPECIFICATIONS:
Application: EJ Twin Scroll
Kit Includes:
- Turbo Assembly
- Actuator
- Water Pipe
- Oil Return Pipe
- Gasket & Bolts
Compressor Wheel (mm):
- TRIM: 60
- Entrance Diameter: 46.5
- Outside Diameter: 60
- Blades: 6/6
Turbine Wheel (mm):
- TRIM: 68
- Exit Diameter: 46.2
- Outside Diameter: 56
- Blades: 9
COMPATIBILITY NOTES:
- Only for EJ Twin Scroll Engines
- Required to be installed with Turbo Suction Hose
- Also compatible with Subaru S204 with STI group N Turbo Hose.
Product: Arms Turbine Kit T380B EJ/TS Twin Scroll - GDB GRB GVB VAB
Part Num.: 173101
SPECIFICATIONS:
Application: EJ Twin Scroll
Kit Includes:
- Turbo Assembly
- Actuator
- Water Pipe
- Oil Return Pipe
- Gasket & Bolts
Compressor Wheel (mm):
- TRIM: 60
- Entrance Diameter: 46.5
- Outside Diameter: 60
- Blades: 6/6
Turbine Wheel (mm):
- TRIM: 68
- Exit Diameter: 46.2
- Outside Diameter: 56
- Blades: 9
COMPATIBILITY NOTES:
- Only for EJ Twin Scroll Engines
- Required to be installed with Turbo Suction Hose
- Also compatible with Subaru S204 with STI group N Turbo Hose.
Compatibility is from maker for JDM cars only.
We don't guarantee fitment.
Always do your own research before purchase.
Subaru Impreza WRX STI GDB Applied A EJ207 (08/2000-08/2001)
Subaru Impreza WRX STI GDB Applied B EJ207 (09/2001-10/2002)
Subaru Impreza WRX STI GDB Applied C EJ207 (10/2002-09/2003)
Subaru Impreza WRX STI GDB Applied D EJ207 (09/2003-06/2004)
Subaru Impreza WRX STI GDB Applied E EJ207 (06/2004-06/2005)
Subaru Impreza WRX STI GDB Applied F EJ207 (06/2005-06/2006)
Subaru Impreza WRX STI GDB Applied G EJ207 (06/2006-06/2007)
Subaru Impreza WRX STI GRB Applied A EJ207 (10/2007-01/2009)
Subaru Impreza WRX STI GRB Applied B EJ207 (02/2009-06/2010)
Subaru Impreza WRX STI GRB Applied C EJ207 (07/2010-06/2012)
Subaru Impreza WRX STI GRB Applied D EJ207 (07/2012-05/2013)
Subaru Impreza WRX STI GRB Applied E EJ207 (06/2013-04/2014)
Subaru Impreza WRX STI GVB Applied C EJ207 (07/2010-06/2012)
Subaru Impreza WRX STI GVB Applied D EJ207 (07/2012-05/2013)
Subaru Impreza WRX STI GVB Applied E EJ207 (06/2013-04/2014)
Subaru WRX STi VAB Applied A EJ20 (08/2014-05/2015)
Subaru WRX STi VAB Applied B EJ20 (06/2015-05/2016)
Subaru WRX STi VAB Applied C EJ20 (06/2016-05/2017)
Subaru WRX STi VAB Applied D EJ20 (06/2017-05/2018)
Subaru WRX STi VAB Applied E EJ20 (06/2018-05/2019)
Subaru WRX STi VAB Applied F EJ20 (06/2019-04/2020)
Subaru Impreza WRX STI GDB Applied A EJ207 (08/2000-08/2001)
Subaru Impreza WRX STI GDB Applied B EJ207 (09/2001-10/2002)
Subaru Impreza WRX STI GDB Applied C EJ207 (10/2002-09/2003)
Subaru Impreza WRX STI GDB Applied D EJ207 (09/2003-06/2004)
Subaru Impreza WRX STI GDB Applied E EJ207 (06/2004-06/2005)
Subaru Impreza WRX STI GDB Applied F EJ207 (06/2005-06/2006)
Subaru Impreza WRX STI GDB Applied G EJ207 (06/2006-06/2007)
Subaru Impreza WRX STI GRB Applied A EJ207 (10/2007-01/2009)
Subaru Impreza WRX STI GRB Applied B EJ207 (02/2009-06/2010)
Subaru Impreza WRX STI GRB Applied C EJ207 (07/2010-06/2012)
Subaru Impreza WRX STI GRB Applied D EJ207 (07/2012-05/2013)
Subaru Impreza WRX STI GRB Applied E EJ207 (06/2013-04/2014)
Subaru Impreza WRX STI GVB Applied C EJ207 (07/2010-06/2012)
Subaru Impreza WRX STI GVB Applied D EJ207 (07/2012-05/2013)
Subaru Impreza WRX STI GVB Applied E EJ207 (06/2013-04/2014)
Subaru WRX STi VAB Applied A EJ20 (08/2014-05/2015)
Subaru WRX STi VAB Applied B EJ20 (06/2015-05/2016)
Subaru WRX STi VAB Applied C EJ20 (06/2016-05/2017)
Subaru WRX STi VAB Applied D EJ20 (06/2017-05/2018)
Subaru WRX STi VAB Applied E EJ20 (06/2018-05/2019)
Subaru WRX STi VAB Applied F EJ20 (06/2019-04/2020)
