These items are designed to be a direct replacement for the factory camshafts. The PONCAM series is designed to have improved lift and duration, Ideal for applications looking for peak performance while being compatible with the factory head configuration. These are also compatible with the factory ECU settings allowing for a great cost effective option with dialed in lift and duration. Get this and all your JDM at RHDJapan!!
Brand: Tomei

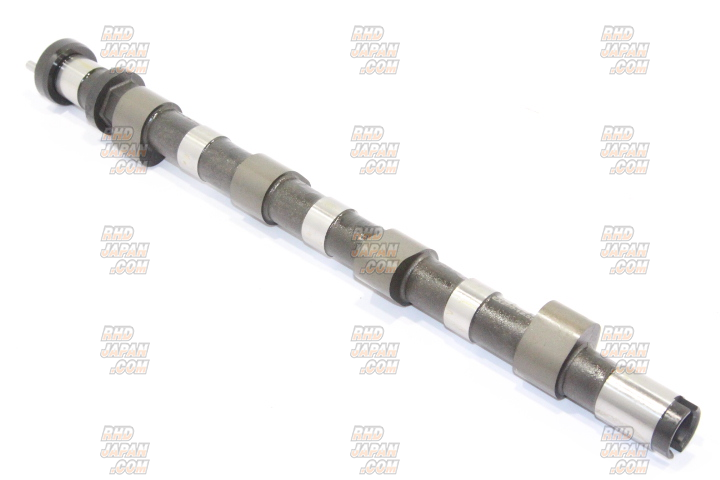

Product: Camshaft Poncam Set - CZ4A
Part Num.: 143059
SPECIFICATIONS:
Included:
- Intake: 146C260103
- Exhaust: 146D250098

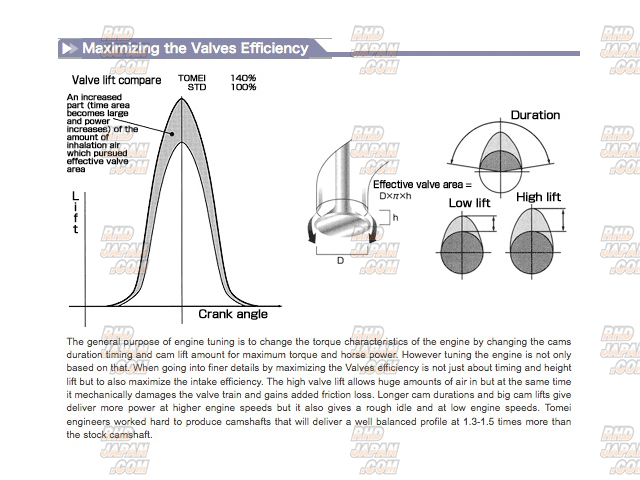

Duration (degree):
- Intake: 260
- Exhaust: 250
Max Cam Lift(mm):
- Intake: 10.30
- Exhaust: 9.80
Max Valve lift(mm):
- Intake: 10.10
- Exhaust: 9.50
Cold Valve clearance (mm)[+/-0.01]:
- Intake: 0.20
- Exhaust: 0.30
Valve Timing Centerline (Deg):
- Intake: 112
- Exhaust: 120
Base Circle(mm):
- Intake: 34.4
- Exhaust: 36.4
COMPATIBILITY NOTES:
- Compatible with MIVEC
PRODUCT NOTES:
-
FEATURES:

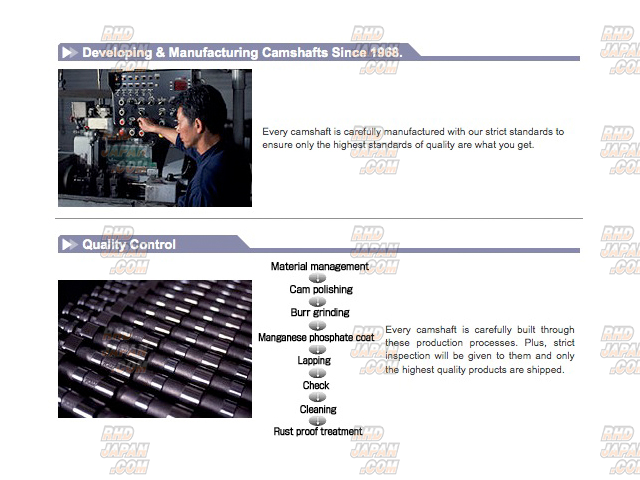

- MADE FROM SPECIAL MATERIALS

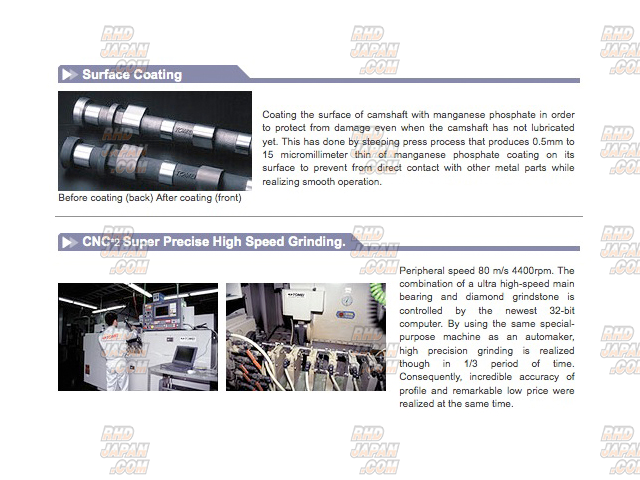

- PRECISION GRINDING
- PRE-SET VALVE TIMING
- COMPATIBLE WITH STOCK VALVE SPRINGS
- INCREASED PERFORMANCE GAINS IN ALL AREAS- OUTSTANDING TURBINE RESPONSE
- VARIABLE VALVE TIMING COMPATIBLE
- STABLE IDLING
- BEST TOTAL BALANCE
- MIVEC COMPATIBLE:
- Tomei camshafts retain the original MIVEC feature, and maximises the MIVEC potential in all areas.

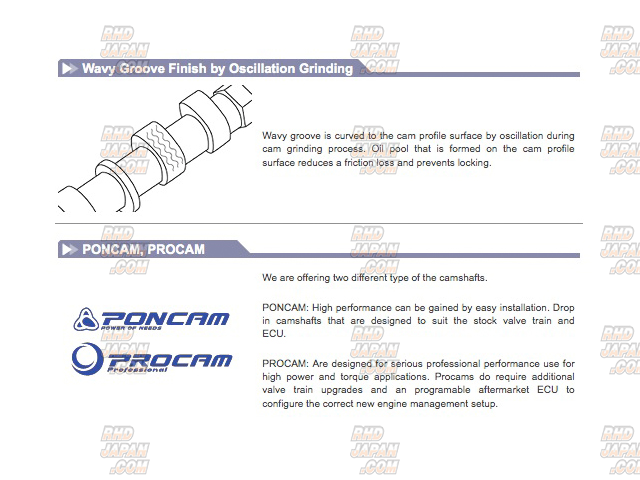

- PONCAM:
High performance can be gained by easy installation. Drop in Camshaft that are designed to suit the stock valve train and ECU.
Product: Camshaft Poncam Set - CZ4A
Part Num.: 143059
SPECIFICATIONS:
Included:
- Intake: 146C260103
- Exhaust: 146D250098
Duration (degree):
- Intake: 260
- Exhaust: 250
Max Cam Lift(mm):
- Intake: 10.30
- Exhaust: 9.80
Max Valve lift(mm):
- Intake: 10.10
- Exhaust: 9.50
Cold Valve clearance (mm)[+/-0.01]:
- Intake: 0.20
- Exhaust: 0.30
Valve Timing Centerline (Deg):
- Intake: 112
- Exhaust: 120
Base Circle(mm):
- Intake: 34.4
- Exhaust: 36.4
COMPATIBILITY NOTES:
- Compatible with MIVEC
PRODUCT NOTES:
-
FEATURES:
- MADE FROM SPECIAL MATERIALS
- PRECISION GRINDING
- PRE-SET VALVE TIMING
- COMPATIBLE WITH STOCK VALVE SPRINGS
- INCREASED PERFORMANCE GAINS IN ALL AREAS- OUTSTANDING TURBINE RESPONSE
- VARIABLE VALVE TIMING COMPATIBLE
- STABLE IDLING
- BEST TOTAL BALANCE
- MIVEC COMPATIBLE:
- Tomei camshafts retain the original MIVEC feature, and maximises the MIVEC potential in all areas.
- PONCAM:
High performance can be gained by easy installation. Drop in Camshaft that are designed to suit the stock valve train and ECU.
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2007-09/2008)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2008-09/2009)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2009-09/2015)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2007-09/2008)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2008-09/2009)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2009-09/2015)
