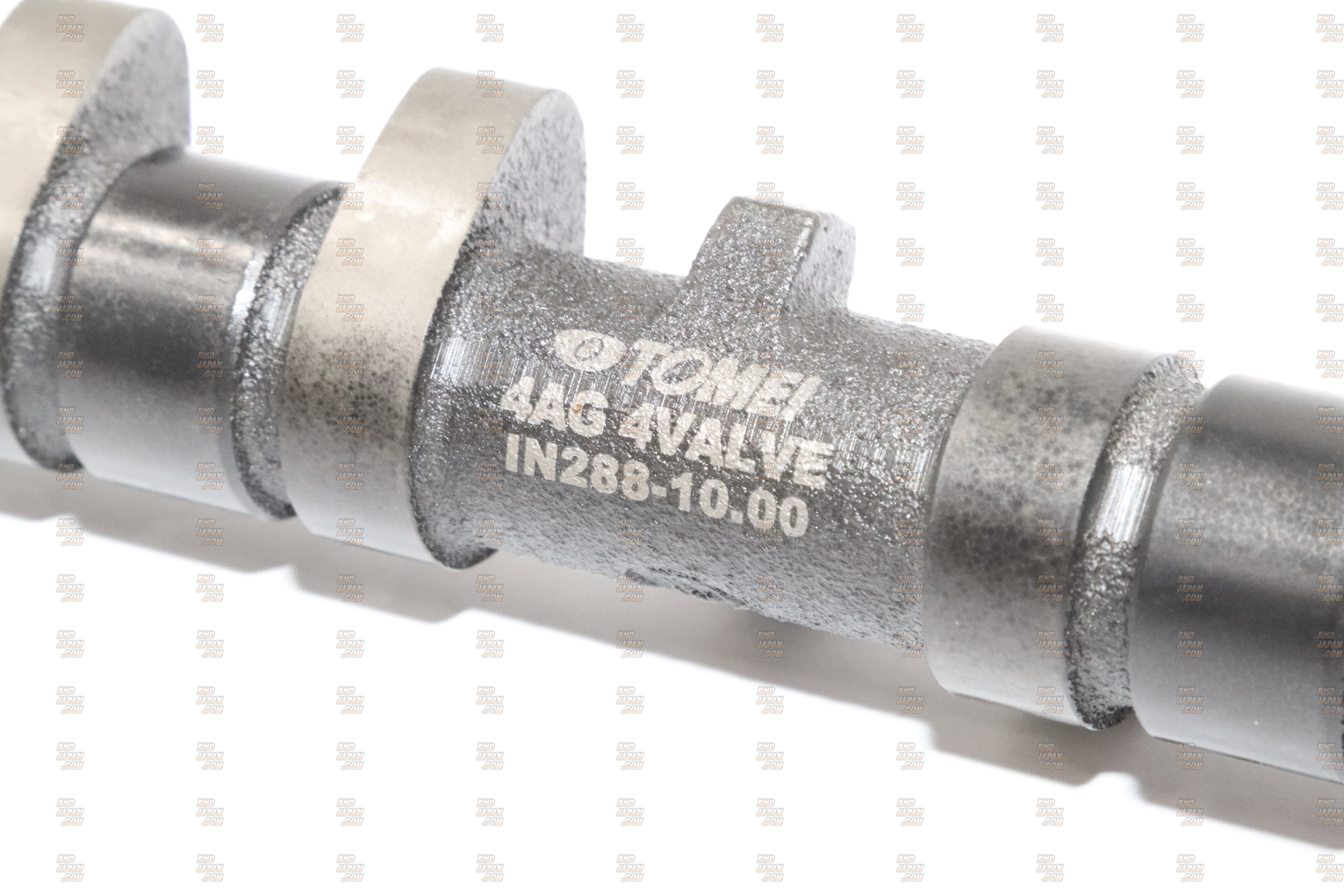

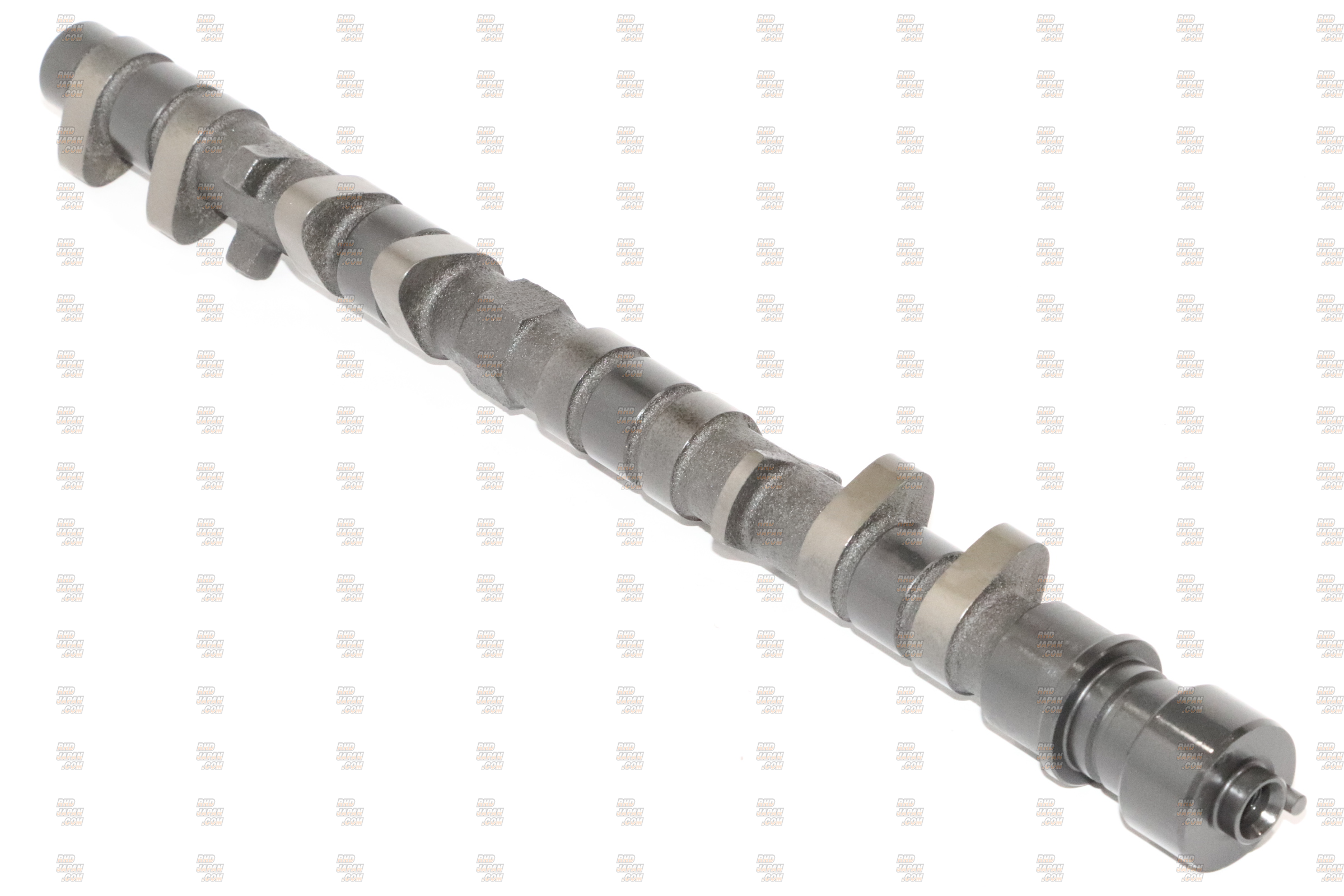

Tomei Camshaft Procam Intake 288 - 4A-G 16 Valves

Brand: Tomei
Product: Camshaft Procam Intake 288 - 4A-G 16 Valves
Part Num: 1491288100

SPECIFICATIONS:
- 288:
-- Remarks: Inner Shim Type
-- Duration (degree): 288
-- Max Cam Lift(mm): 10.00
-- Max Valve lift(mm):
--- Intake: 9.77
--- Exhaust: 9.75
-- Cold Valve clearance (mm)[+/-0.01]:
--- Intake: 0.23
--- Exhaust: 0.25
-- Lobe Center Angle (initial):
--- Intake: 105
--- Exhaust: 105
-- Base Circle(mm): 27.5

PRODUCT NOTES:
- Inner Shim Type Recommended Valve Timing IN/EX 100

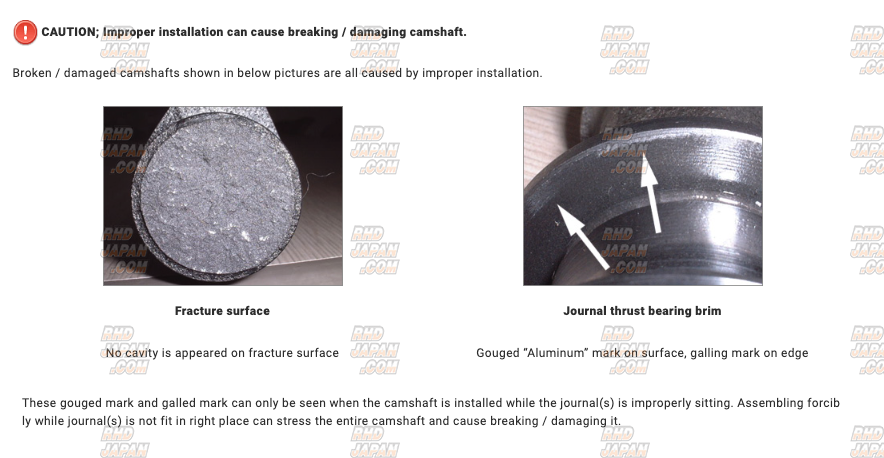

- WARNING: Please read the information provided above. Serious engine damage may result if this information is ignored.

COMPATIBILITY NOTES:
- The PROCAMS are not compatible with a stock head assembly. Tomei recommend the set made by TRD.

FEATURES:
- The pursuit of the optimal profile :
The profile of these Camshaft were designed to aim for maximum efficiency of the valve opening and closing duration. These PROCAMS were designed with a quicker valve opening time and a gentle closing time to provide stability to the valve seat rings. This lightens the stress applied to the all the surrounding components of the valvetrain and decrease unwanted noises.
- Accommodates to high RPM:
Each and every profile with varying duration and lift listed below are designed to perform the best during 4, 000~10, 000 RPMs.
- The pursuit of the highest quality product:
By utilizing the combination of the best strongest raw materials and the leading CNC Camshaft grinding machine in the industry, Tomei managed to create a Camshaft of the highest in quality and accuracy down to the last micron unit.
- Compatible with inner shim kit:
The PROCAMS are not compatible with a stock head assembly. Since Tomei is still currently developing inner shim kits for the 4AG, they recommend the set made by TRD.
