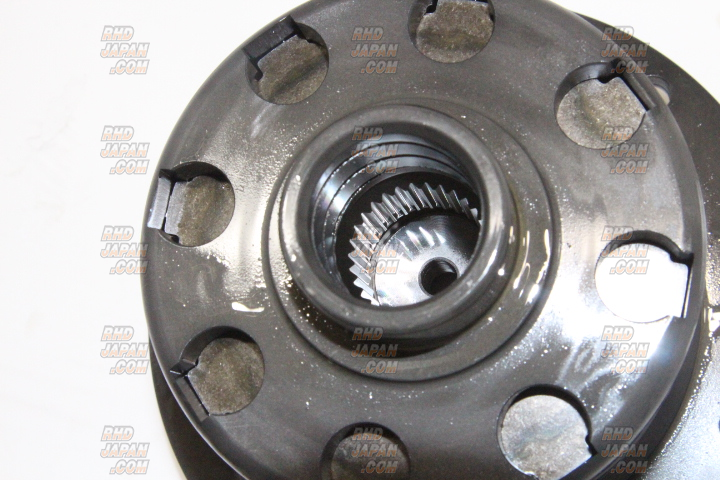

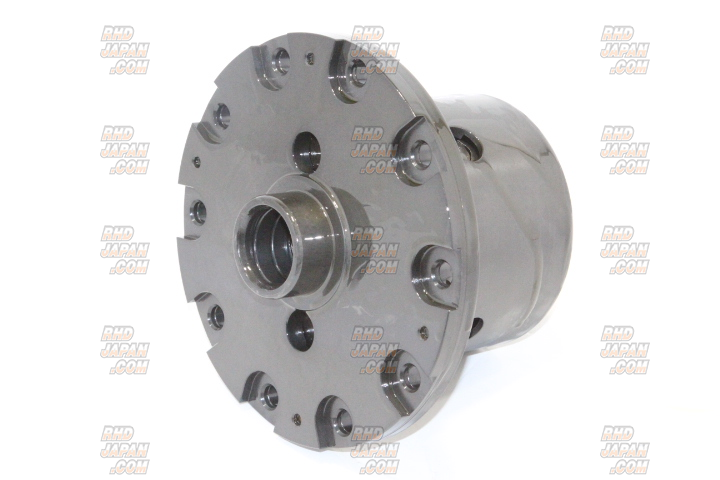

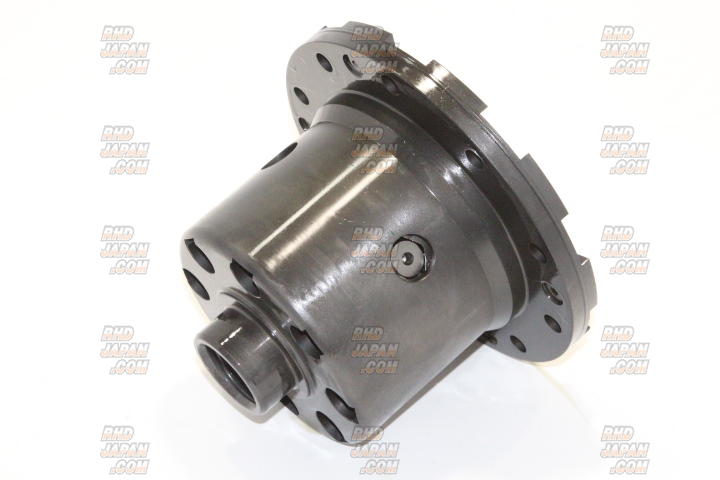

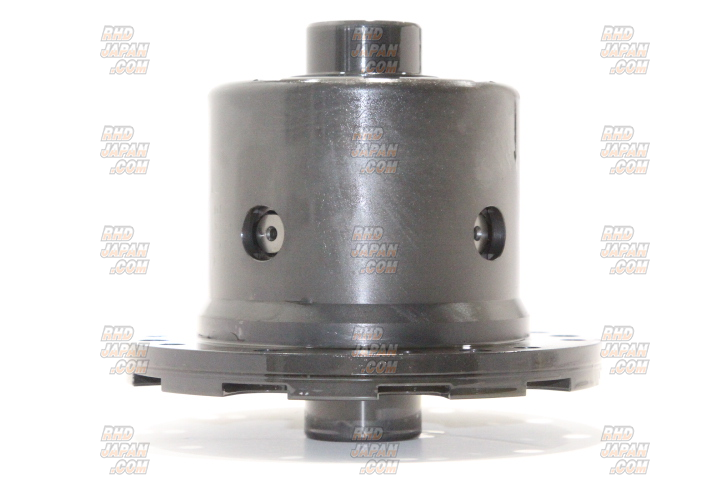

Tomei Technical Trax Advance 2 Way LSD Type AXA - R32 R33 S13 S14 S13 S14 A31 C33 C34

Brand: Tomei
Product: Technical Trax Advance 2 Way LSD Type AXA - R32 R33 S13 S14 S13 S14 A31 C33 C34
Part Number: 562016_2397463

SPECIFICATIONS:
Type: AXA
Included:
- T-Trax Advance 2 way LSD
- 1x Carrier Cover Gaskets
- 2x Bearings
- 2x Oil Seals

SPECIFICATIONS:
- PCD: 150
- Disc:
-- Ext Dia.: 106
-- No. (In Dia.): 8
-- No. (Ex Dia.): 8
-- Thickness: 1.7
- Spring:
-- No. Ex Teeth: OPT
-- No. In Teeth: OPT
-- No. Teeth N/A: 2
-- No. Teeth N/A Strengthening: N/A
- Size & No. of Ring Gear Bolts: 10-12
- No. of Serration Teeth: 29T
- Flange In Dia.: 32.0
- Initial Torque Pre Setting (kg.m): 16.5~18.5
- Super High Initial:
- Pressure Ring Cam Angle: 6060

COMPATIBILITY NOTES:
Only for The Following Vehicles mounting OEM Viscous type LSD:
- Skyline HR32, ER32
- Skyline HR33, ER33 before 12/96
- Silvia S13, PS13
- Silvia S14 NA before 12/96
- Silvia S14 Turbo AT before 12/96
- 180SX RS13 with Viscous type LSD
- 180SX RPS13 before 12/96
- Cefiro A31 2WD (EA31, ECA31 Only AT Vehicles)
- Laurel H(C)C33, Not compatible with HC33 mounting RB20E engine
- Laurel HC34, GC34Normally Aspirated AT before 12/96
- Laurel SC34 before 12/96
