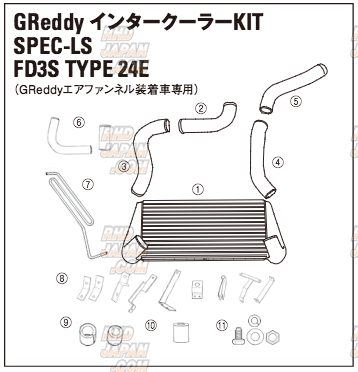

Trust GReddy Spec-LS Intercooler Kit For GReddy Throttle Elbow - FD3S
72239
JPY
TRUST GREDDY
SKU: 84731
PN: 12040421The Spec LS Intercooler kit series is made for boost up sports applications and has been designed to offer a great balance between good response and cooling capacity. The intercooler uses a straight fin design is the trick which keeps costs down while still allowing for boost up application. Get this and all your JDM at RHDJapan!!
Brand: Trust GReddy
Product: Spec-LS Intercooler Kit For GReddy Throttle Elbow - FD3S
Part Num. : 12040421
SPECIFICATIONS:
Mount Location: In front of radiator
Core Type : 24E
Core Size:
- Length(mm): 600
- Height(mm): 284
- Width(mm): 66
Material:
- Core: Aluminum
- Piping: Aluminum
- Hoses: Silicone 2-Ply
COMPATIBILITY NOTES:
- Must be used with OEM turbine
- Must use GReddy Compression tube(12040911), AIRINX SET (MZ-S001B) and must change battery size (38B20R)
- Not confirmed with AT
- Can be used with Trust GReddy O/C kit
- Body reinforcement modification needed
- Bumper modification needed
Product: Spec-LS Intercooler Kit For GReddy Throttle Elbow - FD3S
Part Num. : 12040421
SPECIFICATIONS:
Mount Location: In front of radiator
Core Type : 24E
Core Size:
- Length(mm): 600
- Height(mm): 284
- Width(mm): 66
Material:
- Core: Aluminum
- Piping: Aluminum
- Hoses: Silicone 2-Ply
COMPATIBILITY NOTES:
- Must be used with OEM turbine
- Must use GReddy Compression tube(12040911), AIRINX SET (MZ-S001B) and must change battery size (38B20R)
- Not confirmed with AT
- Can be used with Trust GReddy O/C kit
- Body reinforcement modification needed
- Bumper modification needed
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Mazda RX-7 FD3S Type I 13B-REW (12/1991-09/1994)
Mazda RX-7 FD3S Type II 13B-REW (09/1994-03/1995)
Mazda RX-7 FD3S Type III 13B-REW (09/1994-01/1996)
Mazda RX-7 FD3S Type IV 13B-REW (01/1996-12/1998)
Mazda RX-7 FD3S Type V 13B-REW (01/1999-09/2000)
Mazda RX-7 FD3S Type VI 13B-REW (10/2000-08/2002)
Mazda RX-7 FD3S Type I 13B-REW (12/1991-09/1994)
Mazda RX-7 FD3S Type II 13B-REW (09/1994-03/1995)
Mazda RX-7 FD3S Type III 13B-REW (09/1994-01/1996)
Mazda RX-7 FD3S Type IV 13B-REW (01/1996-12/1998)
Mazda RX-7 FD3S Type V 13B-REW (01/1999-09/2000)
Mazda RX-7 FD3S Type VI 13B-REW (10/2000-08/2002)
