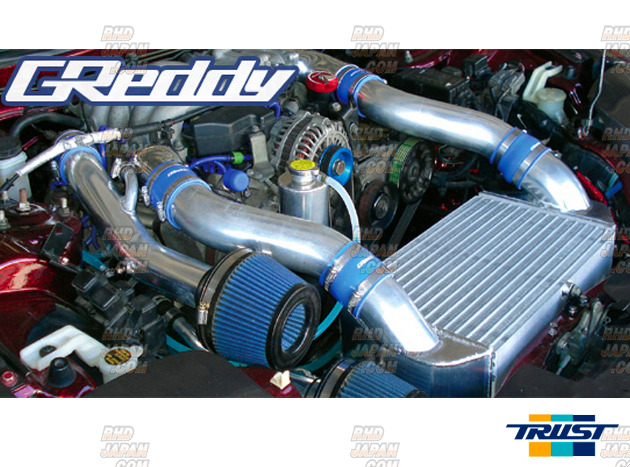

This item is part of the V Layout series which reconfigures the intercooler and radiator system for significantly enhanced cooling effectiveness specifically for the FD3S. Proper cooling performance is essential for rotary engine at all levels of tuning and the V layout has become the standard for serious enthusiasts. Available as Full Kits with Intercooler, Radiator air filters and complete intake piping to factory turbo system. Standard Kits include everything minus filter and piping to the factory twin turbo layout allowing for custom piping to upgrade turbo configuration. These kits have been upgraded to Version 2 as of 2021 which now come standard with Breather Tank, modern Airinx air Filters and improved layout for fuse box. Also available in a few other configurations to allow for more customized options for intercooler or radiator. Get this and all your JDM at RHDJapan!!
Brand: Trust Greddy
Product: V Layout Standard Kit Ver2 - FD3S Zenki
Part Number: 12040703
SPECIFICATIONS:

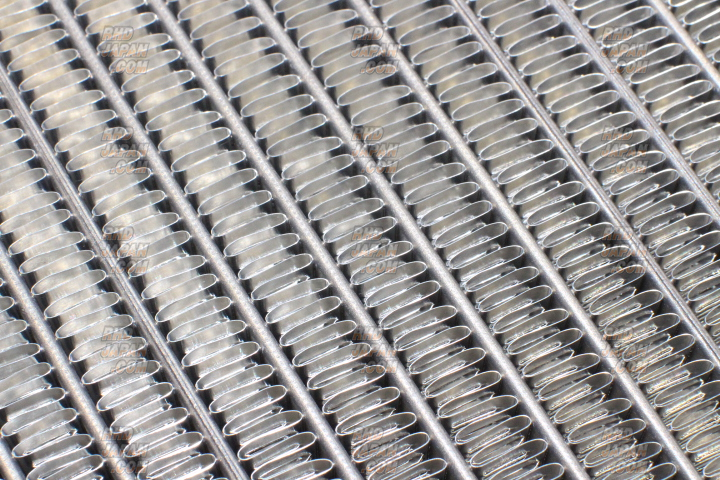

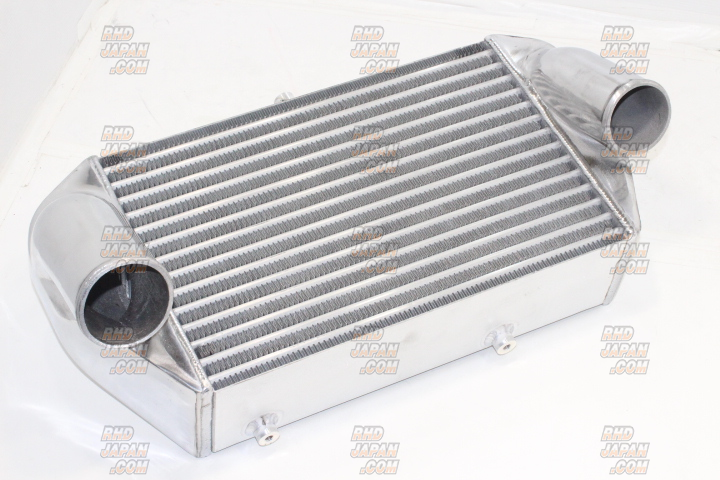

Intercooler Core Size: H266 x W400 x D100

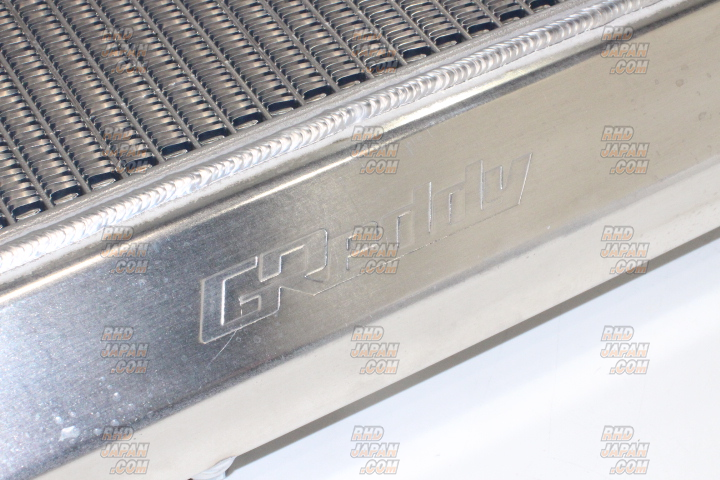

Radiator Core Size: H355 x W631 x D48
JAN Code: 4991995670100
PRODUCT NOTES:

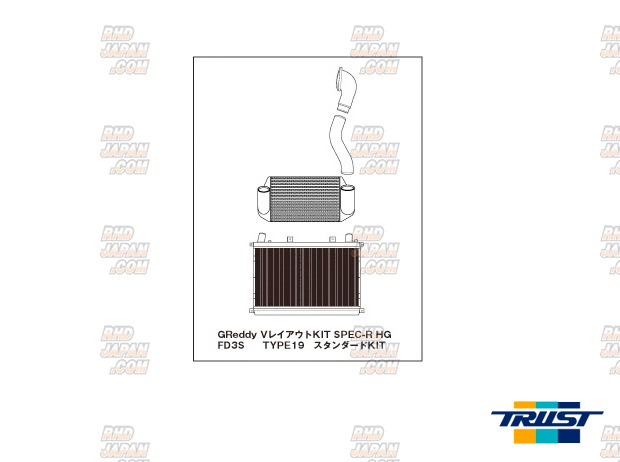

- Air Cleaners, Suction Pipe, and Intercooler Intake Piping NOT included (see attached schematic)
- Fabrication of Intake Side Piping necessary for installation
- Bending of A/C Pipe will be necessary for installation onto select models (VIN Number 100000 series)
- Oil Cooler Kit can be installed in conjunction with this kit
- Relocation of Battery necessary for installation
- Extension of Electric Fan Harness necessary for installation (Optional Electric Fan Extension Harness is available separately (950mm, two coupler set))
COMPATIBILITY NOTES:
- For VIN Number 200000 ~ 600000 models (93/8 ~ 95/12), Compatibility with AT equipped models unconfirmed
Product: V Layout Standard Kit Ver2 - FD3S Zenki
Part Number: 12040703
SPECIFICATIONS:
Intercooler Core Size: H266 x W400 x D100
Radiator Core Size: H355 x W631 x D48
JAN Code: 4991995670100
PRODUCT NOTES:
- Air Cleaners, Suction Pipe, and Intercooler Intake Piping NOT included (see attached schematic)
- Fabrication of Intake Side Piping necessary for installation
- Bending of A/C Pipe will be necessary for installation onto select models (VIN Number 100000 series)
- Oil Cooler Kit can be installed in conjunction with this kit
- Relocation of Battery necessary for installation
- Extension of Electric Fan Harness necessary for installation (Optional Electric Fan Extension Harness is available separately (950mm, two coupler set))
COMPATIBILITY NOTES:
- For VIN Number 200000 ~ 600000 models (93/8 ~ 95/12), Compatibility with AT equipped models unconfirmed
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Mazda RX-7 FD3S Type I 13B-REW (12/1991-09/1994)
Mazda RX-7 FD3S Type II 13B-REW (09/1994-03/1995)
Mazda RX-7 FD3S Type III 13B-REW (09/1994-01/1996)
Mazda RX-7 FD3S Type IV 13B-REW (01/1996-12/1998)
Mazda RX-7 FD3S Type V 13B-REW (01/1999-09/2000)
Mazda RX-7 FD3S Type VI 13B-REW (10/2000-08/2002)
Mazda RX-7 FD3S Type I 13B-REW (12/1991-09/1994)
Mazda RX-7 FD3S Type II 13B-REW (09/1994-03/1995)
Mazda RX-7 FD3S Type III 13B-REW (09/1994-01/1996)
Mazda RX-7 FD3S Type IV 13B-REW (01/1996-12/1998)
Mazda RX-7 FD3S Type V 13B-REW (01/1999-09/2000)
Mazda RX-7 FD3S Type VI 13B-REW (10/2000-08/2002)
