Works Bell Short Boss Kit for Rapfix - Civic EG# Integra DB# DC#
14619
JPY
WORKS BELL
SKU: 63958
PN: 210SThis item is designed to adapt aftermarket quick release Rapfix system and sports steering wheel. Developed to be shorter than the standard boss kit/hub adapter to accommodate for the addition of the quick release system. Ideal for race applications with tight cockpit space, while the removal of steering wheel also acts as a great anti-theft system. The item can also be used directly with aftermarket steering wheel for those looking for improved wheel placement and driving position. Manufactured with superior quality materials, manufacturing process and know how for a premium quality product. Get this and all your JDM at RHDJapan!!
Brand: Works Bell
Product: Short Boss Kit for Rapfix - Civic EG# Integra DB# DC#
Part Num: 210S
SPECIFICATIONS:
Material: Billet Aluminum
Length (mm): 59
Length in comparison to standard Boss KIt (mm): -35
COMPATIBILITY NOTES:
- Momo Steering Wheel Pitch
- Same Vehicle compatibility as standard Boss Kit 210
INSTALLATION NOTE:
These items are manufactured from either cast or billet aluminum process. Manufactured in conjunction with strict quality assurance practices of ASEA (Autosports & Special Equipment Association) under NAPAC (Nippon Auto Parts Aftermarket Committee). Manufactured to be extremely durable for sports/competition application and brake away under severe impact reducing potential harm to driver.
Incorrect installation may occur during installation especially on tapered tooth type design. If the item is not perfectly lined up or slippage occurs the excess stress my crack under torque load. Please make sure to remove all grease from steering shaft and set the boss kit to its most flush mounting position prior to applying torque.
For any possible claim during installation please follow the installation requirements with video proof.

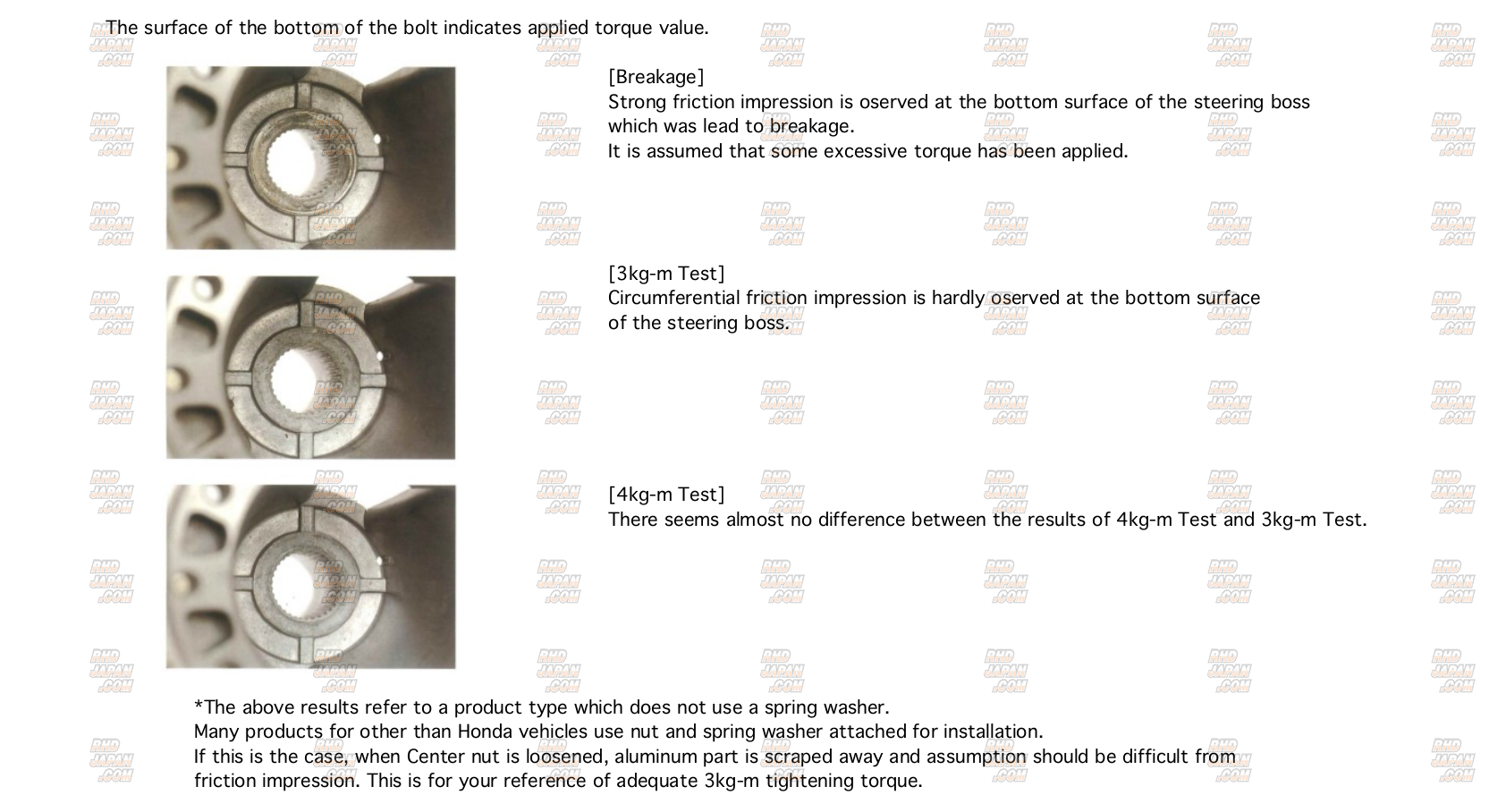

- Maximum torque set between 3~3.5kg/m.
*Torque wrench operation needs to be done with two hands, one on the handle and one holding perfect center and straight positioning.
**Steering wheel / shaft should be held from turning when being torqued down to get proper readings.
***Torque wrenches for heavy duty operation such a lug nuts can be more difficult to get smaller accurate readings for low torque specification.
Product: Short Boss Kit for Rapfix - Civic EG# Integra DB# DC#
Part Num: 210S
SPECIFICATIONS:
Material: Billet Aluminum
Length (mm): 59
Length in comparison to standard Boss KIt (mm): -35
COMPATIBILITY NOTES:
- Momo Steering Wheel Pitch
- Same Vehicle compatibility as standard Boss Kit 210
INSTALLATION NOTE:
These items are manufactured from either cast or billet aluminum process. Manufactured in conjunction with strict quality assurance practices of ASEA (Autosports & Special Equipment Association) under NAPAC (Nippon Auto Parts Aftermarket Committee). Manufactured to be extremely durable for sports/competition application and brake away under severe impact reducing potential harm to driver.
Incorrect installation may occur during installation especially on tapered tooth type design. If the item is not perfectly lined up or slippage occurs the excess stress my crack under torque load. Please make sure to remove all grease from steering shaft and set the boss kit to its most flush mounting position prior to applying torque.
For any possible claim during installation please follow the installation requirements with video proof.
- Maximum torque set between 3~3.5kg/m.
*Torque wrench operation needs to be done with two hands, one on the handle and one holding perfect center and straight positioning.
**Steering wheel / shaft should be held from turning when being torqued down to get proper readings.
***Torque wrenches for heavy duty operation such a lug nuts can be more difficult to get smaller accurate readings for low torque specification.
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Honda Civic EG3 D13B (09/1991-09/1995)
Honda Civic EG4 D15B (09/1991-09/1995)
Honda Civic EG6 B16A (07/1991-08/1995)
Honda Civic EG9 B16A (07/1991-08/1995)
Honda Civic Ferio EG7 B13B (09/1991-09/1993)
Honda Civic Ferio EG7 B13B (09/1993-09/1995)
Honda Civic Ferio EG8 B15B (09/1991-09/1993)
Honda Civic Ferio EG8 B15B (09/1993-09/1995)
Honda Civic Ferio EG9 B16A (09/1991-09/1993)
Honda Civic Ferio EG9 B16A (09/1993-09/1995)
Honda CR-X delSol EG1 D15B (03/1992-10/1995)
Honda CR-X delSol EG2 B16A (03/1992-10/1995)
Honda CR-X delSol EG2 B16A (10/1995-12/1998)
Honda Integra DB6 ZC (07/1993-09/1995)
Honda Integra DB7 B18B (07/1993-09/1995)
Honda Integra DB8 B18C (07/1993-09/1995)
Honda Integra DB9 ZC (07/1993-09/1995)
Honda Integra DC1 ZC (05/1993-09/1995)
Honda Integra DC1 ZC (09/1995-07/2001)
Honda Integra DC2 B18C (05/1993-09/1995)
Honda Integra DC2 B18C (09/1995-07/2001)
Honda Civic EG3 D13B (09/1991-09/1995)
Honda Civic EG4 D15B (09/1991-09/1995)
Honda Civic EG6 B16A (07/1991-08/1995)
Honda Civic EG9 B16A (07/1991-08/1995)
Honda Civic Ferio EG7 B13B (09/1991-09/1993)
Honda Civic Ferio EG7 B13B (09/1993-09/1995)
Honda Civic Ferio EG8 B15B (09/1991-09/1993)
Honda Civic Ferio EG8 B15B (09/1993-09/1995)
Honda Civic Ferio EG9 B16A (09/1991-09/1993)
Honda Civic Ferio EG9 B16A (09/1993-09/1995)
Honda CR-X delSol EG1 D15B (03/1992-10/1995)
Honda CR-X delSol EG2 B16A (03/1992-10/1995)
Honda CR-X delSol EG2 B16A (10/1995-12/1998)
Honda Integra DB6 ZC (07/1993-09/1995)
Honda Integra DB7 B18B (07/1993-09/1995)
Honda Integra DB8 B18C (07/1993-09/1995)
Honda Integra DB9 ZC (07/1993-09/1995)
Honda Integra DC1 ZC (05/1993-09/1995)
Honda Integra DC1 ZC (09/1995-07/2001)
Honda Integra DC2 B18C (05/1993-09/1995)
Honda Integra DC2 B18C (09/1995-07/2001)
