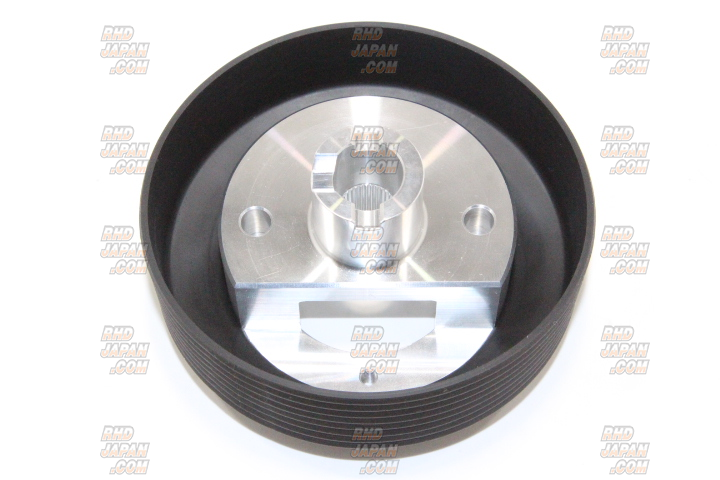

Works Bell Short Boss Kit for Rapfix - CU1 CU2 RE3 RE4 ZF1 FD1 FD2 FN2 GP1 ZE2 GB# JC# RT# GE# RN# ZE# RK# RB#

Brand: Works Bell
Product: Short Boss Kit for Rapfix - CU1 CU2 RE3 RE4 ZF1 FD1 FD2 FN2 GP1 ZE2 GB# JC# RT# GE# RN# ZE# RK# RB#
Part Num: 224S

SPECIFICATIONS:
Material: Billet Aluminum
Length (mm): 66
Length in comparison to standard Boss KIt (mm): 32

COMPATIBILITY NOTES:
- Momo Steering Wheel Pitch
- Same Vehicle compatibility as standard Boss Kit 224
INSTALLATION NOTE:

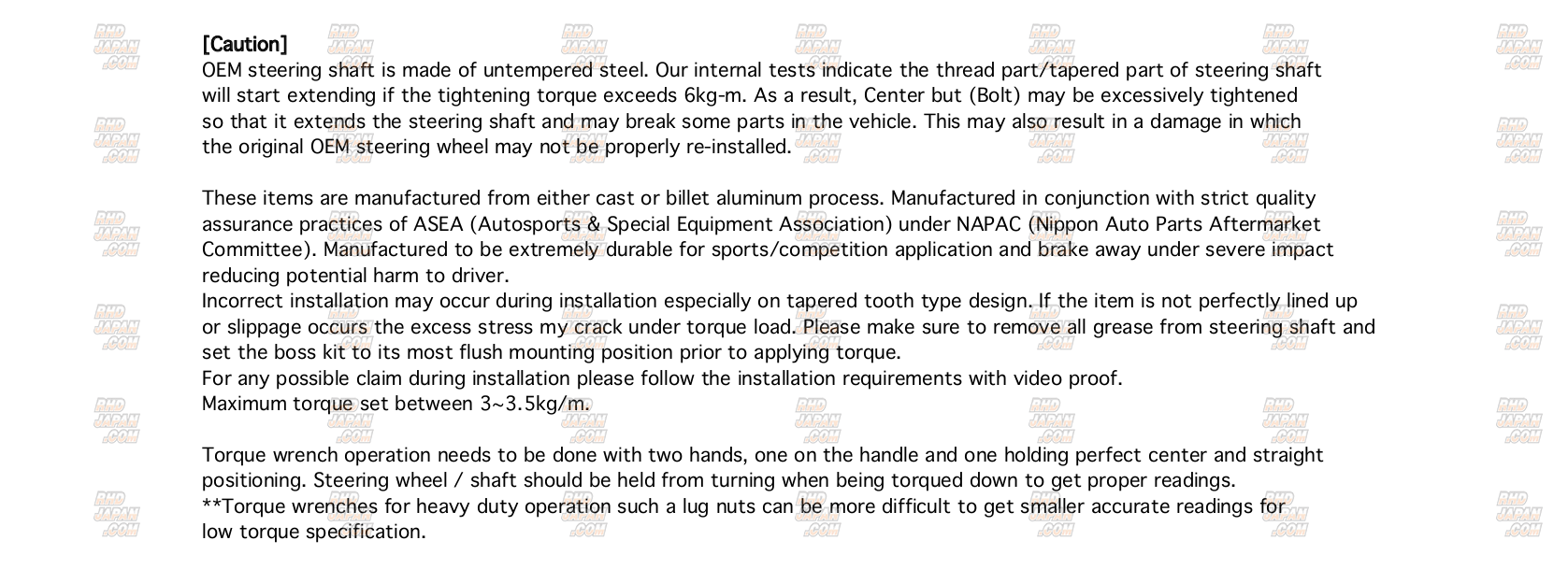

These items are manufactured from either cast or billet aluminum process. Manufactured in conjunction with strict quality assurance practices of ASEA (Autosports & Special Equipment Association) under NAPAC (Nippon Auto Parts Aftermarket Committee). Manufactured to be extremely durable for sports/competition application and brake away under severe impact reducing potential harm to driver.

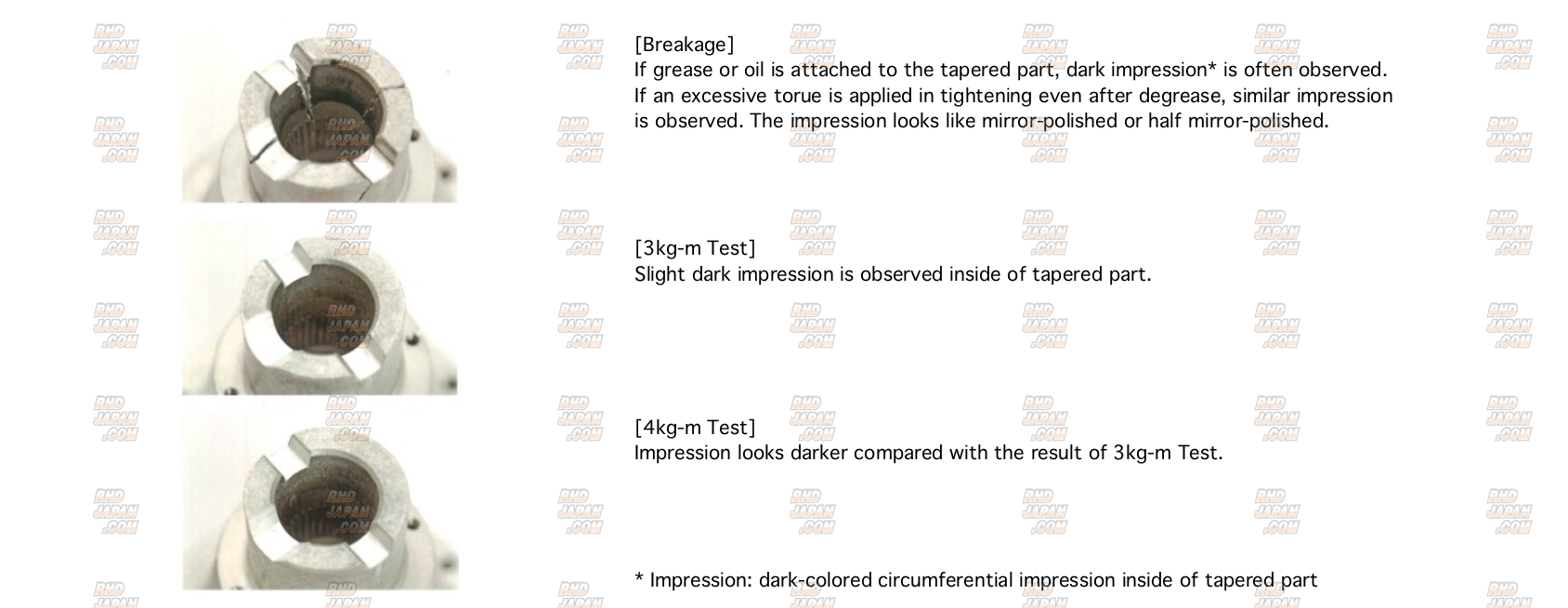

Incorrect installation may occur during installation especially on tapered tooth type design. If the item is not perfectly lined up or slippage occurs the excess stress my crack under torque load. Please make sure to remove all grease from steering shaft and set the boss kit to its most flush mounting position prior to applying torque.
For any possible claim during installation please follow the installation requirements with video proof.

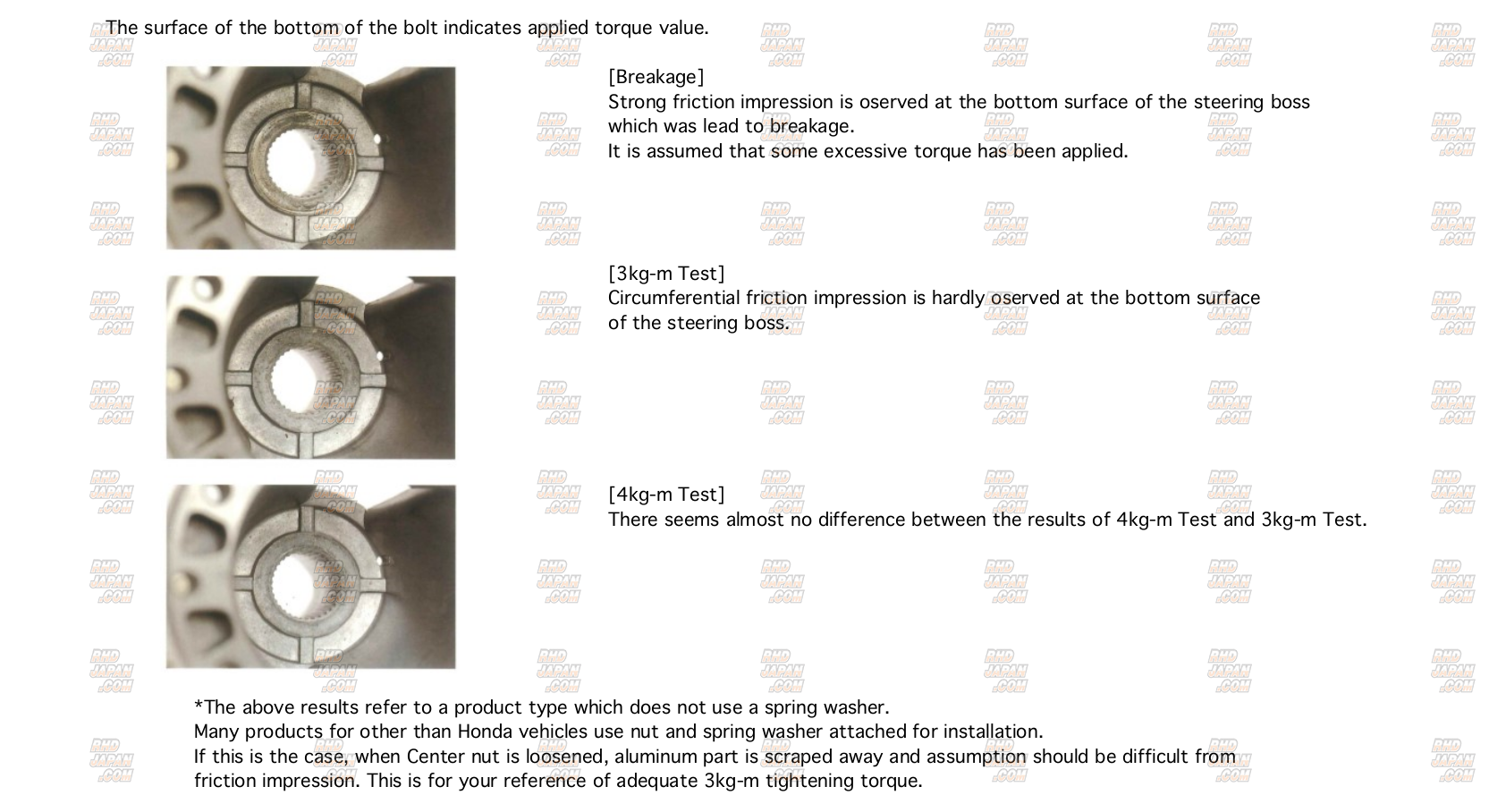

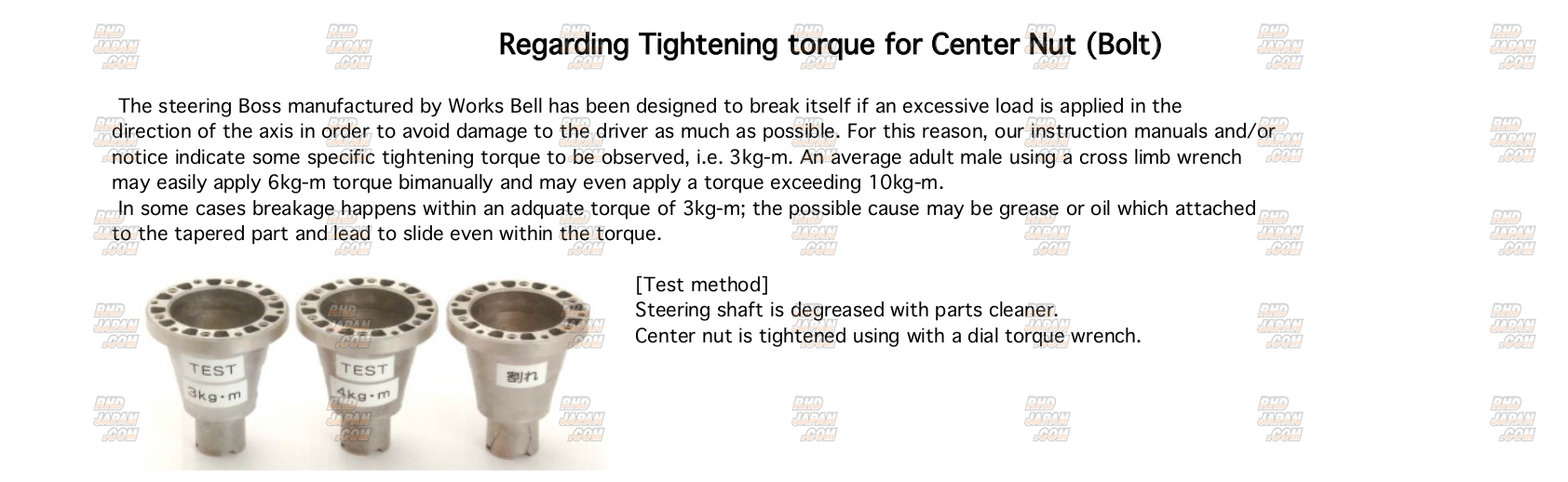

- Maximum torque set between 3~3.5kg/m.
*Torque wrench operation needs to be done with two hands, one on the handle and one holding perfect center and straight positioning.
**Steering wheel / shaft should be held from turning when being torqued down to get proper readings.
***Torque wrenches for heavy duty operation such a lug nuts can be more difficult to get smaller accurate readings for low torque specification.
