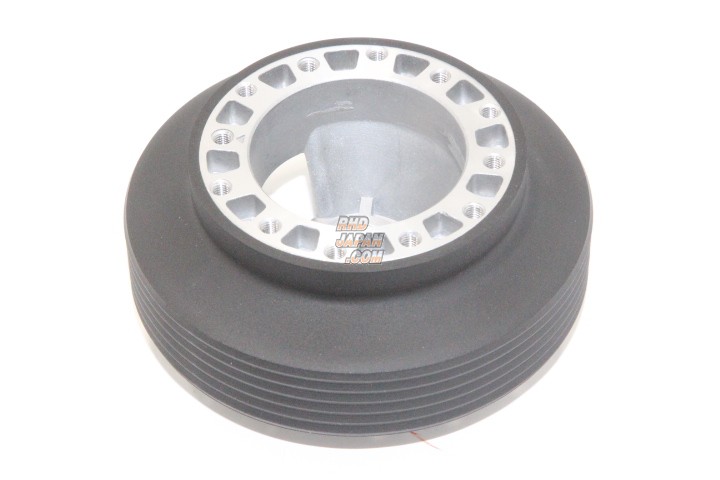

Works Bell Short Boss Kit for Rapfix - CV5W CY4A NA4W CZ4A CW6W
14619
JPY
WORKS BELL
SKU: 87958
PN: 818SThis item is designed to adapt aftermarket quick release Rapfix system and sports steering wheel. Developed to be shorter than the standard boss kit/hub adapter to accommodate for the addition of the quick release system. Ideal for race applications with tight cockpit space, while the removal of steering wheel also acts as a great anti-theft system. The item can also be used directly with aftermarket steering wheel for those looking for improved wheel placement and driving position. Manufactured with superior quality materials, manufacturing process and know how for a premium quality product. Get this and all your JDM at RHDJapan!!
Brand: Works Bell
Product: Short Boss Kit for Rapfix - CV5W CY4A NA4W CZ4A CW6W
Part Num: 818S
SPECIFICATIONS:
Material: Billet Aluminum
Length (mm): 65
Length in comparison to standard Boss KIt (mm): -20
COMPATIBILITY NOTES:
- Momo and Nardi Steering Wheel Pitch
- Same Vehicle compatibility as standard Boss Kit 818
INSTALLATION NOTE:

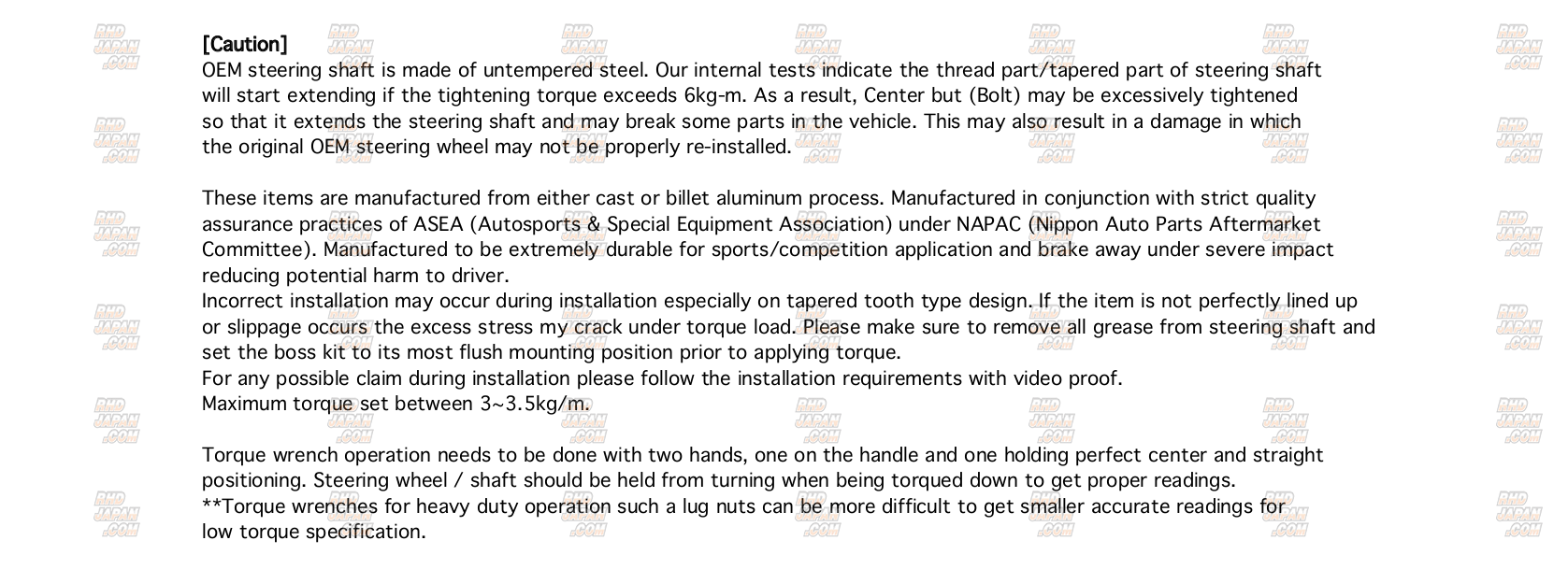

These items are manufactured from either cast or billet aluminum process. Manufactured in conjunction with strict quality assurance practices of ASEA (Autosports & Special Equipment Association) under NAPAC (Nippon Auto Parts Aftermarket Committee). Manufactured to be extremely durable for sports/competition application and brake away under severe impact reducing potential harm to driver.
Incorrect installation may occur during installation especially on tapered tooth type design. If the item is not perfectly lined up or slippage occurs the excess stress my crack under torque load. Please make sure to remove all grease from steering shaft and set the boss kit to its most flush mounting position prior to applying torque.
For any possible claim during installation please follow the installation requirements with video proof.

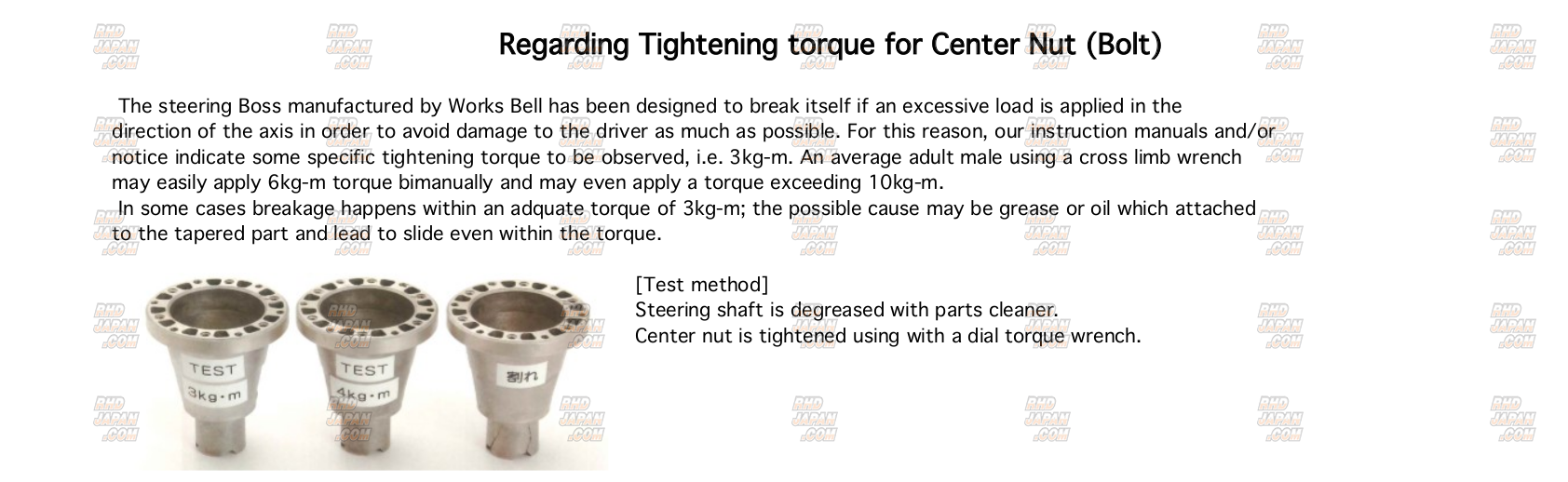

- Maximum torque set between 3~3.5kg/m.
*Torque wrench operation needs to be done with two hands, one on the handle and one holding perfect center and straight positioning.
**Steering wheel / shaft should be held from turning when being torqued down to get proper readings.
***Torque wrenches for heavy duty operation such a lug nuts can be more difficult to get smaller accurate readings for low torque specification.
Product: Short Boss Kit for Rapfix - CV5W CY4A NA4W CZ4A CW6W
Part Num: 818S
SPECIFICATIONS:
Material: Billet Aluminum
Length (mm): 65
Length in comparison to standard Boss KIt (mm): -20
COMPATIBILITY NOTES:
- Momo and Nardi Steering Wheel Pitch
- Same Vehicle compatibility as standard Boss Kit 818
INSTALLATION NOTE:
These items are manufactured from either cast or billet aluminum process. Manufactured in conjunction with strict quality assurance practices of ASEA (Autosports & Special Equipment Association) under NAPAC (Nippon Auto Parts Aftermarket Committee). Manufactured to be extremely durable for sports/competition application and brake away under severe impact reducing potential harm to driver.
Incorrect installation may occur during installation especially on tapered tooth type design. If the item is not perfectly lined up or slippage occurs the excess stress my crack under torque load. Please make sure to remove all grease from steering shaft and set the boss kit to its most flush mounting position prior to applying torque.
For any possible claim during installation please follow the installation requirements with video proof.
- Maximum torque set between 3~3.5kg/m.
*Torque wrench operation needs to be done with two hands, one on the handle and one holding perfect center and straight positioning.
**Steering wheel / shaft should be held from turning when being torqued down to get proper readings.
***Torque wrenches for heavy duty operation such a lug nuts can be more difficult to get smaller accurate readings for low torque specification.
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Mitsubishi Delica D:5 CV5W 4B12 (01/2007-11/2009)
Mitsubishi Delica D:5 CV5W 4B12 (11/2009-06/2012)
Mitsubishi Delica D:5 CV5W 4B12 (07/2012-10/2019)
Mitsubishi Galant Fortis CY4A 4B11 (08/2007-12/2009)
Mitsubishi Galant Fortis CY4A 4B11 (12/2009-04/2015)
Mitsubishi Grandis NA4W 4G69 (05/2003-05/2005)
Mitsubishi Grandis NA4W 4G69 (05/2005-03/2009)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2007-09/2008)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2008-09/2009)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2009-09/2015)
Mitsubishi Outlander CW6W 6B31 (10/2007-07/2008)
Mitsubishi Outlander CW6W 6B31 (08/2008-08/2009)
Mitsubishi Delica D:5 CV5W 4B12 (01/2007-11/2009)
Mitsubishi Delica D:5 CV5W 4B12 (11/2009-06/2012)
Mitsubishi Delica D:5 CV5W 4B12 (07/2012-10/2019)
Mitsubishi Galant Fortis CY4A 4B11 (08/2007-12/2009)
Mitsubishi Galant Fortis CY4A 4B11 (12/2009-04/2015)
Mitsubishi Grandis NA4W 4G69 (05/2003-05/2005)
Mitsubishi Grandis NA4W 4G69 (05/2005-03/2009)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2007-09/2008)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2008-09/2009)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2009-09/2015)
Mitsubishi Outlander CW6W 6B31 (10/2007-07/2008)
Mitsubishi Outlander CW6W 6B31 (08/2008-08/2009)
