Works Bell Short Boss Kit for Rapfix - Suzuki 414S

14619 JPY

WORKS BELL SKU: 51368 PN: 414S

This item is designed to adapt aftermarket quick release Rapfix system and sports steering wheel. Developed to be shorter than the standard boss kit/hub adapter to accommodate for the addition of the quick release system. Ideal for race applications with tight cockpit space, while the removal of steering wheel also acts as a great anti-theft system. The item can also be used directly with aftermarket steering wheel for those looking for improved wheel placement and driving position. Manufactured with superior quality materials, manufacturing process and know how for a premium quality product. Get this and all your JDM at RHDJapan!!

Brand: Works Bell

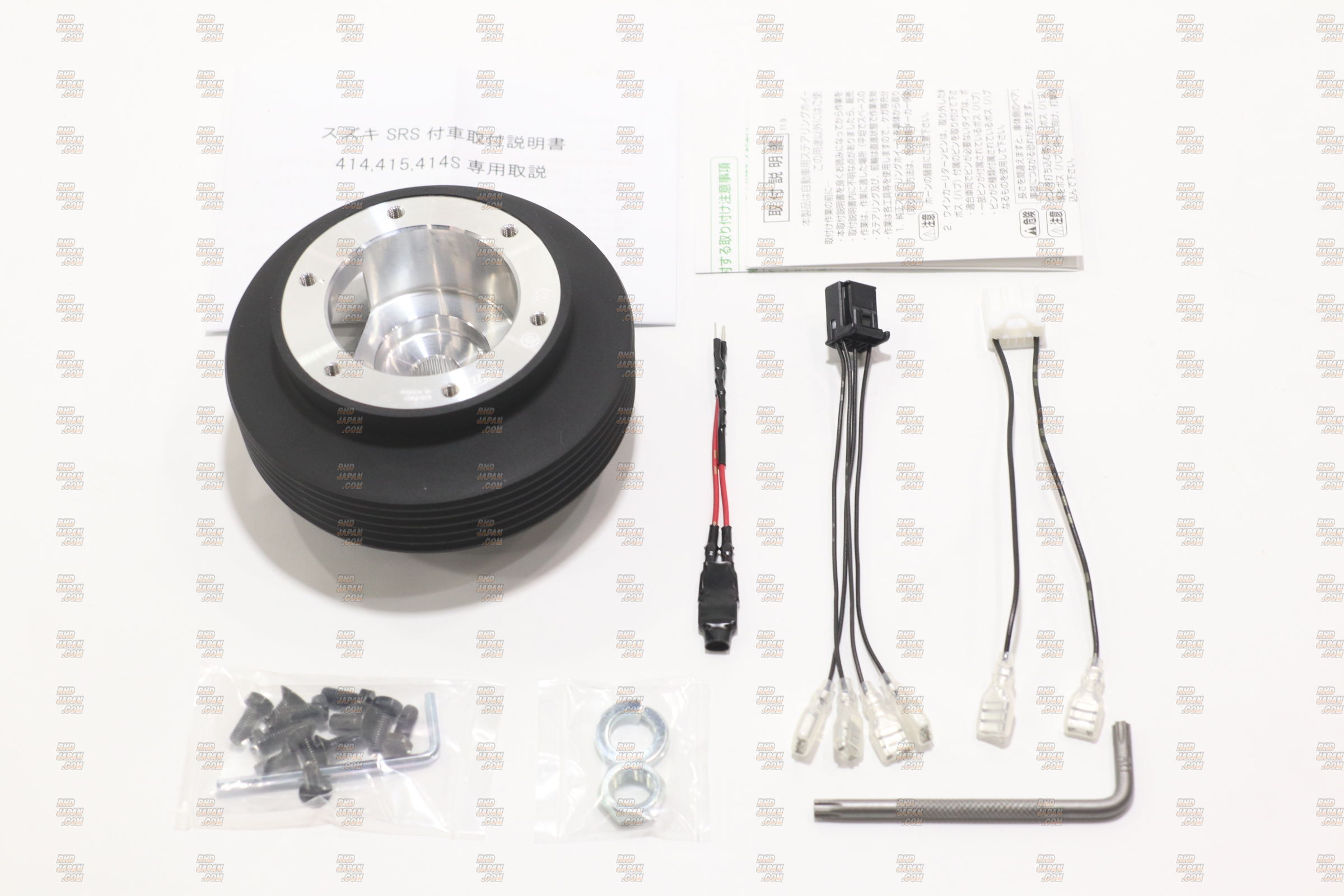

Product: Short Boss Kit for Rapfix - 414S
Part Num: 414S

SPECIFICATIONS:
Material: Billet Aluminum
Length (mm): 63
Length in comparison to standard Boss KIt (mm): -17

COMPATIBILITY NOTES:
- Momo Steering Wheel Pitch
- Only for Work Bell Rapfix series
- Same Vehicle compatibility as standard Boss Kit 414 and 415

INSTALLATION NOTE:

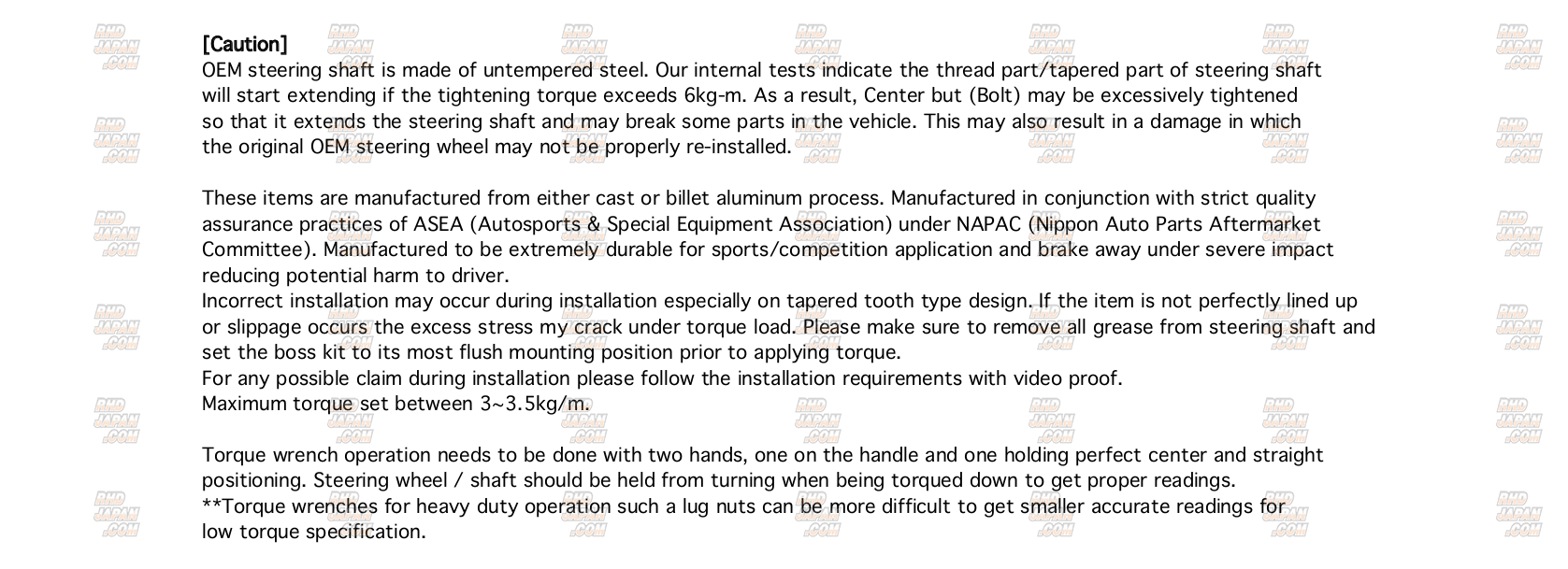

These items are manufactured from either cast or billet aluminum process. Manufactured in conjunction with strict quality assurance practices of ASEA (Autosports & Special Equipment Association) under NAPAC (Nippon Auto Parts Aftermarket Committee). Manufactured to be extremely durable for sports/competition application and brake away under severe impact reducing potential harm to driver.

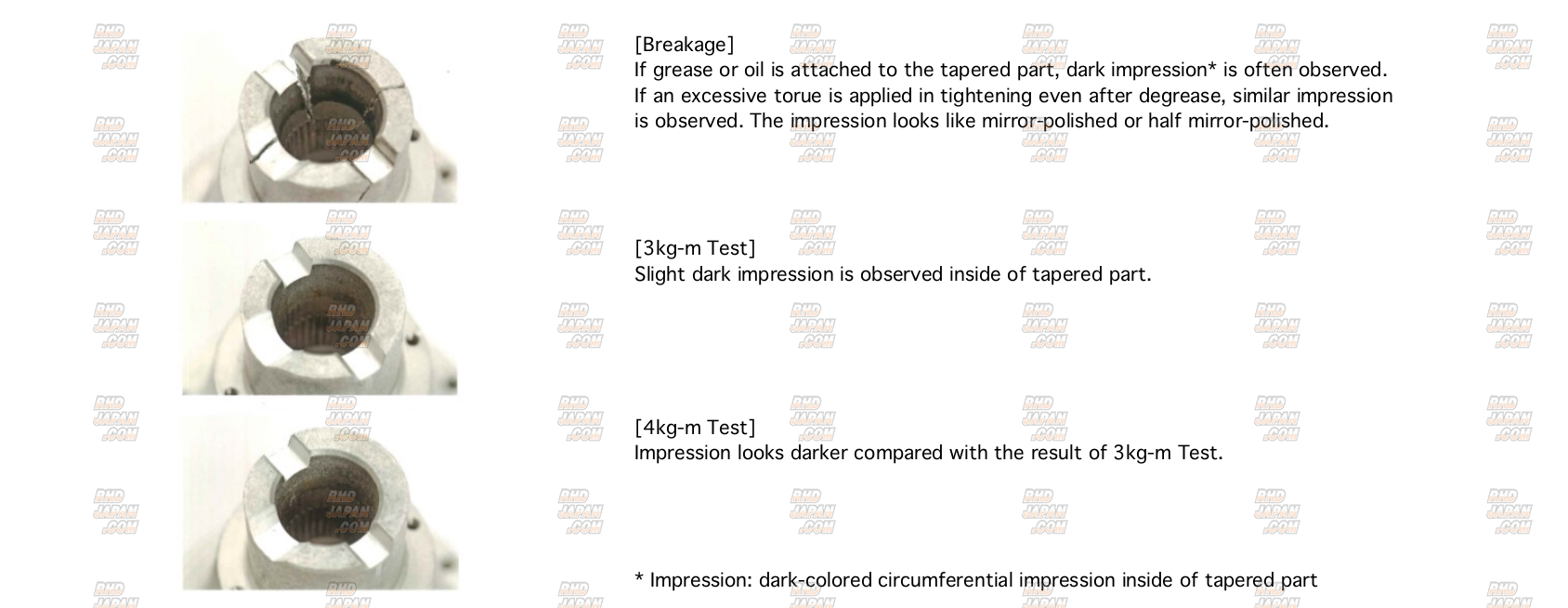

Incorrect installation may occur during installation especially on tapered tooth type design. If the item is not perfectly lined up or slippage occurs the excess stress my crack under torque load. Please make sure to remove all grease from steering shaft and set the boss kit to its most flush mounting position prior to applying torque.
For any possible claim during installation please follow the installation requirements with video proof.

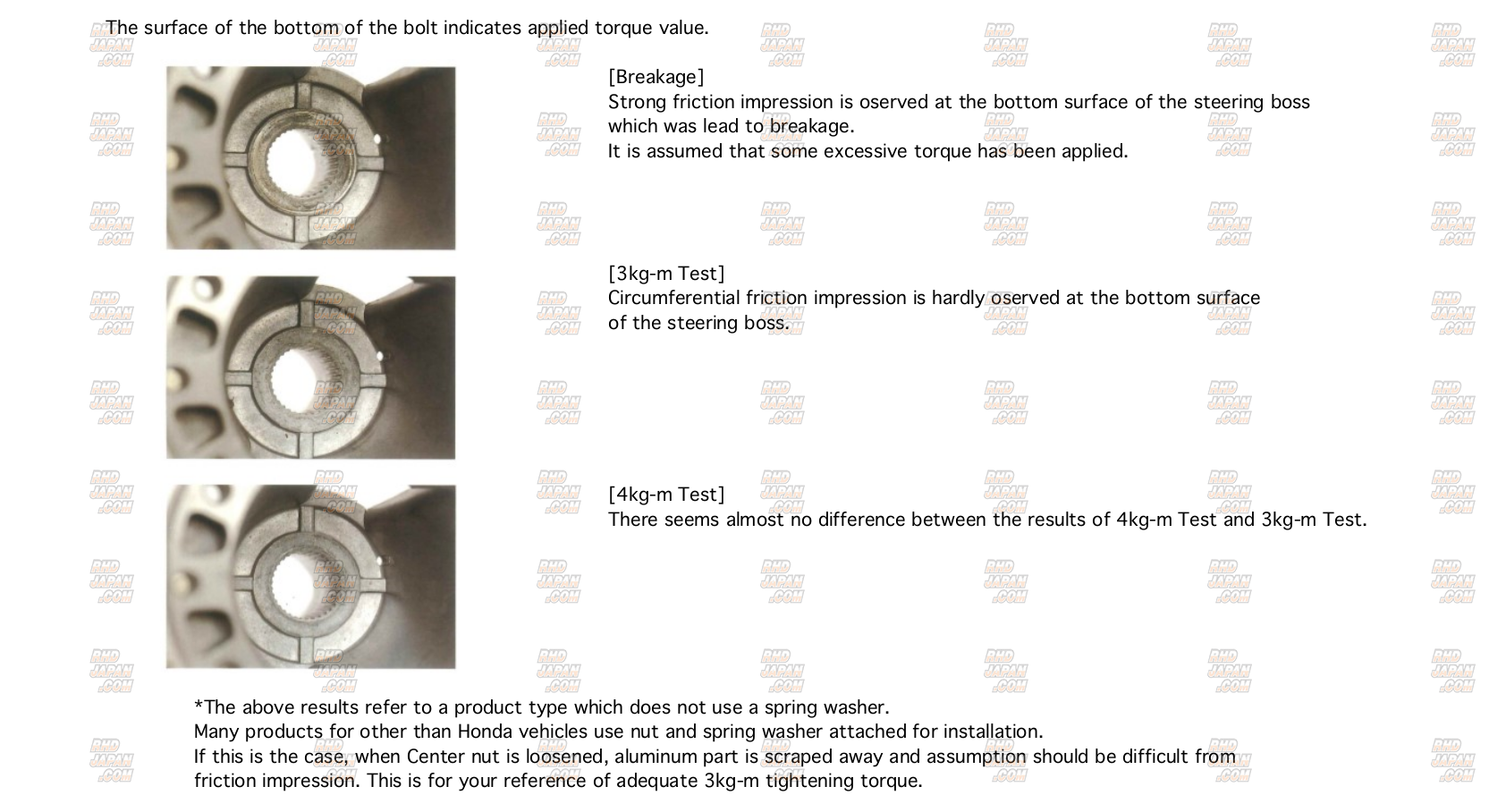

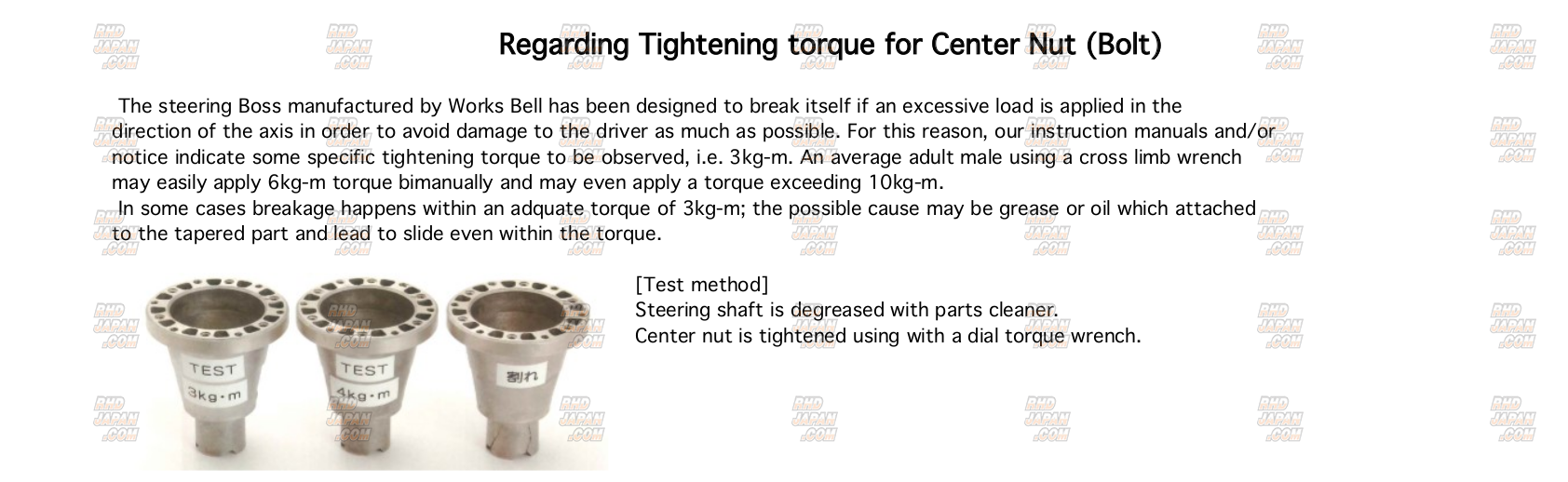

- Maximum torque set between 3~3.5kg/m.
*Torque wrench operation needs to be done with two hands, one on the handle and one holding perfect center and straight positioning.
**Steering wheel / shaft should be held from turning when being torqued down to get proper readings.
***Torque wrenches for heavy duty operation such a lug nuts can be more difficult to get smaller accurate readings for low torque specification.

Compatibility

Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.

Suzuki Alto HA24S K6A (09/2004-11/2006)
Suzuki Alto HA24S K6A (12/2006-12/2009)
Suzuki Alto HA24V K6A (01/2005-11/2006)
Suzuki Alto HA24V K6A (12/2006-12/2009)
Suzuki Alto Lapin HE21S K6A (01/2002-08/2003)
Suzuki Alto Lapin HE21S K6A (09/2003-09/2004)
Suzuki Alto Lapin HE21S K6A (10/2004-11/2005)
Suzuki Alto Lapin HE21S K6A (12/2005-03/2006)
Suzuki Alto Lapin HE21S K6A (04/2006-04/2007)
Suzuki Alto Lapin HE21S K6A (05/2007-10/2008)
Suzuki Carry DA17W R06A (02/2015-05/2019)
Suzuki Cervo HG21S K6A (11/2006-12/2009)
Suzuki Escudo TD94W H27A (05/2005-05/2008)
Suzuki Every Van DA17V R06A (02/2015-05/2019)
Suzuki Every Wagon DA17W R06A (02/2015-05/2019)
Suzuki Every Wagon DA17W R06A (06/2019~)
Suzuki Hustler MR31S R06A (04/2014-12/2019)
Suzuki Hustler MR31S R06A (01/2014-04/2014)
Suzuki Jimny JB23W K6A (10/1998-07/2018)
Suzuki Jimny Sierra JB43W M13A (12/2002-07/2018)
Suzuki MR Wagon MF21S K6A (12/2001-12/2005)
Suzuki Solio MA15S K12B (01/2011-08/2015)
Suzuki Spacia MK32S R06A (02/2013-12/2017)
Suzuki Spacia MK42S R06A (03/2013-12/2017)
Suzuki Swift ZC11S M13A (11/2004-04/2007)
Suzuki Swift ZC11S M13A (05/2007-09/2010)
Suzuki Swift ZC21S M15A (11/2004-04/2007)
Suzuki Swift ZC21S M15A (05/2007-09/2010)
Suzuki Swift ZC71S K12B (11/2004-09/2010)
Suzuki Swift ZC72S K12B (11/2009-07/2013)
Suzuki Swift ZC72S K12B (07/2013-01/2017)
Suzuki Swift ZD11S M13A (11/2004-04/2007)
Suzuki Swift ZD11S M13A (05/2007-09/2010)
Suzuki Swift ZD21S M15A (11/2004-04/2007)
Suzuki Swift ZD21S M15A (05/2007-09/2010)
Suzuki Swift ZD72S K12B (09/2010-01/2017)
Suzuki Swift Sport ZC31S M16A (09/2005-04/2007)
Suzuki Swift Sport ZC31S M16A (05/2007-04/2009)
Suzuki Swift Sport ZC31S M16A (05/2009-12/2011)
Suzuki Swift Sport ZC32S M16A (12/2011-09/2017)
Suzuki Wagon R MH21S K6A (09/2003-11/2004)
Suzuki Wagon R MH21S K6A (12/2004-08/2005)
Suzuki Wagon R MH21S K6A (09/2005-04/2007)
Suzuki Wagon R MH22S K6A (05/2007-08/2008)
Suzuki Wagon R MH23S K6A (09/2008-08/2012)
