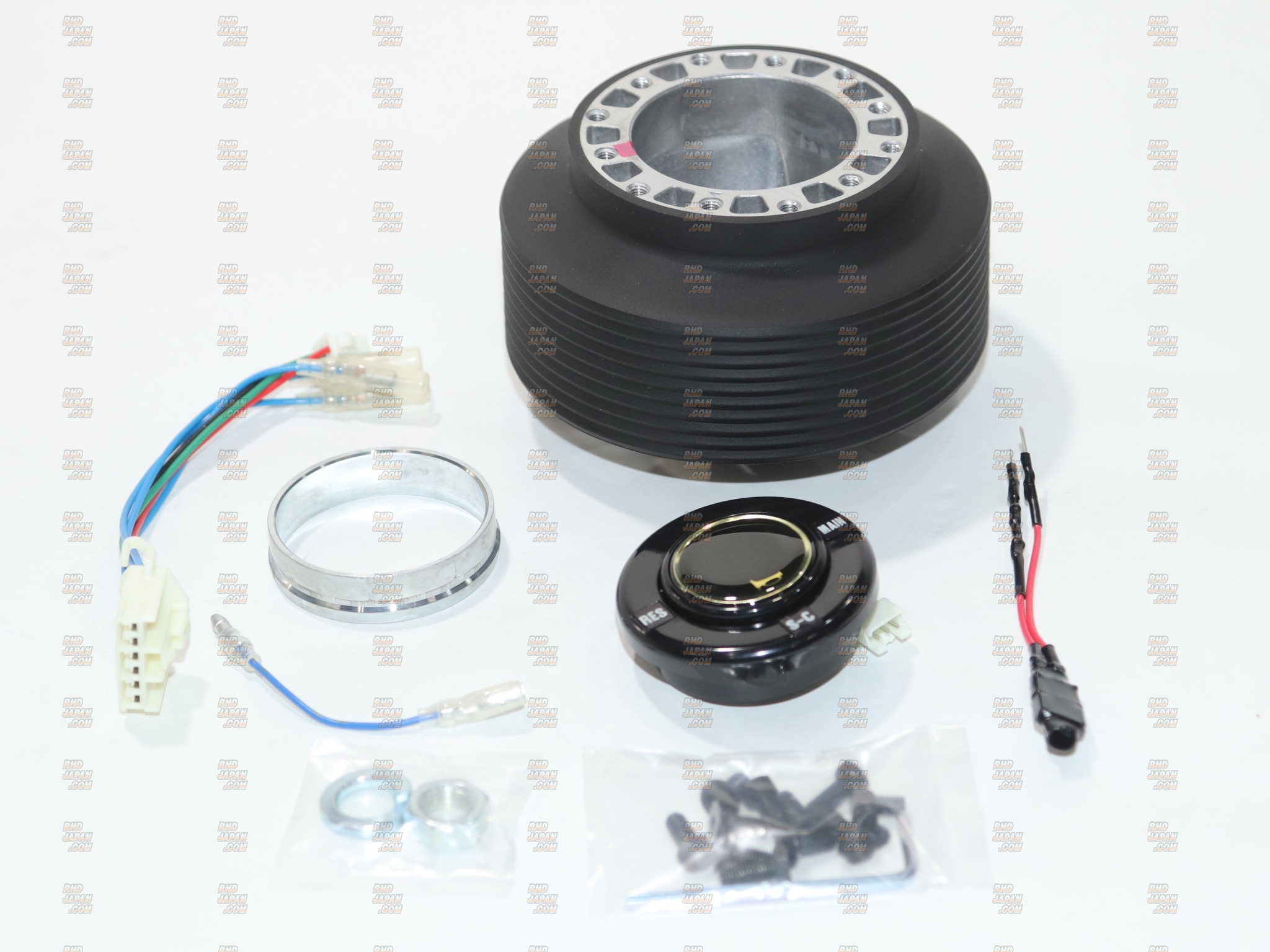

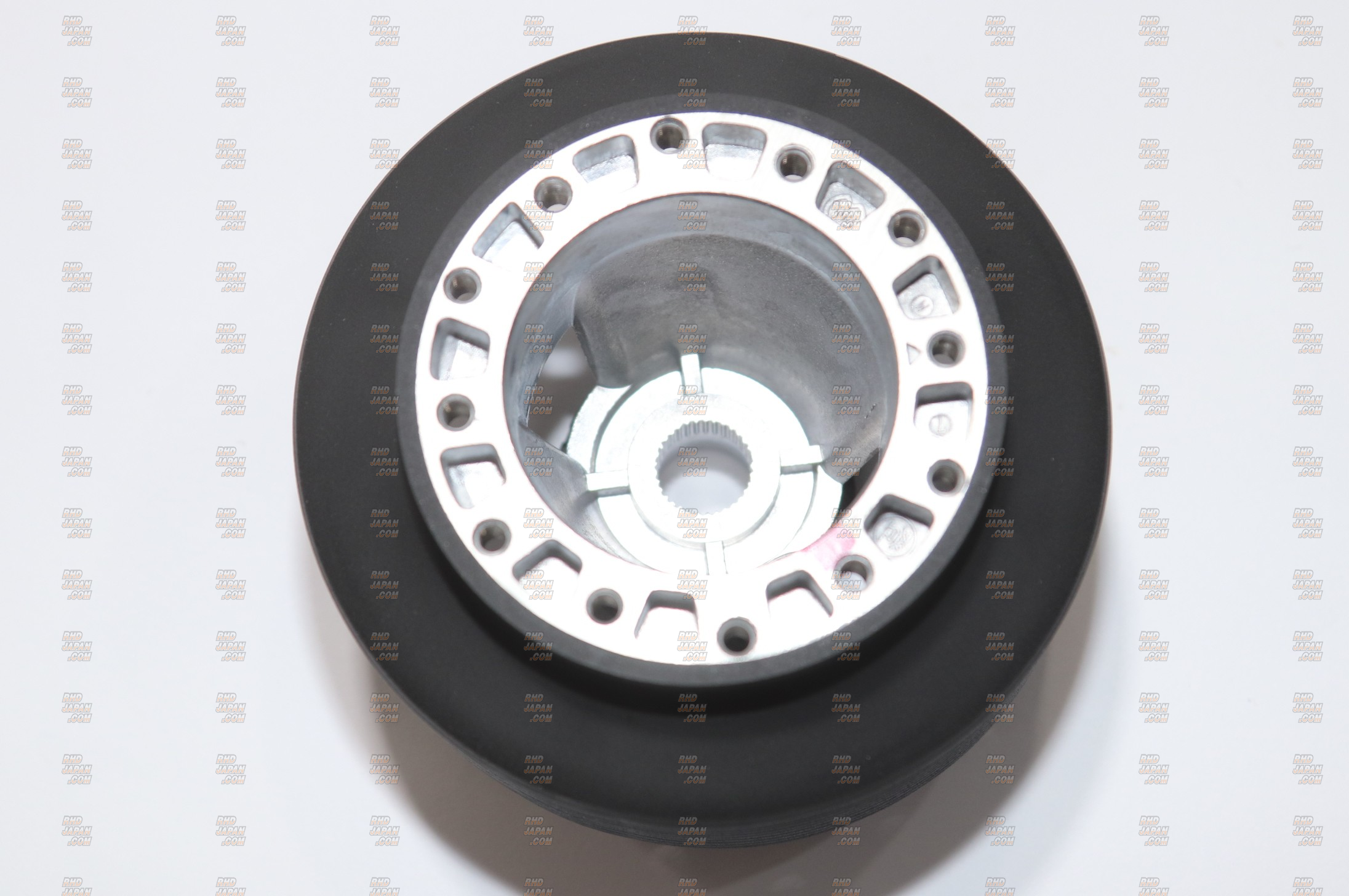

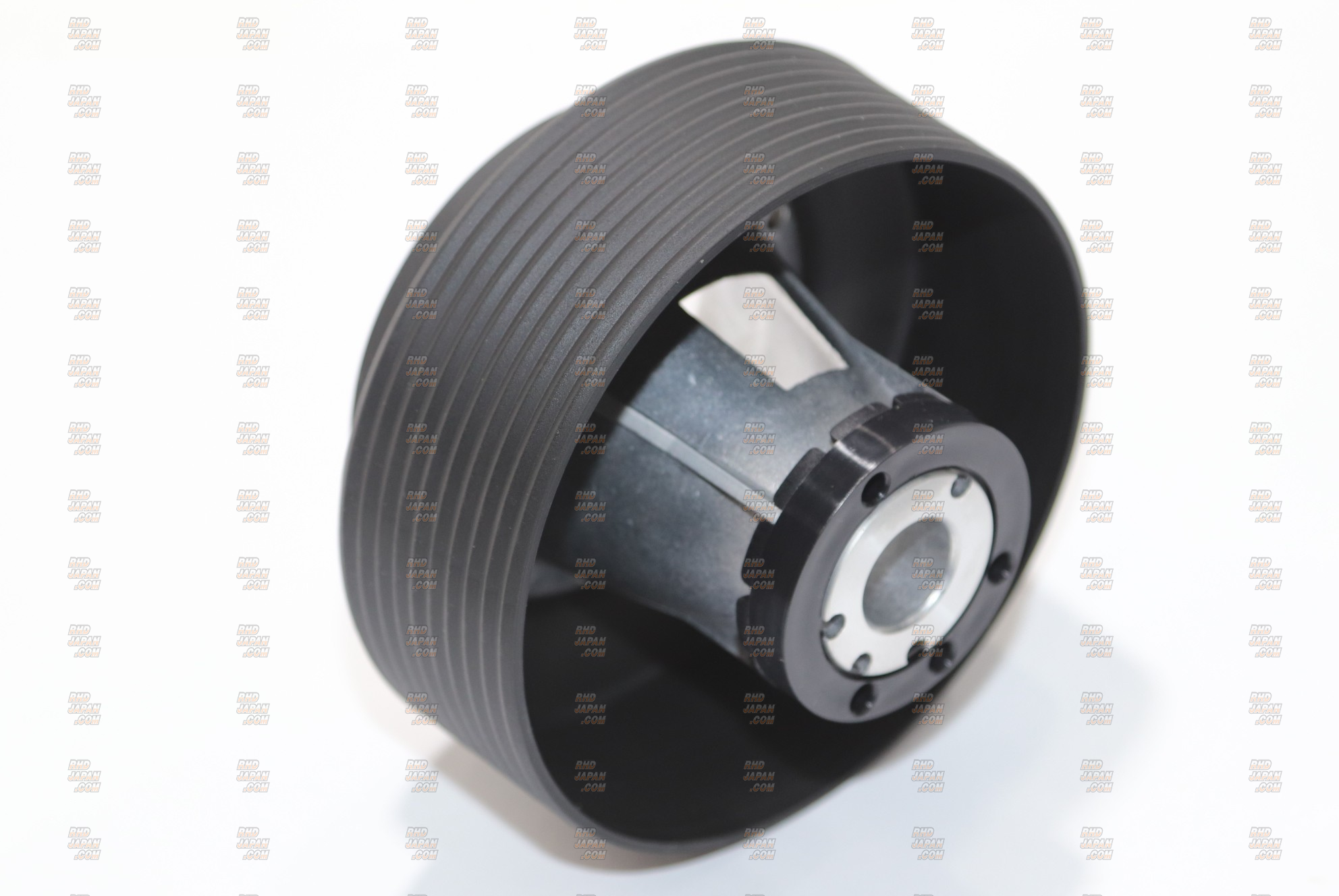

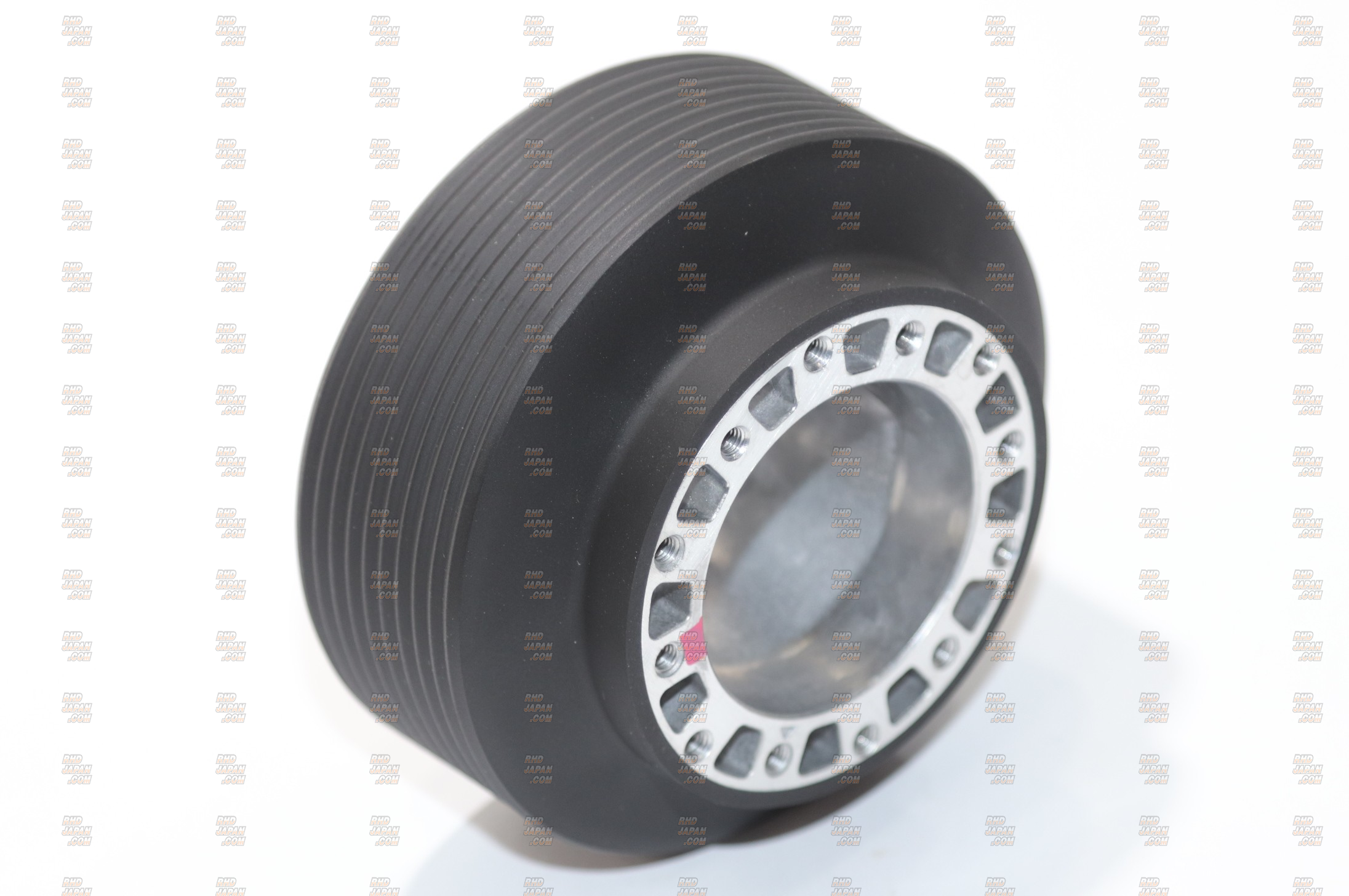

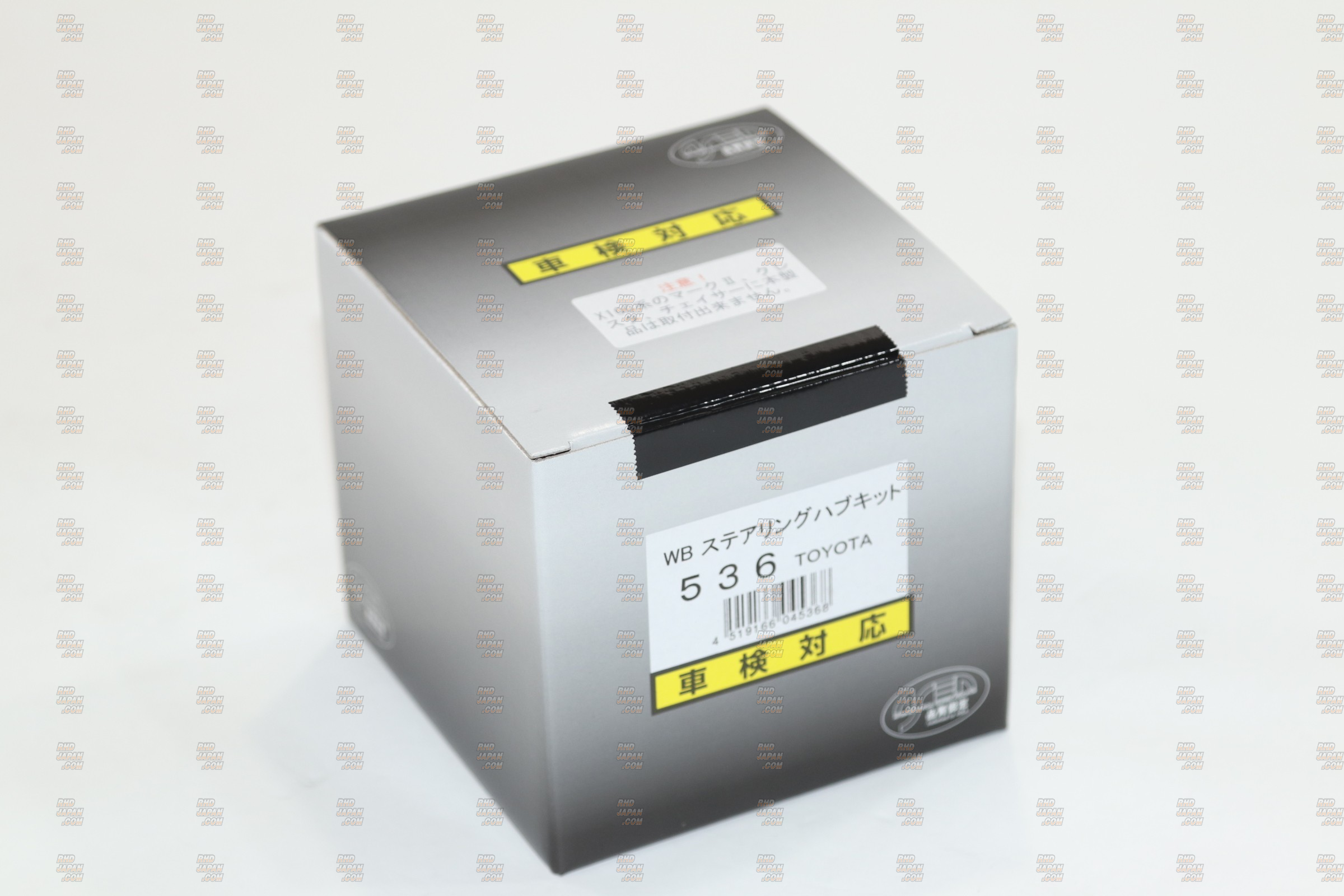

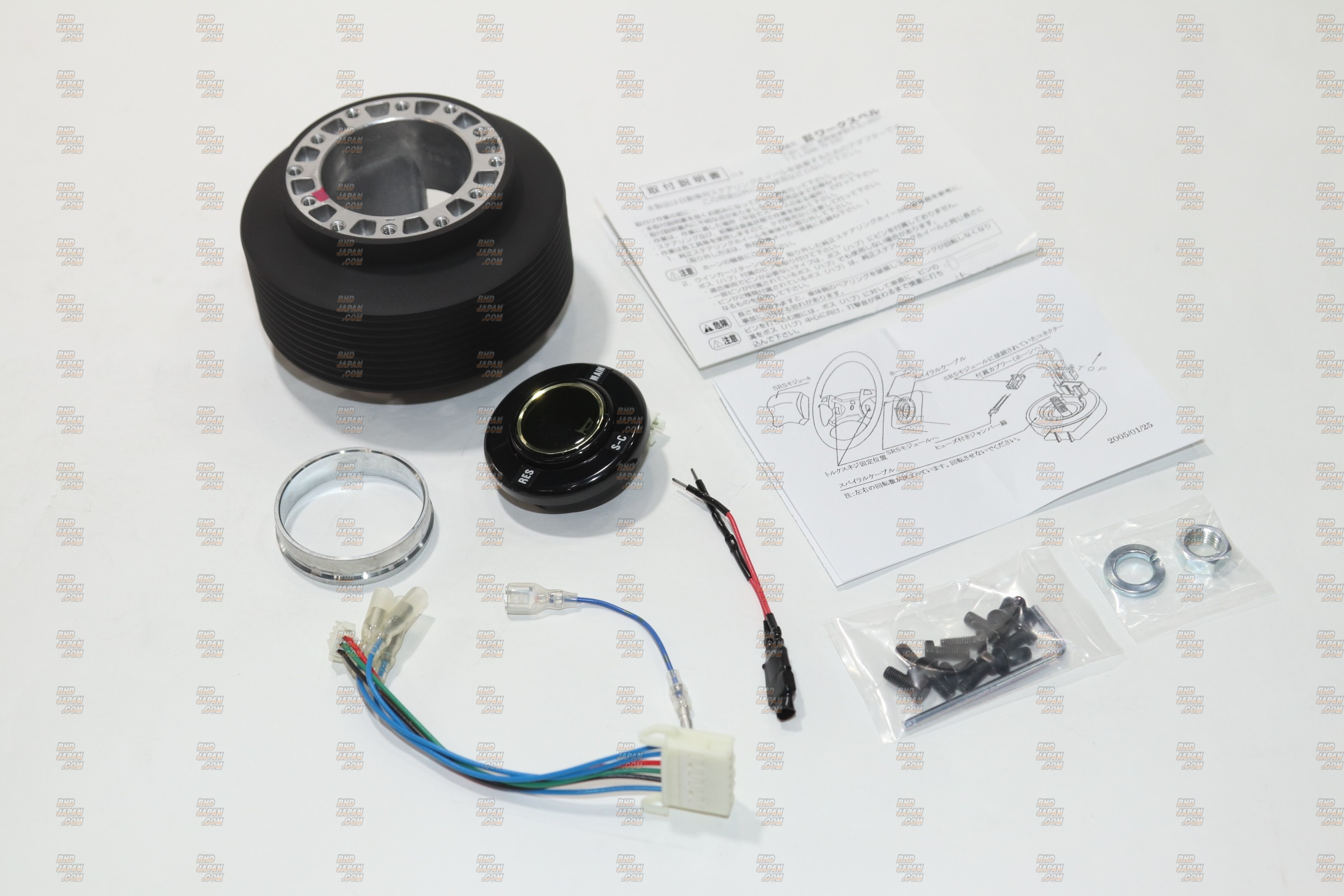

Works Bell Standard Boss Kit - 536

Brand: Works Bell
Product: Standard Boss Kit - 536
Part Num: 536

SPECIFICATIONS:
Material: Aluminum

PRODUCT NOTES:
- Airbags(electrical) is equipped with warning lamp in meter panel.
- If automatic cruise function is not needed, # 535 can be used.
- JZA80 ACU10W ACU15W MCU10W MCU15W SXU10W SXU15W: For vehicles equipped with steermatic function, the function cannot be used.
- JZA80 UCF20 UCF21 JZZ30 JZZ31 UZZ30 UZZ31 UZZ32 ACU10W ACU15W MCU10W MCU15W SXU10W SXU15W FJ80G FZJ80G HDJ81V HZJ81V: For some vehicles, automatic cruise function cannot be used.

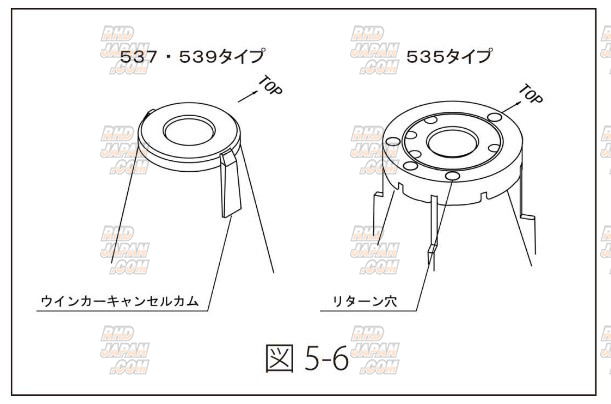

注18 - RZH111G RZH110G RZH101G RZH100G RZH102V RZH112K RZH112V RZH122V RZH182K RZH183K LH123V LH129V KZH106G KZH126G KZH116G KZH120G TRH102V TRH112K TRH112V TRH124B TRH122K RZH124B RZH125B KZH100G KZH106W KZH110G RZH101G: For some vehicles, #537 is applicable. Please check the shape of turn signal cancellation pins. See fig. 5-6.

COMPATIBILITY NOTES:
- MCX10: Only for Avalon equipped with cruise control/airbags(electrical) 6/95~
- JZS147: Only for Aristo equipped with cruise control/airbags(electrical) 10/91~7/97
- VCV10 VCV11 MCV20 MCV21: Only for Windom equipped with cruise control/airbags(electrical) 10/91~7/01
- JZS151 JZS153 JZS155 JZS157 GS151 GS151H LS151 LS151H UZS151 UZS155 UZS157: Only for Only for Crown/Crown Majesta equipped with cruise control/airbags(electrical) Not compatible with Majesta 4WD 8/95~8/01
- KCH10W VCH10W KCH16W VCH16W: Only for Granvia/Grand Hiace equipped with cruise control/airbags(electrical) 9/98~4/01
- JZA80: Only for Supra equipped with cruise control/airbags(electrical) 5/93~7/02
- VCV15: Only for Spector Coupe equipped with cruise control/airbag (electrical) 9/92~12/96
- UCF10 UCF11: Only for Celsior equipped with cruise control/airbag (electrical) 11/89~9/94
- UCF20 UCF21: Only for Celsior equipped with cruise control/airbag (electrical) 10/94~8/00
- JZZ30 JZZ31 UZZ30 UZZ31 UZZ32: Only for Soarer equipped with cruise control/airbag (electrical) 5/91~3/01
- RZH111G RZH110G RZH101G RZH100G RZH102V RZH112K RZH112V RZH122V RZH182K RZH183K LH123V LH129V KZH106G KZH126G KZH116G KZH120G TRH102V TRH112K TRH112V TRH124B TRH122K RZH124B RZH125B KZH100G KZH106W KZH110G RZH101G: Only for Hiace/Regius Ace equipped with cruise control/airbag (electrical) 8/96~7/04
- ACU10W ACU15W MCU10W MCU15W SXU10W SXU15W: Only for Harrier equipped with cruise control/airbag (electrical) 12/97~1/03
- MCV20W MCV21W MCV25W SXV20W SXV25W: Only for Mark II Qualis equipped with cruise control/airbag (electrical) 4/97~8/02
- FJ80G FZJ80G HDJ81V HZJ81V: Only for Land Cruiser equipped with cruise control/airbag 1/90~12/97
INSTALLATION NOTE:
INSTALLATION NOTE:

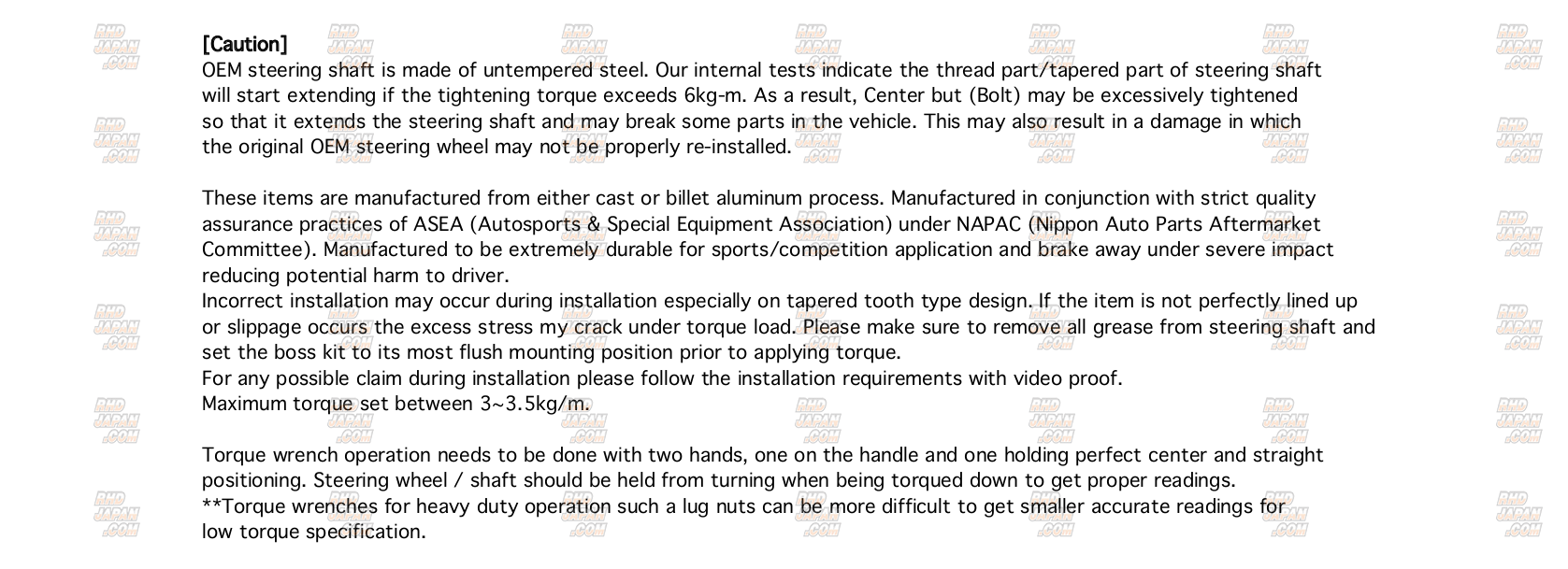

These items are manufactured from either cast or billet aluminum process. Manufactured in conjunction with strict quality assurance practices of ASEA (Autosports & Special Equipment Association) under NAPAC (Nippon Auto Parts Aftermarket Committee). Manufactured to be extremely durable for sports/competition application and brake away under severe impact reducing potential harm to driver.

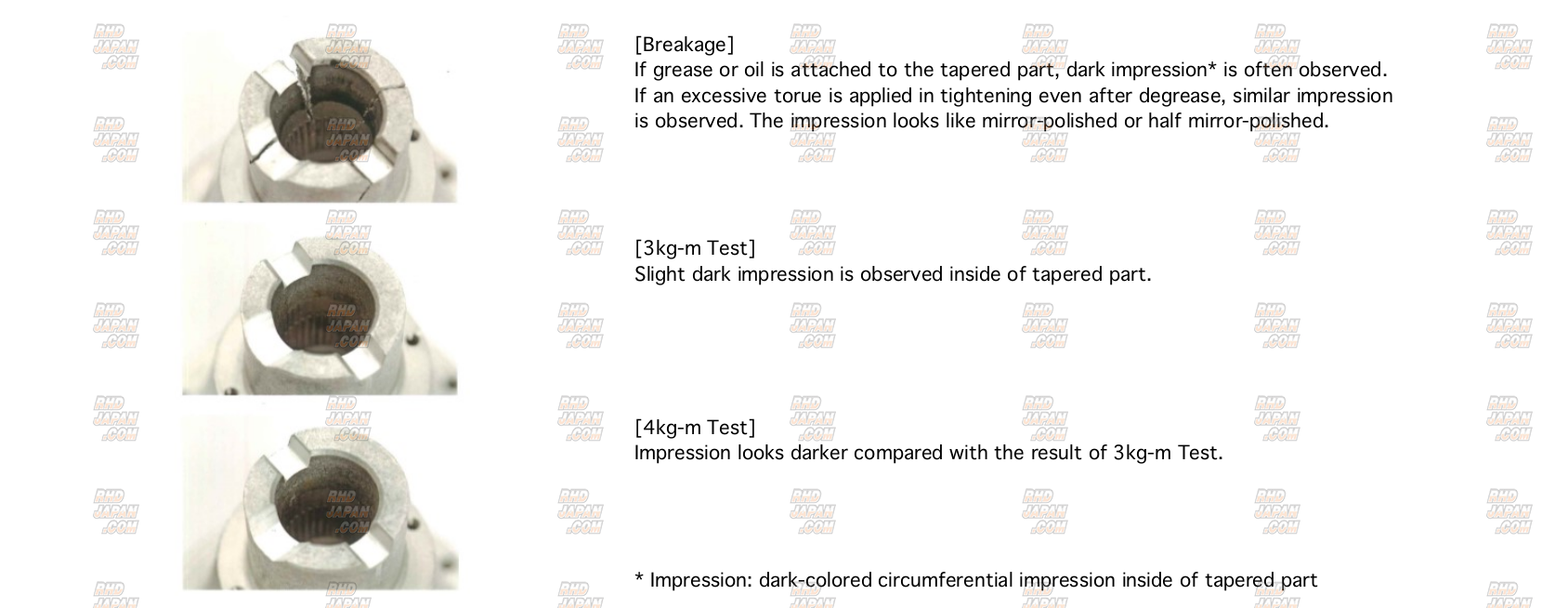

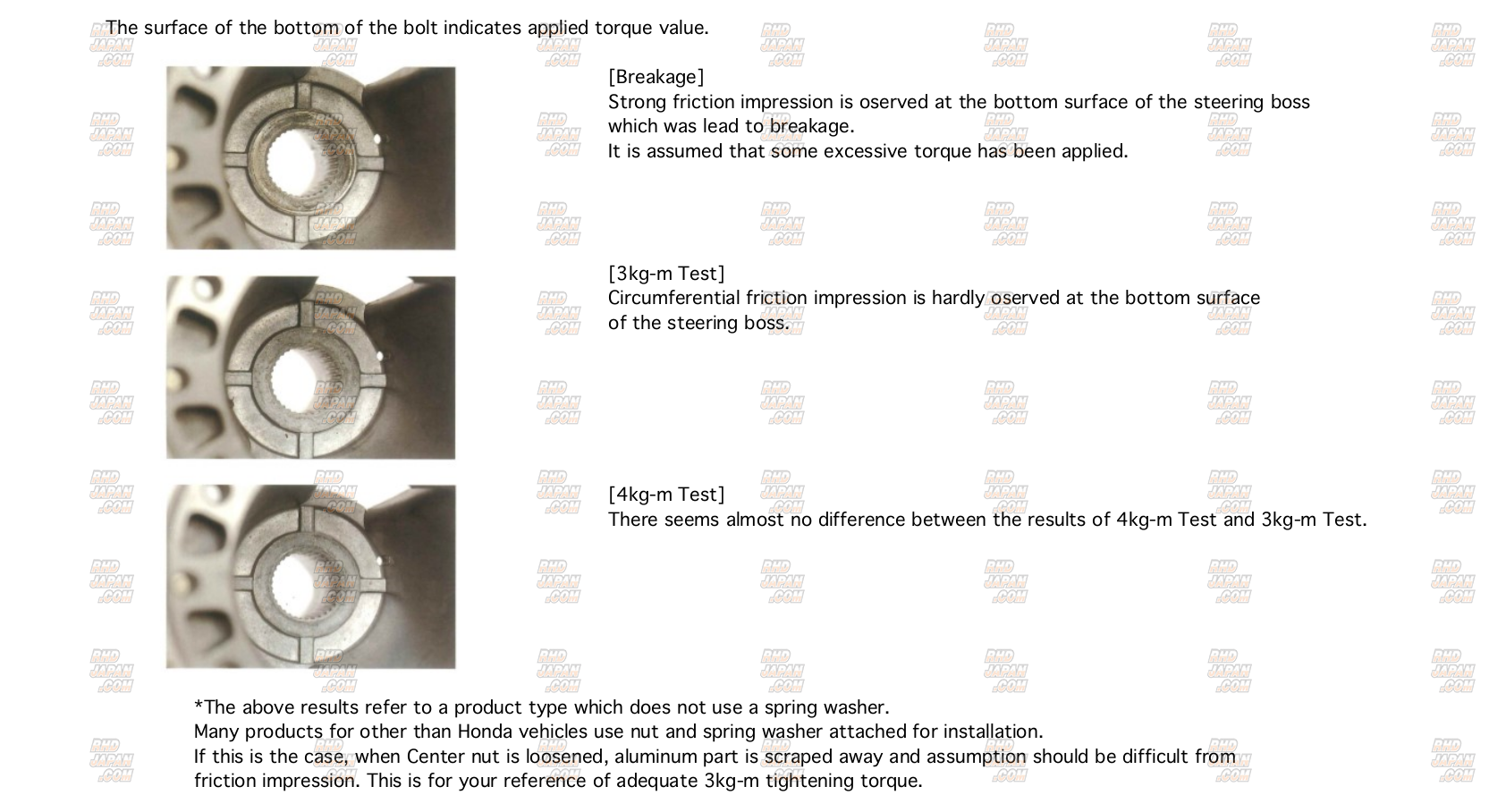

Incorrect installation may occur during installation especially on tapered tooth type design. If the item is not perfectly lined up or slippage occurs the excess stress my crack under torque load. Please make sure to remove all grease from steering shaft and set the boss kit to its most flush mounting position prior to applying torque.
For any possible claim during installation please follow the installation requirements with video proof.

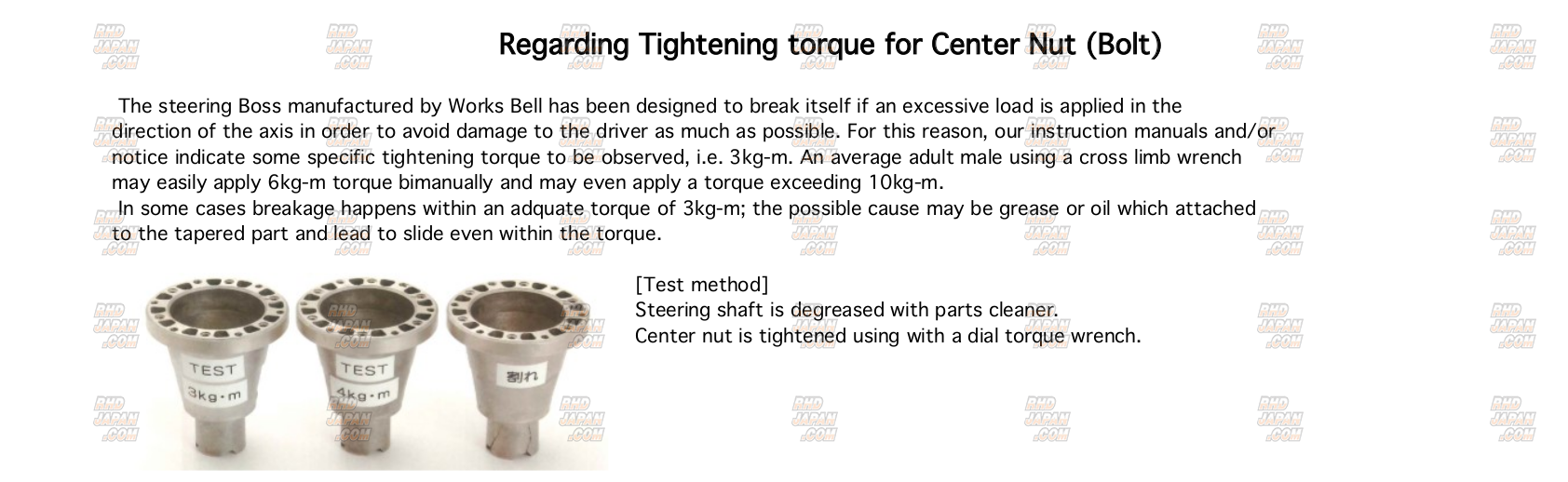

- Maximum torque set between 3~3.5kg/m.
*Torque wrench operation needs to be done with two hands, one on the handle and one holding perfect center and straight positioning.
**Steering wheel / shaft should be held from turning when being torqued down to get proper readings.
***Torque wrenches for heavy duty operation such a lug nuts can be more difficult to get smaller accurate readings for low torque specification.
