Works Bell Standard Boss Kit - Daihatsu Toyota 522

Brand: Works Bell
Product: Standard Boss Kit - Daihatsu Toyota 522
Part Num: 522

PRODUCT NOTES:

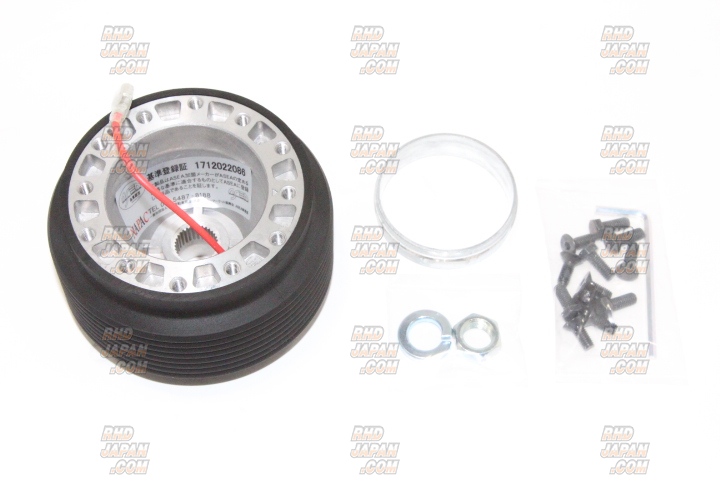

- All Hardware for Installation Included

COMPATIBILITY NOTES:
- For the vehicles equipped with the steering boss which is fixed by a bolt, please check to see if the tightening torque can be applied with manufacturer's specified value, if the engaged serration in the steering shaft is shorter.
Application Details:
- EL44: horn button non-coupler type
- GA70: non ACC
- AE86: The Standard Boss Kit recommended is 521. However, since the part 522 is the same as 521 but shorter, it could be used as a "shorter" boss kit for this vehicle.
INSTALLATION NOTE:
INSTALLATION NOTE:

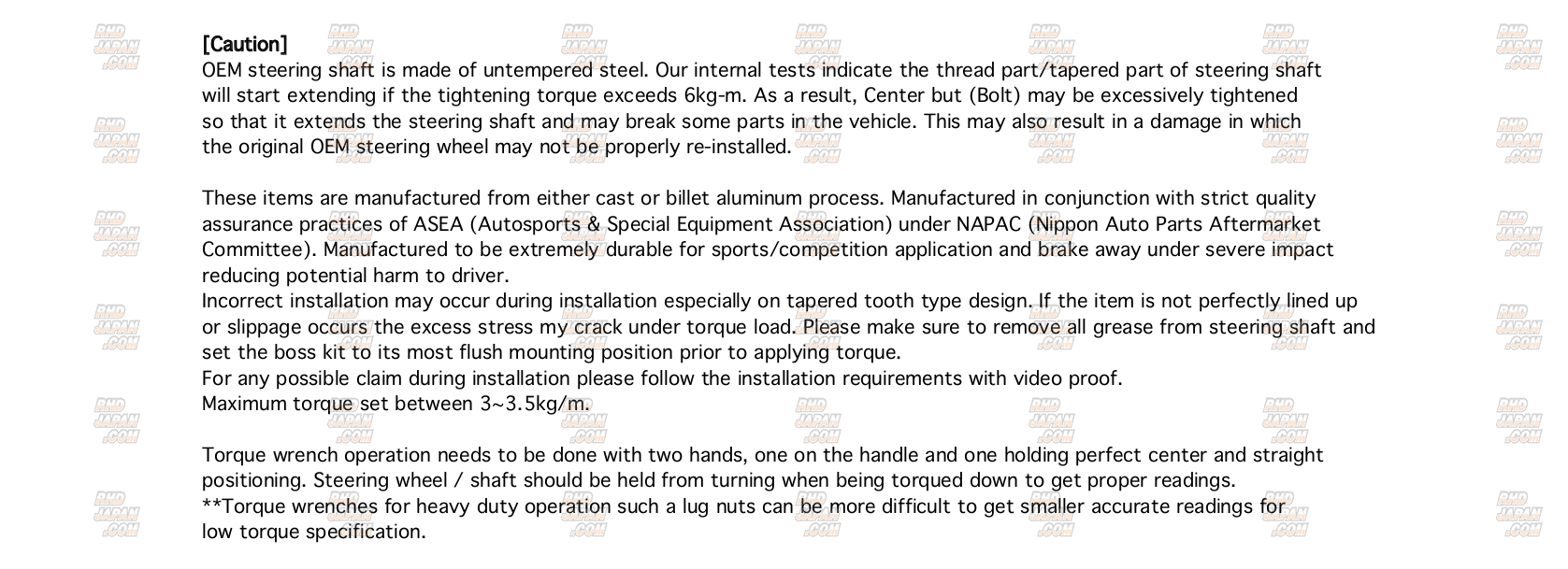

These items are manufactured from either cast or billet aluminum process. Manufactured in conjunction with strict quality assurance practices of ASEA (Autosports & Special Equipment Association) under NAPAC (Nippon Auto Parts Aftermarket Committee). Manufactured to be extremely durable for sports/competition application and brake away under severe impact reducing potential harm to driver.

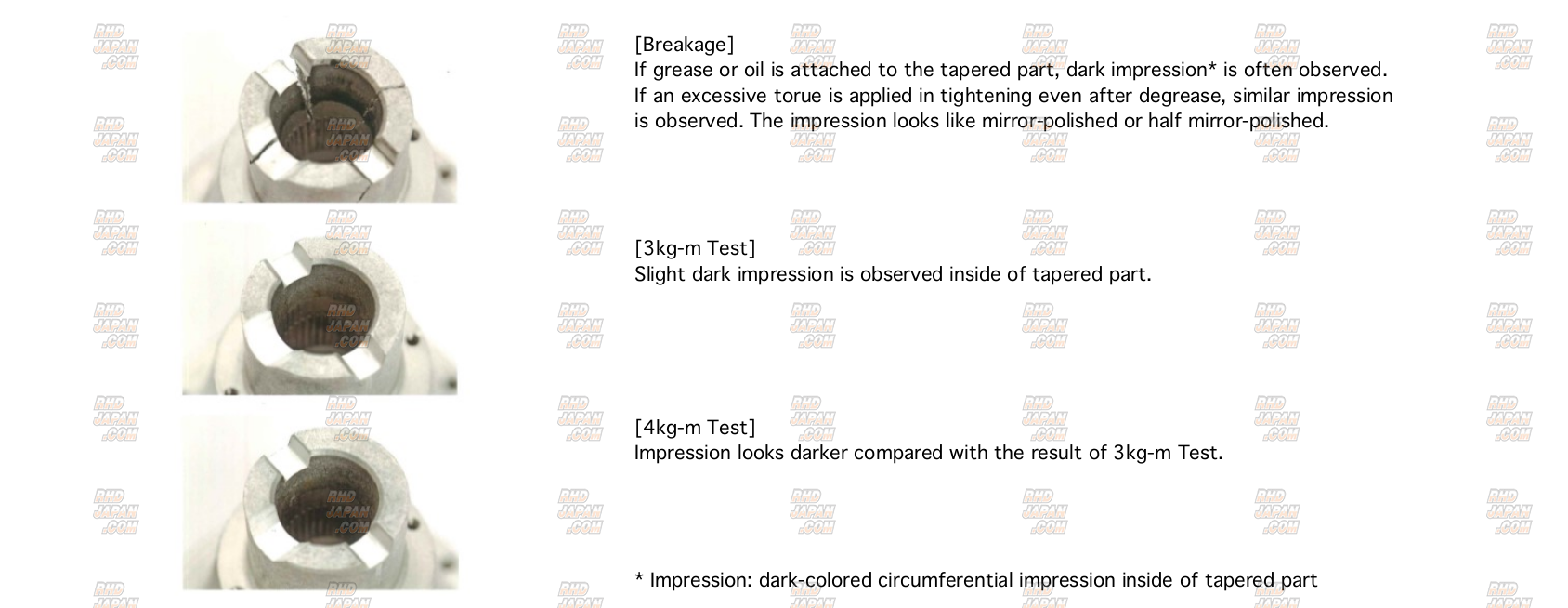

Incorrect installation may occur during installation especially on tapered tooth type design. If the item is not perfectly lined up or slippage occurs the excess stress my crack under torque load. Please make sure to remove all grease from steering shaft and set the boss kit to its most flush mounting position prior to applying torque.
For any possible claim during installation please follow the installation requirements with video proof.

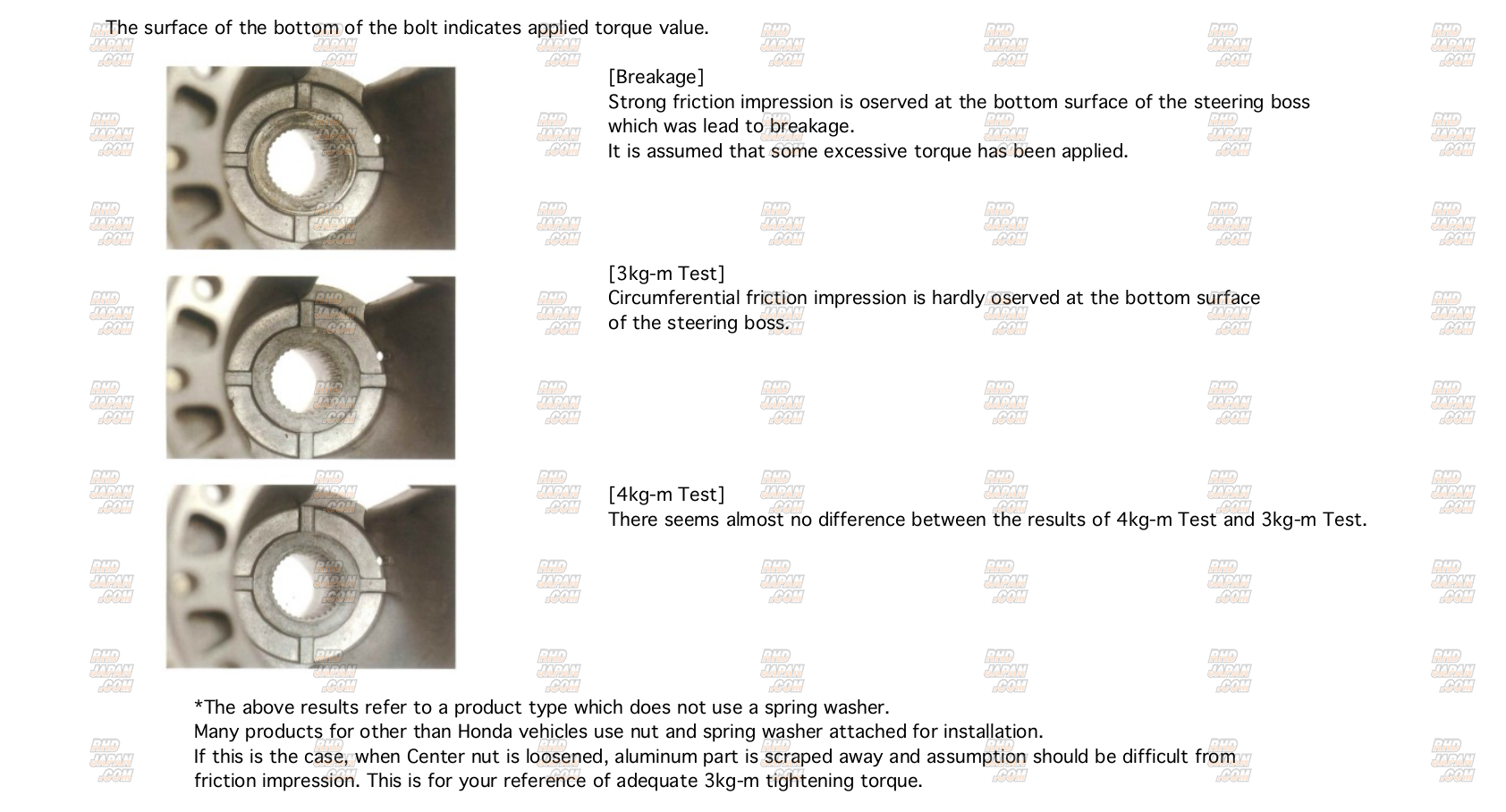

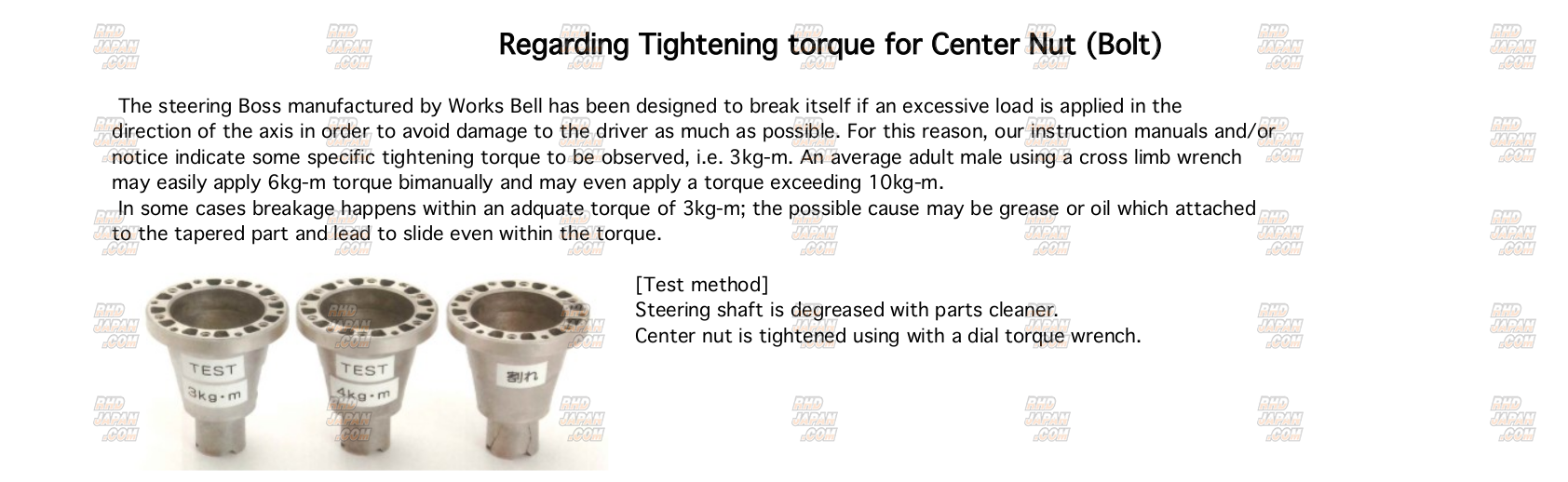

- Maximum torque set between 3~3.5kg/m.
*Torque wrench operation needs to be done with two hands, one on the handle and one holding perfect center and straight positioning.
**Steering wheel / shaft should be held from turning when being torqued down to get proper readings.
***Torque wrenches for heavy duty operation such a lug nuts can be more difficult to get smaller accurate readings for low torque specification.
