Works Bell Standard Boss Kit - FC1 FK7 FK8 GK3-6 JW5 RP1 RU1 RU2 RU3 RU4
13289
JPY
WORKS BELL
SKU: 96867
PN: 226This Boss Kit/Hub adapter allows for adaptation of aftermarket steering wheel. Whether on or off the circuit the steering wheel is one of the first modifications to improve driving enjoyment and feel. Manufactured by boss kit specialist with superior materials and processing for extreme durability and reliability for any driving application.
Get this and all your JDM at RHDJapan!!
Get this and all your JDM at RHDJapan!!
Brand: Works Bell
Product: Standard Boss Kit - FC1 FK7 FK8 GK3-6 JW5 RP1 RU1 RU2 RU3 RU4
Part Num: 226
SPECIFICATIONS:
- Included: All Hardware for Installation
PRODUCT NOTES:
- any switches other than the horn button from the original wheel will be disabled

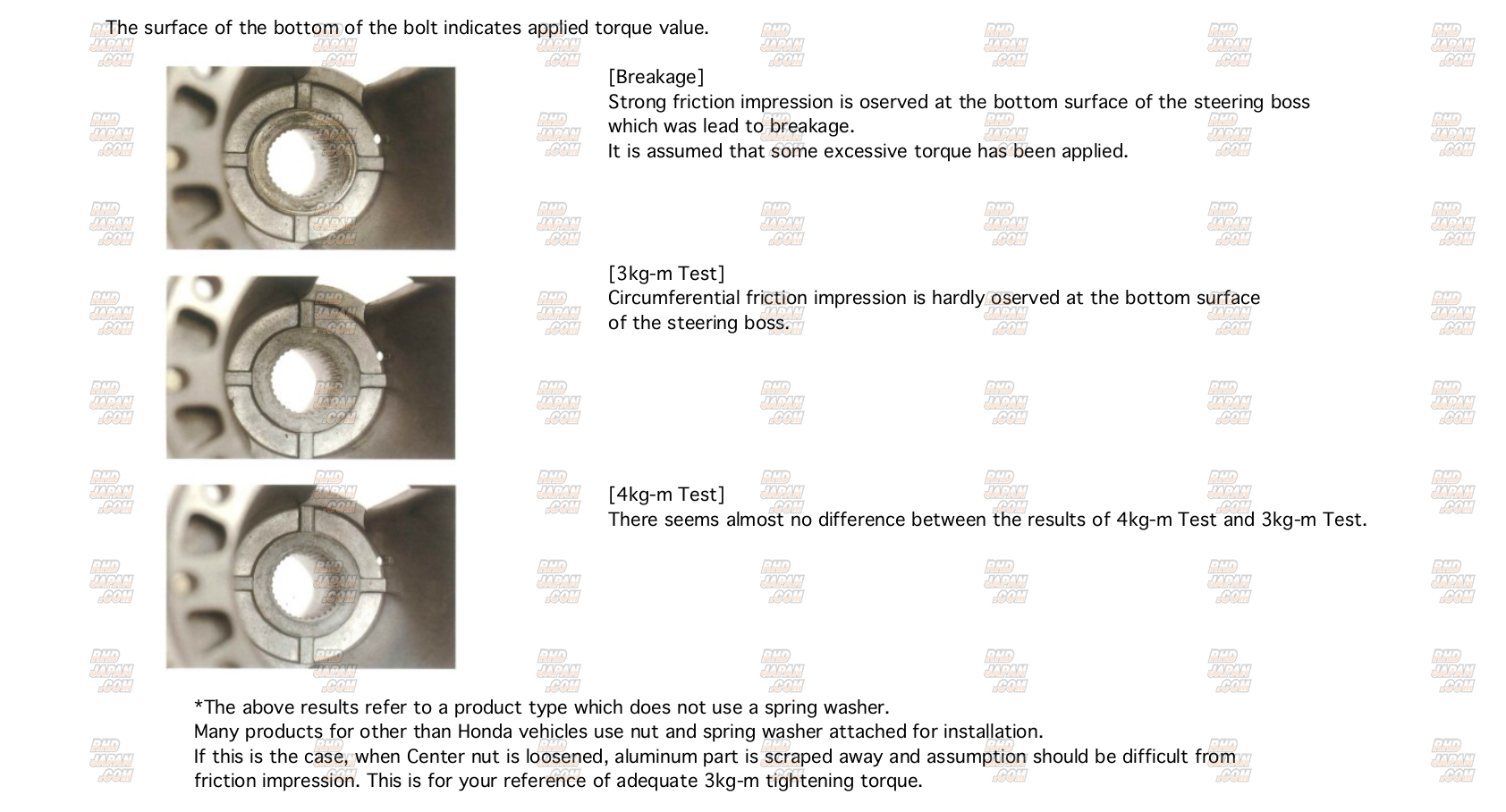

- The length of the steering shaft fitting in the serration may be short. Please fix the boss kit with the center nut tightened by fixed torque. (Figure2-4)
COMPATIBILITY NOTES:
- For vehicles equipped with airbags.
- FC1, FK7, FK8: The maker recommends to use in combination with the SKU: 259800, sold separately.
INSTALLATION NOTE:
INSTALLATION NOTE:

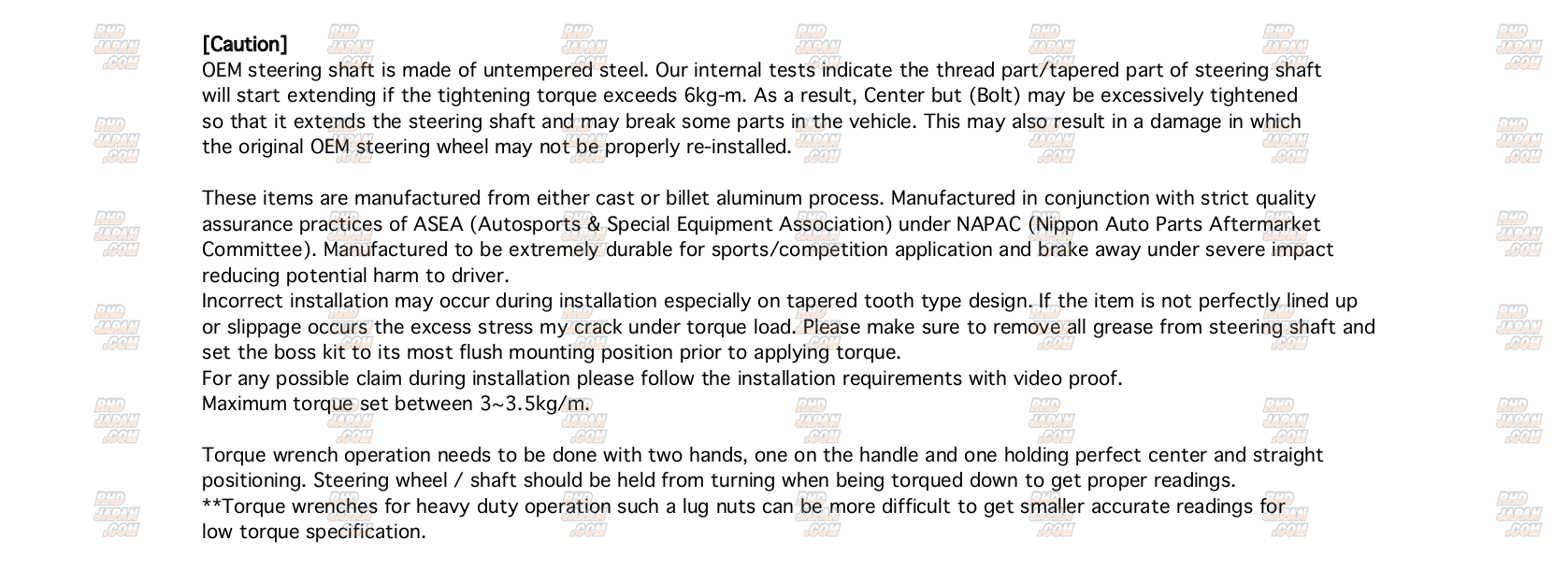

These items are manufactured from either cast or billet aluminum process. Manufactured in conjunction with strict quality assurance practices of ASEA (Autosports & Special Equipment Association) under NAPAC (Nippon Auto Parts Aftermarket Committee). Manufactured to be extremely durable for sports/competition application and brake away under severe impact reducing potential harm to driver.

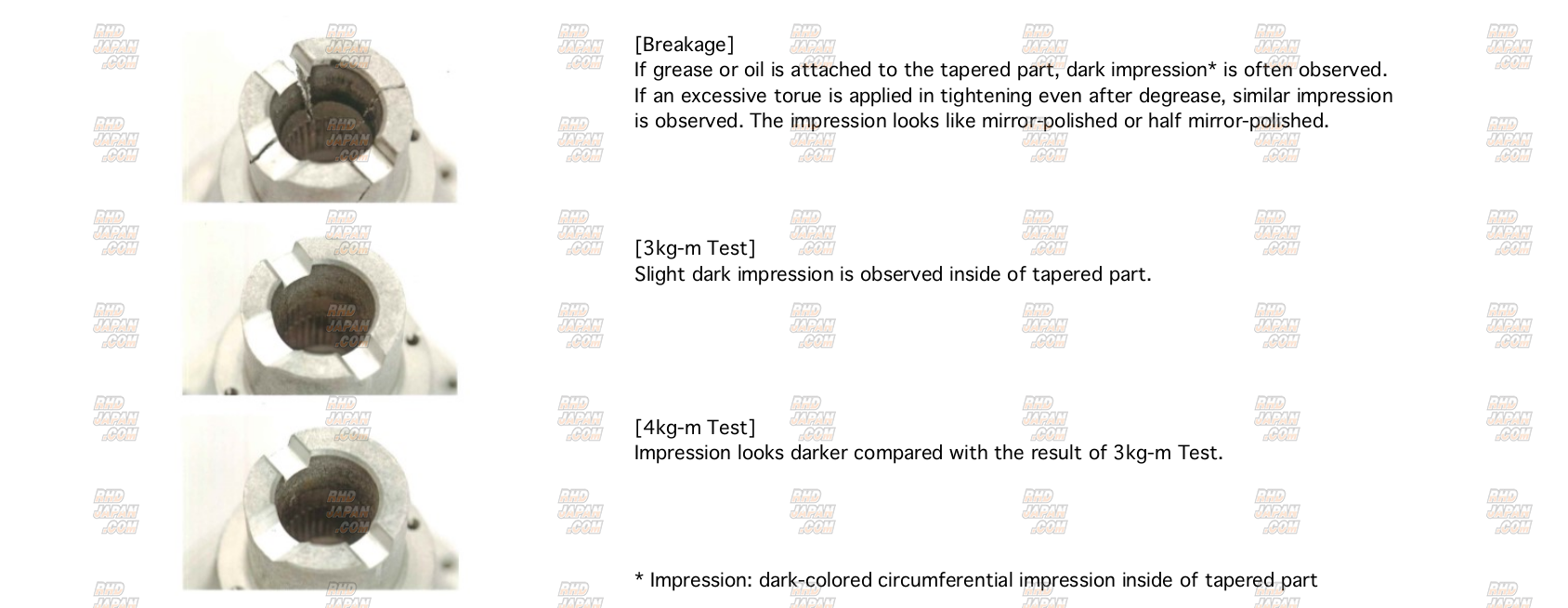

Incorrect installation may occur during installation especially on tapered tooth type design. If the item is not perfectly lined up or slippage occurs the excess stress my crack under torque load. Please make sure to remove all grease from steering shaft and set the boss kit to its most flush mounting position prior to applying torque.
For any possible claim during installation please follow the installation requirements with video proof.

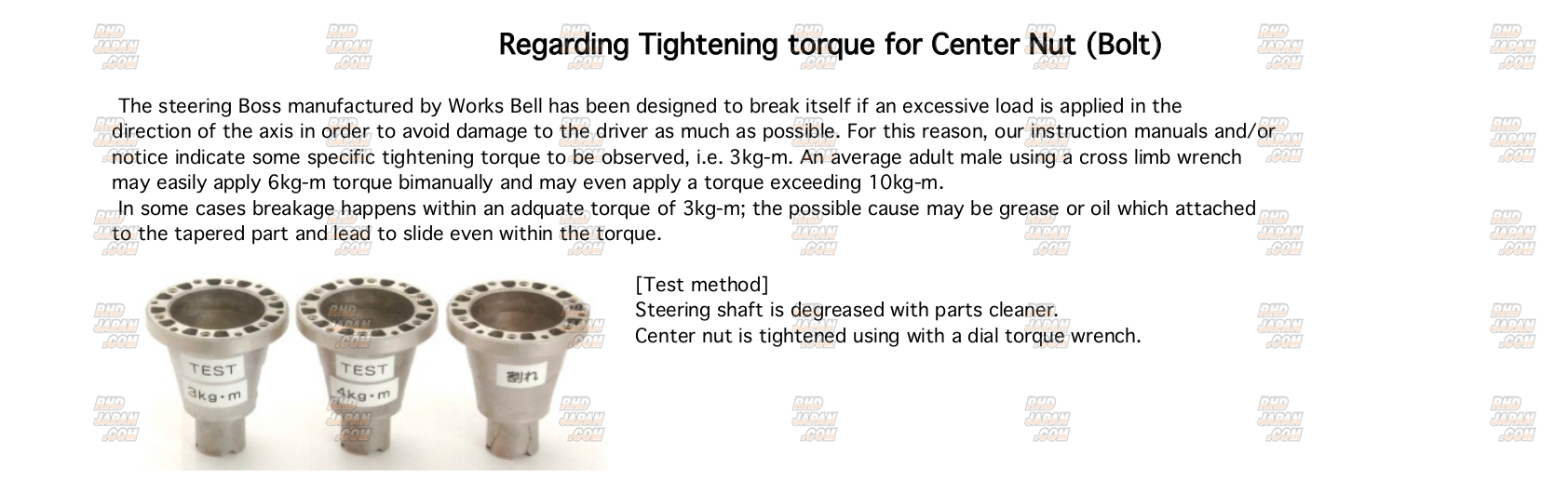

- Maximum torque set between 3~3.5kg/m.
*Torque wrench operation needs to be done with two hands, one on the handle and one holding perfect center and straight positioning.
**Steering wheel / shaft should be held from turning when being torqued down to get proper readings.
***Torque wrenches for heavy duty operation such a lug nuts can be more difficult to get smaller accurate readings for low torque specification.
Product: Standard Boss Kit - FC1 FK7 FK8 GK3-6 JW5 RP1 RU1 RU2 RU3 RU4
Part Num: 226
SPECIFICATIONS:
- Included: All Hardware for Installation
PRODUCT NOTES:
- any switches other than the horn button from the original wheel will be disabled
- The length of the steering shaft fitting in the serration may be short. Please fix the boss kit with the center nut tightened by fixed torque. (Figure2-4)
COMPATIBILITY NOTES:
- For vehicles equipped with airbags.
- FC1, FK7, FK8: The maker recommends to use in combination with the SKU: 259800, sold separately.
INSTALLATION NOTE:
INSTALLATION NOTE:
These items are manufactured from either cast or billet aluminum process. Manufactured in conjunction with strict quality assurance practices of ASEA (Autosports & Special Equipment Association) under NAPAC (Nippon Auto Parts Aftermarket Committee). Manufactured to be extremely durable for sports/competition application and brake away under severe impact reducing potential harm to driver.
Incorrect installation may occur during installation especially on tapered tooth type design. If the item is not perfectly lined up or slippage occurs the excess stress my crack under torque load. Please make sure to remove all grease from steering shaft and set the boss kit to its most flush mounting position prior to applying torque.
For any possible claim during installation please follow the installation requirements with video proof.
- Maximum torque set between 3~3.5kg/m.
*Torque wrench operation needs to be done with two hands, one on the handle and one holding perfect center and straight positioning.
**Steering wheel / shaft should be held from turning when being torqued down to get proper readings.
***Torque wrenches for heavy duty operation such a lug nuts can be more difficult to get smaller accurate readings for low torque specification.
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Honda Civic FC1 L15B (09/2017-12/2019)
Honda Civic FK7 L15C (09/2017-12/2019)
Honda Civic FK7 L15C (01/2020-06/2021)
Honda Civic Type-R FK8 K20C (09/2017-10/2020)
Honda Civic Type-R FK8 K20C (11/2020-06/2021)
Honda Fit GK3 L13B (09/2013-06/2017)
Honda Fit GK4 L13B (09/2013-06/2017)
Honda Fit GK5 L15B (09/2013-06/2017)
Honda Fit GK5 L15B (06/2017-02/2020)
Honda Fit GK6 L15B (04/2014-06/2017)
Honda S660 JW5 S07A (04/2015-01/2020)
Honda S660 JW5 S07A (01/2020~)
Honda Stepwagon RP1 L15A (04/2015-08/2017)
Honda Stepwagon RP1 L15A (09/2017-04/2022)
Honda Vezel RU1 L15B (12/2013-01/2016)
Honda Vezel RU1 L15B (02/2016-01/2018)
Honda Vezel RU1 L15B (02/2018-12/2018)
Honda Vezel RU2 L15B (12/2013-01/2016)
Honda Vezel RU2 L15B (02/2016-01/2018)
Honda Vezel RU2 L15B (02/2018~)
Honda Vezel RU3 LEB (12/2013-01/2016)
Honda Vezel RU3 LEB (02/2016-01/2018)
Honda Vezel RU3 LEB (02/2018-08/2020)
Honda Vezel RU4 LEB (12/2013-01/2016)
Honda Vezel RU4 LEB (02/2016-01/2018)
Honda Vezel RU4 LEB (02/2018-08/2020)
Honda Civic FC1 L15B (09/2017-12/2019)
Honda Civic FK7 L15C (09/2017-12/2019)
Honda Civic FK7 L15C (01/2020-06/2021)
Honda Civic Type-R FK8 K20C (09/2017-10/2020)
Honda Civic Type-R FK8 K20C (11/2020-06/2021)
Honda Fit GK3 L13B (09/2013-06/2017)
Honda Fit GK4 L13B (09/2013-06/2017)
Honda Fit GK5 L15B (09/2013-06/2017)
Honda Fit GK5 L15B (06/2017-02/2020)
Honda Fit GK6 L15B (04/2014-06/2017)
Honda S660 JW5 S07A (04/2015-01/2020)
Honda S660 JW5 S07A (01/2020~)
Honda Stepwagon RP1 L15A (04/2015-08/2017)
Honda Stepwagon RP1 L15A (09/2017-04/2022)
Honda Vezel RU1 L15B (12/2013-01/2016)
Honda Vezel RU1 L15B (02/2016-01/2018)
Honda Vezel RU1 L15B (02/2018-12/2018)
Honda Vezel RU2 L15B (12/2013-01/2016)
Honda Vezel RU2 L15B (02/2016-01/2018)
Honda Vezel RU2 L15B (02/2018~)
Honda Vezel RU3 LEB (12/2013-01/2016)
Honda Vezel RU3 LEB (02/2016-01/2018)
Honda Vezel RU3 LEB (02/2018-08/2020)
Honda Vezel RU4 LEB (12/2013-01/2016)
Honda Vezel RU4 LEB (02/2016-01/2018)
Honda Vezel RU4 LEB (02/2018-08/2020)
