Works Bell Standard Boss Kit - Nissan Suzuki 414

8569 JPY

WORKS BELL SKU: 121178 PN: 414

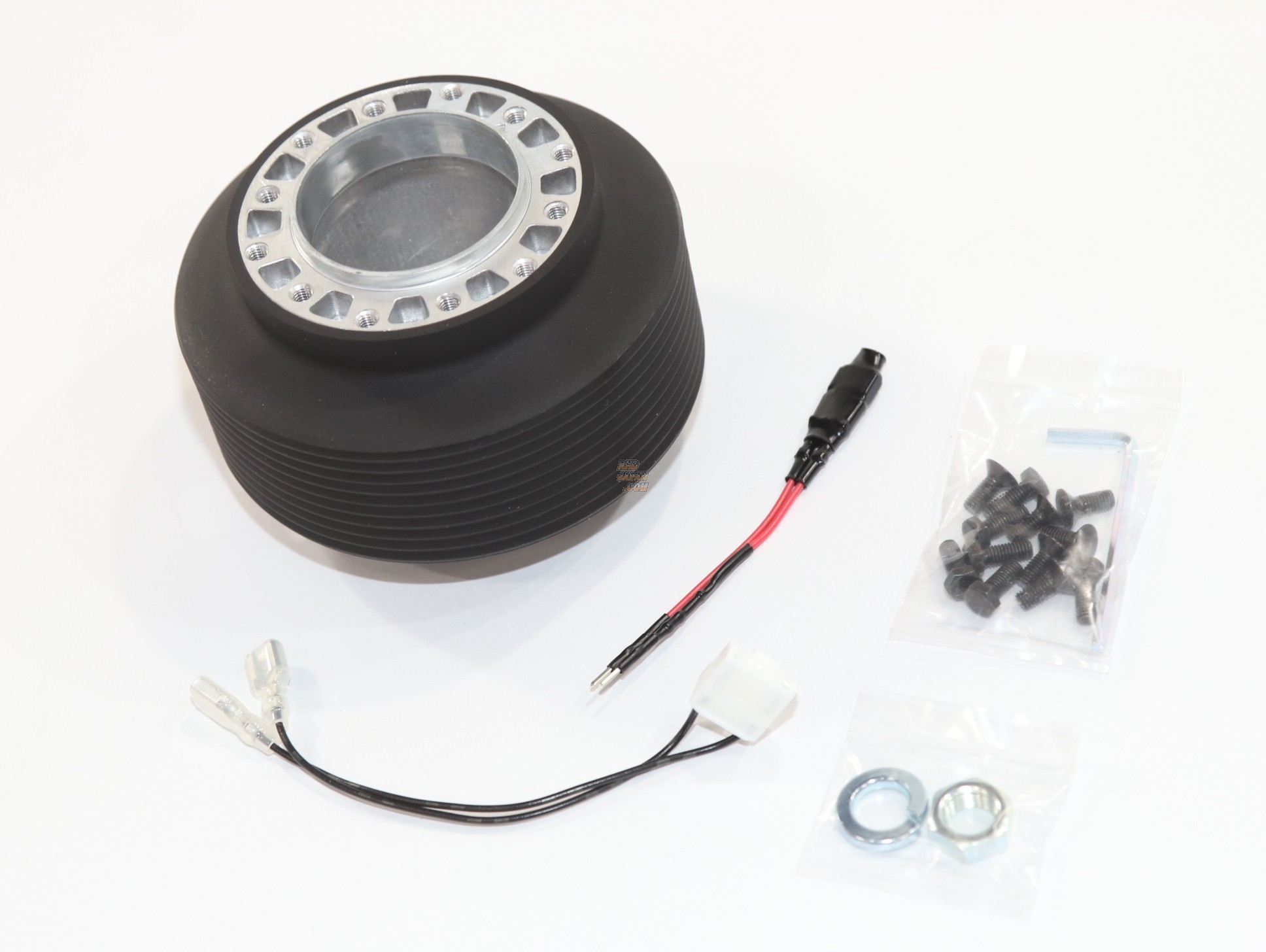

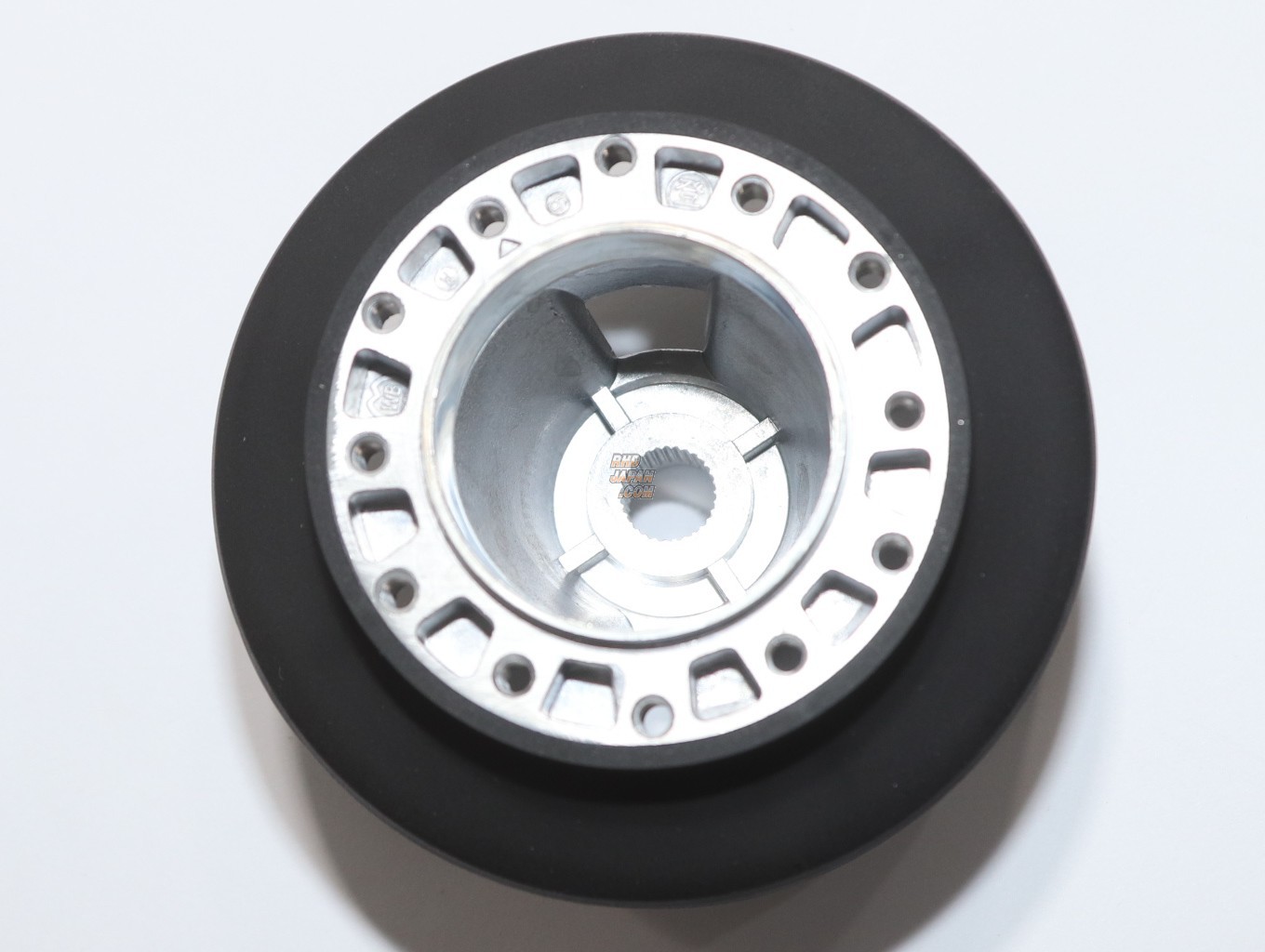

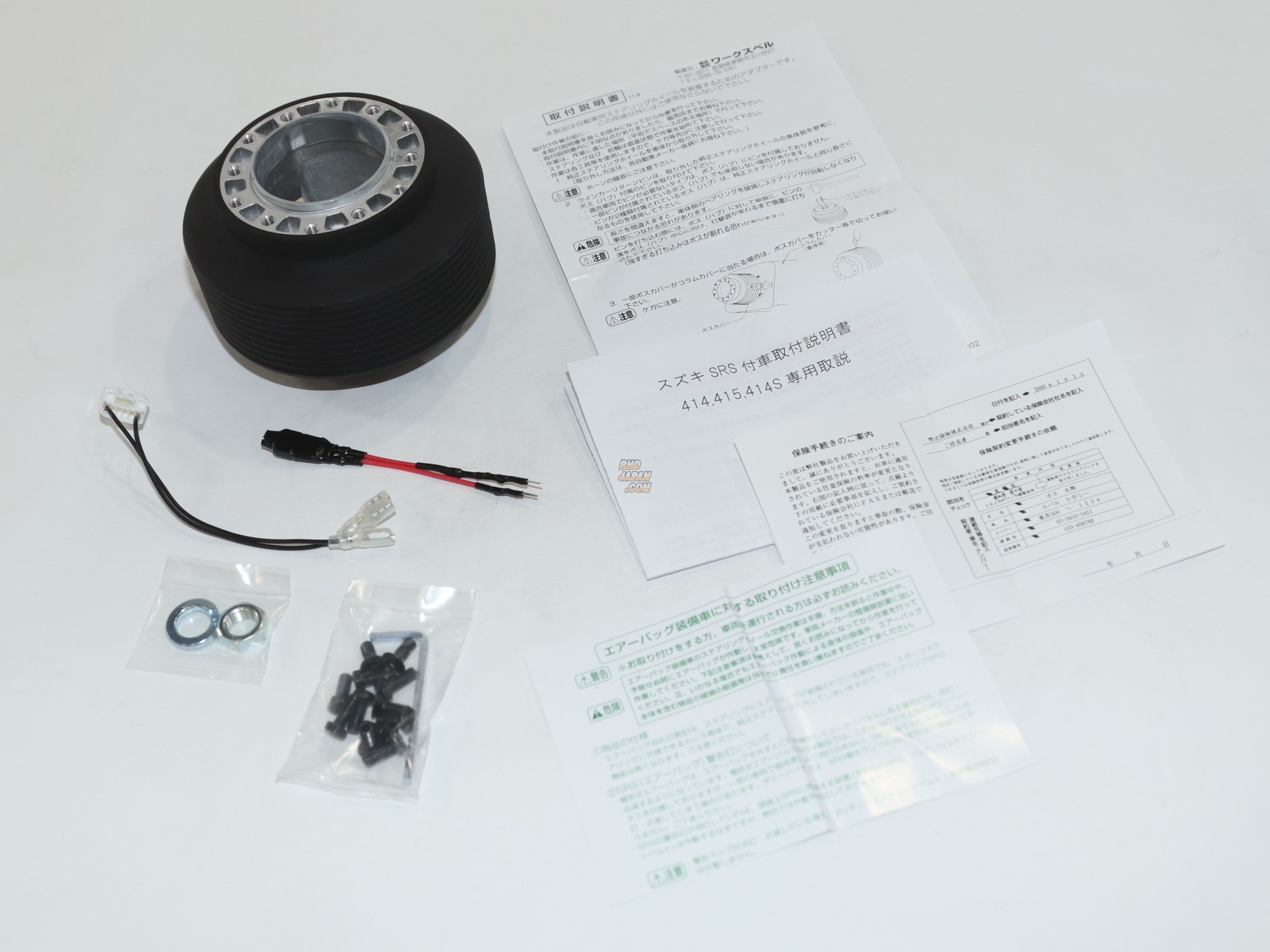

This Boss Kit/Hub adapter allows for adaptation of aftermarket steering wheel. Whether on or off the circuit the steering wheel is one of the first modifications to improve driving enjoyment and feel. Manufactured by boss kit specialist with superior materials and processing for extreme durability and reliability for any driving application.
Get this and all your JDM at RHDJapan!!

Brand: Works Bell
Product: Standard Boss Kit - Nissan Suzuki 414
Part Num: 414

SPECIFICATIONS:
Material: Aluminum

PRODUCT NOTES:
- DR17V MG33S: OEM parts may have some variations. Please make sure that the boss shape matches with the back shape of OEM steering wheel. For some vehicles, airbag warning lights may not be turned off.
- HA24S HA24V HA25 HA25S HA35S JB23 JB43 ZC72S ZD72S MK32S MA15S MH23S MH34: Functions on steering wheel except the horn cannot be used anymore.

COMPATIBILITY NOTES:
- For vehicles equipped with Air bags.
- DR64V: Only for NV100 Clipper equipped with airbags 12/13~2/15
- DR17V: Only for NV100 Clipper equipped with airbags 3/15~
- MG21S MG22S: Only for Moco equipped with airbags 2/06~1/11
- MG33S: Only for Moco equipped with airbags 2/11~5/16
- ML21S: Only for Roox equipped with airbags 12/09~3/13
- HA24S HA24V HA25 HA25S HA35S: For vehicles from 09/04 to 11/14.
- YA11S YB11S YA41S YB41S YC11S: For vehicles to 11/14.
- DA64V: For vehicles to 01/15.
- MF21S MF22S: For vehicles to 12/10.
- MF33S: For vehicles to 03/16.
- JB23: For vehicles from 08/14, after Frame number JB23-730001.
- JB43W: For vehicles from 08/14.
- ZC11S ZC21S ZC71S ZD11S ZD21S: For vehicles from 11/04 to 08/10.
- ZC72S ZD72S: For vehicles from 09/10 to 12/16, without Automatic Cruise Control.
- ZC31S: For vehicles to 09/10.
- XB32S MA15S: For vehicles to 08/14.
- MK32S: For vehicles from 03/13 to 04/15.
- MH23S: For vehicles to 08/12.
- MH34: For vehicles to 01/17.
INSTALLATION NOTE:
INSTALLATION NOTE:

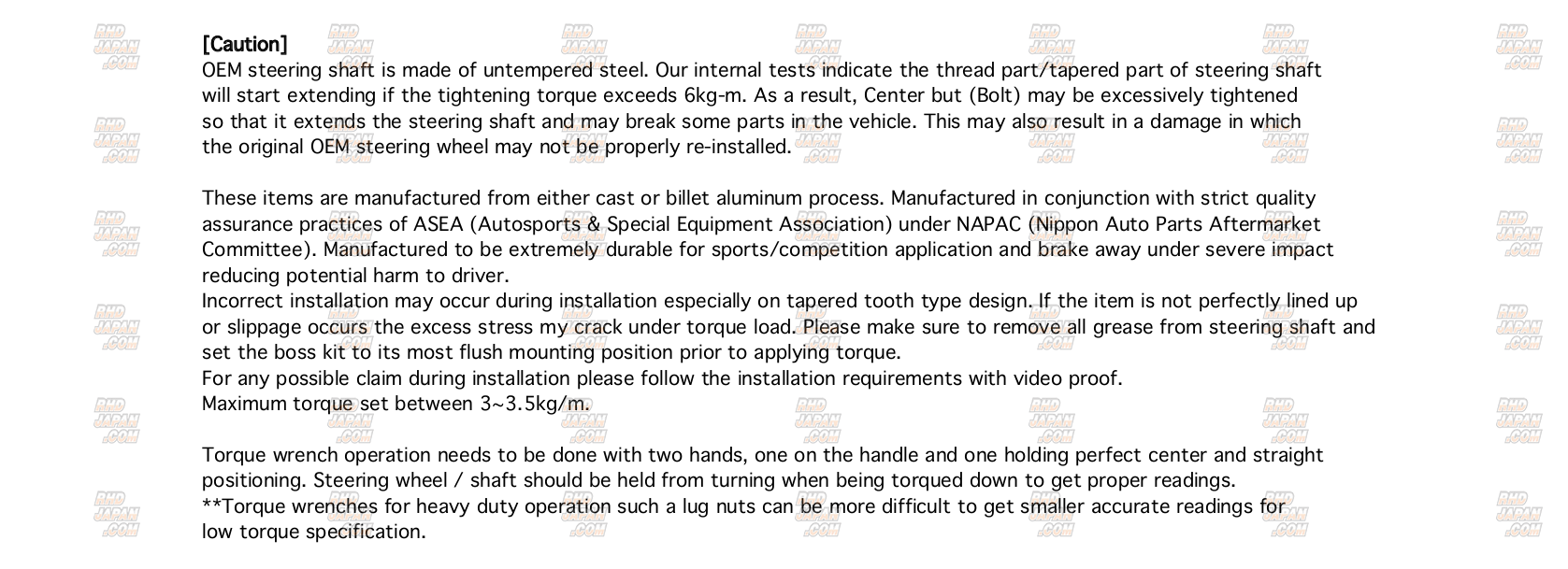

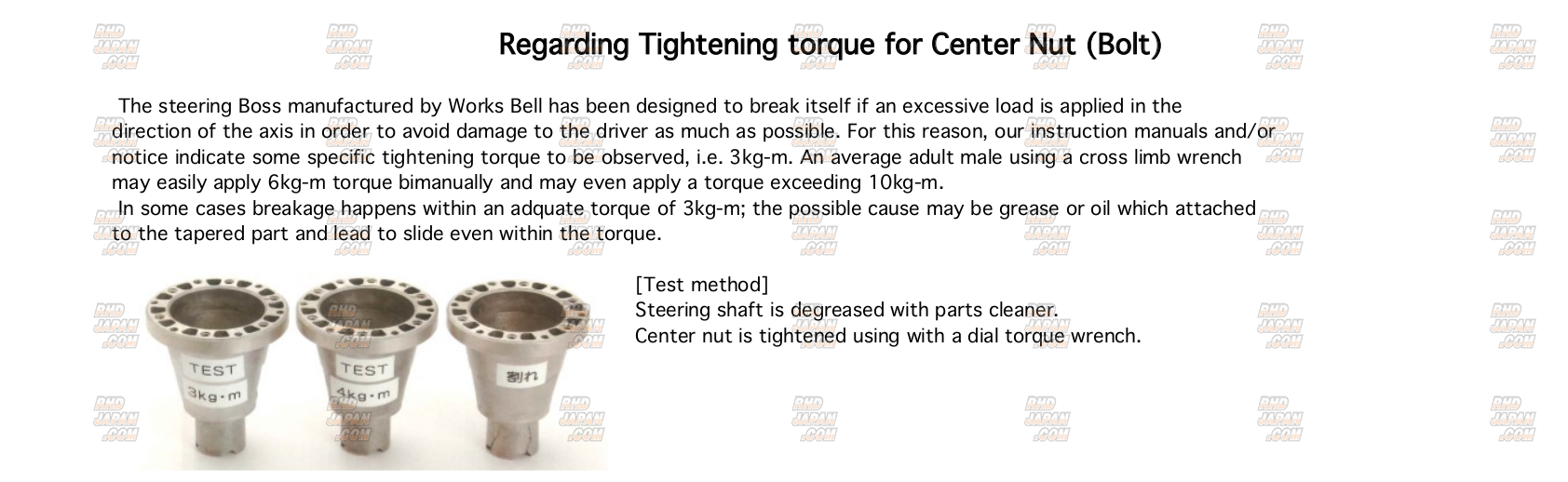

These items are manufactured from either cast or billet aluminum process. Manufactured in conjunction with strict quality assurance practices of ASEA (Autosports & Special Equipment Association) under NAPAC (Nippon Auto Parts Aftermarket Committee). Manufactured to be extremely durable for sports/competition application and brake away under severe impact reducing potential harm to driver.

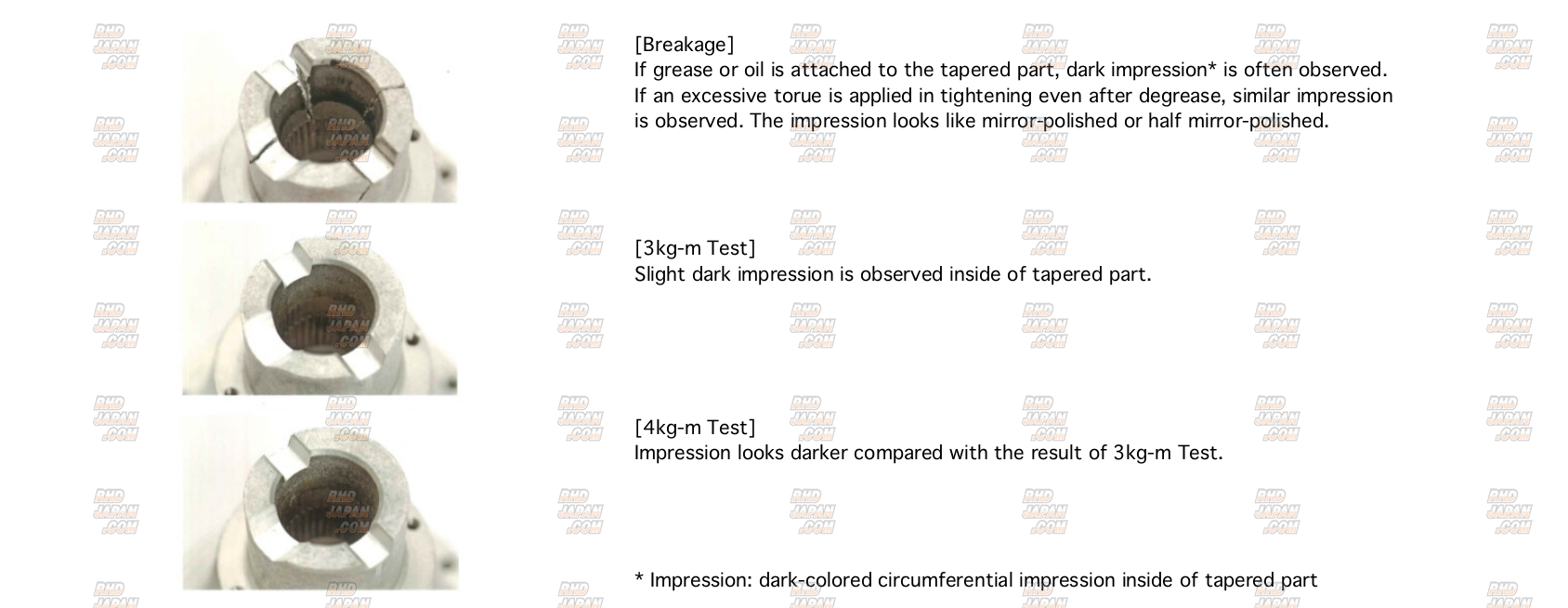

Incorrect installation may occur during installation especially on tapered tooth type design. If the item is not perfectly lined up or slippage occurs the excess stress my crack under torque load. Please make sure to remove all grease from steering shaft and set the boss kit to its most flush mounting position prior to applying torque.
For any possible claim during installation please follow the installation requirements with video proof.

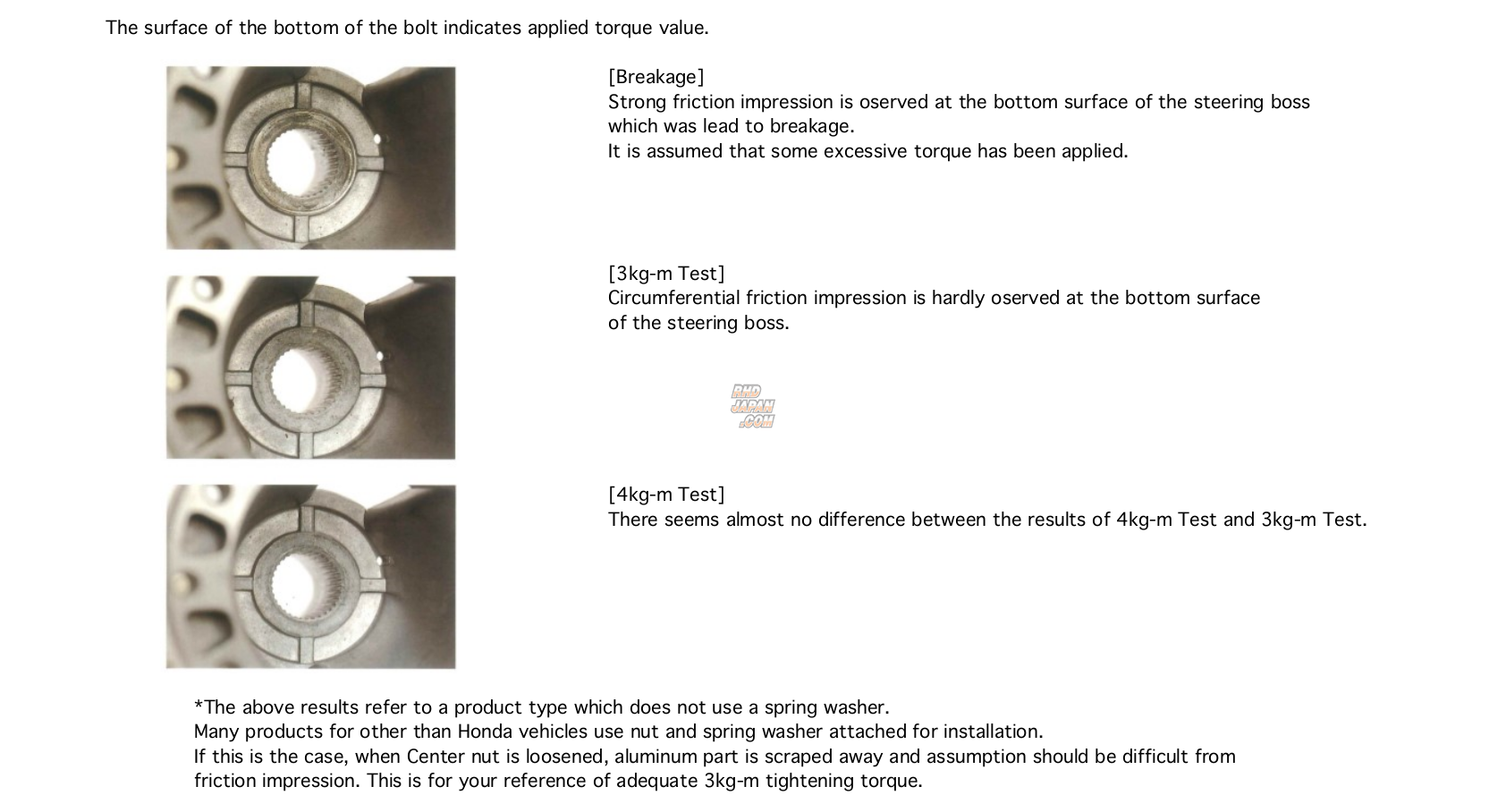

- Maximum torque set between 3~3.5kg/m.
*Torque wrench operation needs to be done with two hands, one on the handle and one holding perfect center and straight positioning.
**Steering wheel / shaft should be held from turning when being torqued down to get proper readings.
***Torque wrenches for heavy duty operation such a lug nuts can be more difficult to get smaller accurate readings for low torque specification.

Compatibility

Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.

Nissan Moco MG21S K6A (04/2002-01/2004)
Nissan Moco MG21S K6A (02/2004-01/2006)
Nissan Moco MG22S K6A (02/2006-05/2009)
Nissan Moco MG22S K6A (06/2009-02/2011)
Nissan Moco MG33S R06A (02/2011-09/2013)
Nissan Moco MG33S R06A (10/2013~)
Nissan NV100 Clipper DR17V R06A (03/2015-06/2019)
Nissan Roox ML21S K6A (12/2009-03/2013)
Suzuki Alto HA24S K6A (09/2004-11/2006)
Suzuki Alto HA24S K6A (12/2006-12/2009)
Suzuki Alto HA24V K6A (01/2005-11/2006)
Suzuki Alto HA24V K6A (12/2006-12/2009)
Suzuki Alto HA25S K6A (12/2009-12/2014)
Suzuki Alto HA25V K6A (12/2009-12/2014)
Suzuki Alto HA35S R06A (12/2009-12/2014)
Suzuki Alto Lapin HE21S K6A (01/2002-08/2003)
Suzuki Alto Lapin HE21S K6A (09/2003-09/2004)
Suzuki Alto Lapin HE21S K6A (10/2004-11/2005)
Suzuki Alto Lapin HE21S K6A (12/2005-03/2006)
Suzuki Alto Lapin HE21S K6A (04/2006-04/2007)
Suzuki Alto Lapin HE21S K6A (05/2007-10/2008)
Suzuki Alto Lapin HE22S K6A (11/2008-06/2015)
Suzuki Cervo HG21S K6A (11/2006-12/2009)
Suzuki Every DA64V K6A (08/2005-02/2015)
Suzuki Hustler MR31S R06A (04/2014-12/2019)
Suzuki Hustler MR31S R06A (01/2014-04/2014)
Suzuki Jimny JB23W K6A (10/1998-07/2018)
Suzuki Jimny Sierra JB43W M13A (12/2002-07/2018)
Suzuki MR Wagon MF21S K6A (12/2001-12/2005)
Suzuki MR Wagon MF22S K6A (01/2006-01/2011)
Suzuki MR Wagon MF33S R06A (01/2011-06/2013)
Suzuki MR Wagon MF33S R06A (07/2013~)
Suzuki Solio MA15S K12B (01/2011-08/2015)
Suzuki Spacia MK32S R06A (02/2013-12/2017)
Suzuki Splash XB32S K12B (10/2008-07/2012)
Suzuki Splash XB32S K12B (07/2012~)
Suzuki Swift ZC11S M13A (11/2004-04/2007)
Suzuki Swift ZC11S M13A (05/2007-09/2010)
Suzuki Swift ZC21S M15A (11/2004-04/2007)
Suzuki Swift ZC21S M15A (05/2007-09/2010)
Suzuki Swift ZC71S K12B (11/2004-09/2010)
Suzuki Swift ZC72S K12B (11/2009-07/2013)
Suzuki Swift ZC72S K12B (07/2013-01/2017)
Suzuki Swift ZD11S M13A (11/2004-04/2007)
Suzuki Swift ZD11S M13A (05/2007-09/2010)
Suzuki Swift ZD21S M15A (11/2004-04/2007)
Suzuki Swift ZD21S M15A (05/2007-09/2010)
Suzuki Swift ZD72S K12B (09/2010-01/2017)
Suzuki Swift Sport ZC31S M16A (09/2005-04/2007)
Suzuki Swift Sport ZC31S M16A (05/2007-04/2009)
Suzuki Swift Sport ZC31S M16A (05/2009-12/2011)
Suzuki SX4 YA11S M15A (07/2006-05/2009)
Suzuki SX4 YA11S M15A (05/2009~)
Suzuki SX4 YA41S J20A (07/2006-05/2009)
Suzuki SX4 YB11S M15A (07/2006-05/2009)
Suzuki SX4 YB11S M15A (05/2009~)
Suzuki SX4 YB41S J20A (07/2006-05/2009)
Suzuki SX4 YC11S M15A (07/2007-05/2009)
Suzuki SX4 YC11S M15A (05/2009~)
Suzuki Wagon R MH21S K6A (09/2003-11/2004)
Suzuki Wagon R MH21S K6A (12/2004-08/2005)
Suzuki Wagon R MH21S K6A (09/2005-04/2007)
Suzuki Wagon R MH22S K6A (05/2007-08/2008)
Suzuki Wagon R MH23S K6A (09/2008-08/2012)
Suzuki Wagon R MH34S K6A (09/2012-01/2017)
