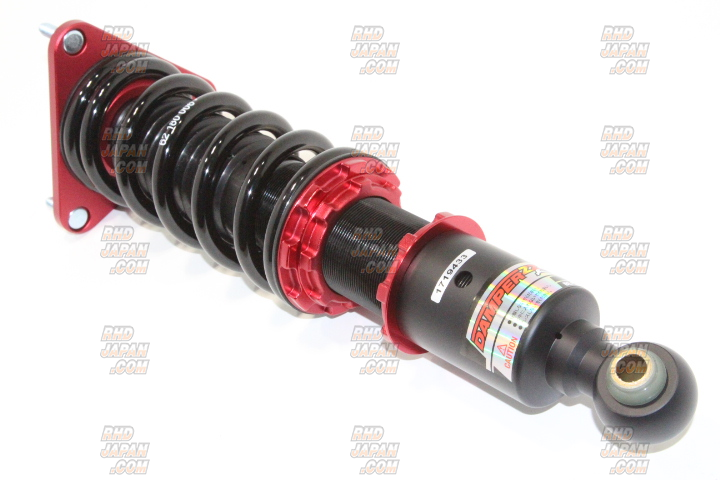

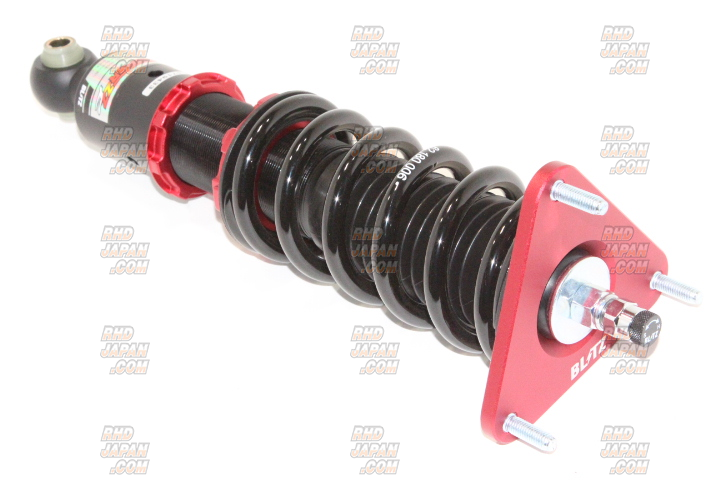

Blitz Damper ZZ-R Coilover Suspension - Cappuccino EA11R EA21R
127609
JPY
BLITZ
SKU: 142727
PN: 92793Blitz makes one of the highest performing and durable parts on the market and the Damper ZZ-R is the latest addition to their suspension parts catalog. The ZZ-Rs are mono cylinder dampers with 32 stage adjustment, are made from high strength materials and feature an outstanding finish in anodized red and matte black.
Get this and all your JDM at RHDJapan!!
Get this and all your JDM at RHDJapan!!
Brand: Blitz
Product: Damper ZZ-R Coilover Suspension - Cappuccino EA11R EA21R
Part Num: 92793
SPECIFICATIONS:
Materials:
- Springs: Special high-tension Steel (SAE9245)
- Cylinder Case: High-strength Steel (STKM13C)
Upper Mount Configuration:
- Front: Reinforced Rubber Upper Mount
- Rear: Reinforced Rubber Upper Mount
Spring Spec.:
- Spring Rate (kgf.mm):
-- Front: 6.0
-- Rear: 4.0
- Free Length (mm):
-- Front: 180
-- Rear: 180
Height adjustment range:
- Front: -40 ~ -15
- Rear: -40 ~ -10
FEATURES:
- Single Cylinder Type
- 32 stage adjustment method
- Practical use for street circuit and wide range of events
- Designed with large diameter piston at 44mm (some vehicles)
- Forged aluminum upper mount
- Forged aluminum sheet for reduced weight and increased durability and strength
- Rigid bracket coated with special pain to achieve durability
- Aluminum bracket coated in black anodized paint to improve corrosion resistance
- Included height adjustment wrench
Product: Damper ZZ-R Coilover Suspension - Cappuccino EA11R EA21R
Part Num: 92793
SPECIFICATIONS:
Materials:
- Springs: Special high-tension Steel (SAE9245)
- Cylinder Case: High-strength Steel (STKM13C)
Upper Mount Configuration:
- Front: Reinforced Rubber Upper Mount
- Rear: Reinforced Rubber Upper Mount
Spring Spec.:
- Spring Rate (kgf.mm):
-- Front: 6.0
-- Rear: 4.0
- Free Length (mm):
-- Front: 180
-- Rear: 180
Height adjustment range:
- Front: -40 ~ -15
- Rear: -40 ~ -10
FEATURES:
- Single Cylinder Type
- 32 stage adjustment method
- Practical use for street circuit and wide range of events
- Designed with large diameter piston at 44mm (some vehicles)
- Forged aluminum upper mount
- Forged aluminum sheet for reduced weight and increased durability and strength
- Rigid bracket coated with special pain to achieve durability
- Aluminum bracket coated in black anodized paint to improve corrosion resistance
- Included height adjustment wrench
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Suzuki Cappuccino EA11R F6A (11/1991-04/1995)
Suzuki Cappuccino EA21R K6A (05/1995-10/1998)
Suzuki Cappuccino EA11R F6A (11/1991-04/1995)
Suzuki Cappuccino EA21R K6A (05/1995-10/1998)
