Blitz Damper ZZ-R SpecDSC Plus Coilover Suspension - Swift ZC13S ZC53S ZC83S Swift Sport ZC33S Baleno WB42S
175239
JPY
BLITZ
SKU: 253956
PN: 98394This kit includes the flagship ZZ-R Full Coilover Suspension Set and includes the newest version of the damper system controller DSC Plus. Take the highly acclaimed ZZ-R to the next level for the ultimate driving experience. Get full control over damper settings directly from the cockpit for perfect handling characteristics in any driving scenario. The ultimate tool in getting the most enjoyment out of the suspension from driving performance to riding comfort. Select from several different modes in easy to use Standard Mode or setup extremely refined settings in Advance Mode. This version also features world first Full Auto Mode which uses algorithm to continually refine damper settings in real time! The bipolar stepping motors are also more compact and faster than the previous model. Built in G-Sensor within Motor Drive Unit and Optional GPS Sensor allow for further advanced settings based off of G-Force and speed which can also display real time and peak G-force. Optional remote switch allows user to relocate the switch for easy access to quick changes in between modes. Get this and all your JDM at RHDJapan!!
Brand: Blitz
Product: Damper ZZ-R SpecDSC Plus Coilover Suspension - Swift ZC13S ZC53S ZC83S Swift Sport ZC33S Baleno WB42S
Part Num: 98394
SPECIFICATIONS:

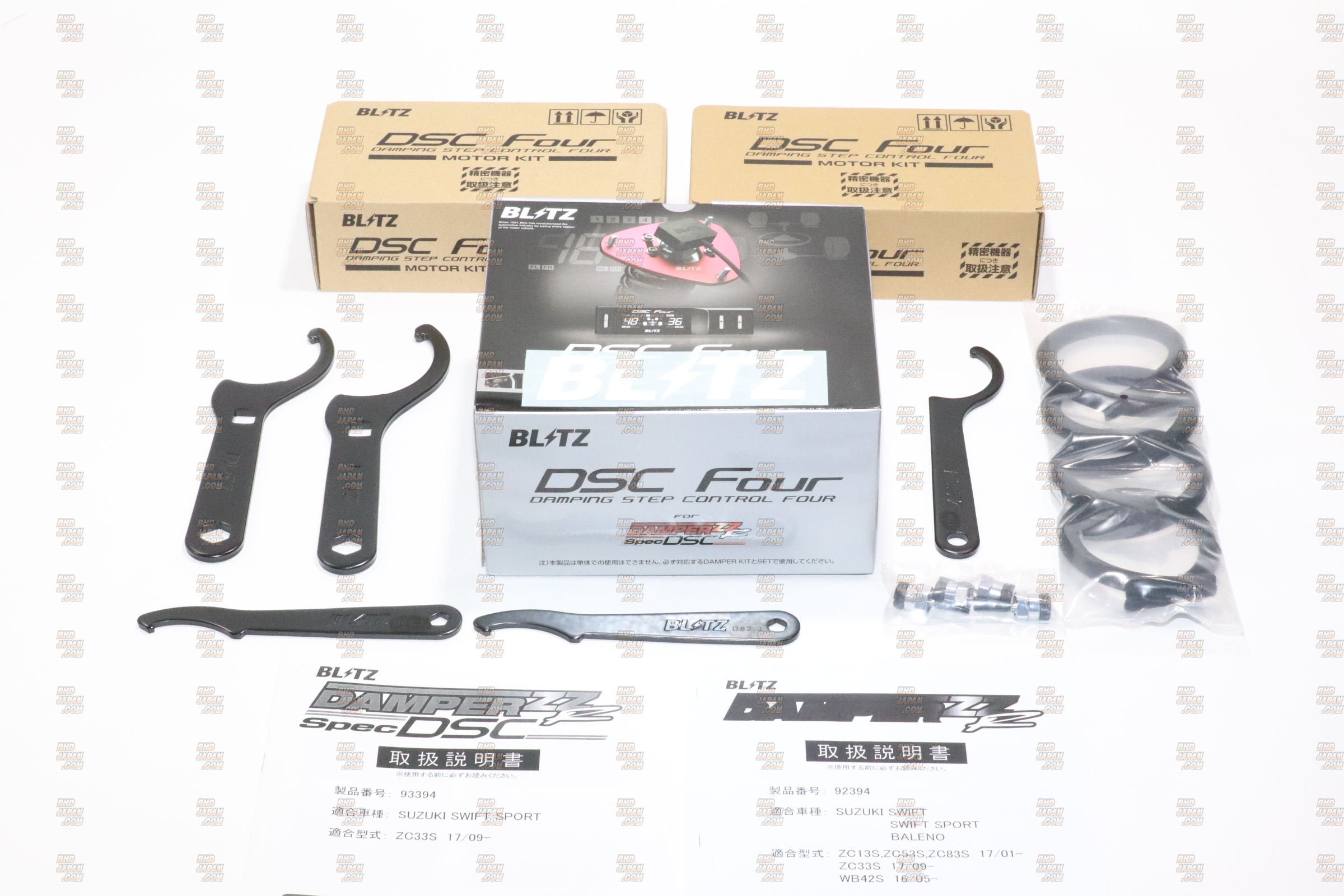

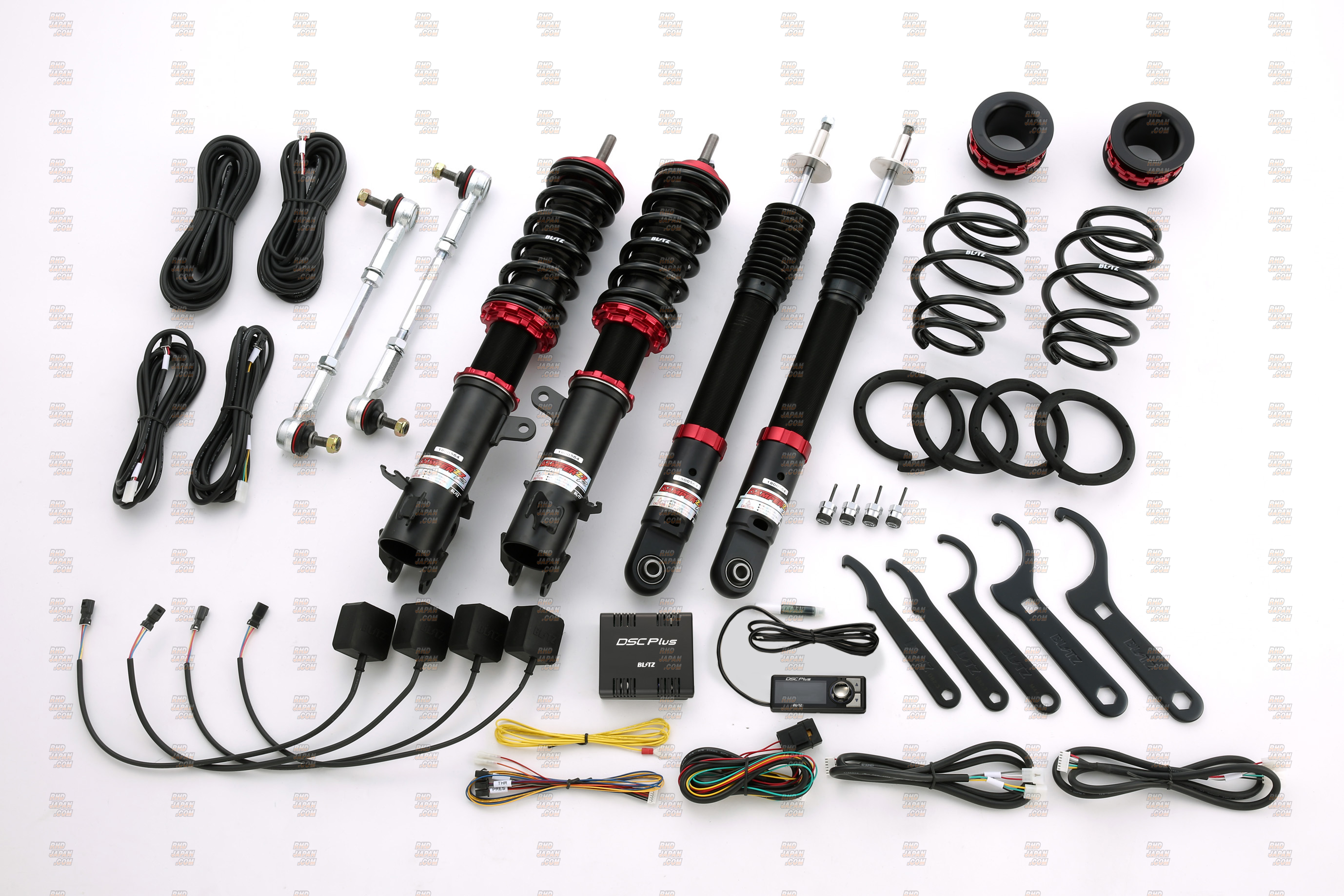

Included:

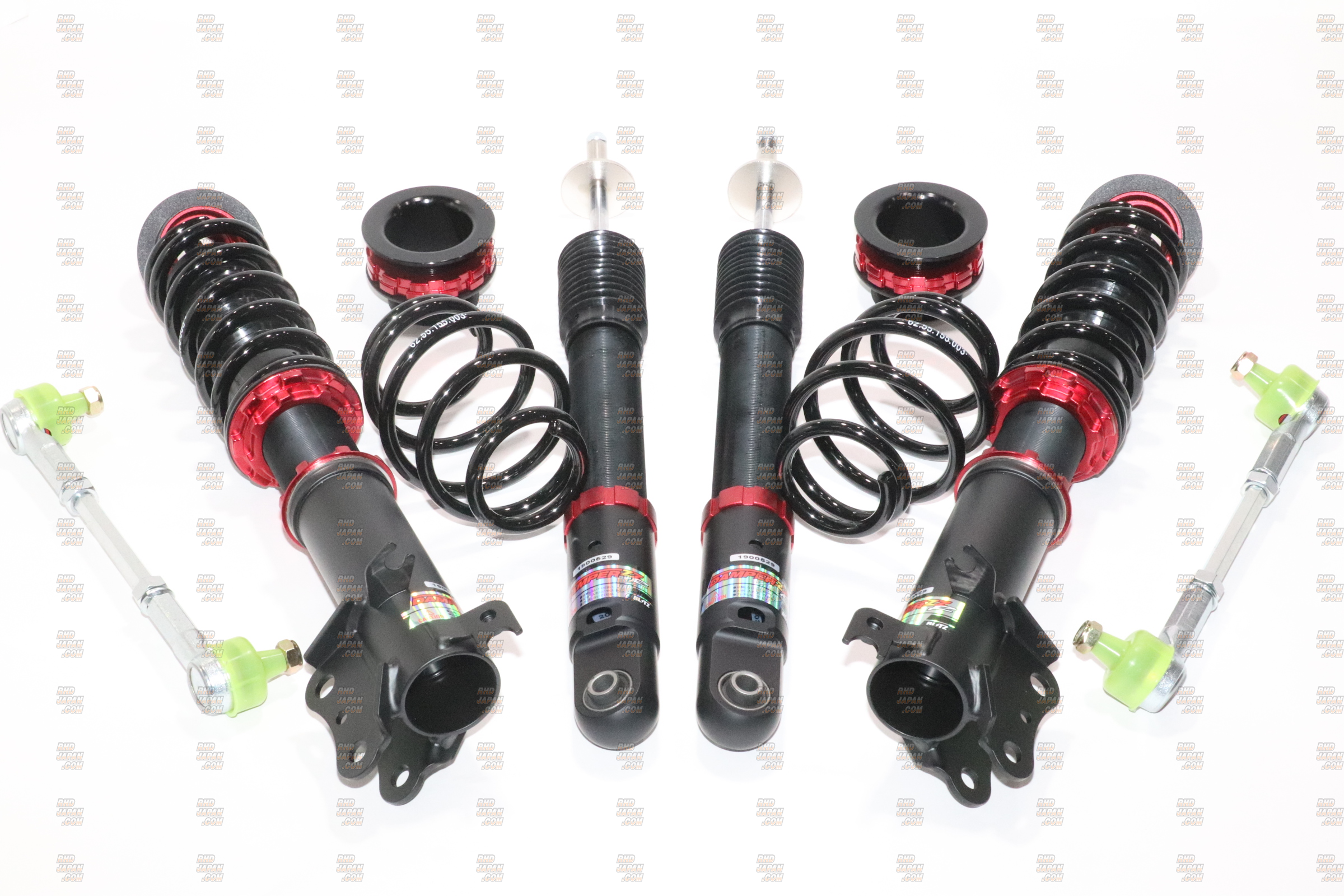

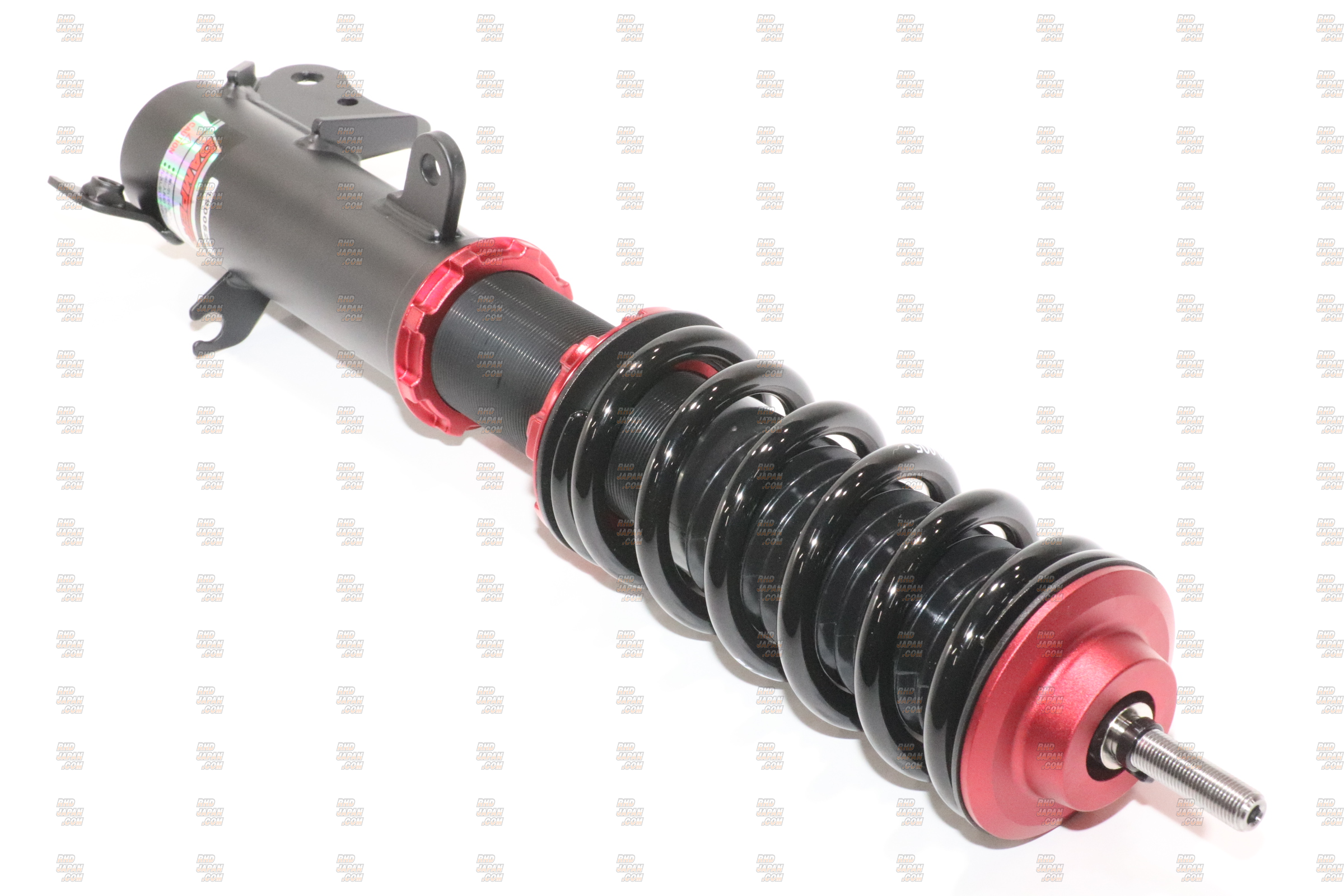

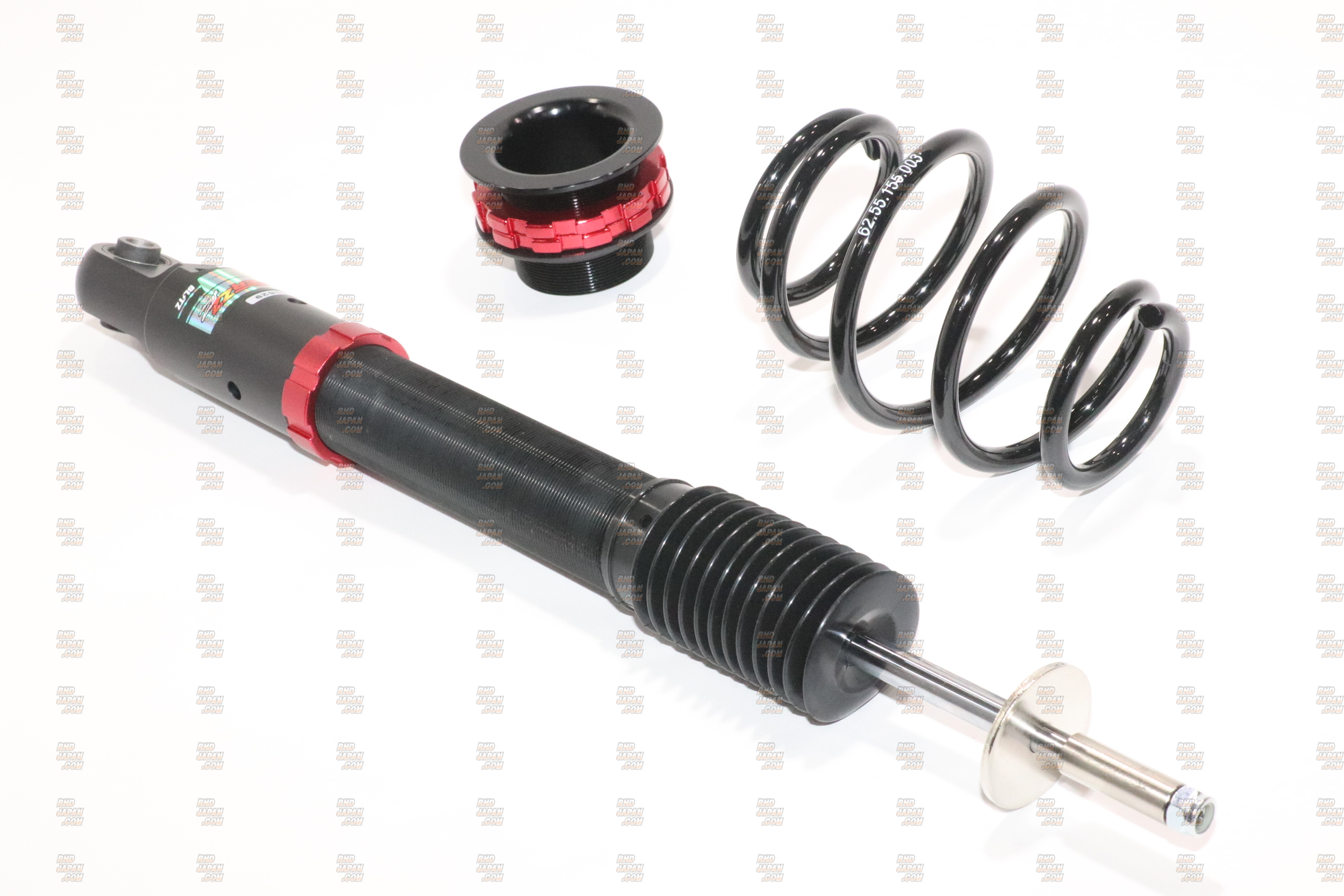

- Coilover suspension and hardware

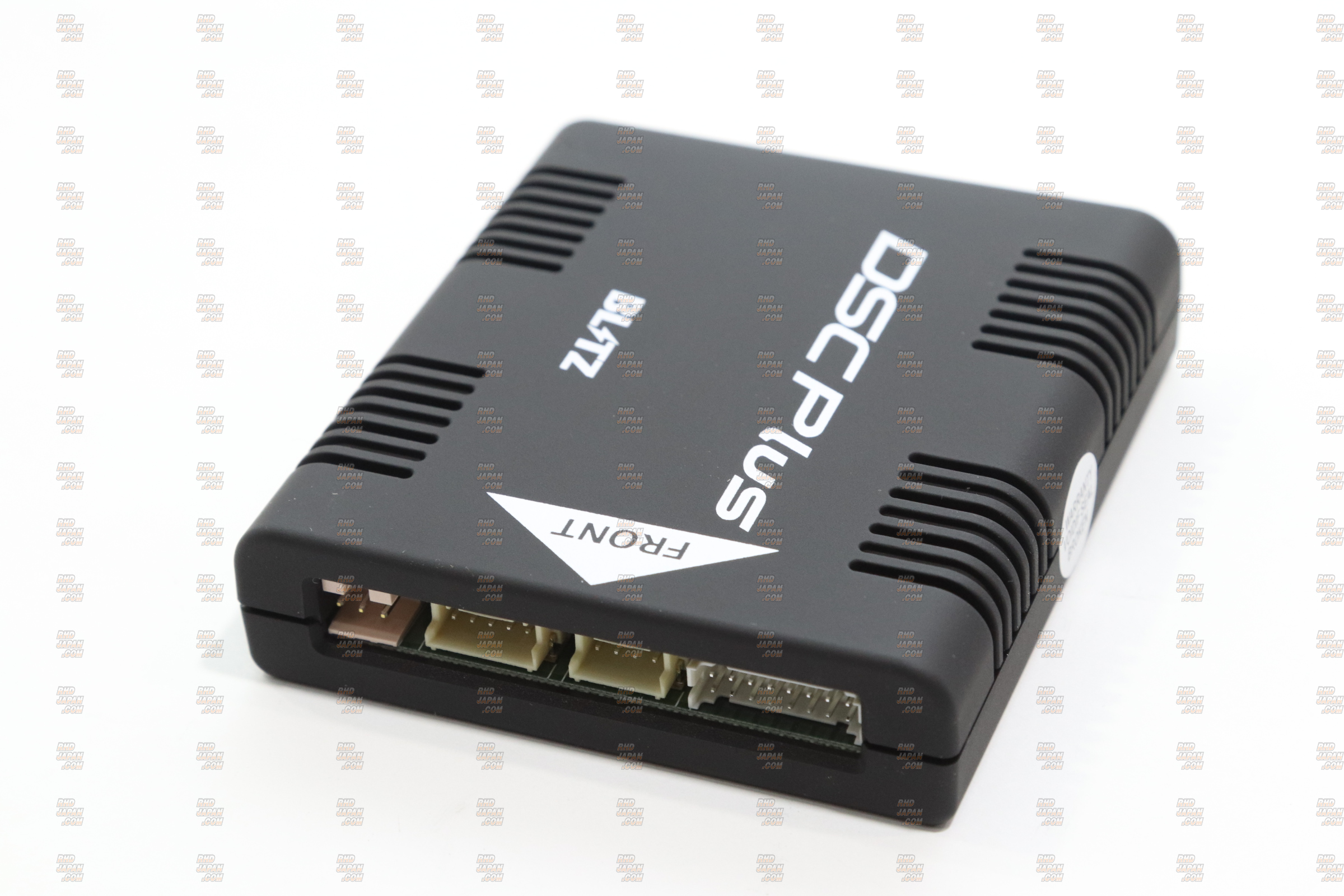

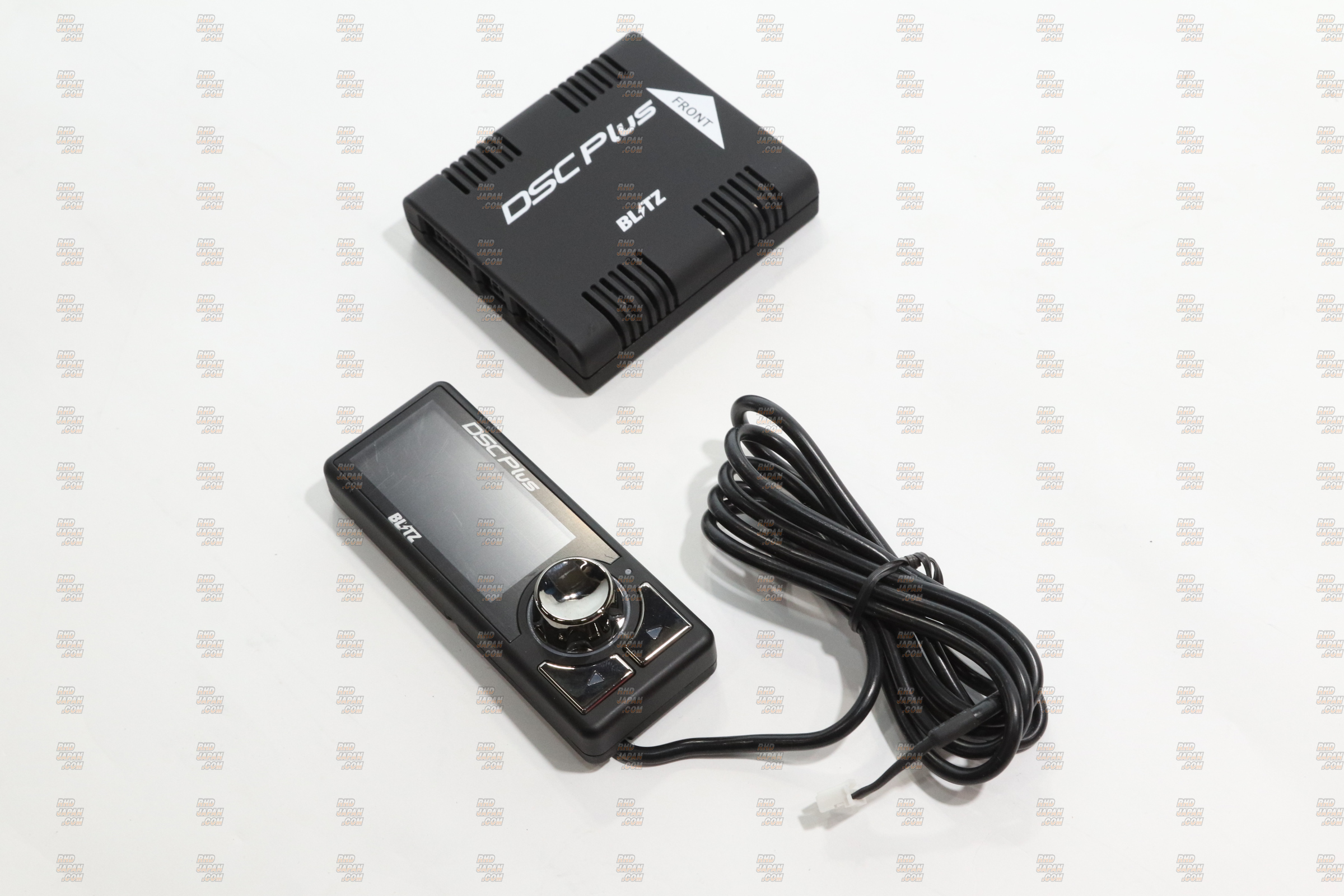

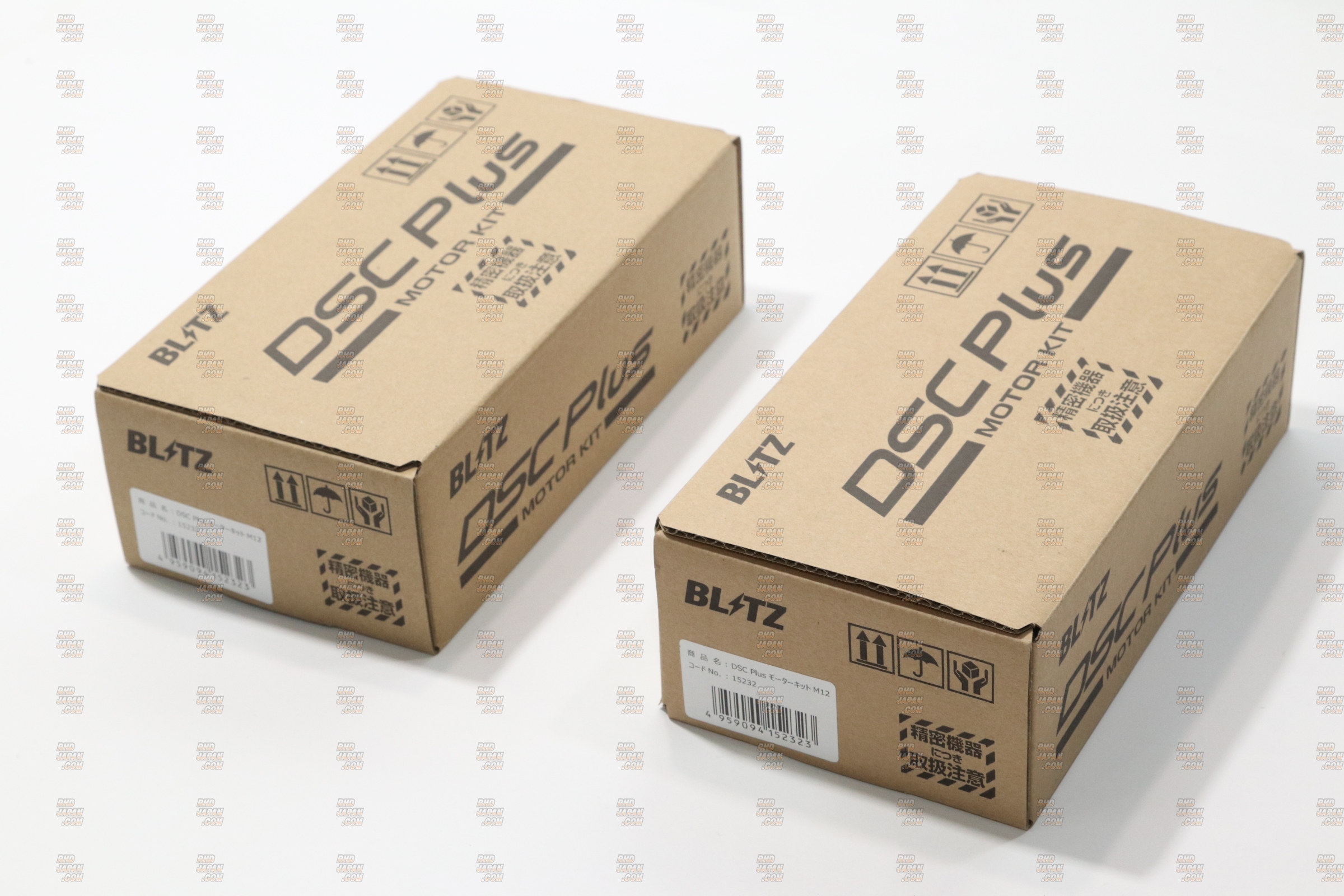

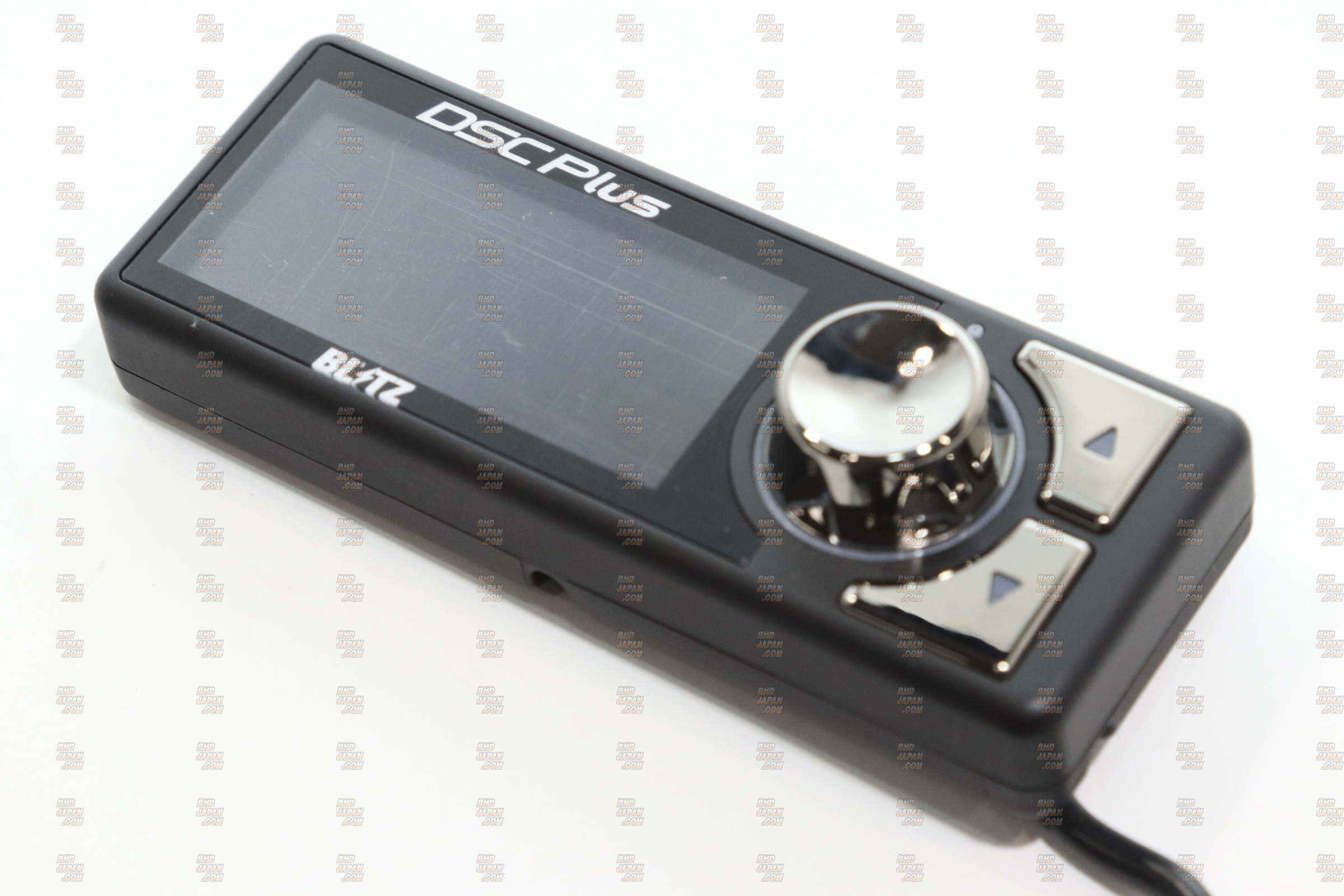

- SpecDSC Plus controller, motors and hardware
Series: ZZ-R SpecDSC Plus
Materials:
- Springs: Special high-tension Steel (SAE9245)
- Cylinder Case: High-strength Steel (STKM13C)
Upper Mount Configuration:
- Front: OEM
- Rear: OEM
Spring Spec.:
- Spring Rate (kgf.mm):
-- Front: 5.0
-- Rear: 3.0
- Free Length (mm):
-- Front: 170
-- Rear: 155
Height adjustment range (mm):
- Front: -70 ~ 0
- Rear: -37 ~ -9
Damper Adjustment Dial Extension:
- -
FEATURES:
- Single Cylinder Type
- 96 stage adjustment method
- Practical use for street circuit and wide range of events
- Designed with large diameter piston at 44mm (some vehicles)
- Forged aluminum upper mount
- Forged aluminum sheet for reduced weight and increased durability and strength
- Rigid bracket coated with special pain to achieve durability
- Aluminum bracket coated in black anodized paint to improve corrosion resistance
- Included height adjustment wrench
PRODUCT NOTES:
- Processing or dismantling of vehicle interior should be needed before installing rear motor.
- WB42SIt: It should be needed for processing of front windshield wiper cowl.
- ZC13S ZC53S ZC83S WB42S: Applicable part number has been changed from 93376 to 93394.
COMPATIBILITY NOTES:
- ZC13S ZC53S ZC83S: Only for SWIFT; 1/17〜
- ZC33S: Only for SWIFT SPORT, MT/AT; 9/17〜
- WB42S: Only for BALENO; 5/16〜
Product: Damper ZZ-R SpecDSC Plus Coilover Suspension - Swift ZC13S ZC53S ZC83S Swift Sport ZC33S Baleno WB42S
Part Num: 98394
SPECIFICATIONS:
Included:
- Coilover suspension and hardware
- SpecDSC Plus controller, motors and hardware
Series: ZZ-R SpecDSC Plus
Materials:
- Springs: Special high-tension Steel (SAE9245)
- Cylinder Case: High-strength Steel (STKM13C)
Upper Mount Configuration:
- Front: OEM
- Rear: OEM
Spring Spec.:
- Spring Rate (kgf.mm):
-- Front: 5.0
-- Rear: 3.0
- Free Length (mm):
-- Front: 170
-- Rear: 155
Height adjustment range (mm):
- Front: -70 ~ 0
- Rear: -37 ~ -9
Damper Adjustment Dial Extension:
- -
FEATURES:
- Single Cylinder Type
- 96 stage adjustment method
- Practical use for street circuit and wide range of events
- Designed with large diameter piston at 44mm (some vehicles)
- Forged aluminum upper mount
- Forged aluminum sheet for reduced weight and increased durability and strength
- Rigid bracket coated with special pain to achieve durability
- Aluminum bracket coated in black anodized paint to improve corrosion resistance
- Included height adjustment wrench
PRODUCT NOTES:
- Processing or dismantling of vehicle interior should be needed before installing rear motor.
- WB42SIt: It should be needed for processing of front windshield wiper cowl.
- ZC13S ZC53S ZC83S WB42S: Applicable part number has been changed from 93376 to 93394.
COMPATIBILITY NOTES:
- ZC13S ZC53S ZC83S: Only for SWIFT; 1/17〜
- ZC33S: Only for SWIFT SPORT, MT/AT; 9/17〜
- WB42S: Only for BALENO; 5/16〜
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Suzuki Baleno WB42S K10C (03/2016~)
Suzuki Swift ZC13S K10C (12/2016-04/2020)
Suzuki Swift ZC53S K12C (12/2016-04/2020)
Suzuki Swift ZC53S K12C (05/2020~)
Suzuki Swift ZC83S K12C (12/2016-04/2020)
Suzuki Swift ZC83S K12C (05/2020~)
Suzuki Swift Sport ZC33S K14C (09/2017-04/2020)
Suzuki Swift Sport ZC33S K14C (05/2020~)
Suzuki Baleno WB42S K10C (03/2016~)
Suzuki Swift ZC13S K10C (12/2016-04/2020)
Suzuki Swift ZC53S K12C (12/2016-04/2020)
Suzuki Swift ZC53S K12C (05/2020~)
Suzuki Swift ZC83S K12C (12/2016-04/2020)
Suzuki Swift ZC83S K12C (05/2020~)
Suzuki Swift Sport ZC33S K14C (09/2017-04/2020)
Suzuki Swift Sport ZC33S K14C (05/2020~)
