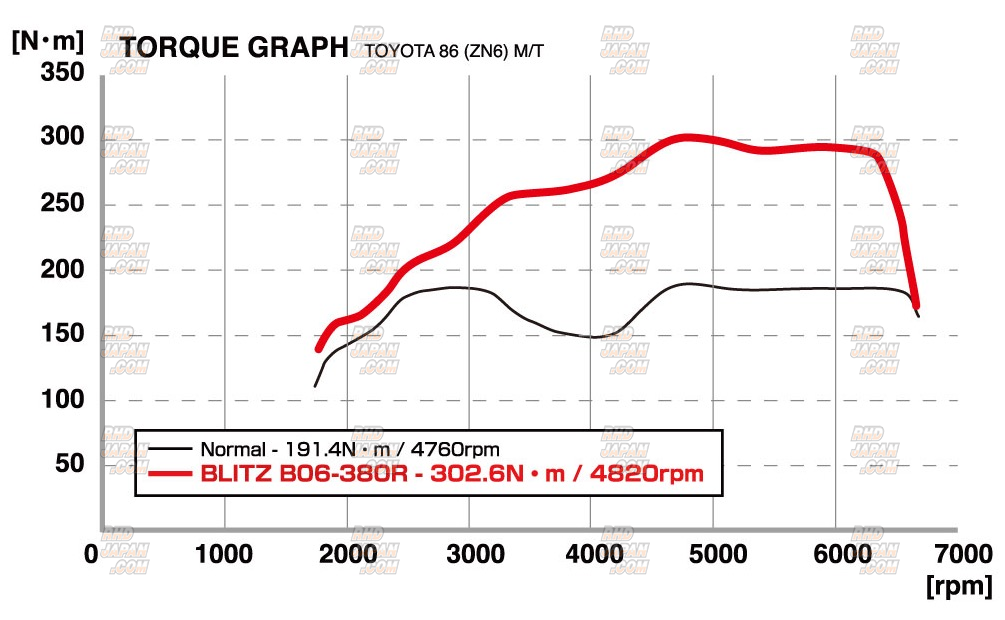

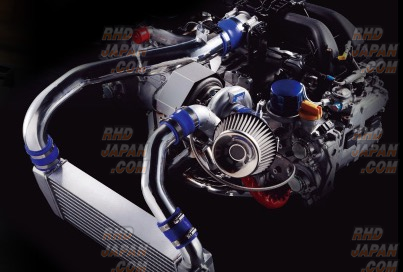

This turbo system has been developed to provide a massive increase in power and torque with minimum manufacturing and part sourcing. Blitz specs this kit out as giving a max power at just under 260ps at 6320rpm and max torque at just over 300Nm at 4820rpm with the proper ECU and dyno tuning. Get this and all your JDM at RHDJapan!!
Brand: Blitz
Product: Turbo System Tuners Kit Non-Catalyzer - BRZ ZC6 86 ZN6
Part Num.: 10203
SPECIFICATIONS
Included:
- B06-380R turbine (actuator type - boost 49kpa (0.5kg/cm2))
- SUS Exhaust Manifold
- SUS Front Pipe (non-catalyzer)
- Intercooler
- Aluminum intercooler Piping
- SUS Power Air Cleaner
- Short parts (bolts, gaskets, hoses and grommets) for installation
PRODUCT NOTES
- ECU, settings as well as dyno tuning are not included and will need to be purchased separately.
- Oil cooler is recommended to be installed with this kit
- Oil Pan needs to be modified for Oil Return Pipe, also available for purchase (part number 10186)
COMPATIBILITY NOTES
Product: Turbo System Tuners Kit Non-Catalyzer - BRZ ZC6 86 ZN6
Part Num.: 10203
SPECIFICATIONS
Included:
- B06-380R turbine (actuator type - boost 49kpa (0.5kg/cm2))
- SUS Exhaust Manifold
- SUS Front Pipe (non-catalyzer)
- Intercooler
- Aluminum intercooler Piping
- SUS Power Air Cleaner
- Short parts (bolts, gaskets, hoses and grommets) for installation
PRODUCT NOTES
- ECU, settings as well as dyno tuning are not included and will need to be purchased separately.
- Oil cooler is recommended to be installed with this kit
- Oil Pan needs to be modified for Oil Return Pipe, also available for purchase (part number 10186)
COMPATIBILITY NOTES
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Subaru BRZ ZC6 Applied A FA20 (04/2012-09/2013)
Subaru BRZ ZC6 Applied B FA20 (09/2013-06/2014)
Subaru BRZ ZC6 Applied C FA20 (07/2014-01/2015)
Subaru BRZ ZC6 Applied D FA20 (02/2015-05/2016)
Subaru BRZ ZC6 Applied E FA20 (06/2016-09/2017)
Toyota 86 ZN6 FA20 (04/2012-08/2016)
Toyota 86 ZN6 FA20 (08/2016-03/2019)
Subaru BRZ ZC6 Applied A FA20 (04/2012-09/2013)
Subaru BRZ ZC6 Applied B FA20 (09/2013-06/2014)
Subaru BRZ ZC6 Applied C FA20 (07/2014-01/2015)
Subaru BRZ ZC6 Applied D FA20 (02/2015-05/2016)
Subaru BRZ ZC6 Applied E FA20 (06/2016-09/2017)
Toyota 86 ZN6 FA20 (04/2012-08/2016)
Toyota 86 ZN6 FA20 (08/2016-03/2019)
