COCKPIT Exhaust Manifold and Outlet Pipe Set - ECR33 ER34 WGNC34 Y33 C34 C35

Brand: COCKPIT
Product: Exhaust Manifold and Outlet Pipe Set - ECR33 ER34 WGNC34 Y33 C34 C35
Part Number: 121090_2610836

SPECIFICATIONS:

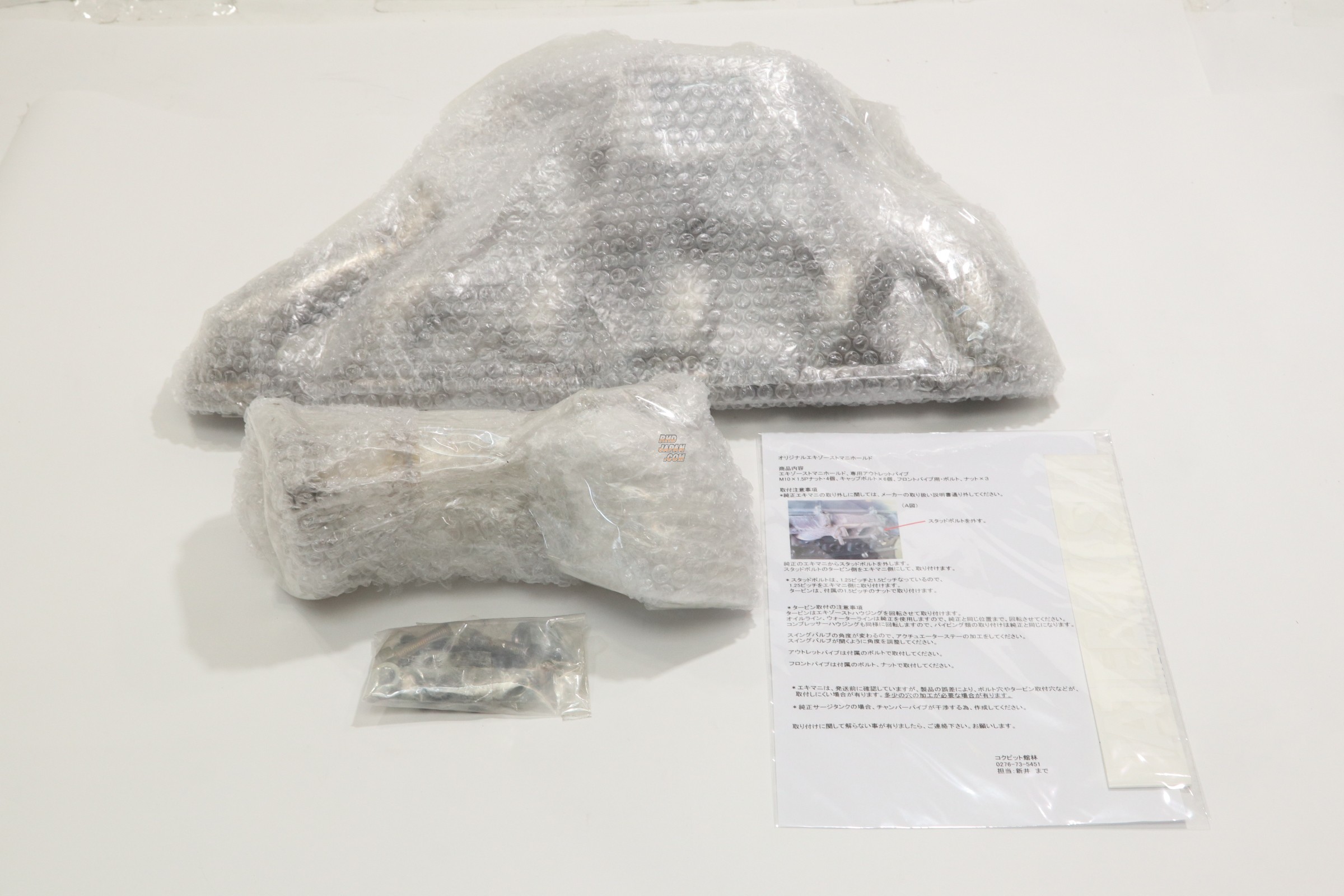

Included:
- Exhaust Manifold

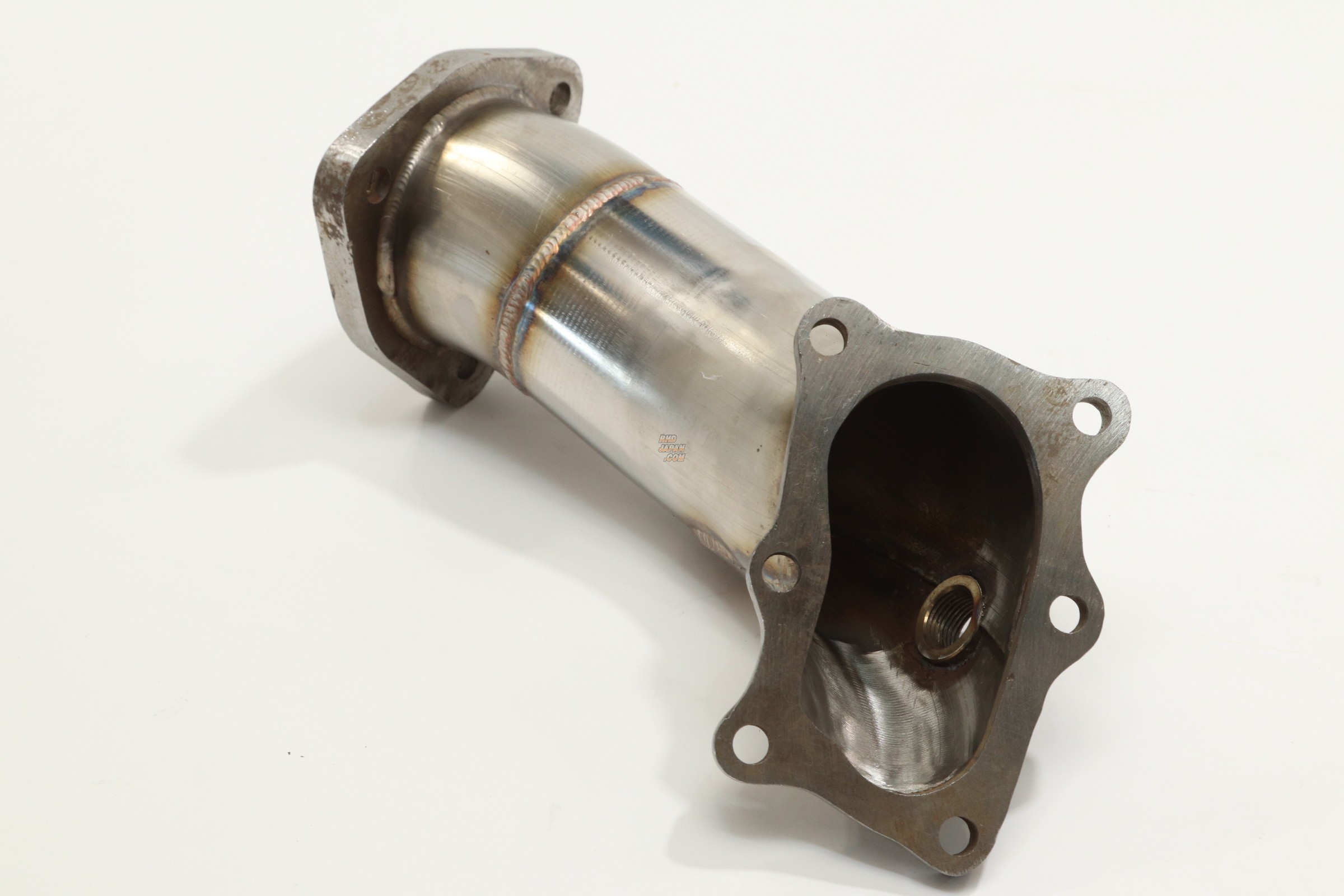

- Outlet pipe

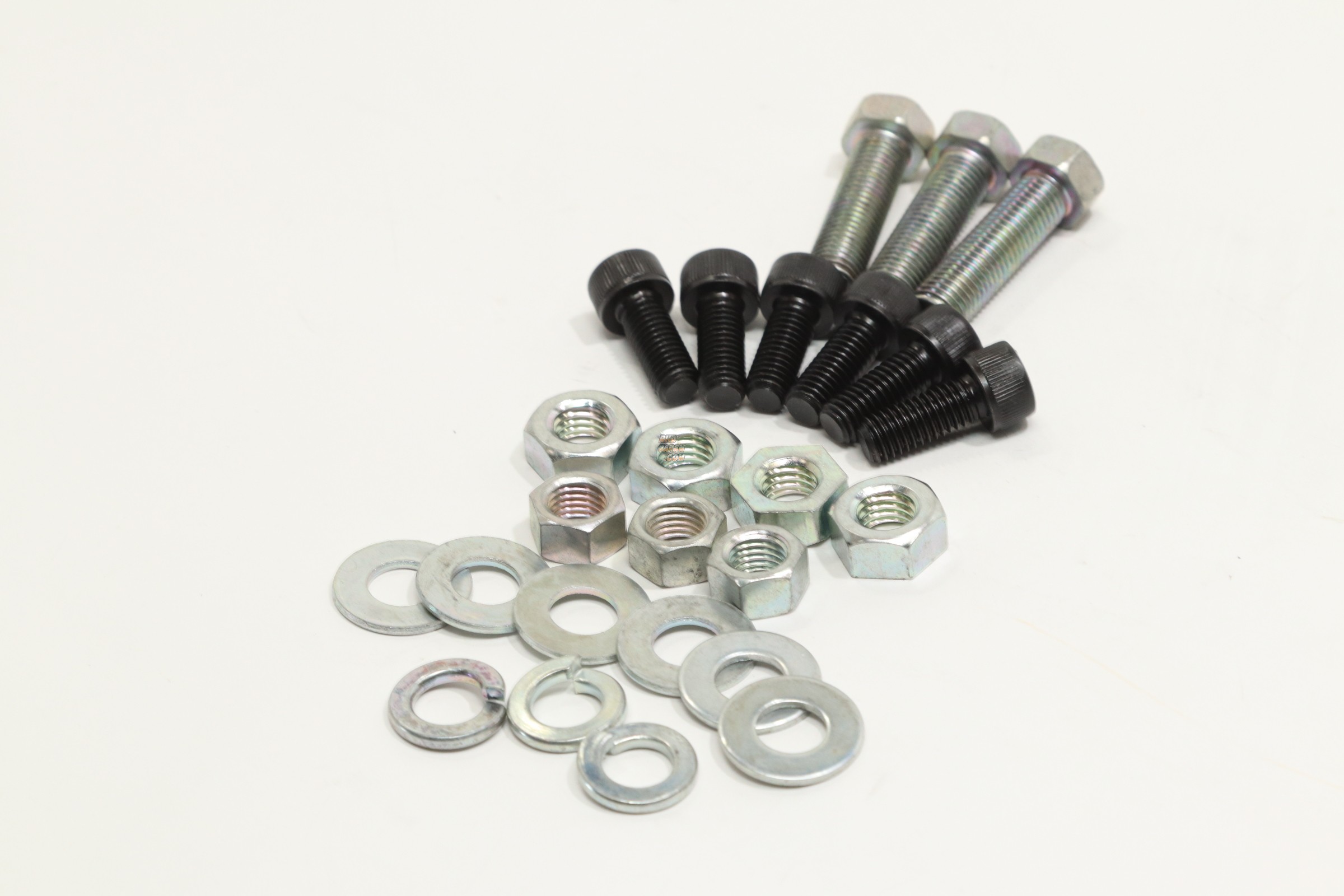

- Nut M10xP1.5 x4
- Cap bolt x6
- Bolt/Nut for Front pipe x3

Layout: 6 to 1
Piping Diameter (mm): 42.7
Material: Stainless Steel

PRODUCT NOTES:
- This part doesn't come with the same finish as pictured, it might have rusty spots as it is manufactured in batch and then stored until sold.
- For vehicles equipped with OEM surge tank, adjust the power steering pump location and make a blow off valve return.
- Modification to chamber pipe may be required if being used in conjunction with standard intake plenum.
- It may be needed to process the mounting holes for installation of bolts/Turbine.

Here are the installation notes provided by the maker:
1. Remove OEM exhaust manifold per manufacturer's instructions.
2. Remove stud bolts from OEM Exhaust Manifold (it is recommended that new stud bolts are purchased in advance)
3. Stud bolt threads are p=1.25 and p=1.5. Use p=1.25 on the side of the exhaust manifold. Install Turbine using with the enclosed p=1.5 nuts.

Regarding installation of Turbine:
1. Turbine should be installed by rotating the exhaust housing. (OEM turbine may be heavy to rotate.) Use the Oil line and Water line from OEM; rotate Turbine until it matches with the position of OEM. Rotate the compressor housing for piping and so on in the same way.
2. Processing should be needed for Actuator stay, as the swing valve angle is changed. Adjust the swing valve angle so that it has the opening.
3. Install Outlet pipe using with the bolts enclosed.
4. Install Front pipe using with the bolts/nuts enclosed.

COMPATIBILITY NOTES:
- Can be used with OEM Turbocharger layout such as GT Turbocharger, Cockpit Original 450.
- Designed for RB25 but can also be installed on RB20 (however some modifications will be needed).
