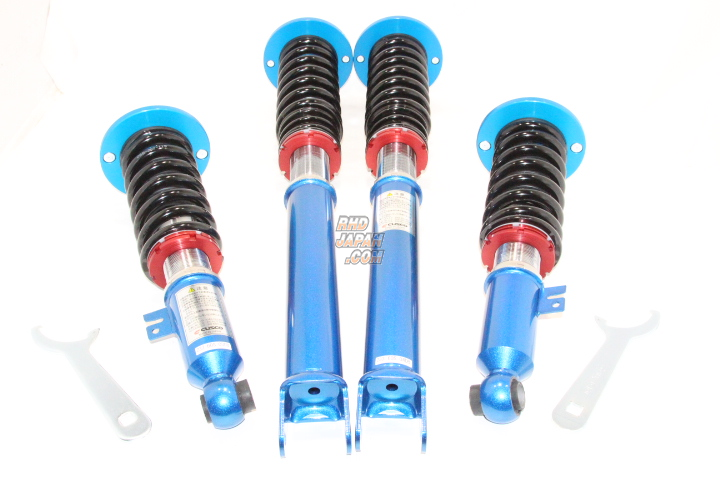

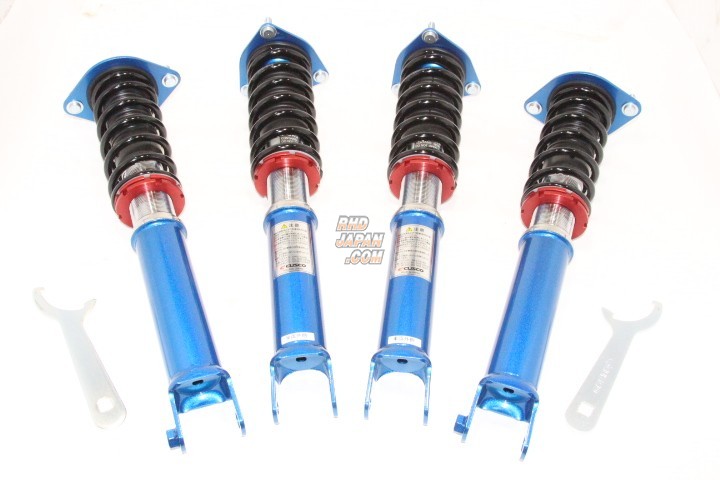

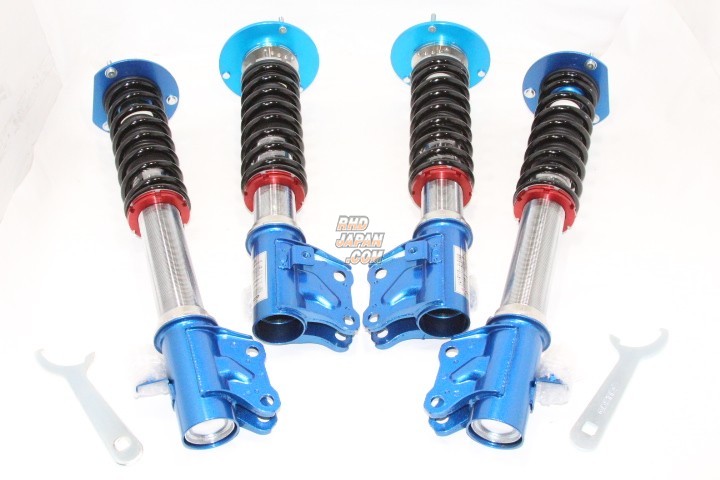

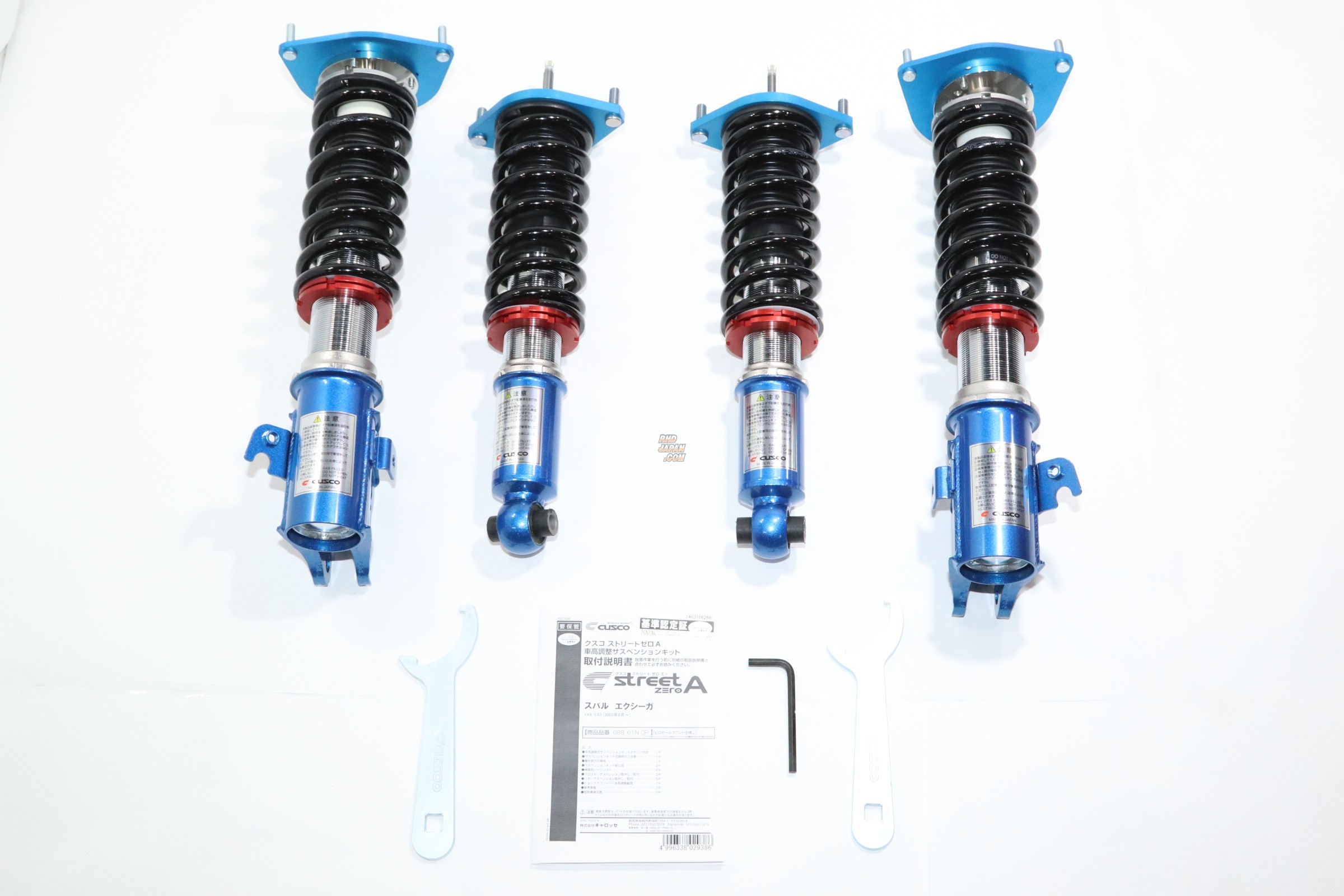

CUSCO Street ZERO A Red Coilover Suspension Kit - EP82 EP91

Brand: CUSCO
Product: Street ZERO A Red Coilover Suspension Kit - EP82 EP91
Part Num: 105 61N CN

SPECIFICATIONS:
Recommended Adjustment Range (mm):
- Front: -70 to -25
- Rear: -70 to -20

Maximum Adjustment Range (mm):
- Front: -103 to -8
- Rear: -75 to -10

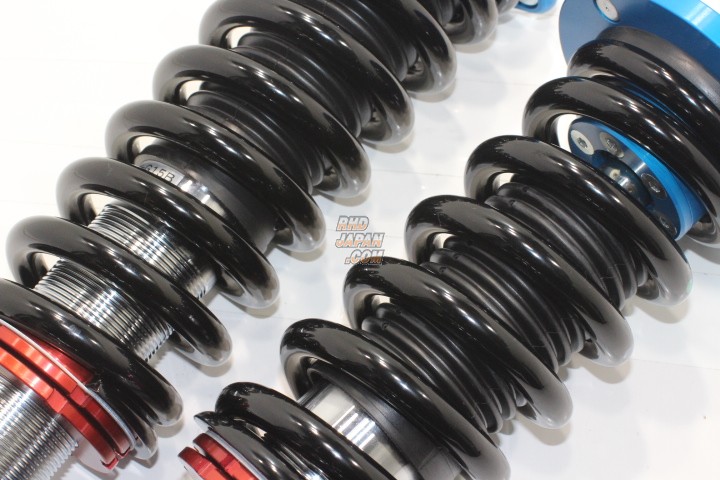

Spring rate (kgf/mm):
- Front: 6 (5,7,8)
- Rear: 4 (5,6)

Damping force adjustment
- Front: 40 Stages
- Rear: 40 Stages

E-con:
- Front: e2 compatible 00B 60J 1012 (sold separately)
- Rear: e2 compatible 00B 60J 1012 (sold separately)

Upper Mount:

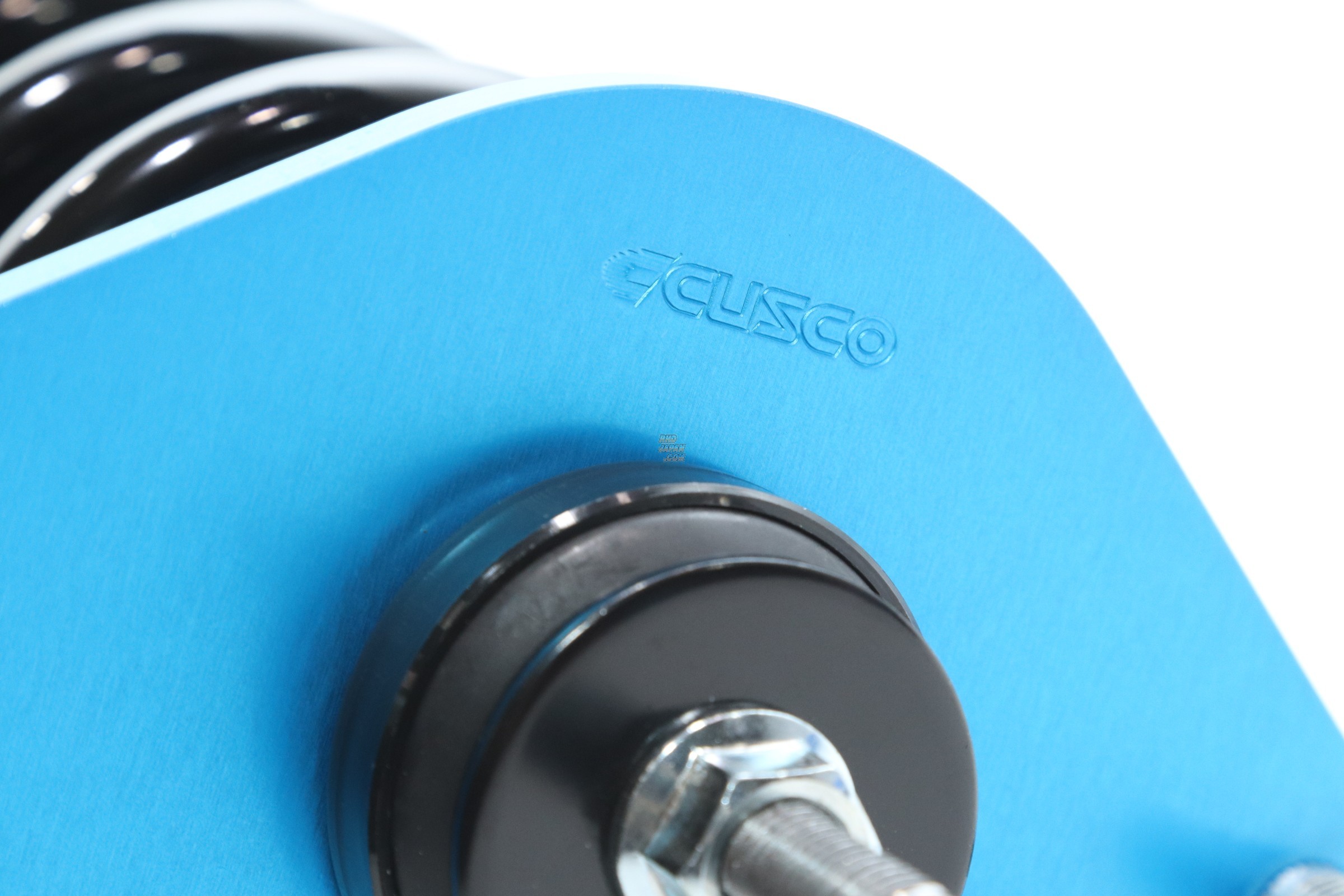

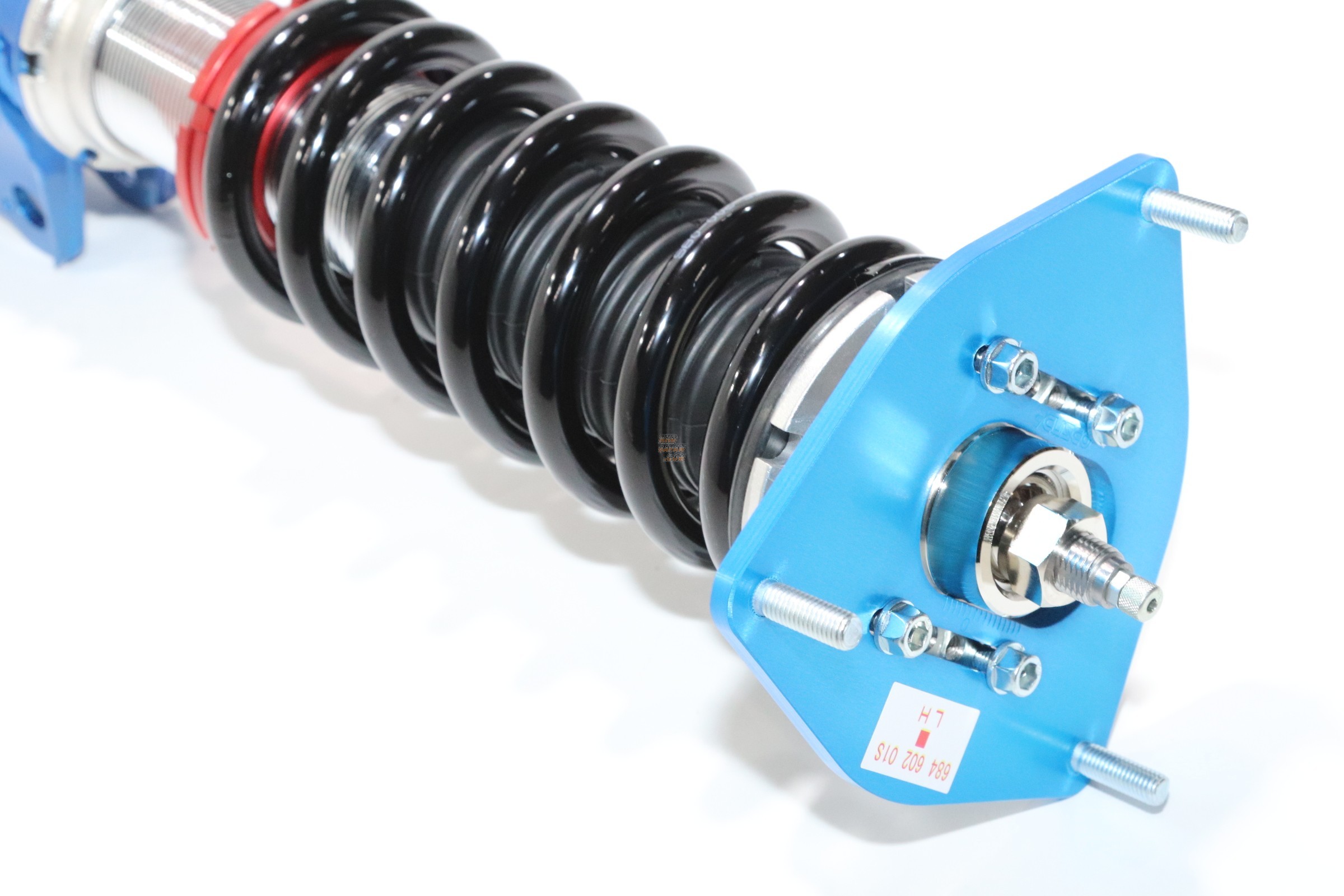

- Front: Adjustable Pillow ball upper mount

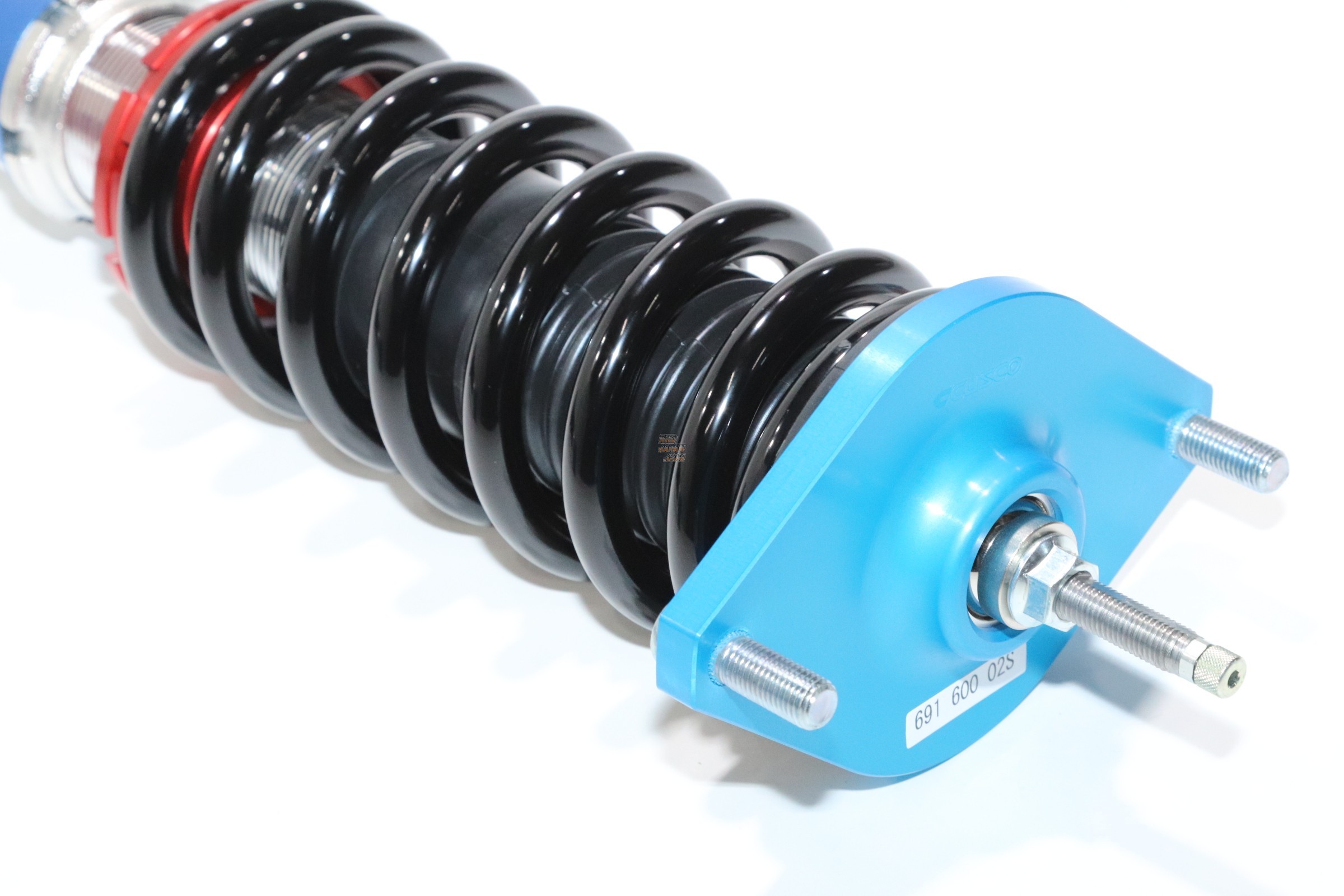

- Rear: Non Adjustable HD rubber upper mount

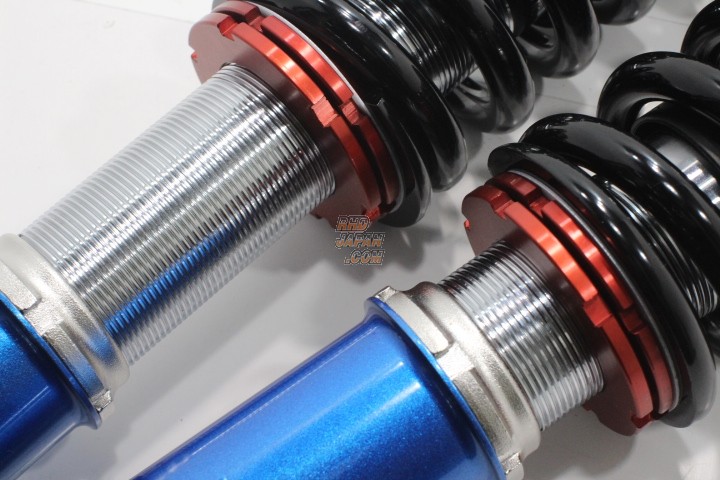

Height adjustment system:
- Front: Coaxial Length Adjustment
- Rear: Coaxial Length Adjustment

PRODUCT NOTES:
- Free length may vary depending on Spring Rate.

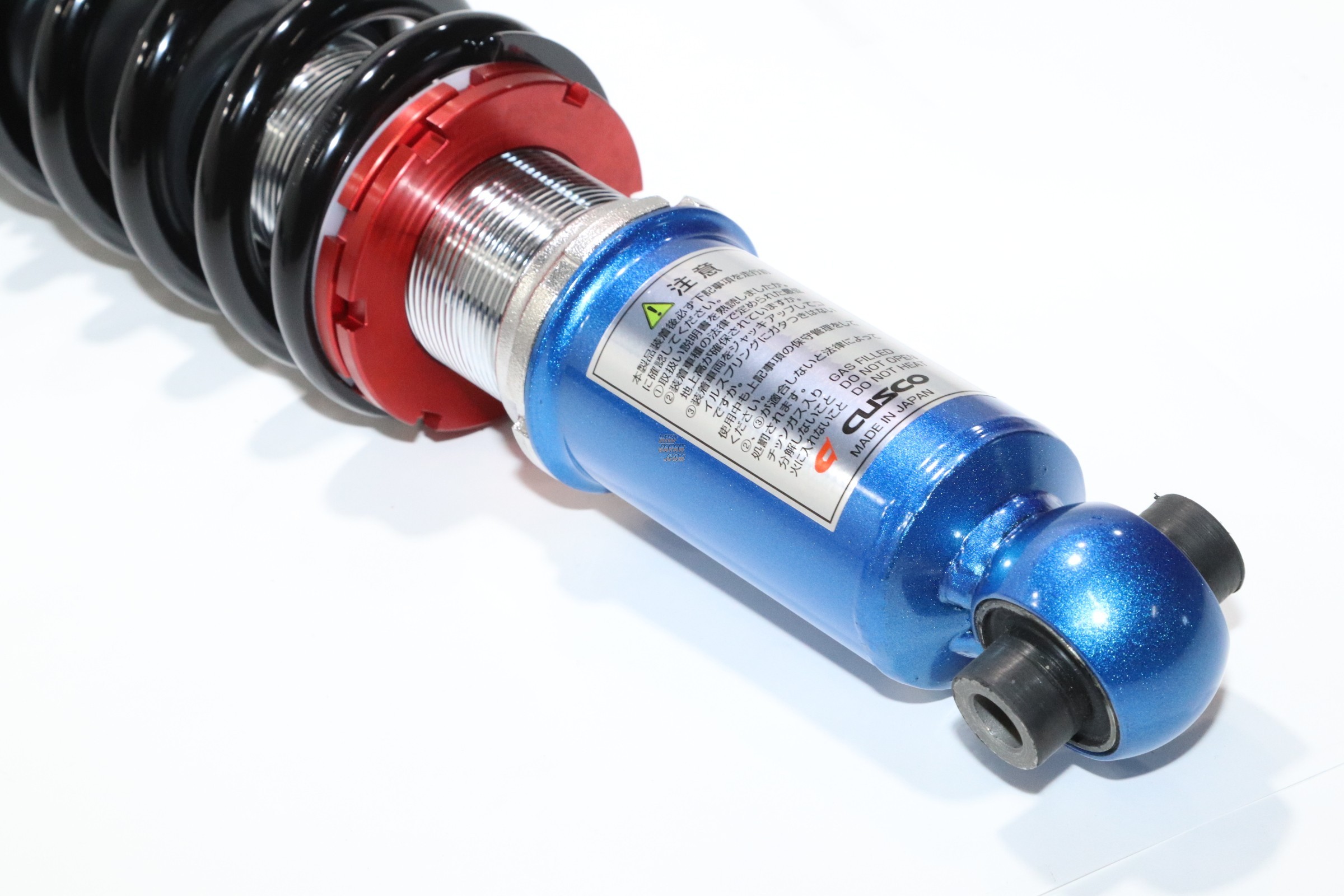

- Designed for competition models. This coil over suspension kit is designed for full ride height and full suspension stroke length adjustable with light weight mono tube 40 step damping force damper for competition. Comes with camper adjustable plates, pillow ball upper upper mounts and rubber upper seats.
