Brand: HKS

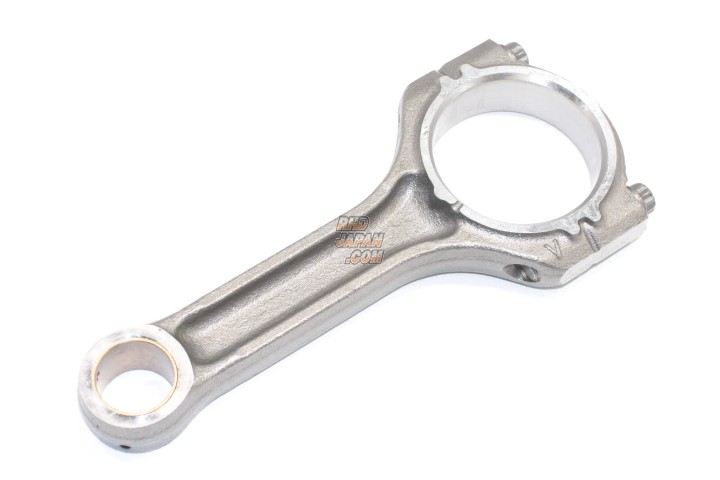

Product: Connection Rod Set - CR-Z ZF1
Part Num: 23004-AH001
SPECIFICATIONS:
Included:
- 4x Connection Rods
- 8x Connection Rods Bolts
Type (mm): 18
Material:
- HKS: Alloy steels (SCM440H)
- OEM: -
Ref. Weight (g):
- HKS: 380
- OEM: 314.5
Bolt Size:
- HKS: M8x1.0
- OEM: M6x1.0
Ref. Capable Torque (kgf/m):
- HKS: 43.80
- OEM: 30.47
PRODUCT NOTES:
- For Normal Stroke
- Honing Modification: Not required
- Full-Flow Modification: Not required
- Honda OEM piston rings are required
- Honda OEM piston pins (18mm Semi-floating pins) are required
- For safety precautions and product warranty liabilities, the impellers maximum RPM should not exceed 110, 000 rpm. HKS will not be responsible for any damage caused by the use of this product beyond the impellers maximum RPM limit
FEATURES:
- Semi-floating pins on the connecting rod small end.
- The durability is improved by 186% comparing to the factorys durability with the 158.8mm2 minimum cross sectionalarea of the rod.
- The M8x1.0 sized connecting rod bolts are used for better rigidity. HKS In-house test at 336PS/43.78kgf/m confirmed the durability and safety (including the S/C drive loss).
Product: Connection Rod Set - CR-Z ZF1
Part Num: 23004-AH001
SPECIFICATIONS:
Included:
- 4x Connection Rods
- 8x Connection Rods Bolts
Type (mm): 18
Material:
- HKS: Alloy steels (SCM440H)
- OEM: -
Ref. Weight (g):
- HKS: 380
- OEM: 314.5
Bolt Size:
- HKS: M8x1.0
- OEM: M6x1.0
Ref. Capable Torque (kgf/m):
- HKS: 43.80
- OEM: 30.47
PRODUCT NOTES:
- For Normal Stroke
- Honing Modification: Not required
- Full-Flow Modification: Not required
- Honda OEM piston rings are required
- Honda OEM piston pins (18mm Semi-floating pins) are required
- For safety precautions and product warranty liabilities, the impellers maximum RPM should not exceed 110, 000 rpm. HKS will not be responsible for any damage caused by the use of this product beyond the impellers maximum RPM limit
FEATURES:
- Semi-floating pins on the connecting rod small end.
- The durability is improved by 186% comparing to the factorys durability with the 158.8mm2 minimum cross sectionalarea of the rod.
- The M8x1.0 sized connecting rod bolts are used for better rigidity. HKS In-house test at 336PS/43.78kgf/m confirmed the durability and safety (including the S/C drive loss).
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Honda CR-Z ZF1 LEA-MF6 (02/2010-09/2012)
Honda CR-Z ZF1 LEA-MF6 (02/2010-09/2012)
