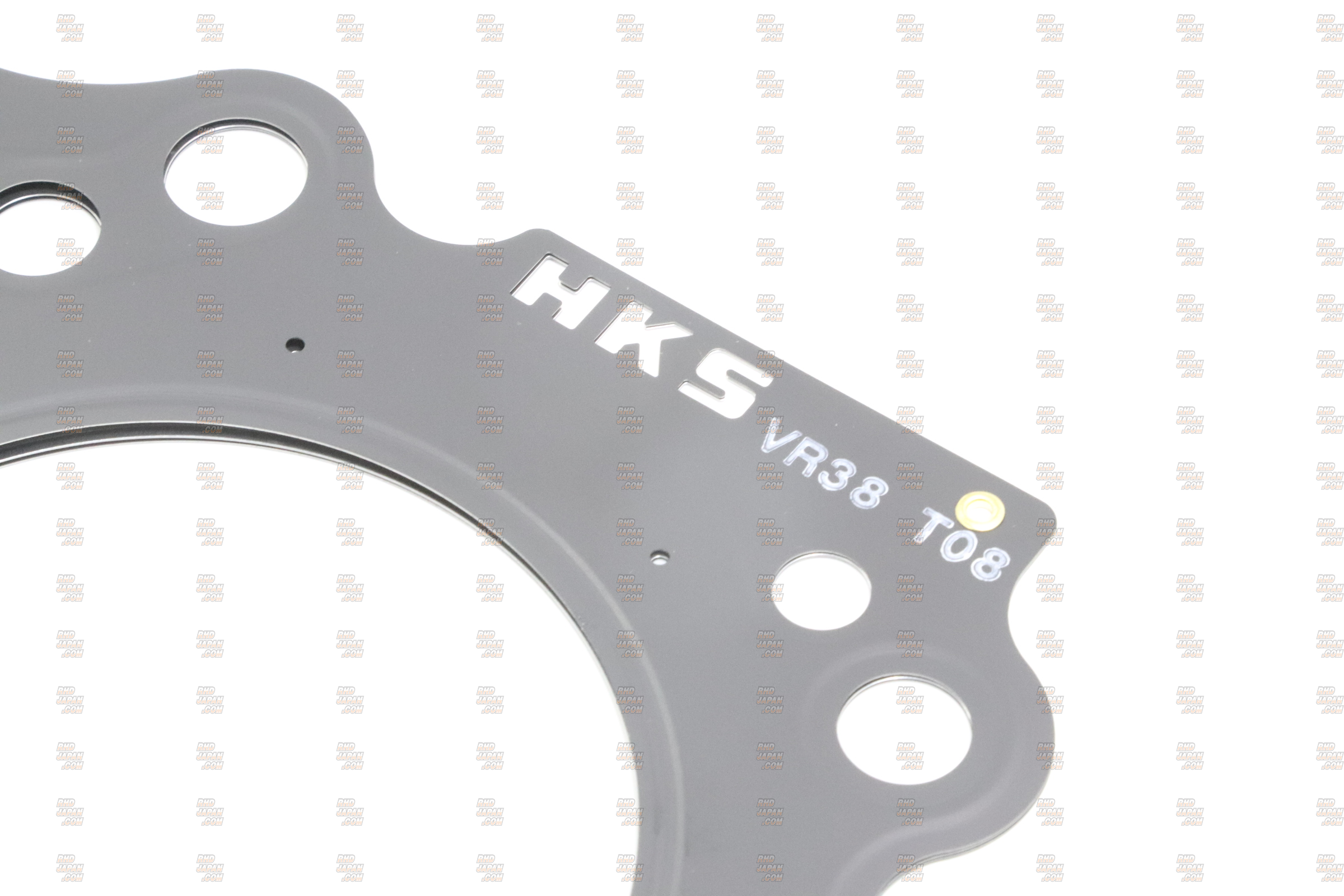

The HKS Metal Head Gasket Kit - Stopper Type 0.8mm VR38DETT is engineered to resist severe levels of heat that are generated by high-horsepower and high-boost applications. All HKS head gaskets are constructed with multiple layers of steel and coated with a special fluorine rubber to provide exceptional sealing. HKS head gaskets are designed to accommodate standard and certain oversized cylinder bores. The HKS Stopper-Type gasket consists of the maximum layers of plates possible and uses a molded stopper ring around each combustion chamber opening.
Upon purchasing please state the car from the compatibility list that you would like to have the HKS Head Gasket Kit for.
Get this and all your JDM at RHDJapan!!
Upon purchasing please state the car from the compatibility list that you would like to have the HKS Head Gasket Kit for.
Get this and all your JDM at RHDJapan!!
Brand: HKS
Product: Metal Head Gasket Kit - Stopper Type 0.8mm VR38DETT
Part Number: 23009-AN010
SPECIFICATIONS:
Bore (mm): 96.0
Compression Ratio: e=9.0
Thickness (mm): 0.8

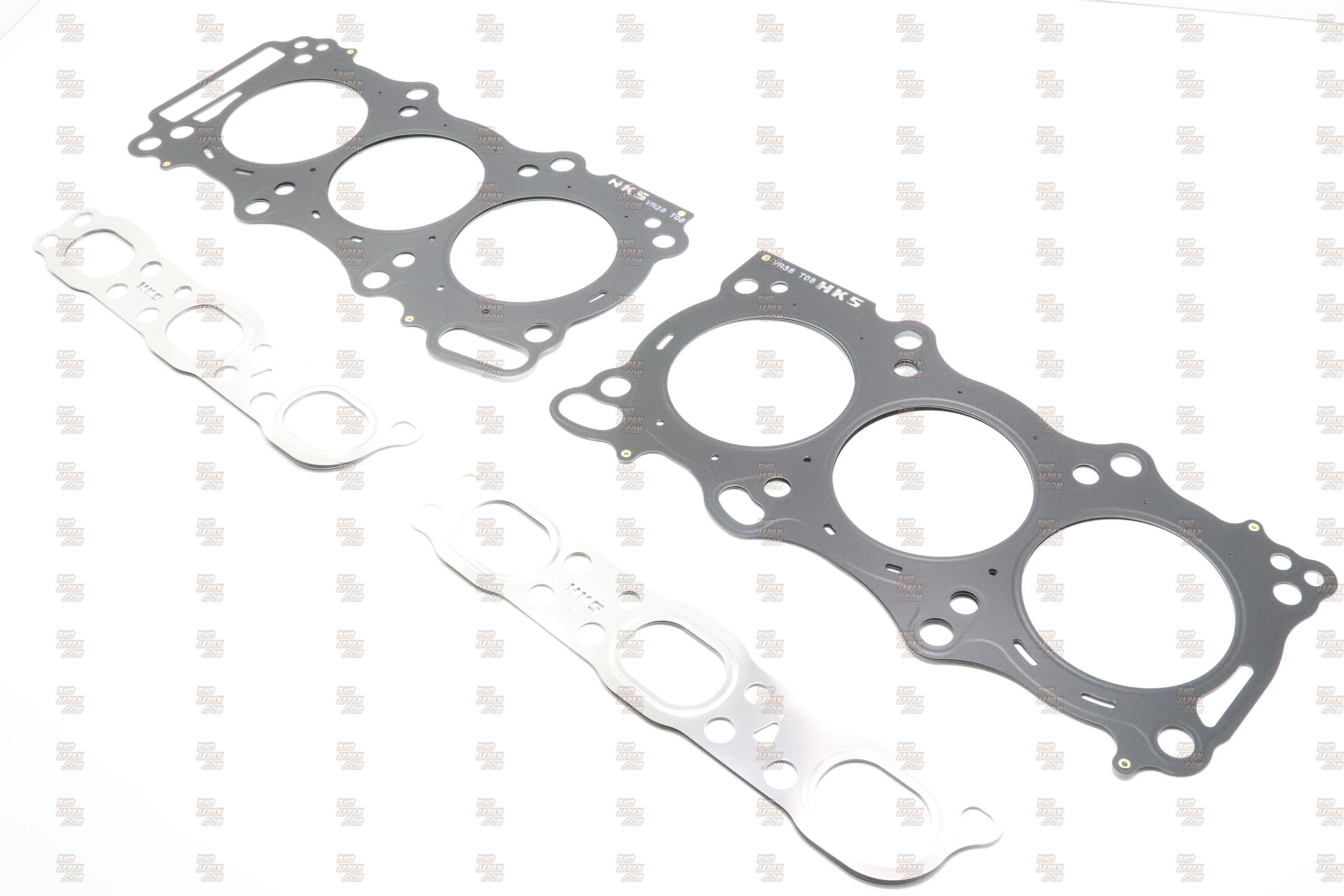

Kit Includes:

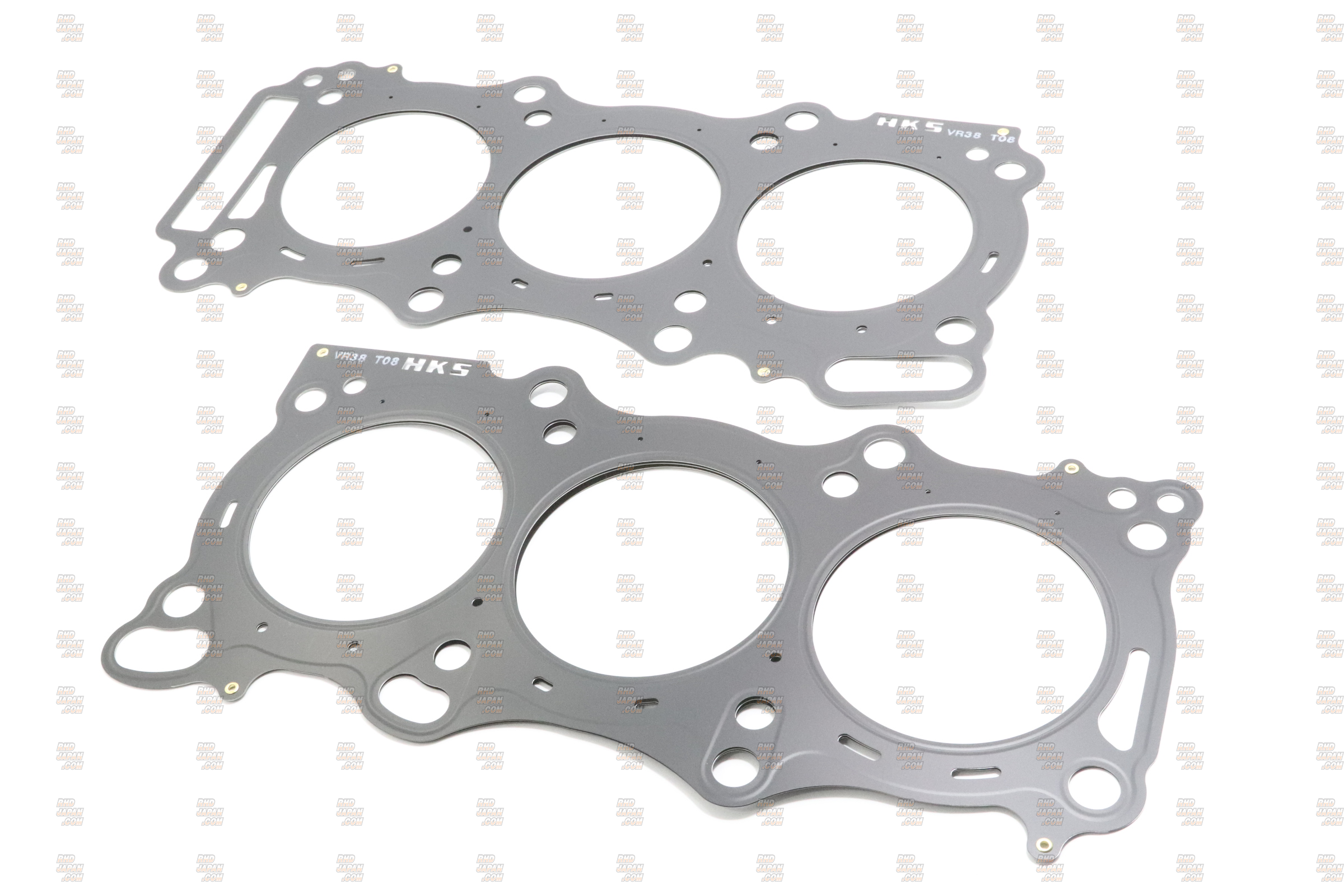

- 2x Head Gaskets (Left and Right)
- 2x Exhaust Manifold Gaskets (Left and Right)
PRODUCT NOTES:
- Exhaust Manifold Gaskets
FEATURES:
Point 1:
- High engine output parts. Designed to replace the factory head gasket.
- The bore diameter and thickness are the same as the factory gasket.
- The shape of the exhaust gasket is the same as the factory gasket.

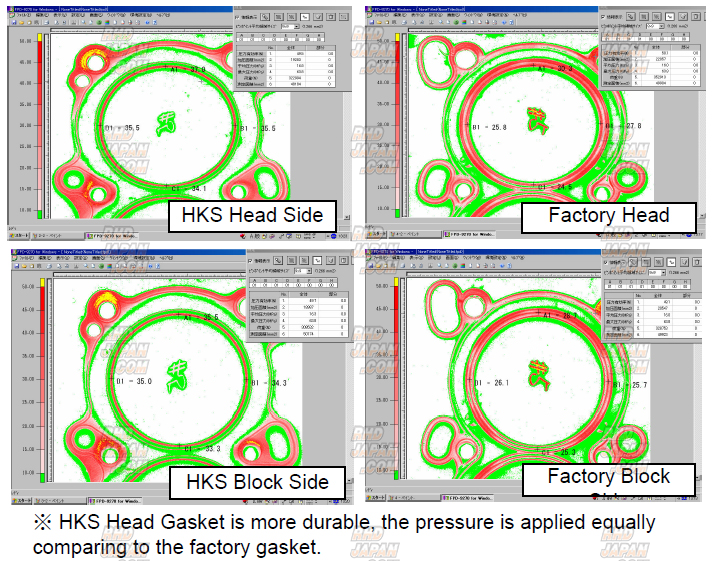

- Improved the bore seal proof stress at high output and high boost by the redesigning the structure without upgrading the head bolt. (Bore seal pressure of the contacted surface was improved by 30%)
- In-house test at 900PS confirmed the durability and safety.
- The compression rate of HKS Head Gasket ise9.0 which is the same as the factory rate.
- The Exhaust Manifold Gasket uses the 4-layer seal bead design (t=0.8). (The factory is 3-layer design (t=0.6)
Point 2:

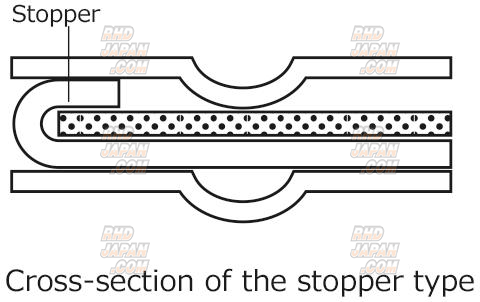

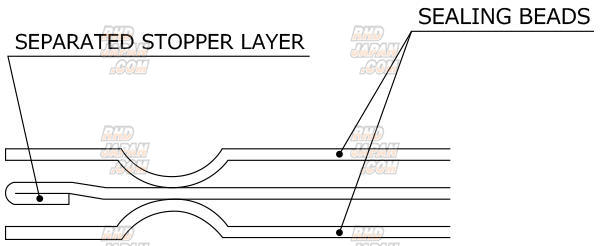

To maintain the bore seal proof stress, the stoppers height was changed to 0.15mm from 0.10mm. Narrowing the width enables the high proof stress with the factory head bolt axial tension. Also, optimizing the bead plates angle improved the seal pressure of the contacted surfaces of the oil and coolant seal parts without affecting the bore seal pressure of contacted surfaces. The surface of the gasket was fully coated instead of only bead part of the factory gaskets surface like the factory gasket. Fully coated gaskets surface can improve the rigid connection of the engine head and block when installing the gasket.
Product: Metal Head Gasket Kit - Stopper Type 0.8mm VR38DETT
Part Number: 23009-AN010
SPECIFICATIONS:
Bore (mm): 96.0
Compression Ratio: e=9.0
Thickness (mm): 0.8
Kit Includes:
- 2x Head Gaskets (Left and Right)
- 2x Exhaust Manifold Gaskets (Left and Right)
PRODUCT NOTES:
- Exhaust Manifold Gaskets
FEATURES:
Point 1:
- High engine output parts. Designed to replace the factory head gasket.
- The bore diameter and thickness are the same as the factory gasket.
- The shape of the exhaust gasket is the same as the factory gasket.
- Improved the bore seal proof stress at high output and high boost by the redesigning the structure without upgrading the head bolt. (Bore seal pressure of the contacted surface was improved by 30%)
- In-house test at 900PS confirmed the durability and safety.
- The compression rate of HKS Head Gasket ise9.0 which is the same as the factory rate.
- The Exhaust Manifold Gasket uses the 4-layer seal bead design (t=0.8). (The factory is 3-layer design (t=0.6)
Point 2:
To maintain the bore seal proof stress, the stoppers height was changed to 0.15mm from 0.10mm. Narrowing the width enables the high proof stress with the factory head bolt axial tension. Also, optimizing the bead plates angle improved the seal pressure of the contacted surfaces of the oil and coolant seal parts without affecting the bore seal pressure of contacted surfaces. The surface of the gasket was fully coated instead of only bead part of the factory gaskets surface like the factory gasket. Fully coated gaskets surface can improve the rigid connection of the engine head and block when installing the gasket.
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Nissan GT-R R35 VR38DETT (11/2007-11/2010)
Nissan GT-R R35 VR38DETT (11/2010-06/2016)
Nissan GT-R R35 VR38DETT (07/2016-11/2017)
Nissan GT-R R35 VR38DETT (11/2017~)
Nissan GT-R R35 VR38DETT (11/2007-11/2010)
Nissan GT-R R35 VR38DETT (11/2010-06/2016)
Nissan GT-R R35 VR38DETT (07/2016-11/2017)
Nissan GT-R R35 VR38DETT (11/2017~)
