HPI EVOLVE Engine Oil Cooler Kit Standard Element - M20 X P1.5 W1 Core
88409
JPY
HPI
SKU: 86787

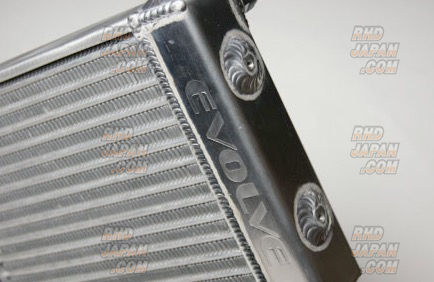

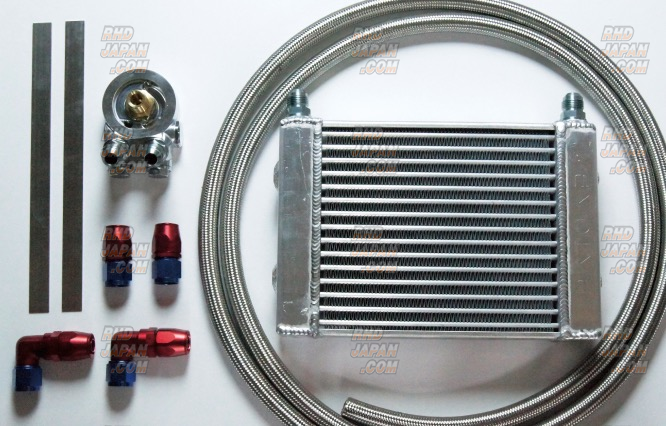

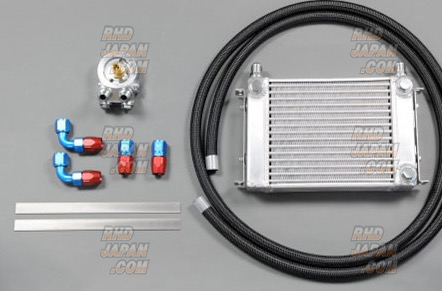

PN: HPOCE-W1SETSTD2This kit is part of the high end EVOLVE series designed to be even lighter, more compact while also having lower pressure loss and even more cooling ability from the standard kits. Advanced inner and outer fin design along with the addition of side tanks allows for increased oil capacity and superior cooling performance which helps to extend engine and oil life. Thermostat equipped sandwich block will allow for quick operating temperature and sensor fittings will allow you the option to add meters to keep a precise eye on oil data.

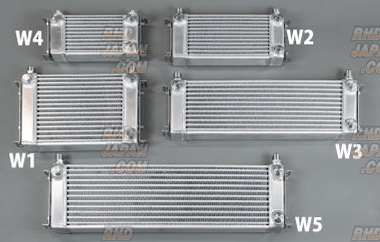

Available in a variety of different shapes to fit custom mount locations and different sizes to match cooling requirements. A great high-performance orientated kit recommended serious applications. Get this and all your JDM at RHDJapan!!
Available in a variety of different shapes to fit custom mount locations and different sizes to match cooling requirements. A great high-performance orientated kit recommended serious applications. Get this and all your JDM at RHDJapan!!
Brand: HPI
Product: Engine Oil Cooler Kit Standard Element - M20 X P1.5 W1 Core
Part Number: HPOCE-W1SETSTD2
SPECIFICATIONS:

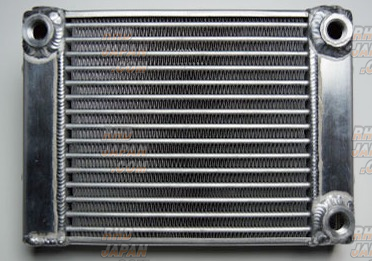

Core Type: W1
Core Size (mm): 300X200X50
Core Weight (kg): 2.02
Center Bolt: M20 X P1.5
O-Ring Size (mm): 65/70
End Tank Type: Side Tank
Fin Design:
-Inner: Turbulator
-Outer: Wave
Mount Position:
-Core: FREE
-Oil Filter: Standard
Sandwich: Thermostat Equipped with Sensor Fittings
PRODUCT NOTES:
- Item is universal which can be used with any application of Center Bolt: M20 X P1.5
Product: Engine Oil Cooler Kit Standard Element - M20 X P1.5 W1 Core
Part Number: HPOCE-W1SETSTD2
SPECIFICATIONS:
Core Type: W1
Core Size (mm): 300X200X50
Core Weight (kg): 2.02
Center Bolt: M20 X P1.5
O-Ring Size (mm): 65/70
End Tank Type: Side Tank
Fin Design:
-Inner: Turbulator
-Outer: Wave
Mount Position:
-Core: FREE
-Oil Filter: Standard
Sandwich: Thermostat Equipped with Sensor Fittings
PRODUCT NOTES:
- Item is universal which can be used with any application of Center Bolt: M20 X P1.5
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Universal
Universal
