These items are designed as a replacement for the factory valve springs. Improved materials and design provide more durable and accurate operation of engine valves. Especially on higher-revving engines and those with high-lift camshafts performance valve springs become a necessity for performance. Get this and all your JDM at RHDJapan!!
Brand: JUN AUTO

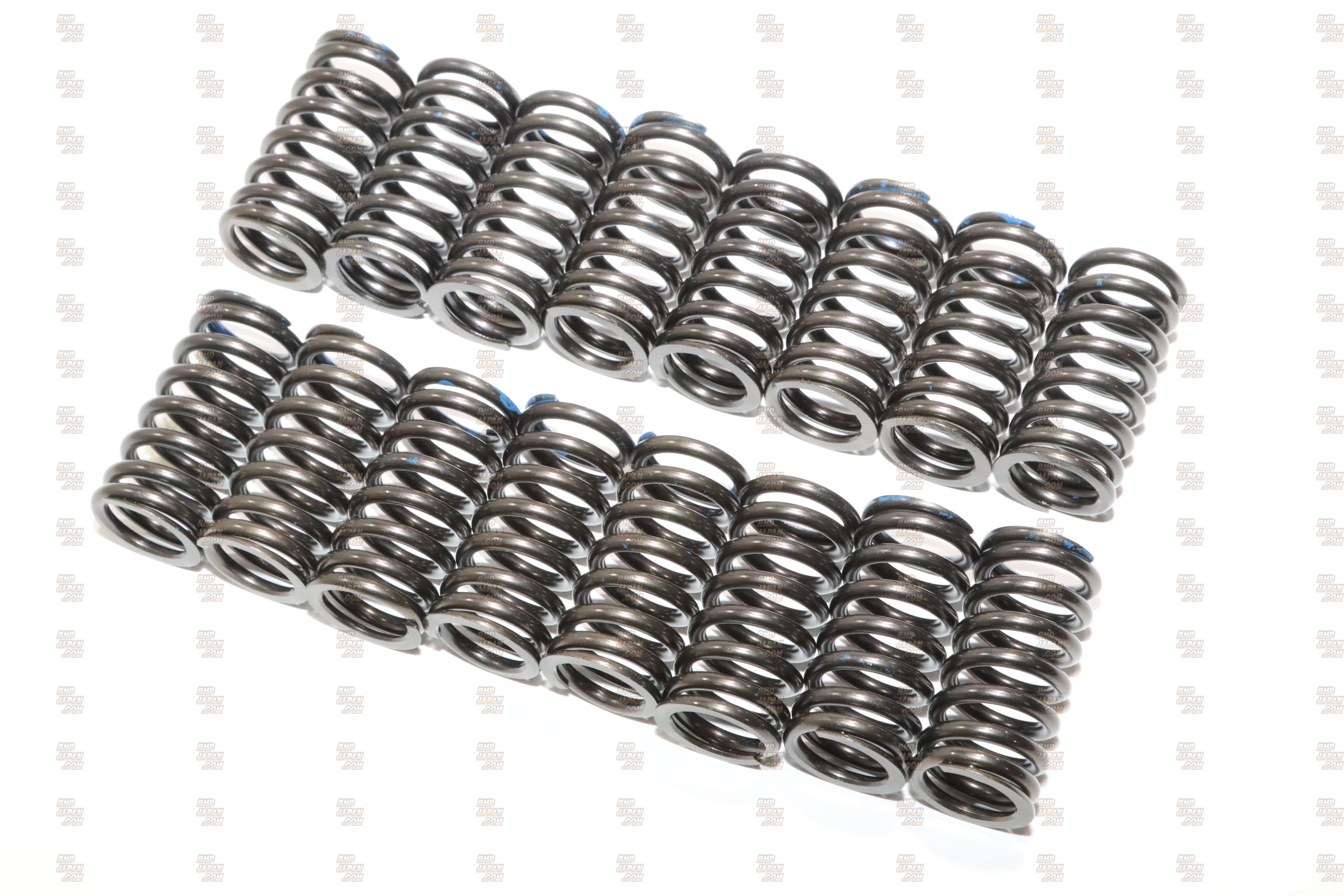

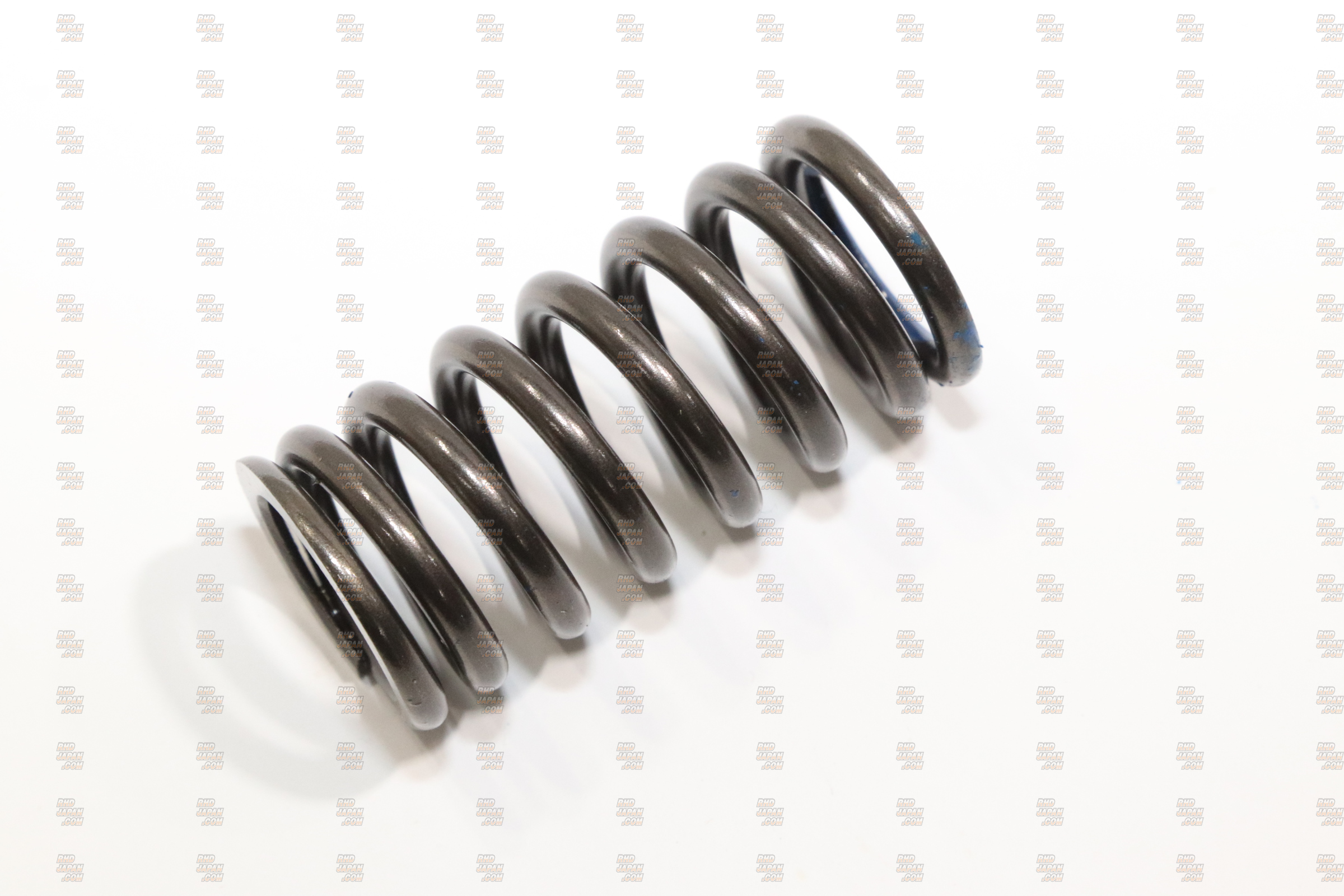

Product: Reinforced Valve Springs Set - EJ20

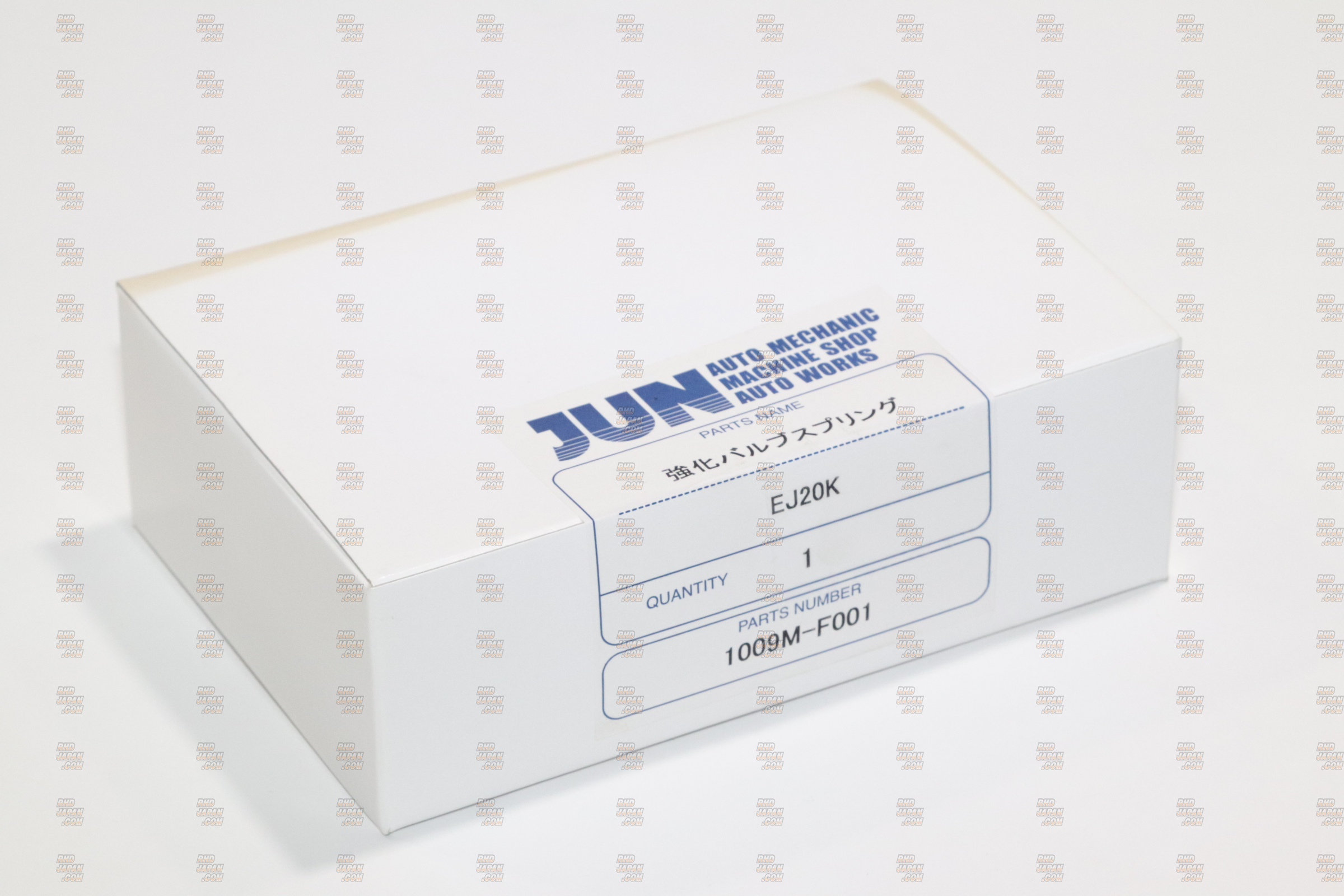

Part Num: 1009M-F001
SPECIFICATIONS:
- EJ20 -
Diam (mm): 3.8
Set length (mm): 42.5
Lift length (mm): 31.5
Set load (kgf): 33.0
Lift load (kgf): 72.8
- For Inner Shim
FEATURES:
When valve speed increases by high rotation of engine, 'Jumping' may occur by the factory valve springs. Moreover, since inherent pitch is low, 'Surging' may occur in a high rotation region. In JUN, the valve spring with which the load optimal at the time of a set and a valve lift is acquired was manufactured. Even when the amount of valve lifts increases by using a high cam, since the adhesion margin is secured enough, the JUN valve springs does not have degradation and its durability is also improving.
Product: Reinforced Valve Springs Set - EJ20
Part Num: 1009M-F001
SPECIFICATIONS:
- EJ20 -
Diam (mm): 3.8
Set length (mm): 42.5
Lift length (mm): 31.5
Set load (kgf): 33.0
Lift load (kgf): 72.8
- For Inner Shim
FEATURES:
When valve speed increases by high rotation of engine, 'Jumping' may occur by the factory valve springs. Moreover, since inherent pitch is low, 'Surging' may occur in a high rotation region. In JUN, the valve spring with which the load optimal at the time of a set and a valve lift is acquired was manufactured. Even when the amount of valve lifts increases by using a high cam, since the adhesion margin is secured enough, the JUN valve springs does not have degradation and its durability is also improving.
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Subaru Exiga YA4 Applied A EJ20 (06/2008-08/2009)
Subaru Exiga YA4 Applied B EJ20 (09/2009-07/2010)
Subaru Exiga YA4 Applied C EJ20 (08/2010-06/2011)
Subaru Exiga YA4 Applied D EJ20 (07/2011-06/2012)
Subaru Exiga YA5 Applied A EJ20 (06/2008-08/2009)
Subaru Exiga YA5 Applied B EJ20 (09/2009-07/2010)
Subaru Exiga YA5 Applied C EJ20 (08/2010-06/2011)
Subaru Exiga YA5 Applied D EJ20 (07/2011-06/2012)
Subaru Exiga YA5 Applied E EJ20 (07/2012-07/2013)
Subaru Exiga YA5 Applied F EJ20 (08/2013-07/2014)
Subaru Exiga YA5 Applied G EJ20 (08/2014-04/2015)
Subaru Forester SF5 Applied A EJ20T (02/1997-08/1998)
Subaru Forester SF5 Applied B EJ20T (09/1998-12/1999)
Subaru Forester SF5 Applied C EJ20T (01/2000-12/2000)
Subaru Forester SF5 Applied D EJ20T (01/2001-01/2002)
Subaru Forester SG5 Applied A EJ20T (02/2002-01/2003)
Subaru Forester SG5 Applied B EJ20T (02/2003-01/2004)
Subaru Forester SG5 Applied C EJ20T (02/2004-12/2004)
Subaru Forester SG5 Applied D EJ20T (01/2005-11/2005)
Subaru Forester SG5 Applied E EJ20T (12/2005-12/2006)
Subaru Forester SG5 Applied F EJ20T (01/2007-11/2007)
Subaru Forester SH5 Applied A EJ20 (12/2007-12/2008)
Subaru Forester SH5 Applied B EJ20 (01/2009-10/2010)
Subaru Impreza WRX GC8 Applied D EJ20K (09/1996-09/1997)
Subaru Impreza WRX GC8 Applied E EJ20K (09/1997-09/1998)
Subaru Impreza WRX STI GC8 Version III EJ20K (09/1996-09/1997)
Subaru Impreza WRX STI GC8 Version IV EJ20K (09/1997-09/1998)
Subaru Exiga YA4 Applied A EJ20 (06/2008-08/2009)
Subaru Exiga YA4 Applied B EJ20 (09/2009-07/2010)
Subaru Exiga YA4 Applied C EJ20 (08/2010-06/2011)
Subaru Exiga YA4 Applied D EJ20 (07/2011-06/2012)
Subaru Exiga YA5 Applied A EJ20 (06/2008-08/2009)
Subaru Exiga YA5 Applied B EJ20 (09/2009-07/2010)
Subaru Exiga YA5 Applied C EJ20 (08/2010-06/2011)
Subaru Exiga YA5 Applied D EJ20 (07/2011-06/2012)
Subaru Exiga YA5 Applied E EJ20 (07/2012-07/2013)
Subaru Exiga YA5 Applied F EJ20 (08/2013-07/2014)
Subaru Exiga YA5 Applied G EJ20 (08/2014-04/2015)
Subaru Forester SF5 Applied A EJ20T (02/1997-08/1998)
Subaru Forester SF5 Applied B EJ20T (09/1998-12/1999)
Subaru Forester SF5 Applied C EJ20T (01/2000-12/2000)
Subaru Forester SF5 Applied D EJ20T (01/2001-01/2002)
Subaru Forester SG5 Applied A EJ20T (02/2002-01/2003)
Subaru Forester SG5 Applied B EJ20T (02/2003-01/2004)
Subaru Forester SG5 Applied C EJ20T (02/2004-12/2004)
Subaru Forester SG5 Applied D EJ20T (01/2005-11/2005)
Subaru Forester SG5 Applied E EJ20T (12/2005-12/2006)
Subaru Forester SG5 Applied F EJ20T (01/2007-11/2007)
Subaru Forester SH5 Applied A EJ20 (12/2007-12/2008)
Subaru Forester SH5 Applied B EJ20 (01/2009-10/2010)
Subaru Impreza WRX GC8 Applied D EJ20K (09/1996-09/1997)
Subaru Impreza WRX GC8 Applied E EJ20K (09/1997-09/1998)
Subaru Impreza WRX STI GC8 Version III EJ20K (09/1996-09/1997)
Subaru Impreza WRX STI GC8 Version IV EJ20K (09/1997-09/1998)
