REIMAX Capacity Up Oil Pump Rotor Gear Kit - BRZ ZC6 86 ZN6
50919
JPY
REIMAX
SKU: 139428

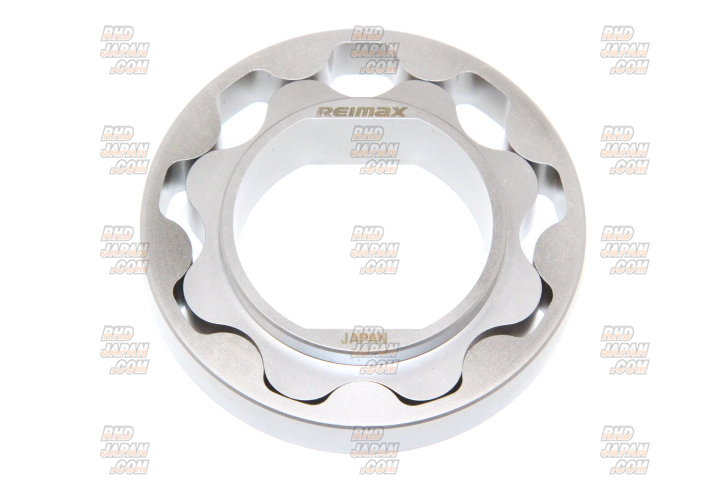

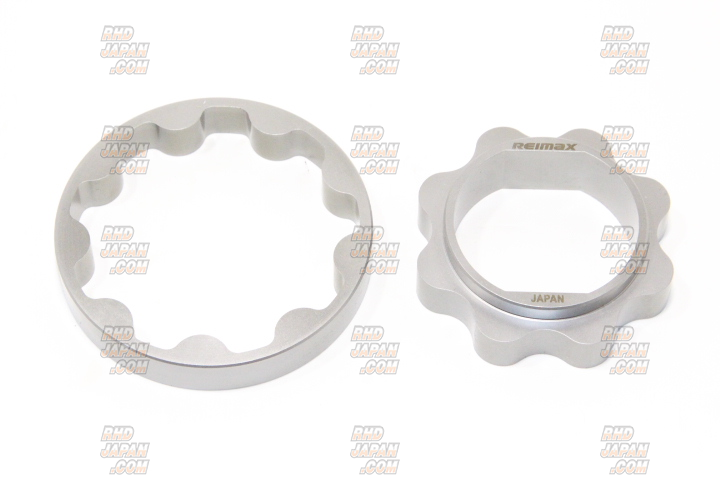

PN: A1510-FA20SThis item is designed to replace the factory oil pump rotor gear. Redesigned trochoid tooth profile in conjunction with thicker layout for improved efficiency and discharge of oil pump. Manufactured with superior material for extreme durability with special cover for direct installation and no machining required for installation. Ideal to cover oil pressure loss on vehicles with aftermarket oil cooler and preventative maintenance for high rev modified engines. Get this and all your JDM with RHDJapan!
Brand: Reimax
Product: Capacity Up Oil Pump Rotor Gear Kit - BRZ ZC6 86 ZN6
Part Number: A1510-FA20S
SPECIFICATIONS:
Material: Chromoly Steel (SCM 440H)
Outer Rotor Diameter: 77mm
Tooth Thickness: 14mm
Spacer Thickness (mm): 2
PRODUCT NOTES:

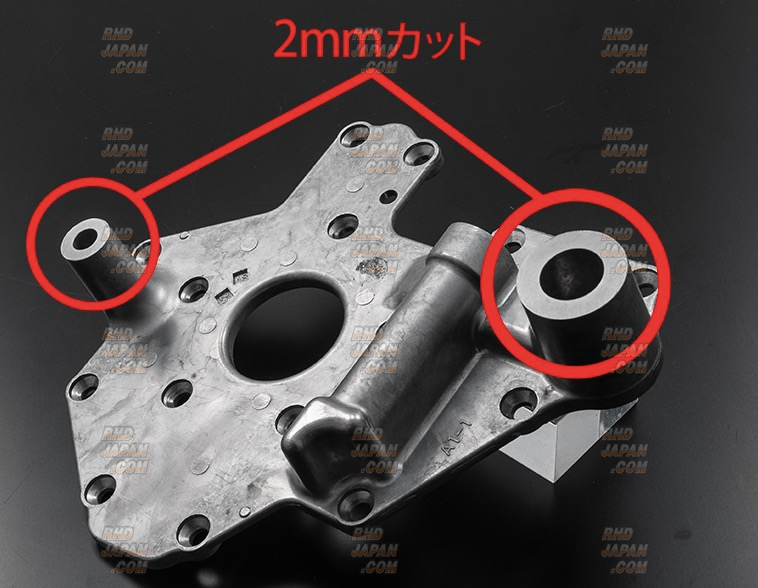

Oil journal on case needs to be cut by 2mm
Product: Capacity Up Oil Pump Rotor Gear Kit - BRZ ZC6 86 ZN6
Part Number: A1510-FA20S
SPECIFICATIONS:
Material: Chromoly Steel (SCM 440H)
Outer Rotor Diameter: 77mm
Tooth Thickness: 14mm
Spacer Thickness (mm): 2
PRODUCT NOTES:
Oil journal on case needs to be cut by 2mm
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Subaru BRZ ZC6 Applied A FA20 (04/2012-09/2013)
Subaru BRZ ZC6 Applied B FA20 (09/2013-06/2014)
Subaru BRZ ZC6 Applied C FA20 (07/2014-01/2015)
Subaru BRZ ZC6 Applied D FA20 (02/2015-05/2016)
Subaru BRZ ZC6 Applied E FA20 (06/2016-09/2017)
Subaru BRZ ZC6 Applied F FA20 (10/2017-03/2021)
Toyota 86 ZN6 FA20 (04/2012-08/2016)
Toyota 86 ZN6 FA20 (08/2016-03/2019)
Subaru BRZ ZC6 Applied A FA20 (04/2012-09/2013)
Subaru BRZ ZC6 Applied B FA20 (09/2013-06/2014)
Subaru BRZ ZC6 Applied C FA20 (07/2014-01/2015)
Subaru BRZ ZC6 Applied D FA20 (02/2015-05/2016)
Subaru BRZ ZC6 Applied E FA20 (06/2016-09/2017)
Subaru BRZ ZC6 Applied F FA20 (10/2017-03/2021)
Toyota 86 ZN6 FA20 (04/2012-08/2016)
Toyota 86 ZN6 FA20 (08/2016-03/2019)
