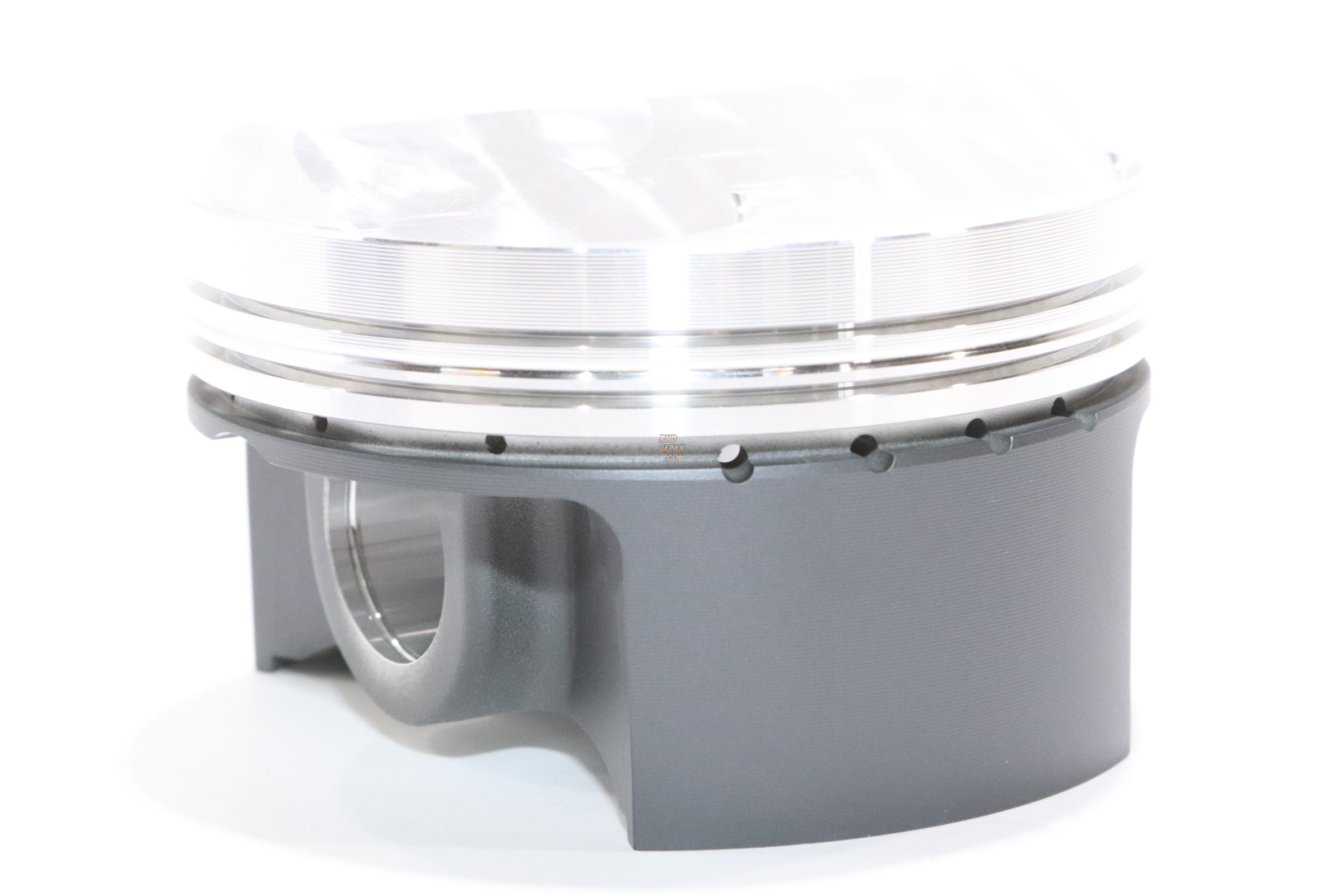

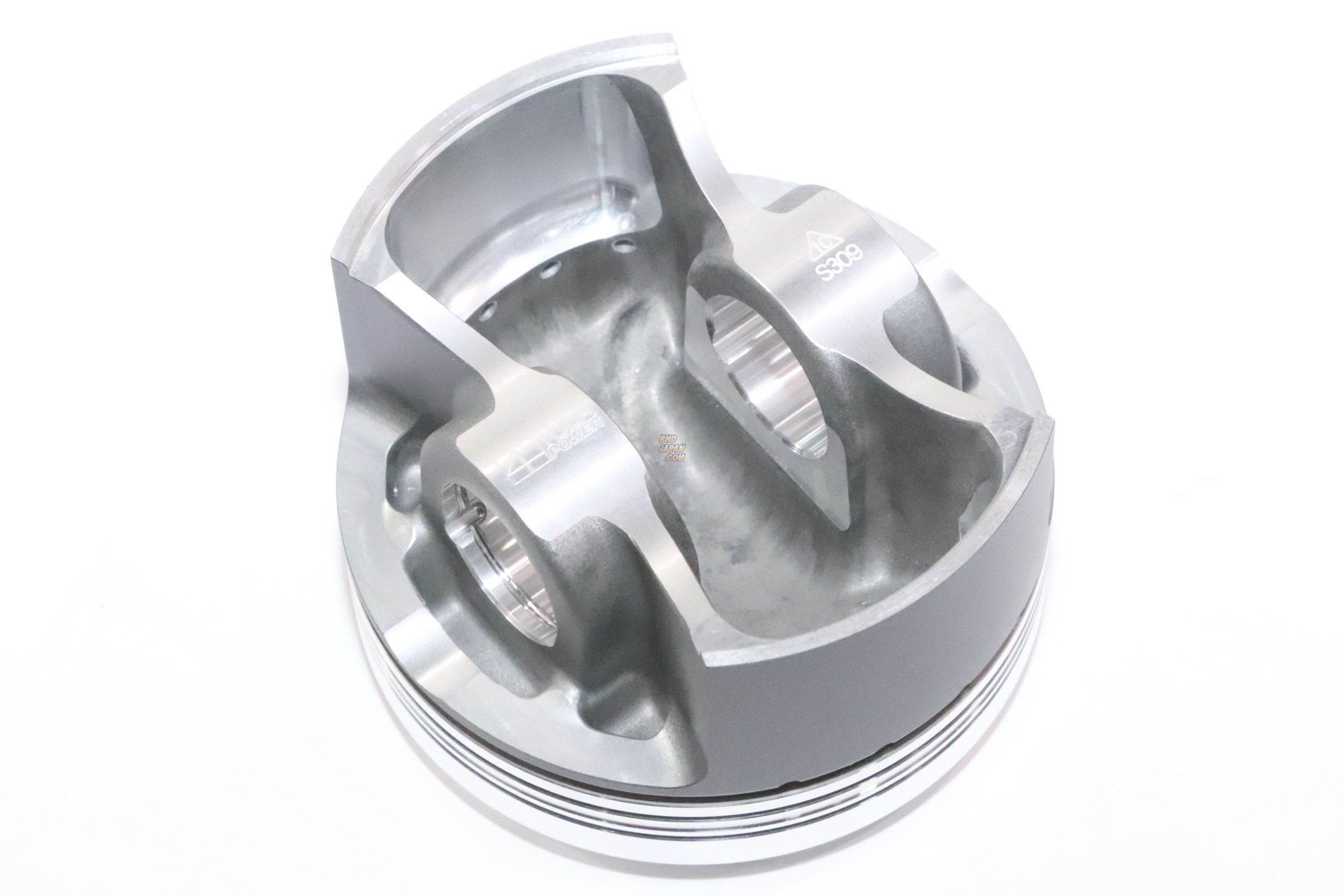

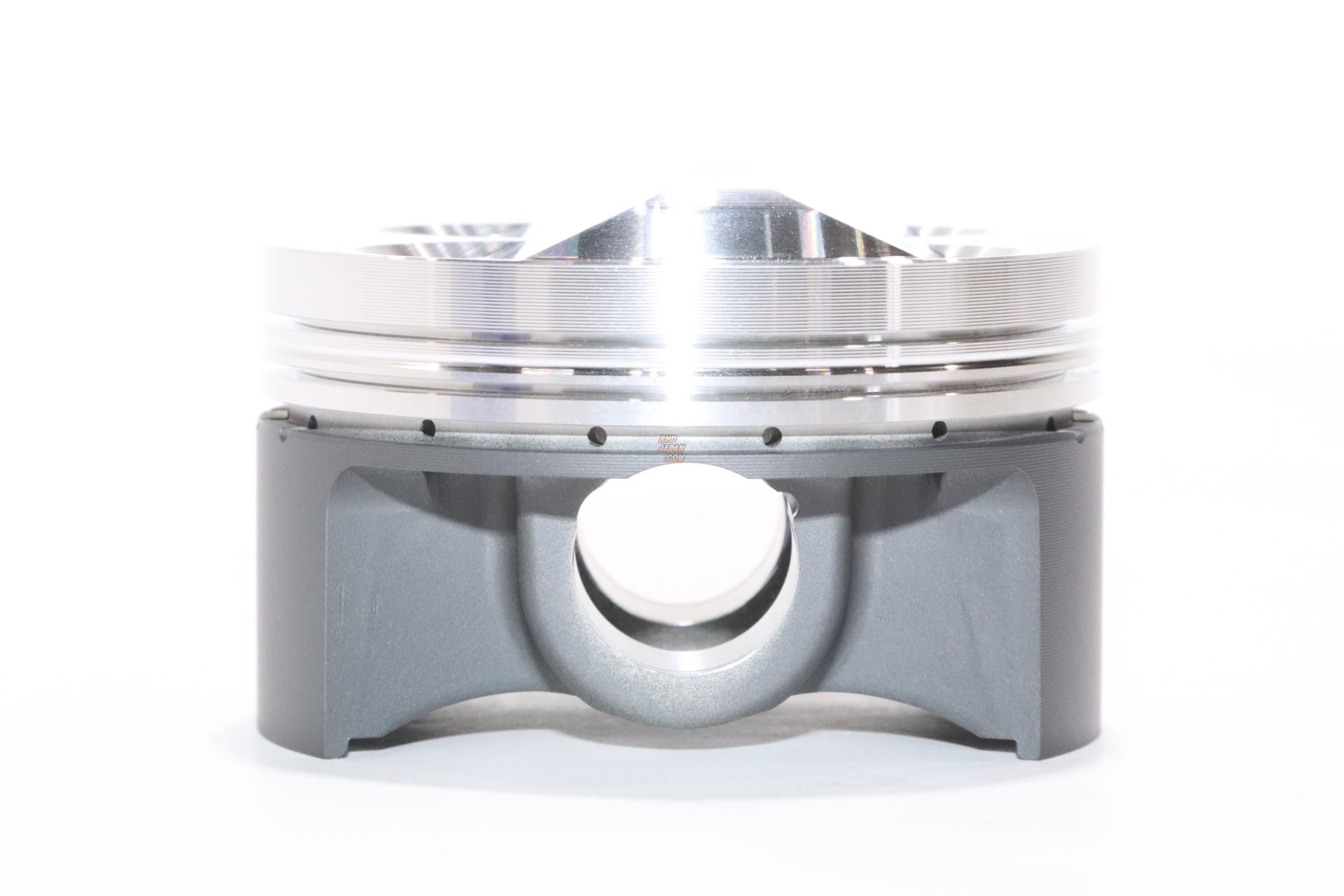

Toda Racing High Compression Forged Piston Kit N+ 86.00 - K20A
143459
JPY
TODA RACING
SKU: 95486
PN: 13010-K20-000
Brand: Toda Racing
Product: High Compression Forged Piston Kit N+ 86.00 - K20A
Part Num: 13010-K20-000
SPECIFICATIONS:

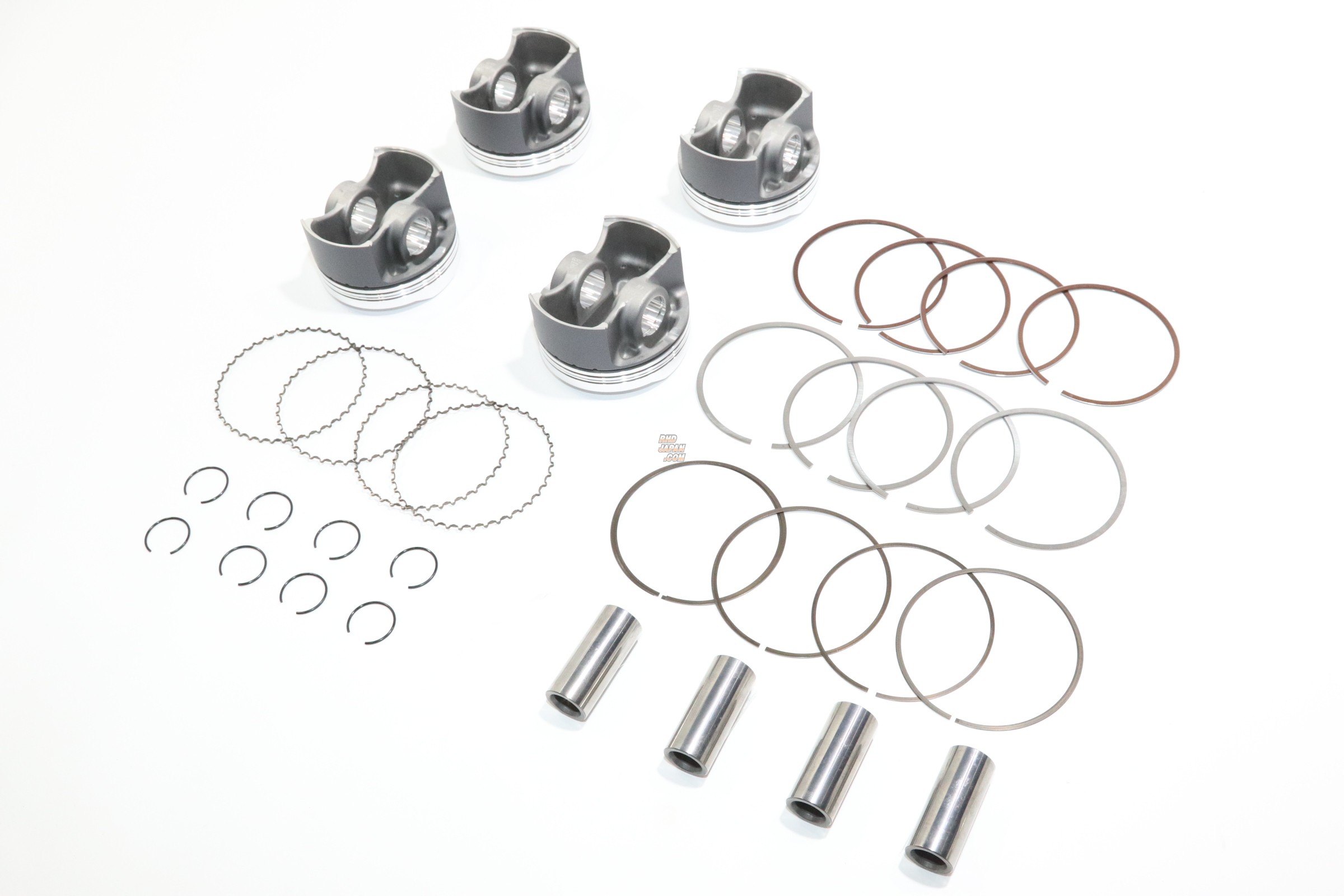

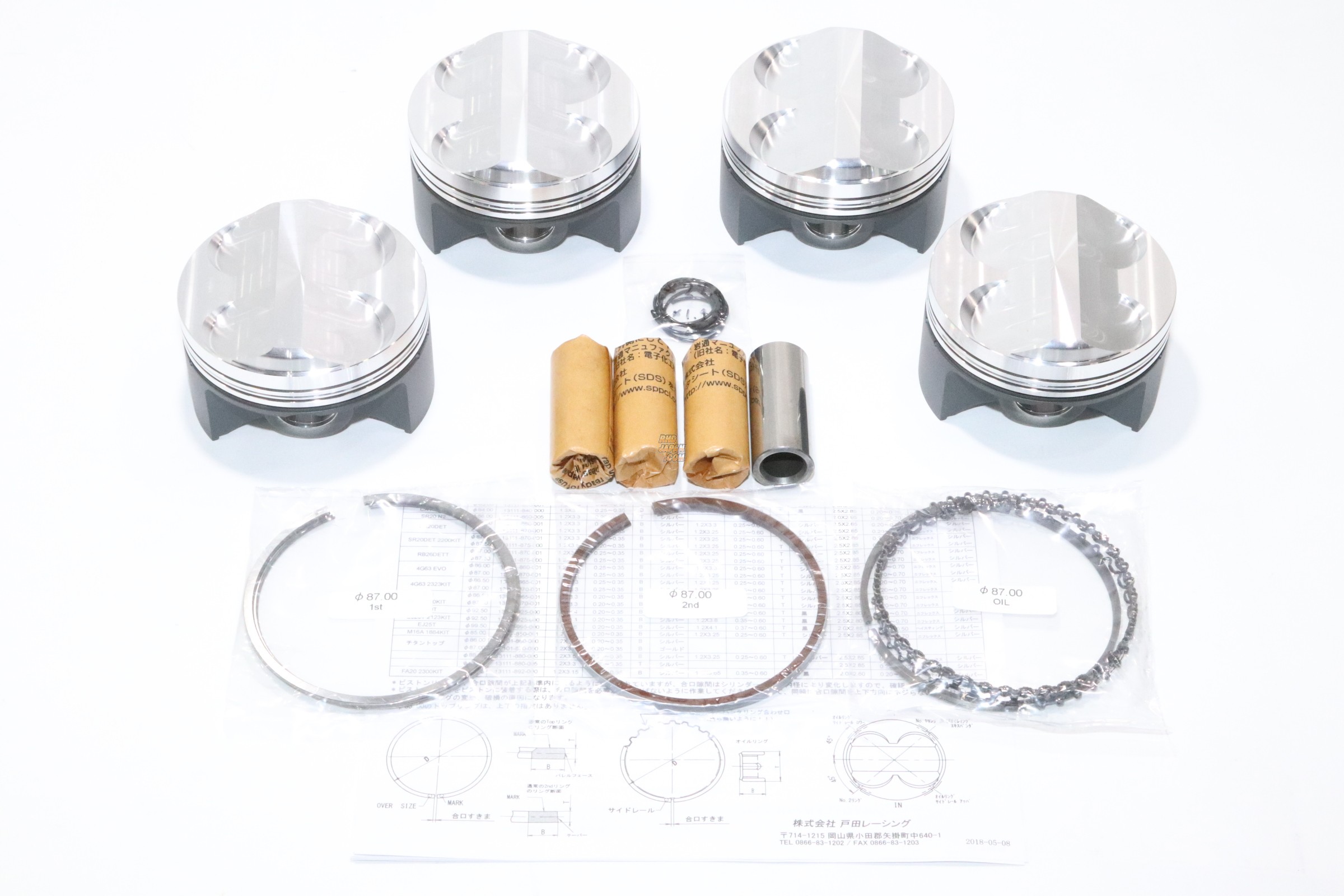

Kit contents:
- 4x Forged Pistons
- Rings
- Pins
- Clips
N+ 86.00:
Bore: 86.00mm
Displacement: 1998cc
Crown Volume (*1): 15.5cc/15.5cc
Projection Height (*2): 0.0mm
Reference C/R (*3):
- Toda head GK 0.3mm: 14.2:1
- OEM head GK 0.6mm: 13.6:1
PRODUCT NOTES:
- *1: Crown volume is measured from the piston shoulder/from the deck of the block.
- *2: Piston shoulder height is measured from the deck of the block.
- *3: The compression ratio given above are only to be taken as a guide, measurements are required.
COMPATIBILITY NOTES:
- For 86mm OEM stroke.
- Only for CIVIC TypeR, INTEGRA TypeR, ACCORD EuroR
- Optional Head Gasket is required, Toda recommends Toda 87.2mm Head Gasket (Part Num 12251-K20-006).
Product: High Compression Forged Piston Kit N+ 86.00 - K20A
Part Num: 13010-K20-000
SPECIFICATIONS:
Kit contents:
- 4x Forged Pistons
- Rings
- Pins
- Clips
N+ 86.00:
Bore: 86.00mm
Displacement: 1998cc
Crown Volume (*1): 15.5cc/15.5cc
Projection Height (*2): 0.0mm
Reference C/R (*3):
- Toda head GK 0.3mm: 14.2:1
- OEM head GK 0.6mm: 13.6:1
PRODUCT NOTES:
- *1: Crown volume is measured from the piston shoulder/from the deck of the block.
- *2: Piston shoulder height is measured from the deck of the block.
- *3: The compression ratio given above are only to be taken as a guide, measurements are required.
COMPATIBILITY NOTES:
- For 86mm OEM stroke.
- Only for CIVIC TypeR, INTEGRA TypeR, ACCORD EuroR
- Optional Head Gasket is required, Toda recommends Toda 87.2mm Head Gasket (Part Num 12251-K20-006).
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Honda Accord CL7 K20A (10/2002-11/2005)
Honda Accord CL7 K20A (11/2005-11/2008)
Honda Civic Type-R EP3 K20A (12/2001-09/2003)
Honda Civic Type-R EP3 K20A (09/2003-09/2005)
Honda Civic Type-R FD2 K20A (04/2006-09/2006)
Honda Civic Type-R FD2 K20A (09/2006-09/2008)
Honda Civic Type-R FD2 K20A (09/2008-08/2010)
Honda Integra DC5 K20A (07/2001-09/2004)
Honda Integra DC5 K20A (09/2004-07/2006)
Honda Accord CL7 K20A (10/2002-11/2005)
Honda Accord CL7 K20A (11/2005-11/2008)
Honda Civic Type-R EP3 K20A (12/2001-09/2003)
Honda Civic Type-R EP3 K20A (09/2003-09/2005)
Honda Civic Type-R FD2 K20A (04/2006-09/2006)
Honda Civic Type-R FD2 K20A (09/2006-09/2008)
Honda Civic Type-R FD2 K20A (09/2008-08/2010)
Honda Integra DC5 K20A (07/2001-09/2004)
Honda Integra DC5 K20A (09/2004-07/2006)
