Works Bell Standard Boss Kit - Spacia MK42S Swift ZC72S ZD72S Swift Sport ZC32S
8569
JPY
WORKS BELL
SKU: 121110
PN: 415This Boss Kit/Hub adapter allows for adaptation of aftermarket steering wheel. Whether on or off the circuit the steering wheel is one of the first modifications to improve driving enjoyment and feel. Manufactured by boss kit specialist with superior materials and processing for extreme durability and reliability for any driving application.
Get this and all your JDM at RHDJapan!!
Get this and all your JDM at RHDJapan!!
Brand: Works Bell
Product: Standard Boss Kit - Spacia MK42S Swift ZC72S ZD72S Swift Sport ZC32S
Part Number: 415
PRODUCT NOTES:
- Functions/equipment cannot be used, which is operated only from the switches on steering wheel.
COMPATIBILITY NOTES:
- For vehicles equipped with Airbags.
- ZC72S ZD72S: For vehicles from 09/10 to 12/16, equipped with automatic cruise control.
- ZC32S: For vehicles to 12/16, equipped with automatic cruise control.
- MK42S: For vehicles from 05/17.
INSTALLATION NOTE:
INSTALLATION NOTE:

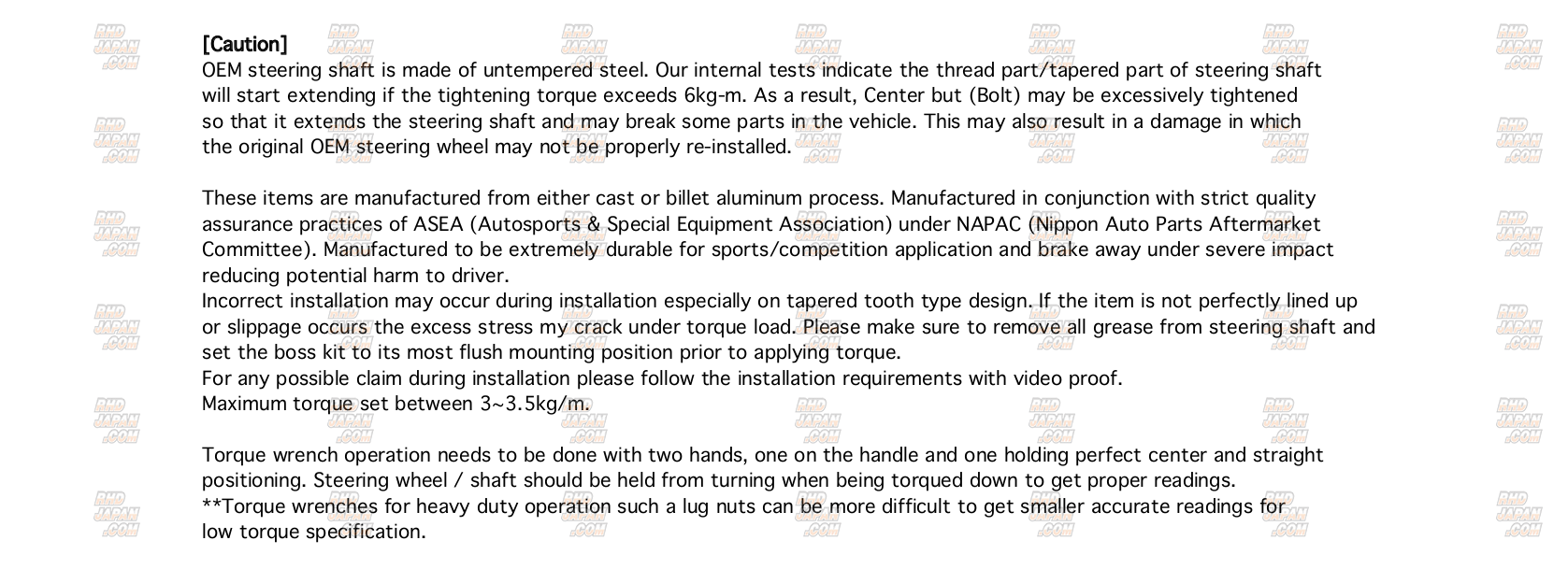

These items are manufactured from either cast or billet aluminum process. Manufactured in conjunction with strict quality assurance practices of ASEA (Autosports & Special Equipment Association) under NAPAC (Nippon Auto Parts Aftermarket Committee). Manufactured to be extremely durable for sports/competition application and brake away under severe impact reducing potential harm to driver.

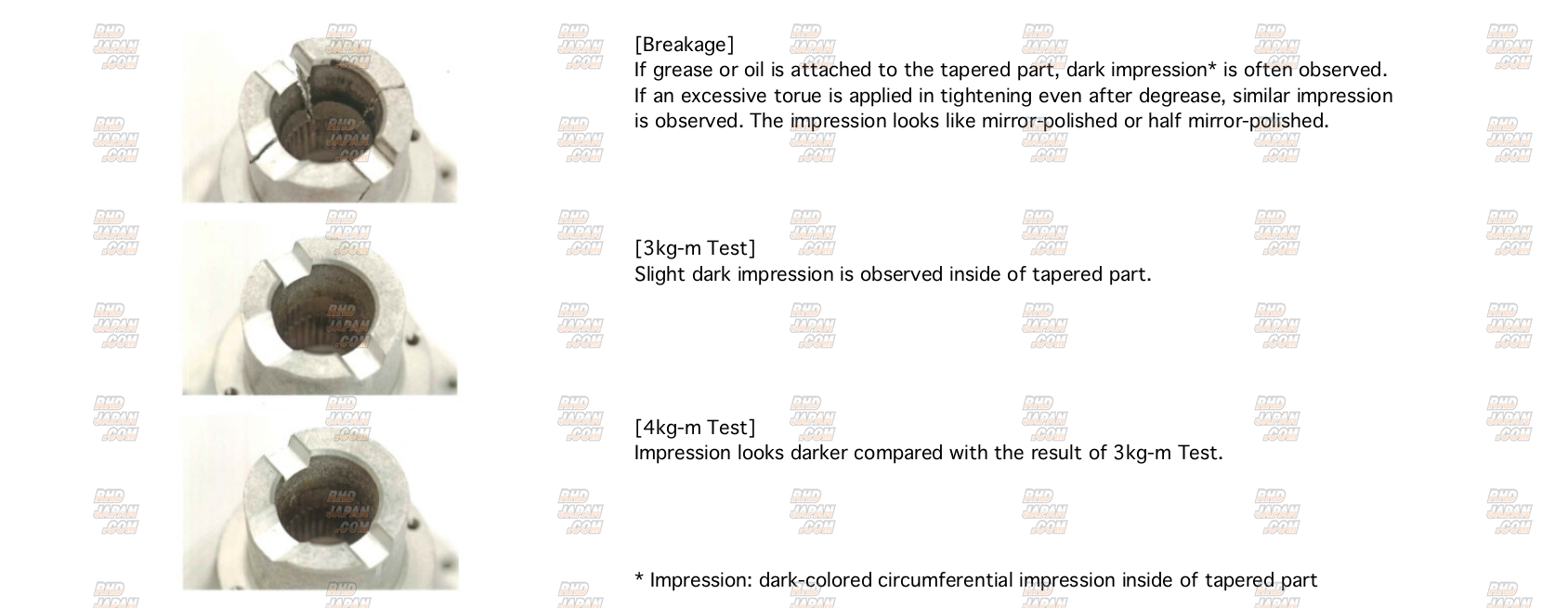

Incorrect installation may occur during installation especially on tapered tooth type design. If the item is not perfectly lined up or slippage occurs the excess stress my crack under torque load. Please make sure to remove all grease from steering shaft and set the boss kit to its most flush mounting position prior to applying torque.
For any possible claim during installation please follow the installation requirements with video proof.

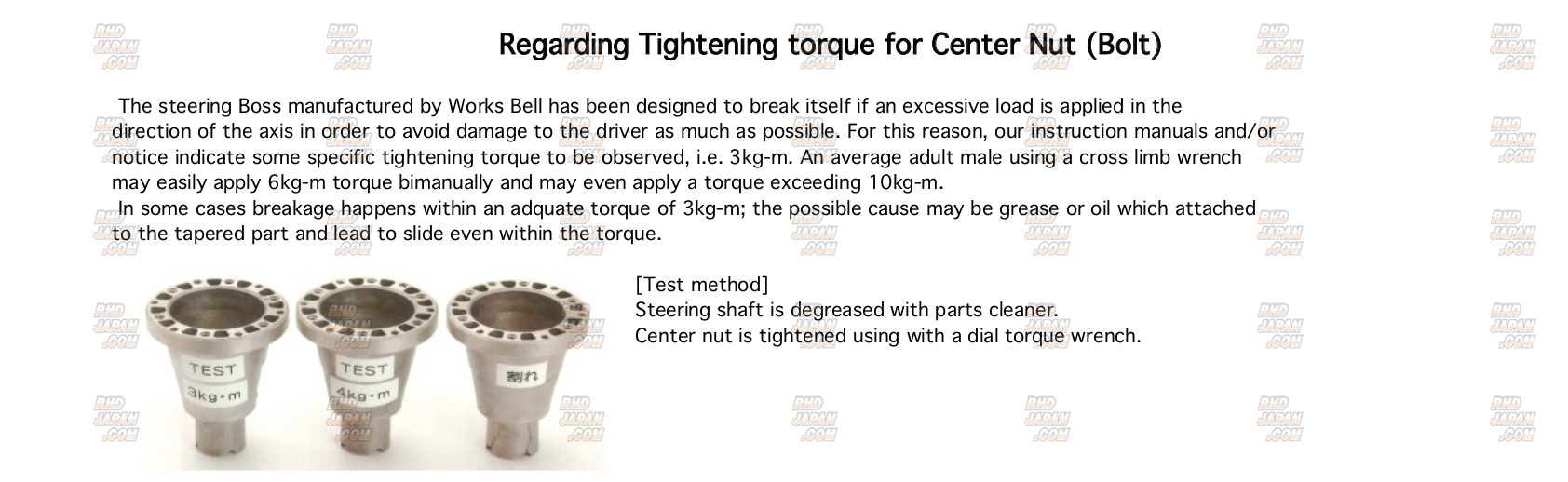

- Maximum torque set between 3~3.5kg/m.
*Torque wrench operation needs to be done with two hands, one on the handle and one holding perfect center and straight positioning.
**Steering wheel / shaft should be held from turning when being torqued down to get proper readings.
***Torque wrenches for heavy duty operation such a lug nuts can be more difficult to get smaller accurate readings for low torque specification.
Product: Standard Boss Kit - Spacia MK42S Swift ZC72S ZD72S Swift Sport ZC32S
Part Number: 415
PRODUCT NOTES:
- Functions/equipment cannot be used, which is operated only from the switches on steering wheel.
COMPATIBILITY NOTES:
- For vehicles equipped with Airbags.
- ZC72S ZD72S: For vehicles from 09/10 to 12/16, equipped with automatic cruise control.
- ZC32S: For vehicles to 12/16, equipped with automatic cruise control.
- MK42S: For vehicles from 05/17.
INSTALLATION NOTE:
INSTALLATION NOTE:
These items are manufactured from either cast or billet aluminum process. Manufactured in conjunction with strict quality assurance practices of ASEA (Autosports & Special Equipment Association) under NAPAC (Nippon Auto Parts Aftermarket Committee). Manufactured to be extremely durable for sports/competition application and brake away under severe impact reducing potential harm to driver.
Incorrect installation may occur during installation especially on tapered tooth type design. If the item is not perfectly lined up or slippage occurs the excess stress my crack under torque load. Please make sure to remove all grease from steering shaft and set the boss kit to its most flush mounting position prior to applying torque.
For any possible claim during installation please follow the installation requirements with video proof.
- Maximum torque set between 3~3.5kg/m.
*Torque wrench operation needs to be done with two hands, one on the handle and one holding perfect center and straight positioning.
**Steering wheel / shaft should be held from turning when being torqued down to get proper readings.
***Torque wrenches for heavy duty operation such a lug nuts can be more difficult to get smaller accurate readings for low torque specification.
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Suzuki Spacia MK42S R06A (03/2013-12/2017)
Suzuki Swift ZC72S K12B (11/2009-07/2013)
Suzuki Swift ZC72S K12B (07/2013-01/2017)
Suzuki Swift ZD72S K12B (09/2010-01/2017)
Suzuki Swift Sport ZC32S M16A (12/2011-09/2017)
Suzuki Spacia MK42S R06A (03/2013-12/2017)
Suzuki Swift ZC72S K12B (11/2009-07/2013)
Suzuki Swift ZC72S K12B (07/2013-01/2017)
Suzuki Swift ZD72S K12B (09/2010-01/2017)
Suzuki Swift Sport ZC32S M16A (12/2011-09/2017)
