Toda Racing High Power Profile EX Camshaft Type C2 - CL7 EP3 FD2 FN2 DC5

59189 JPY

TODA RACING SKU: 51747 PN: 14121-K20-12C

Brand: Toda Racing

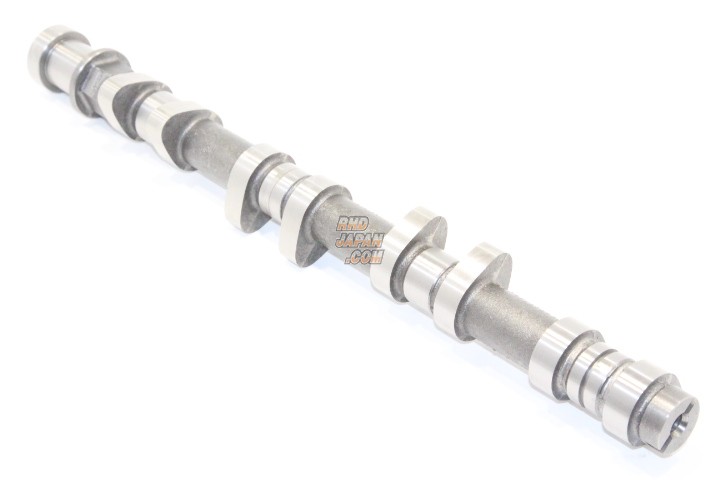

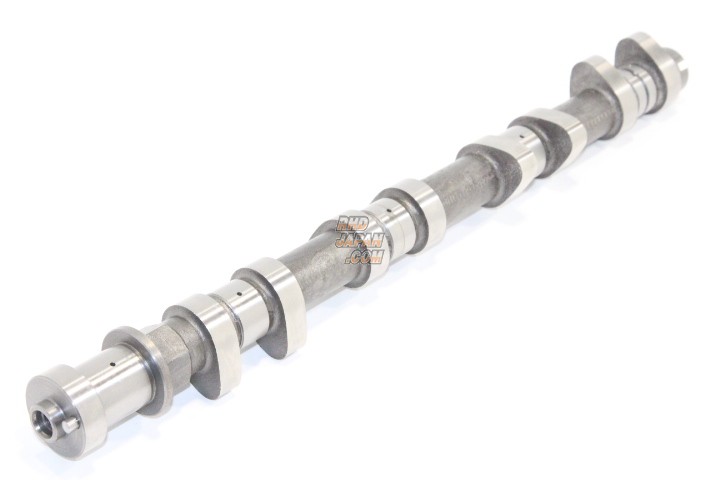

Product: High Power Profile EX Camshaft Type C2 - CL7 EP3 FD2 FN2 DC5
Part Num: 14121-K20-12C (OLD: 14121-K20-02C)

SPECIFICATIONS:
Side: Exhaust
Type: C2
Angle (valve lift):
- Primary: 250 (10.5)
- Mid: 295 (12.5)
- Secondary: 250 (10.5)

PRODUCT NOTES:
- The cam angles for Primary, Mid, Secondary are indicated.
- OEM valve spring cannot be used.
- Toda Up Rated Valve Spring required. (Part Number 14750-F20-000)
- On installing confirming that there is enough, valve to piston clearance, valve to valve clearance, cam lob to follower clearance during mid cam & VTC operation.
- Type A3, C2: Programmable ECU with tunable VTC required, Customers discretion required on selecting an ECU.

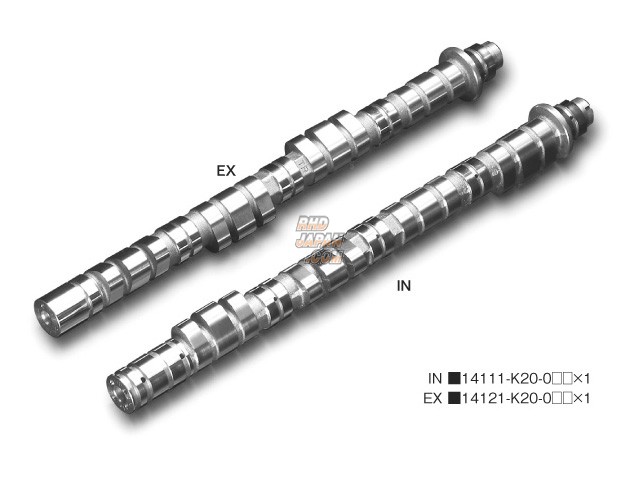

- Popular IN camshaft used in combination: 14111-K20-10C

COMPATIBILITY NOTES:
- CL7: Only Euro R Models.
- EP3 FD2 FN2 DC5: Only Type R Models.

Compatibility

Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.

Honda Accord CL7 K20A (10/2002-11/2005)
Honda Accord CL7 K20A (11/2005-11/2008)
Honda Civic Type-R EP3 K20A (12/2001-09/2003)
Honda Civic Type-R EP3 K20A (09/2003-09/2005)
Honda Civic Type-R FD2 K20A (04/2006-09/2006)
Honda Civic Type-R FD2 K20A (09/2006-09/2008)
Honda Civic Type-R FD2 K20A (09/2008-08/2010)
Honda Civic Type-R FN2 Euro K20A (11/2009-06/2012)
Honda Integra DC5 K20A (07/2001-09/2004)
Honda Integra DC5 K20A (09/2004-07/2006)
