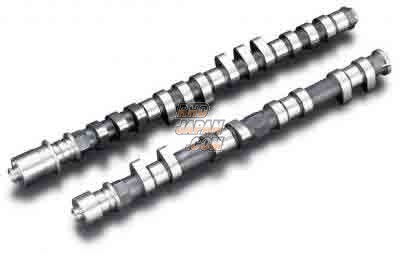

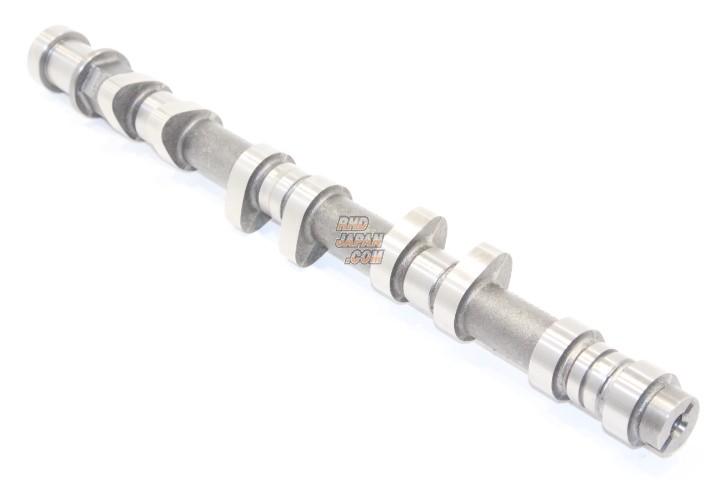

Toda Racing High Power Profile IN Camshaft 264 8.5 - AE101 AE111

Brand: Toda Racing
Product: High Power Profile IN Camshaft 264 8.5 - AE101 AE111
Part Num: 14111-101-011

SPECIFICATIONS:
Side: Intake
Angle 264
Lift (mm): 8.5

PRODUCT NOTES:
- When installing the cam, check that there is enough piston to valve clearance for the full operating range of the VVT system.- Cam dowel pin phase angle same as STD AE101.- Cam center angle be based on AE101. (125 deg as cam center angle in default)

COMPATIBILITY NOTES:
- Only for 4A-G 20 Valves Engines.
- In the case that the STD cam pulley is to be used (Intake with VVT function) the following information is required:
-- Toda's 4AG20V IN Camshaft is based on the AE101 engine, so no extra modifications are required. The AE111 engine (Black head cover) can also use this IN Camshaft but may require the following modifications. This is due to the cam dowel pin location on the STD Camshaft. The position of the STD cam center angle when used with the STD pulley of the AE111 engine is 120deg. Toda's Camshaft center angle become 125deg when used with the STD pulley, this may require the Camshaft to be advanced by 5deg. Thoughts wanting to re-time the cam to the manufactures STD central cam timing position, we recommend that you use the two stepped dowel pin (Part Number 14100-111-000).
This new position of the Camshaft advances the timing by the required 5deg (from 125deg up to 120deg as AE111 standard central angle).

FEATURES:
- Opening Valve Rate Improved
By improving the opening valve rate via the smooth acceleration and the smoothing of the transition from closed to open the period of time that the valve is open for is greatly improved. So by using the principals of quick but smooth actions more air can be drawn through the engine.
- Non-symmetrical
The cam profile of both the opening and closing phases of the valve lift are not symmetrical, as the closing phase is extended slightly reducing the impact of the valve when it returns to the seat. Making the valve return quietly to the seat, reduces friction, improves reliability and at the same time reduces valve train noise.
- Material Quality
Toda do not only pursue improvements in power output (via, mechanical design) but we also pursue material quality, in particular the relationship between the contact face of the cam, rocker arms and cam followers, so helping to reduce friction further. Toda also conduct research into the thermal process on the surface of the cam.
All this data forms the basis for the production of many prototypes where bench tests are carried out alongside actual racing. With everything done in house there is no room for compromise and so you can only benefit from Toda constant search for improved performance.
